Need help identifying Armoured Vehicles please

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,919
Reaction score
290
G'day gents
I've spent last night looking up Experimental/prototype armoured vehicles on the web!
I came across the following designs, which I can not positively identify their designation.
The experience and knowledge of the forum members would be greatly appreciated, and help with further research!
1. appears to be a Leopard 1 type derivative, with a 20-30mm co-axial cannon??
2. appears to be an early Soviet APC??
3. unknown Soviet combat engineering vehicle based on what looks like a ACRV IV-15 Armoured Command/Reconnaissance Vehicle??

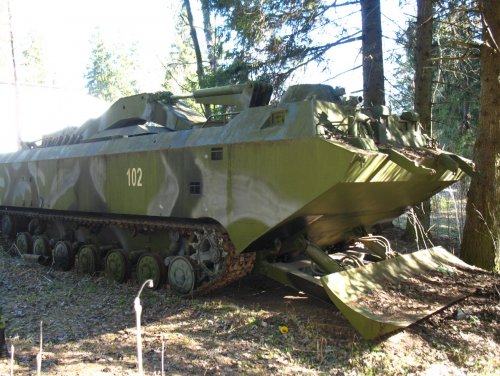

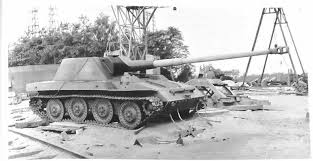

4. This appears to be a SPG/H of either Soviet (chassis) or German (turret & gun) origin??

More to follow ........

Regards
Pioneer


Attachments

  • Leopard 1 prototype, with co-axial 20mm cannon.jpg
    Leopard 1 prototype, with co-axial 20mm cannon.jpg
    88.4 KB · Views: 220
  • Unknown Soviet  APC prototype (possibly GT-R).jpg
    Unknown Soviet APC prototype (possibly GT-R).jpg
    909.3 KB · Views: 219
  • Unknown Soviet engineering vehicle.jpg
    Unknown Soviet engineering vehicle.jpg
    679.2 KB · Views: 201
  • Unknown SPH.jpg
    Unknown SPH.jpg
    24.5 KB · Views: 190

perttime

I really did change my personal text
Joined
Mar 30, 2013
Messages
136
Reaction score
23
Pioneer said:

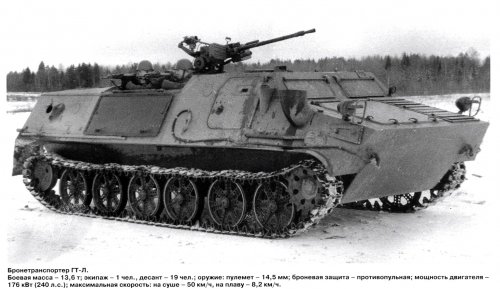

2. appears to be an early Soviet APC??
As far as I can make it out, photo caption identifies it as "бронетранспортер гт-л", "armoured transporter GT-L", or "BTR GT-L"

This page has small scans of Magazine articles, titled: "Dark story about the car GT-L (or GT-LB)":
http://pix009.livejournal.com/3197.html

It is mentioned in this Russian thread:
http://nacekomie.ru/forum/viewtopic.php?f=28&t=1390&start=160
Try Google Translate on it?


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,817
Reaction score
993
Pioneer said:

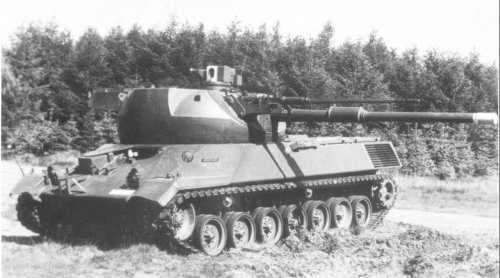

1. appears to be a Leopard 1 type derivative, with a 20-30mm co-axial cannon??


there were study by industry and Bundeswehr for use of dual arms for Tanks
next to the Cannon, a automatic cannon RH202 with 20 mm ammo
This could be a MBT70 prototype
index.php



source http://www.secretprojects.co.uk/forum/index.php/topic,680.60.html


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,919
Reaction score
290
Thank you gentleman for you're informative replies. They all make sense!!
Those pictures on the Soviet [font=]GT-R (or GT-LB) APC are fantastic perttime. I never knew this design existed (unfortunately the written information remains elusive, as I can't copy the documents too put it through Translate Google into english, to read what it says :'( ) Still this GT-R/GT-LB remains elusive on the web, as I'm unable to find out anything more about it :mad:
Now for the next unknown designs-

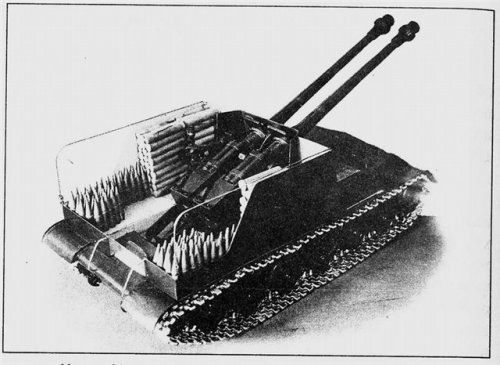

5. A drawing of what looks like a twin SPG design study. Possibly Russian or German (muzzles of guns look German!)
6. Unknown Soviet design - (possibly test vehicle for 'Object 279' Super heavy tank prototype (1957)??

More to follow.................

Regards
Pioneer[/font]


Attachments

  • Unknown twin-gun SPG design.jpg
    Unknown twin-gun SPG design.jpg
    66.3 KB · Views: 166
  • Unkown Soviet design - (possibly test vehicle for 'Object 279' Super heavy tank prototype (1957).jpg
    Unkown Soviet design - (possibly test vehicle for 'Object 279' Super heavy tank prototype (1957).jpg
    40.7 KB · Views: 39

moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
24
The Leo was called "Erprobungsträger mit 3-Achs Stabilisiertem Turm"
http://www.preservedtanks.com/Types.aspx?TypeCategoryId=400&Select=1
Many greetings


perttime

I really did change my personal text
Joined
Mar 30, 2013
Messages
136
Reaction score
23
Pioneer said:
Those pictures on the Soviet GT-R (or GT-LB) APC are fantastic perttime. I never knew this design existed (unfortunately the written information remains elusive, as I can't copy the documents too put it through Translate Google into english, to read what it says :'( ) Still this GT-R/GT-LB remains elusive on the web, as I'm unable to find out anything more about it :mad:
A little more googling ("Объект 12" "ГТ-Л") seems to reveal some more Russian forum threads - and a Russian Wikipedia article on the GT-L:
http://ru.wikipedia.org/wiki/%D0%93%D0%A2-%D0%9B

My Google translate, too, seems to insist on Translating the "Л" (L) as R ... and translating to Finnish

Edit: managed to get this out of Google Translate:

GT-LB (HBTU Index - Object 12) - Soviet tracked lightly armored armored personnel carrier. Developed in the design office of the Altai Tractor Plant. Not commercially produced.

History of creation

The work was started on the basis of the decision of the Council of Ministers of the USSR on April 2, 1954 and the Order of January 24, 1959. For the tests were made three prototypes that were sent for testing in NIII BT. The tests took place from January to March 1961. According to the results of the test samples were not taken on board. The main drawback was the weight machines, which significantly exceeds the set of tactical and technical requirements. Also, the fuel tanks were located too high on the sides of the crew compartment. Because of the uneven distribution of weight, the car felt unstable during the melt. In addition, there were problems with the ergonomic requirements. As a result, to fix all the comments had to completely change the design of the machine, so the 15 June 1963 the work on the car were closed. [1]
Description of construction

The function of a GT-R was the transportation of personnel, as well as the evacuation of the wounded. In addition, the GT-R was able to transport ammunition and weapons weighing up to 2.5 tons, and tow artillery systems weighing up to 6 tons. In the elements of design components and assemblies used by tractors AT-A, GT-T and the AT-T, as well as the BTR-50P. The machine frame is welded and provided protection from bullets and shrapnel. In front of the building houses the engine-transmission compartment. It was located behind the separation of management, which established the jobs of the driver, commander of the troops and the two shooters. In the middle and rear parts of the body were the troop compartment in which the seats were installed landing. Troopers could fire from handguns through 13 embrasures located in the body of the machine and in the rear hatches output [1].
Armament

The main armament is a 14.5-mm anti-aircraft machine gun KPVT. The machine gun was placed in front of the machine, in a unified anti-aircraft machine gun, developed by the design bureau of the Leningrad Kirov Plant [1].
Engine and transmission

In the GT-R was installed inline six-cylinder diesel engine 8D6, razvivavschy power up to 240 hp The machine is equipped with a manual transmission, which consisted of five-speed manual transmission, the main clutch and two final drives [1].
Chassis

For driving on terrain GT-R was used tracked mover with front drive wheels. Suspension - the individual, the torsion bar. Maximum road speed was 50 km / h For the movement afloat were two jet. Swimming speed could be up to 8.2 km / h [1].


Combat weight, t 13.6
Crew. 1
Troopers, pers. 19
History
Developer ATZ
Manufacturer of the Union of Soviet Socialist Republics
Years of development from 1959 to 1963
Years: 1960
The number of issued, pieces. 3
Booking
Type of armor bulletproof
Armament
Guns 1 x 14.5 mm KPVT
Mobility
Engine Type 8D6
Engine power, hp. s. 240
Speed, km / h 50
Cross-country speed, km / h 8.2 afloat
Cruising on the highway, 450 km
Suspension individual torsion
Ground pressure, kg / cm ² 0,39
Fording, m swim


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,919
Reaction score
290
Thank you Perttime your find and contribution to my search for the GT-L (GT-R (or GT-LB) APC) is greatly appriciated and helpful!
The search goes on!!!!
Very interesting to note that the design as stated, carried 19 x troops! It doesn't look big enough to do so :eek:

Regards
Pioneer


aam641

One needs a personality to have a personal text!
Joined
Dec 27, 2011
Messages
107
Reaction score
6
Pioneer said:

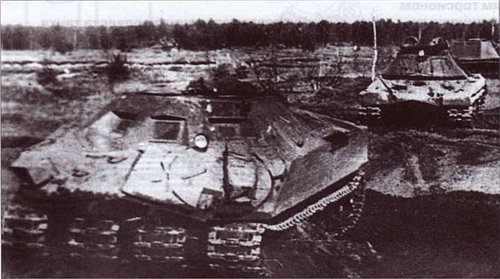

3. unknown Soviet combat engineering vehicle based on what looks like a ACRV IV-15 Armoured Command/Reconnaissance Vehicle??


This is some version of the MT-T multipurpose transporter. T-64 suspension with an extra road wheel, but with engine up front, is a fairly distinctive setup.


aam641

One needs a personality to have a personal text!
Joined
Dec 27, 2011
Messages
107
Reaction score
6
Pioneer said:

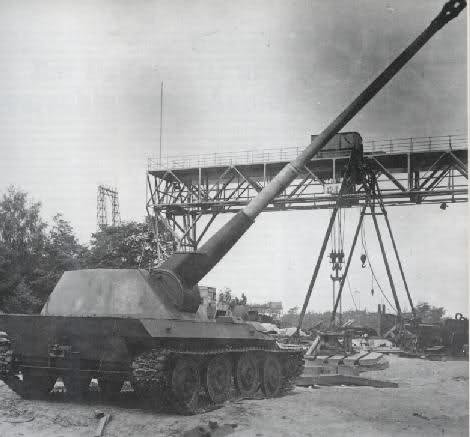

6. Unknown Soviet design - (possibly test vehicle for 'Object 279' Super heavy tank prototype (1957)??


Google traced the picture to two websites (1) (2) identifying it as 1952 "VN II-100 Transporter".


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,919
Reaction score
290
AdamF said:
Pioneer said:
3. unknown Soviet combat engineering vehicle based on what looks like a ACRV IV-15 Armoured Command/Reconnaissance Vehicle??


This is some version of the MT-T multipurpose transporter. T-64 suspension with an extra road wheel, but with engine up front, is a fairly distinctive setup.

Thanks my friend.
It has always amazed me in the Soviets/Russians ability to design and field such practical and purposeful vehicles. Such a program as this would probably most likely end up overly complex and way over budget.

Regards
Pioneer
