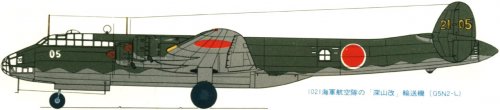

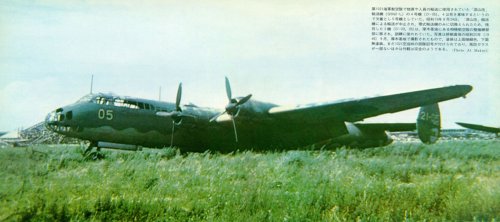

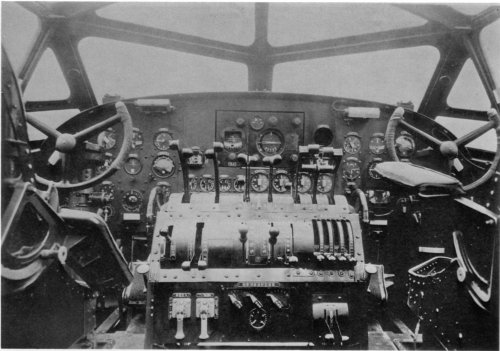

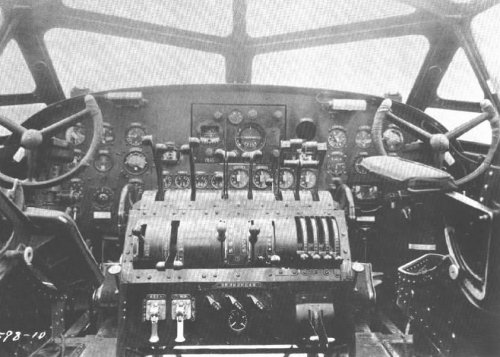

Hi! G5N2-L. Modified Shinzan transport.



[blackkite]

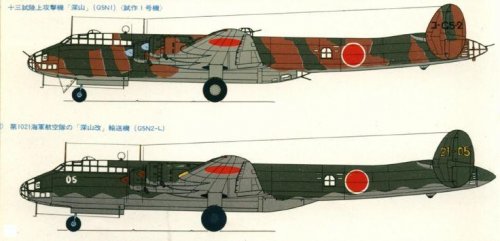

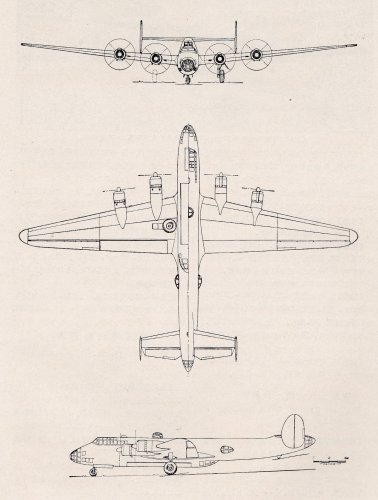

Experimental Shinzan G5N1
Overall length : 31.02m
Span : 42.14m
Height : 6.13m
Wing area : 201.80m2
Empty weight : 20,100kg
Gross weight : 28,150kg
Engine : Nakajima Mamoru 11 type 14 cylinders air-cooling radial x 4(Mamoru engine suffered many troubles)
Power : 1,870hp
Maximum speed : 420.4km/h
Range : 4259.6km
Service ceiling : 9,050m
Armament 20mm cannon x 2.
7.7mm machine gun x 4
Bomb : 3000 kg or a torpedo x 2.
Crew : 7
Number of production : 4, later two aircraft were converted into transport type

Experimental Shinzan-kai G5N2
gross weight :32,000kg
Engine : Mitsubishi Kasei 12 type 14 cylinders air-cooling radial x 4
Power : 1,530hp
Maximum speed : 407.4km/h
Range :4,630km
Number of production : 2, later two aircraft were converted into transport type
Other items are same as Shinzan



[blackkite]

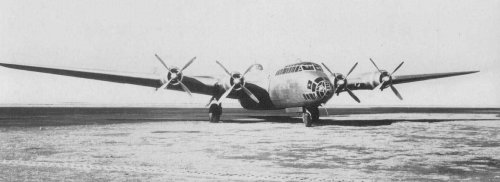

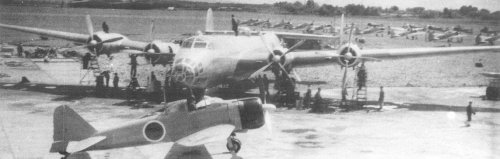

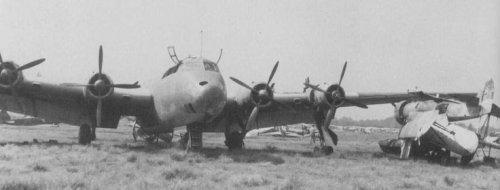

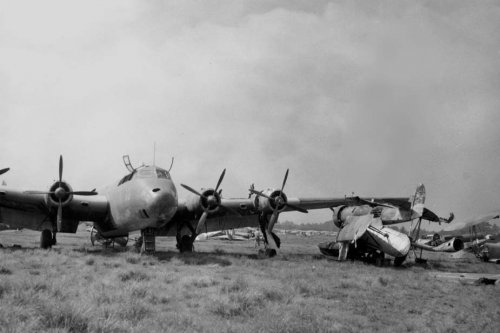

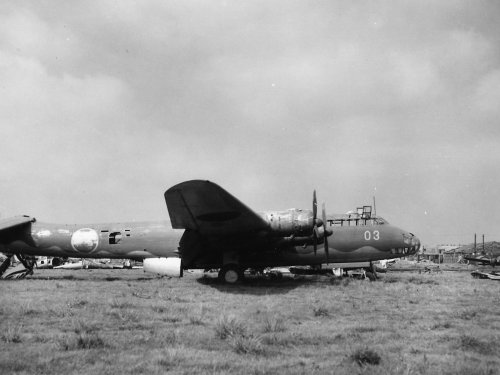

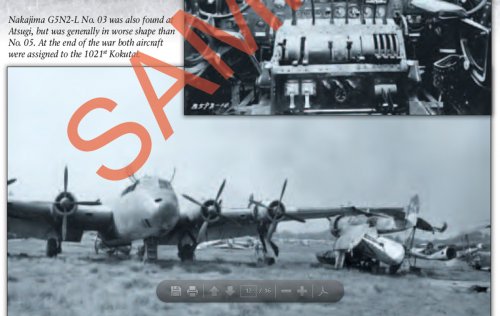

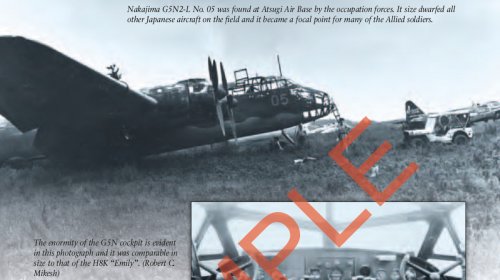

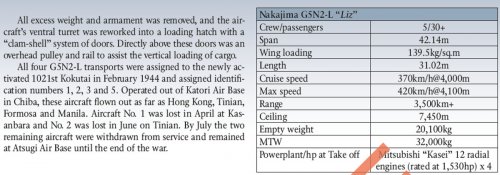

G5N2-L pictures. Enjoy.



[blackkite]

Hi!
http://www.ijnafphotos.com/jbwg5n1.htm



[blackkite]

Hi!

https://www.youtube.com/watch?v=sVEc7a6ZdLQ



[blackkite]

I got this book recently, and got some good informaton.
(Famous aircraft of the world No.90 Shinzan/Renzan(深山/連山), October 1977, Bunrin Do)
I will post those information near future.



[blackkite]

Experimental Shinzan G5N1
Overall length : 31.015m
Span : 42.135m
Height : 6.13m
Wing area : 201.80m2
Empty weight : 20,100kg
Gross weight : 28,150kg
Engine : Mitsubishi Kasei 12 type 14 cylinders air-cooling radial x 4
Take off power : 1,530hp
Maximum speed : 392km/h
Range : 3,528km(Attack mission)/5,162km(Reconnaissance mission)
Service ceiling : 9,050m
Armament 20mm cannon x 2.
7.7mm machine gun x 4
Bomb : 3000 kg or a torpedo x 2.
Crew : 7
Number of production : 2

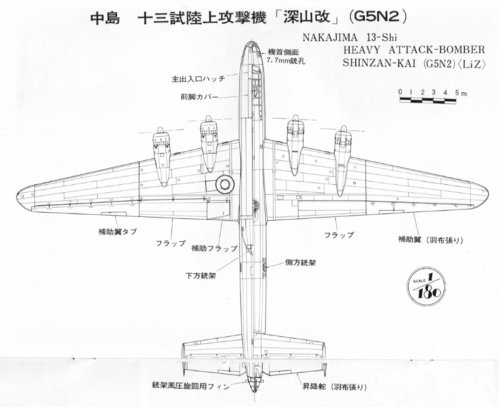

Experimental Shinzan-kai G5N2
gross weight :32,000kg
Engine : Nakajima Mamoru 11 type 14 cylinders air-cooling radial x 4.
Take off power : 1,870hp
Maximum speed : 420km/h
Range: 4,190km(Attack mission)/7,760km(Reconnaissance mission)
Other items are same as Shinzan
Numner of production : 4, later three aircraft were converted into transport type(G5N2-L)



[blackkite]

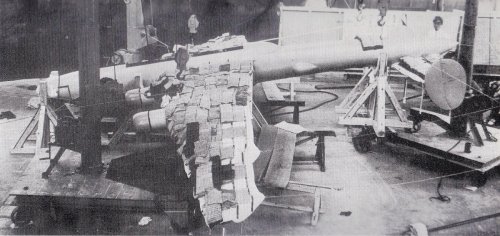

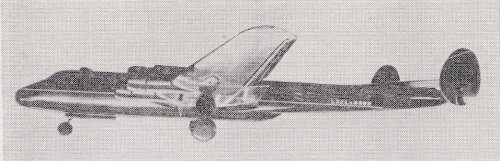

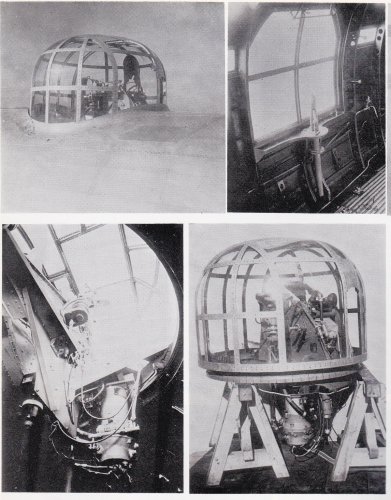

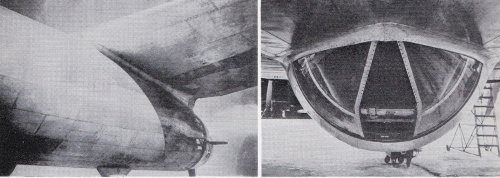

Hi! Sinzan half size strength test model.
You can see blister type side gun emplacement and chief designer Kenichi Matsumura at the tail of the model in the first picture.
This blister type side gun emplacement was not selected for production model by full scale mock up inspection.
You can see Shinzan full scale mock up in the second picture.



[blackkite]

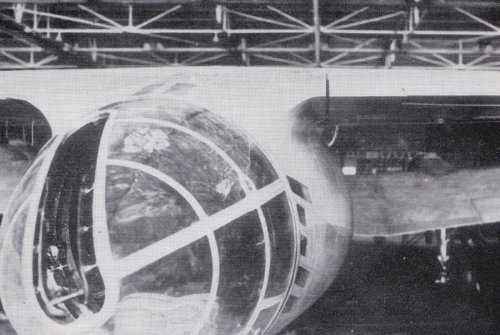

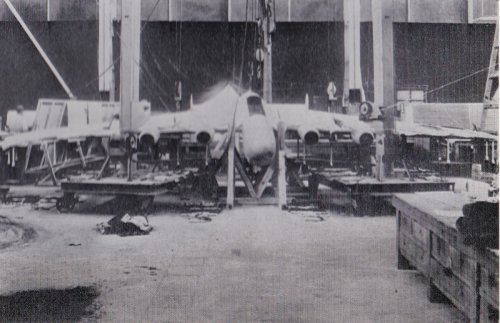

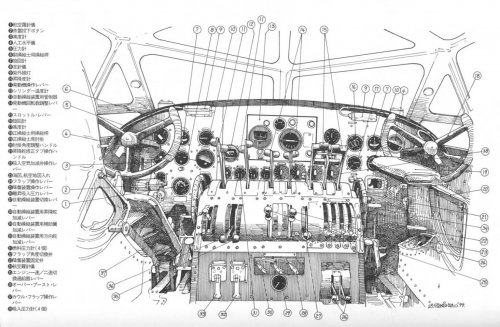

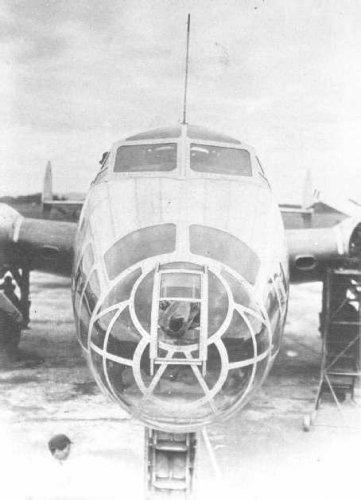

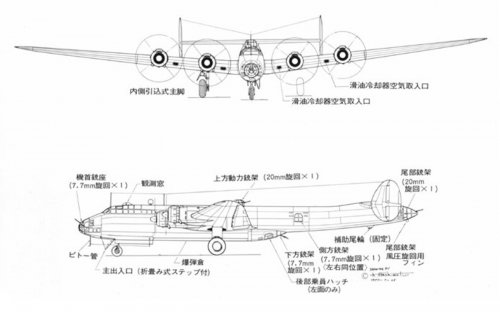

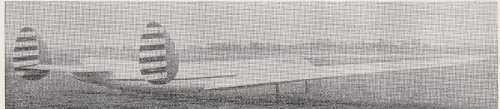

Hi! Shinzan wind tunnel test model and bicycle towed glider for Shinzan landing system test.
And other Shinzan pictures. Enjoy!
