NAF Float Wing Convoy Interceptor

[Orionblamblam]

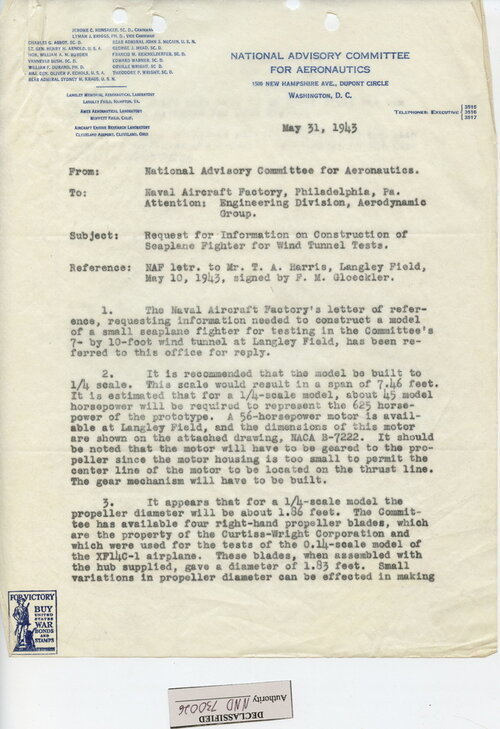

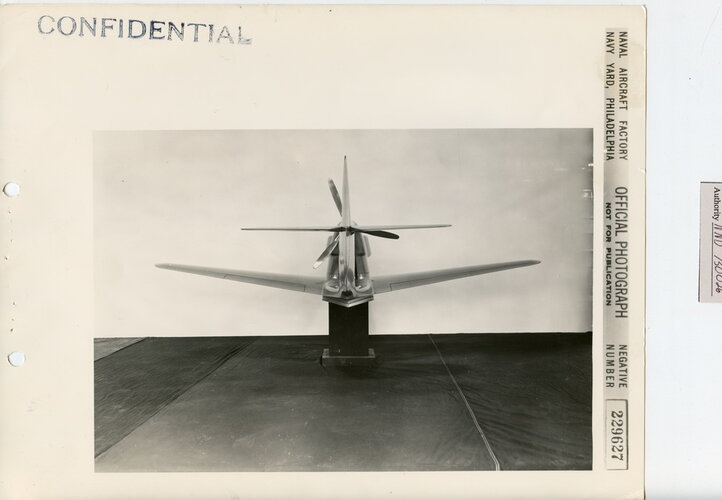

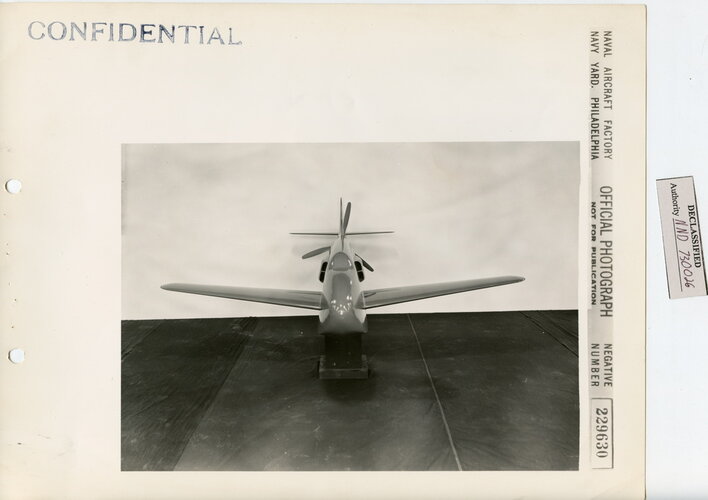

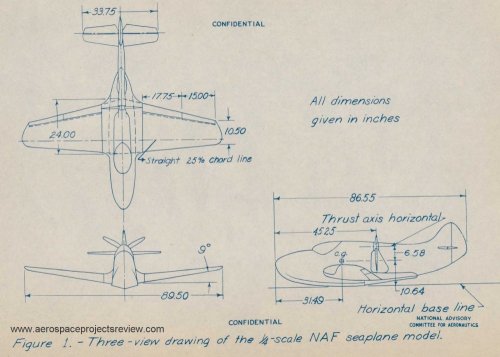

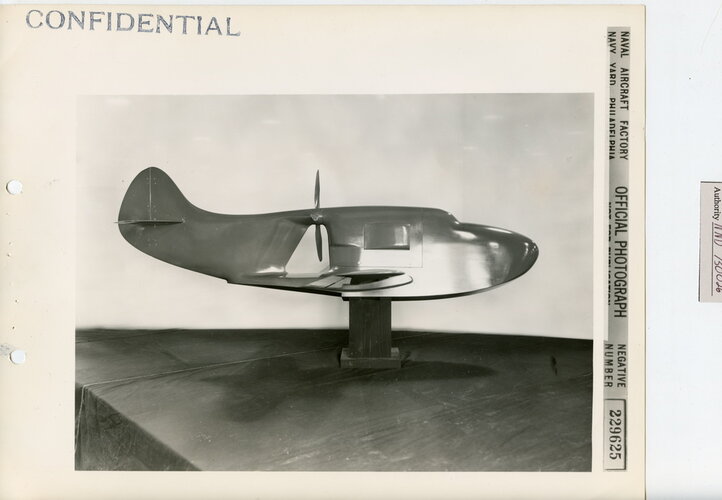

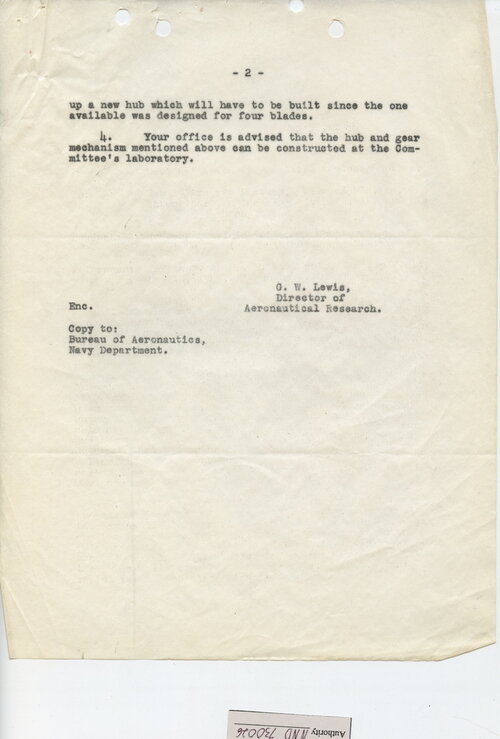

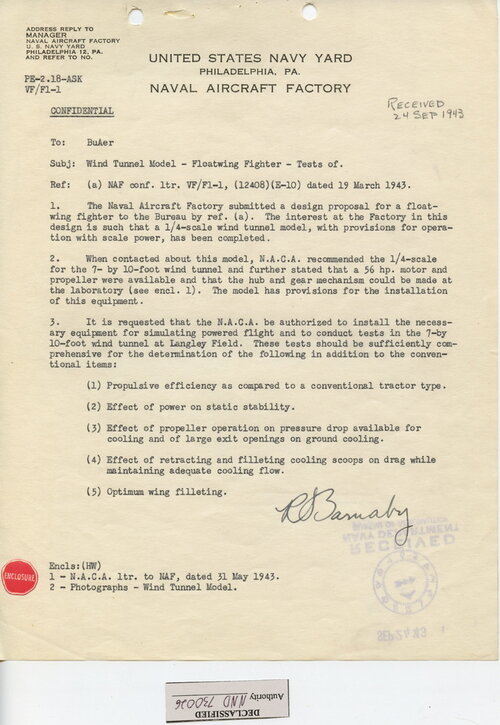

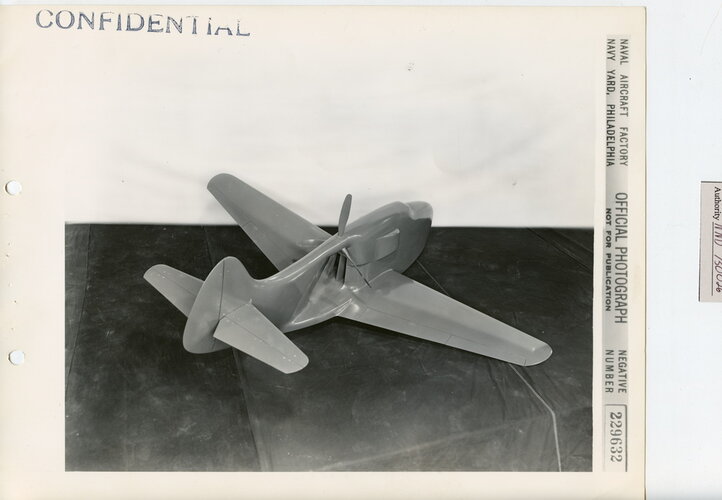

While from a 1947 NACA wind tunnel report, this is almost certainly a wartime design. I've posted some other images & info here: http://www.aerospaceprojectsreview.com/blog/?p=482



[Stargazer]

Fascinating project, and one I had never seen before. Thanks for sharing!

Did the Naval Aircraft Factory still exist in 1947, anyway? Wikipedia says: "The NAF ended aircraft production in early 1945." So surely it MUST be a wartime design!



[Orionblamblam]

So surely it MUST be a wartime design!

Almost certainly. Might be in the wrong forum. I just went off the report date.

By '47, both the design and the role were quite obsolete.
