Mutato UBS E-2C - NASA Ames style

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,103
Reaction score
1,072

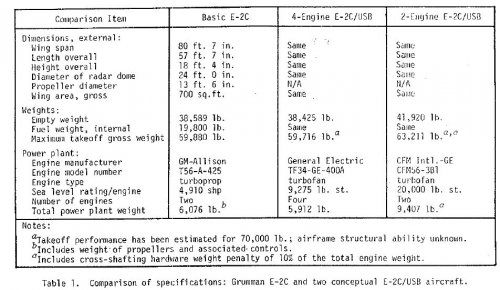

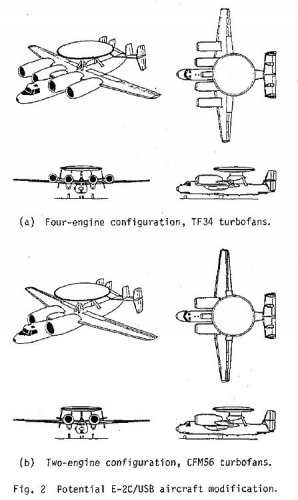

Offered E-2C derivatives based on QSRA test results

Source
AIAA-86-2694
Performance Studies on the Application of Four-Engine and Two-Engine USB Propulsive Lift to the E-2C Aircraft
Dennis W. Riddle and Victor C. Stevens
NASA Ames Research Center
Moffett Field, California

AIAAIAHS/ASEE Aircraft Systems, Design & Technology Meeting
October 20-22 1986/Dayton, Ohio


Attachments

  • E-2C_USB_1986_1.jpg
    53 KB · Views: 174
  • E-2C_USB_1986_2.jpg
    114.2 KB · Views: 121
