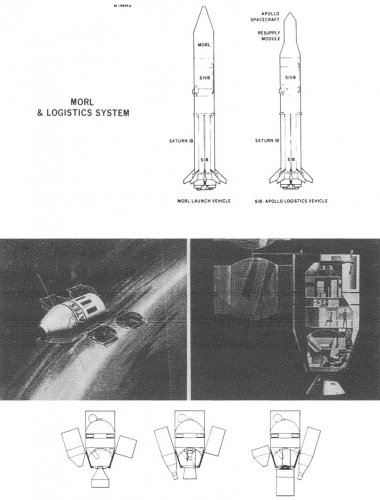

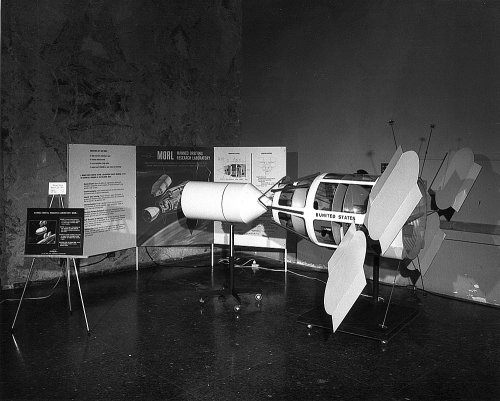

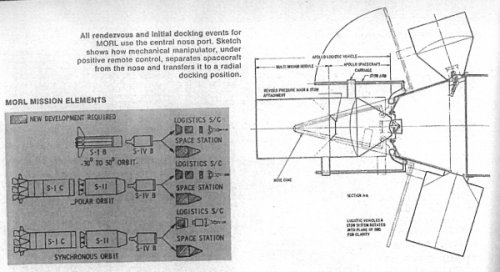

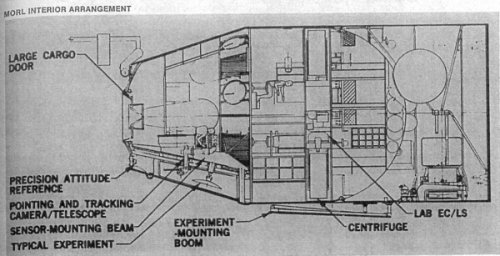

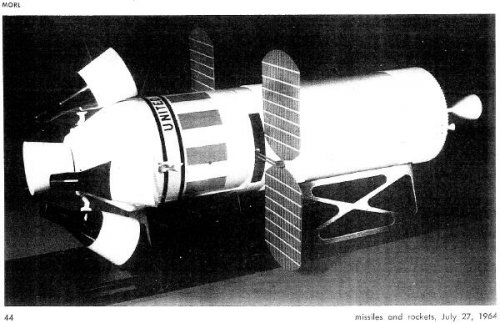

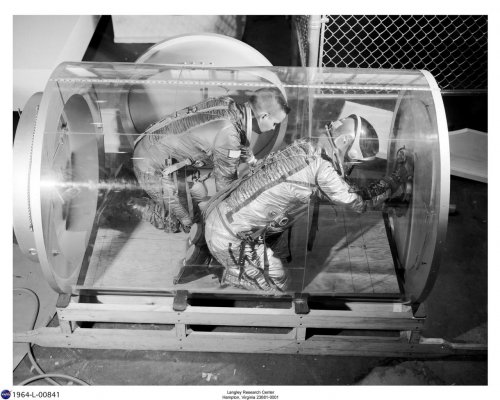

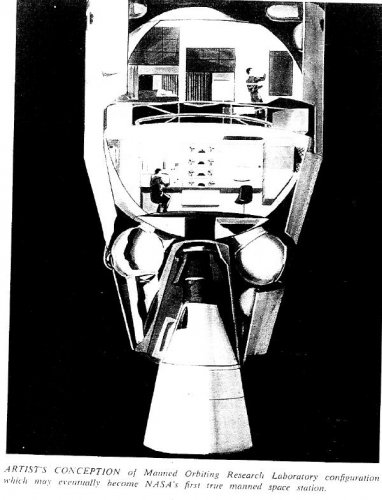

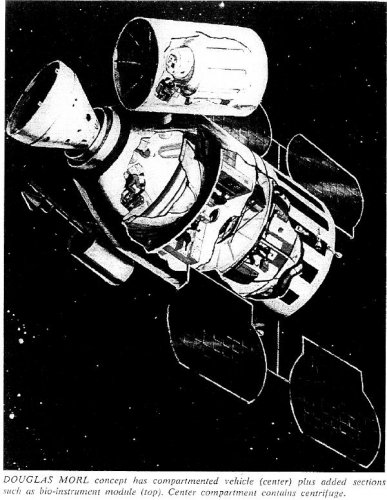

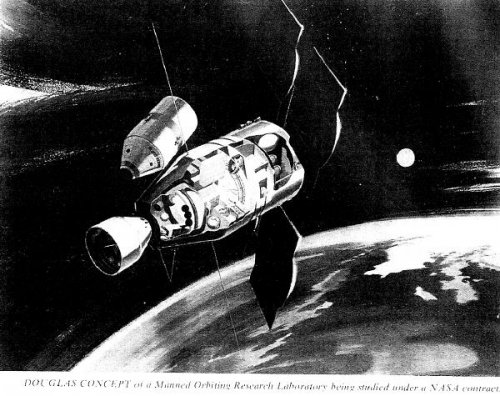

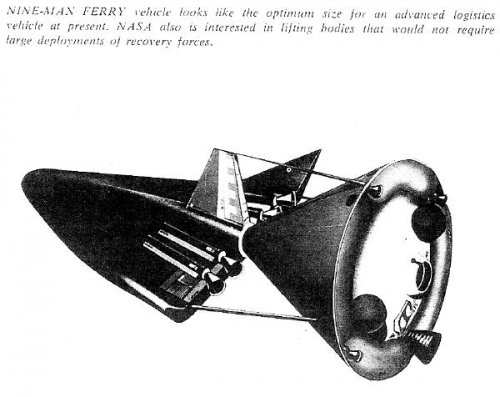

NASA Manned Orbital Research Laboratory.


Attachments

  • scan0010 (2).jpg
    scan0010 (2).jpg
    76.1 KB · Views: 380
  • scan0019 (2).jpg
    scan0019 (2).jpg
    80.8 KB · Views: 369
  • scan0021 (2).jpg
    scan0021 (2).jpg
    72.5 KB · Views: 401
  • scan0022 (2).jpg
    scan0022 (2).jpg
    97.9 KB · Views: 362

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,877
Reaction score
216
brief history of MORL at astronautix.com:-

http://www.astronautix.com/craft/morl.htm

cheers,
Robin.


Barrington Bond

CLEARANCE: Top Secret
Senior Member
Joined
May 4, 2007
Messages
929
Reaction score
80

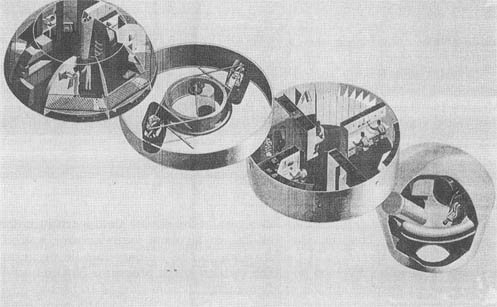

Some different designs.


Attachments

  • scan0020 (2).jpg
    scan0020 (2).jpg
    72.5 KB · Views: 100
  • scan0012 (2).jpg
    scan0012 (2).jpg
    87.1 KB · Views: 104
  • scan0015 (2).jpg
    scan0015 (2).jpg
    98.1 KB · Views: 80
  • scan0013 (2).jpg
    scan0013 (2).jpg
    51.8 KB · Views: 310

archipeppe

CLEARANCE: Top Secret
Joined
Oct 18, 2007
Messages
1,661
Reaction score
288
Really nice pictures Barrington, many thanks!!

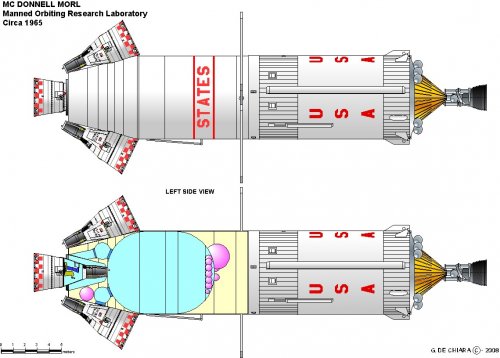

I enclose my personal contribution about this interesting topic.


Attachments

  • MORL.jpg
    147.3 KB · Views: 181

Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,609
Reaction score
593
Thanks Barrington
by way the Picture Scan0015 0012 show LORL study
and Scan0020 is a Wet Orbital Workshop wrong label as MORL

here Picture from my Databank
note the last picture

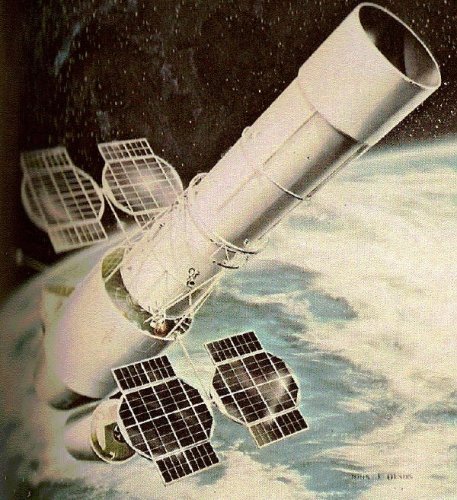

MORL with Big Space Telescope in size of Hubble ST !
Boeing study for Low Orbital MORL and GEO MORL


Attachments

  • p300a.jpg
    28.3 KB · Views: 131
  • p298a.jpg
    143.7 KB · Views: 151
  • p296b.jpg
    30.6 KB · Views: 108
  • MORL01.jpg
    247.8 KB · Views: 102

Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,609
Reaction score
593
Note on MORL Program

there were proposal for Low Orbit Station launch by Saturn IB
Resupply by Saturn IB (Apollo or Gemini Ferry) or Titan II (Gemini Small Ferry)
and Geostationary orbit Launch by Saturn V (also Resupply)

the S-IVB stage on MORL is for Artificial gravity Experiment
and is connected by a cable to be a counterweight
see picture p300a.jpg on top over MORL Project. there model of Artificial gravity Experiment

here were proposal to use MORL hardware for Manned Mars Fly, Mars Mission Module
I don't know of Lunar MORL concept (like Lunar Skylab ( Wet Orbital Workshop design))
has some info on that ?


Attachments

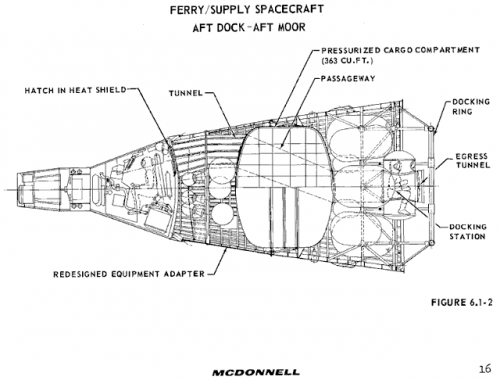

  • Gemini-Ferry.png
    27 KB · Views: 4,602

Barrington Bond

CLEARANCE: Top Secret
Senior Member
Joined
May 4, 2007
Messages
929
Reaction score
80
Michel,

what does Wet Orbital Workshop mean? It just said vacuum laboratory possibly using a MORL module in the text...

Regards,
Barry

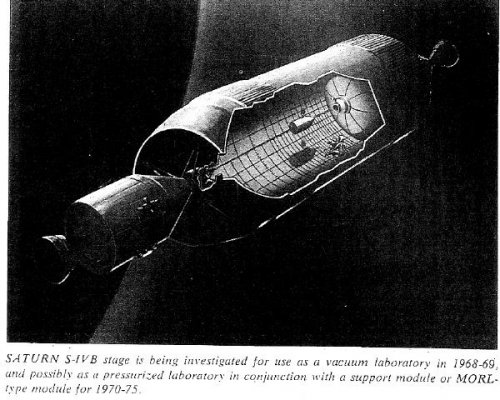

this looks a bit dodgy to me with those struts!


Attachments

  • scan0020 (3).jpg
    scan0020 (3).jpg
    49.1 KB · Views: 110

Orionblamblam

CLEARANCE: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,851
Reaction score
1,054
Website
www.aerospaceprojectsreview.com
Barrington Bond said:
what does Wet Orbital Workshop mean?

It means that the workshop starts life as a series of propellant tanks, actually filled with propellant. Once in orbit, the tanks are vented to get rid of any remaining propellant, and the "stuff" is moved in. It's much more labor-intensive than a "dry" workshop (like Skylab), but it gets a much bigger payload weight.


Barrington Bond

CLEARANCE: Top Secret
Senior Member
Joined
May 4, 2007
Messages
929
Reaction score
80

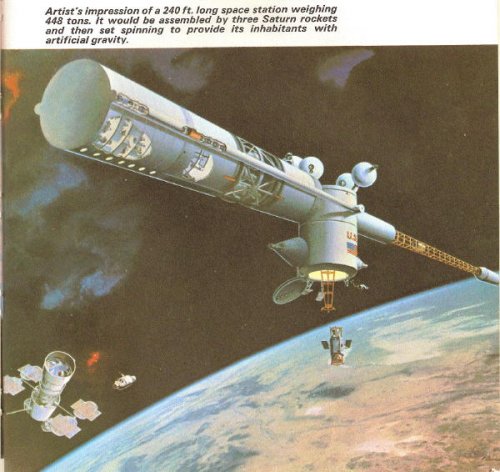

Only just noticed in this BIG space staion picture is a MORL in the corner...


Attachments

  • scan0032 (2).jpg
    scan0032 (2).jpg
    66.7 KB · Views: 167
  • scan0032 (3).jpg
    scan0032 (3).jpg
    53.4 KB · Views: 111

Barrington Bond

CLEARANCE: Top Secret
Senior Member
Joined
May 4, 2007
Messages
929
Reaction score
80
Michel,

picture P298a looks like it has MOL modules docked to it!

Regards,
Barry


Attachments

  • scan0045 (2).jpg
    scan0045 (2).jpg
    131.9 KB · Views: 94

Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,609
Reaction score
593
no that a space Telecope in size of Hubbel !

that is a Boeing study for MORL telescope
A SYSTEM STUDY OF A MANNED ORBITAL TELESOOPE
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19660017399_1966017399.pdf
is 20 MB big
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19660017557_1966017557.pdf
is 14 mb big


archipeppe

CLEARANCE: Top Secret
Joined
Oct 18, 2007
Messages
1,661
Reaction score
288
In the Barrington's first scan it's easy to see two Big Geminis docked with the huge space station's hub....


Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,609
Reaction score
593
archipeppe said:
In the Barrington's first scan it's easy to see two Big Geminis docked with the huge space station's hub....

are you sure ?
so far i know
"Big G" was planned in 1967 and for MORL was Gemini Ferry proposed in 1963
or i m wrong ?


archipeppe

CLEARANCE: Top Secret
Joined
Oct 18, 2007
Messages
1,661
Reaction score
288
Michel Van said:
are you sure ?
so far i know
"Big G" was planned in 1967 and for MORL was Gemini Ferry proposed in 1963
or i m wrong ?

Definitely yes.
See the image and look at the two vehicle attached on central hub (where is written "USA" and the flag).
They are Gemini of course but bigger than the average one, see how it is little the forward part compared to the rest (and take for comparison a picture of an acutal Gemini), furthermore add the rear docking system and you will have a Big Gemini.

Two hypotesis on that:
1) Is it right the date of the drawing (1963)??
2) Could it be a Big Gemini ancestor (like Gemini observatory and so on)??
3) The drawer has wrong the Gemini's proportions (it is fairly unlikely....).


Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,609
Reaction score
593
now i get it archipeppe

you mean scan0032 (2).jpg
i had understud first scan picture scan0010.jpg on top ::)

back to scan0032 (2).jpg
yes that are Big G
so far i know is this a illustration from a 1970s Space book for children

based on real design for Space Base with Artificial Gravity
use a nuclear reactor as counter weight


archipeppe

CLEARANCE: Top Secret
Joined
Oct 18, 2007
Messages
1,661
Reaction score
288
Michel Van said:
back to scan0032 (2).jpg
yes that are Big G
so far i know is this a illustration from a 1970s Space book for children

based on real design for Space Base with Artificial Gravity
use a nuclear reactor as counter weight

Exactly!!! :D


Barrington Bond

CLEARANCE: Top Secret
Senior Member
Joined
May 4, 2007
Messages
929
Reaction score
80
:)


Attachments

  • scan0033a.jpg
    158.3 KB · Views: 148
  • scan0025a.jpg
    59.3 KB · Views: 728
  • scan0024a.jpg
    107.5 KB · Views: 145
  • scan0023b.jpg
    110.3 KB · Views: 159
  • scan0023a.jpg
    118 KB · Views: 165

Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,609
Reaction score
593

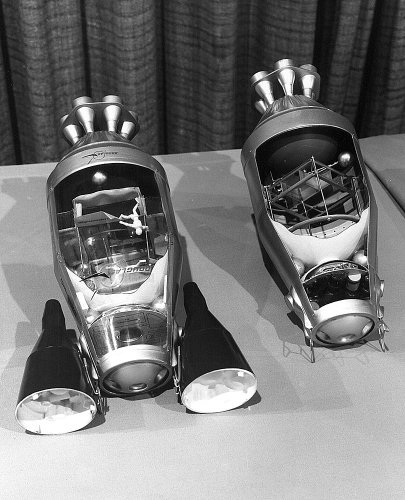

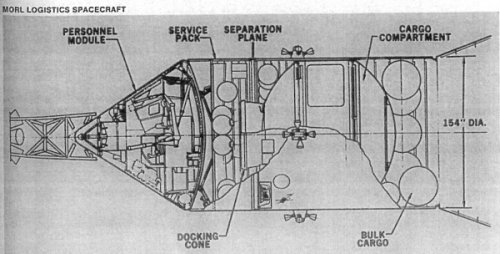

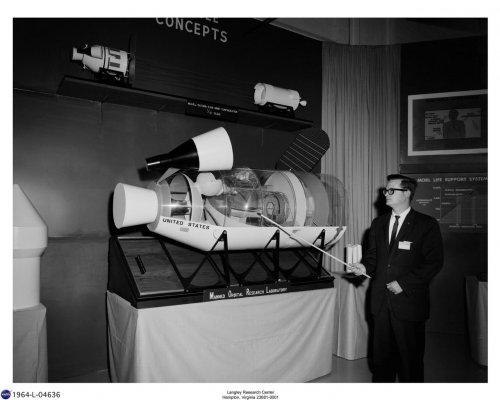

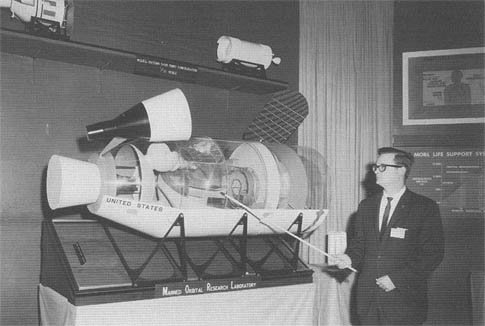

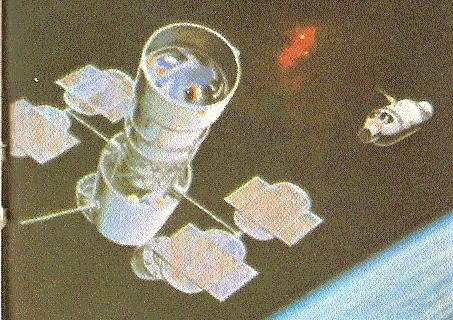

That must NAA Apollo ferry for MORL !

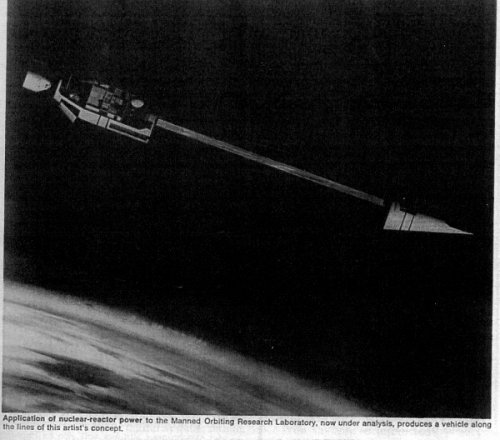

new to me is MORL with nuclear reactor
is that for artificial gravity experiment ?

thanks for picture Barrington Bond


magnus_z

CLEARANCE: Confidential
Joined
Aug 15, 2009
Messages
115
Reaction score
14
Michel Van said:
based on real design for Space Base with Artificial Gravity
use a nuclear reactor as counter weight
I cannot find the information on this space station...
:'(
http://fandom.rusf.ru/about_fan/stamps/yemen_ar_1971_space70_silverperf.jpg
On an illustration it is written: "Project McDonnel Douglas, USA. Planned for 1975-1980".
I think that it is an error.
Whose is the project?..
???


Proponent

CLEARANCE: Confidential
Joined
Aug 12, 2008
Messages
57
Reaction score
1
magnus_z said:
On an illustration it is written: "Project McDonnel Douglas, USA. Planned for 1975-1980".
I think that it is an error.
Whose is the project?..

An interesting set of stamps, especially coming from Yemen!

Some of the stations shown may well have been McDonnell-Douglas proposals, but they're not all from McDonnell-Douglas. The one at the top right, for example, is von Braun's proposal from the 1950s. Note that some are identified as originating from Boeing too. Other firms that might have proposed some of these include North American and Lockheed.


OM

CLEARANCE: Top Secret
Joined
Jun 22, 2008
Messages
753
Reaction score
11
Website
www.io.com
Proponent said:
An interesting set of stamps, especially coming from Yemen!

...During the 60's and up through the mid-70's, a lot of those Middle East and African third-world countries were releasing all sorts of gimmick stamps, Those from Bhutan were probably the most sought-after ones, with a whole series of space commemorative stamps that were like the old 3D lenticular baseball cards, as well as the first - and IIRC the only - stamps made out of 100% US Steel. Bhutan also released a series of stamps that were 45rpm vinyl records, others that were scented, or made of silk, and even bas-relief ones - which no doubt choked on the collators if someone was stupid enough to actually *use* them as a postage stamp! Of late, I even hear they're going to release the first CD-ROM postage stamp.

...Tonga was another country that produced some oddball stamps, releasing a set printed on gold leaf, while Umm-Al-Quwain released at least one on silver leaf, and Qatar did two pairs of each! On the cheaper side, Portugal released one printed on thin cork. The Swiss released one that was embroidered on fabric, the Austrians did one on the same material soccer balls are made out of, and a couple of years ago they released a stamp that had meteorite dust ground and mixed with the inks.

...Still, when you get down to it, Bhutan and Liechtenstein were for a good number of years two countries whose stamps were pretty much equally prized by philatelists everywhere. The former for the weird stuff, the latter because that's the only export industry they had, which makes the Duchy of Grand Fenwick seem like at least a second-world power by comparison! :p :p :p


OM

CLEARANCE: Top Secret
Joined
Jun 22, 2008
Messages
753
Reaction score
11
Website
www.io.com
XP67_Moonbat said:
MOUSE ON THE MOON, yes! I liked that movie!

...It's been a favorite of the ssh regulars for quite some time. Especially since the "seat" in the Russian rocket looks a *LOT* like what Laika was stuffed into.


magnus_z

CLEARANCE: Confidential
Joined
Aug 15, 2009
Messages
115
Reaction score
14
OM said:
Proponent said:
An interesting set of stamps, especially coming from Yemen!

...During the 60's and up through the mid-70's, a lot of those Middle East and African third-world countries were releasing all sorts of gimmick stamps

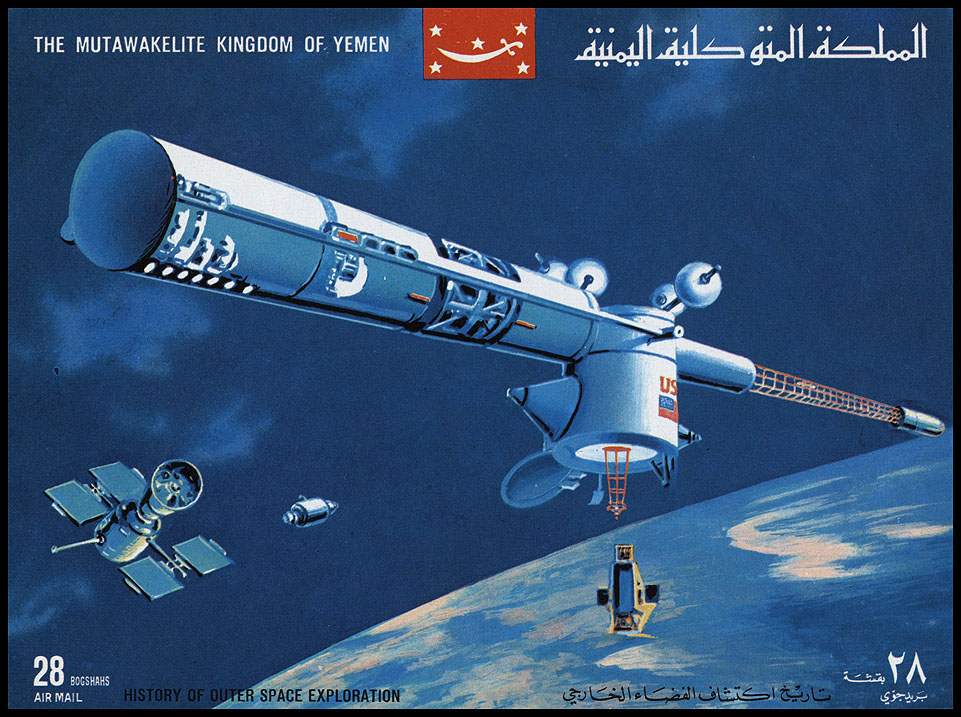

This space station on postage stamps:









"Postage stamp" of the nonexistent country:



Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
480
Website
deeptowild.blogspot.com
As part of NASA's post moon-landing plans, Boeing was asked to design a space station that could be used as an Orbital Launch Facility (OLF) for lunar ferry missions in support of a permanent Lunar base and manned missions to Mars and Venus.

The OLF was a nuclear powered cylindrical station built around two MORLs joined back-to-back and could be launched by a single Saturn INT-21. The station would be supported by two craft, the manned Apollo Logistics Module, a CSM modified to carry a six-man crew and logistics cannisters and an unmanned fuel tanker which would carry the fuel used by the modified S-II stage, which boosted the lunar ferries and manned expeditions out of Earth Orbit.
http://nassp.sourceforge.net/wiki/Future_Expansion


Attachments

  • OLF_in_Operation.png
    212.8 KB · Views: 98

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
480
Website
deeptowild.blogspot.com

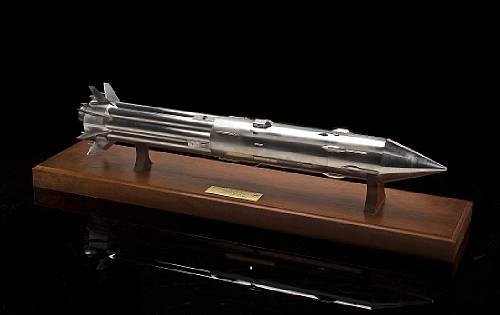

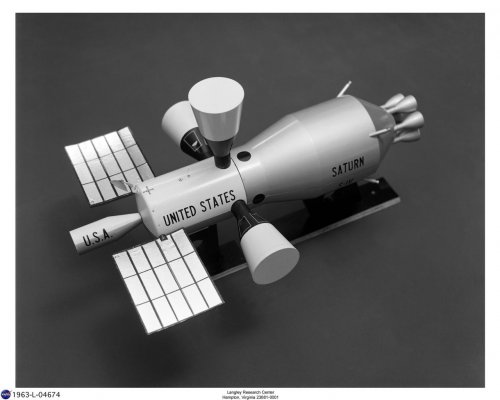

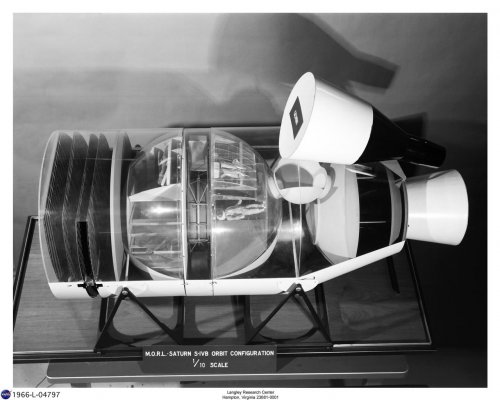

MORL-Saturn IB wind tunnel model found at the Bonhams Auction House website.

URL: http://www.bonhams.com/cgi-bin/public.sh/pubweb/publicSite.r?sContinent=USA&screen=lotdetailsNoFlash&iSaleItemNo=4568893&iSaleNo=17778&iSaleSectionNo=1

Description:
Lot No: 1133
MORL-SATURN IB WIND TUNNEL MODEL.

Model of the MORL-Saturn IB launch combination, stainless steel, 31 inches long. Mounted horizontally on wood base, with NACA/NASA brass plaque reading: "Presented to Thomas C. Kelly from his friends at Langley Research Center, 1979."

A large and striking model of a space station concept. The Manned Orbital Research Laboratory (MORL) was conceived in 1963 as a laboratory for a program of biomedical, scientific and engineering experiments. It would be launched in one piece atop a Saturn I or IB, and would accommodate one crew member for a whole year, with three other astronauts visiting for shorter periods (Hansen, Spaceflight Revolution, 1995, p 293). A 1965 NASA photograph appears to show this very model being tested in the 8-foot transonic tunnel at the Langley Research Center. The MORL concept was scrapped soon after in favour of the cheaper, smaller and less permanent Apollo Extension System, which became the Apollo Applications Program and ultimately Skylab (launched in 1973).

Thomas Kelly was a senior research scientist at Langley specializing in aerodynamics, the Project Engineer for the Supercritical wing project, and the author of several NASA publications.

Estimate: $10,000 - 15,000

Added from “Found on Ebay” thread


Attachments

  • MORLSaturn.jpg
    18 KB · Views: 57

The Artist

CLEARANCE: Top Secret
Senior Member
Joined
Nov 2, 2009
Messages
629
Reaction score
243

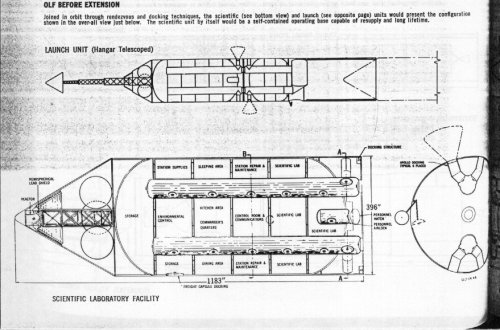

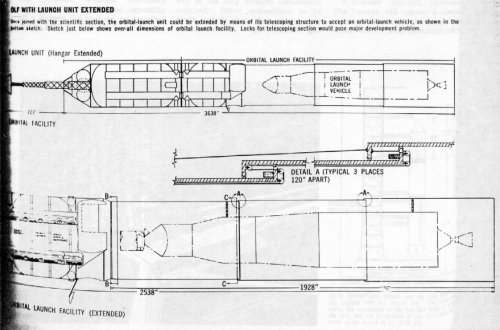

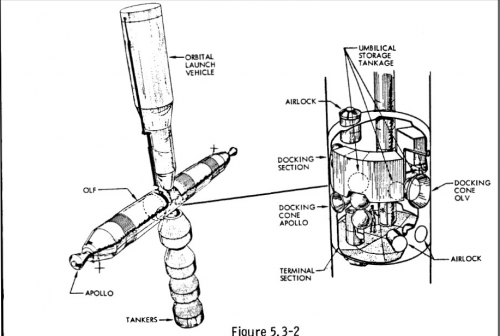

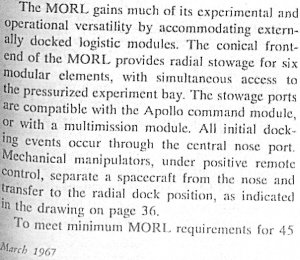

Here is a different concept for the Orbital Launch Facility. This is from Astronautics & Aerospace Engineering (I can't make out the date in my photo copy of the article - March of either 1963 or 1968 and I'm leaning toward 1968. The article was copied from a bound volume of the magazine.)


Attachments

  • orbital launch facility 1.jpg
    orbital launch facility 1.jpg
    432.7 KB · Views: 79
  • orbital launch facility 2.jpg
    orbital launch facility 2.jpg
    389.2 KB · Views: 83

Mark Nankivil

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,618
Reaction score
429
Greetings All -

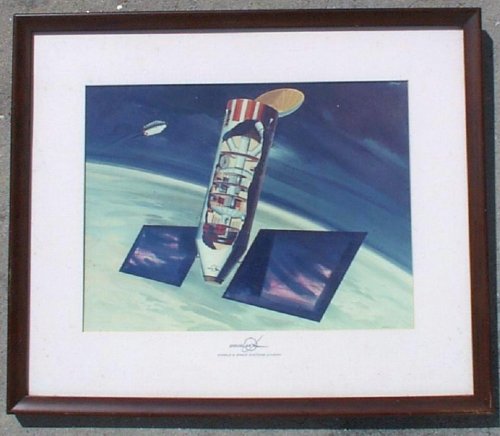

On EPay:

http://www.ebay.com/itm/vintage-Douglas-Aircraft-concept-art-Outer-Space-Station-Rocket-Ship-/360405822793?pt=LH_DefaultDomain_0&hash=item53e9dc6d49

Enjoy the Day! Mark


Attachments

  • sp00.JPG
    74.6 KB · Views: 80

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
480
Website
deeptowild.blogspot.com

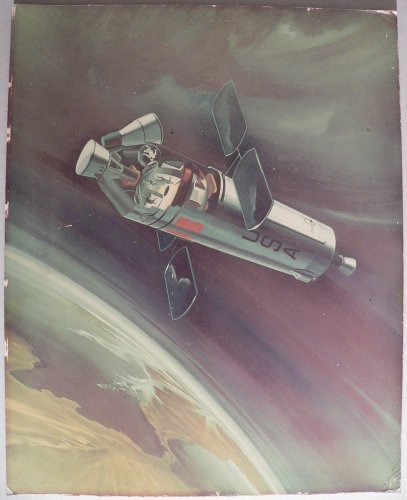

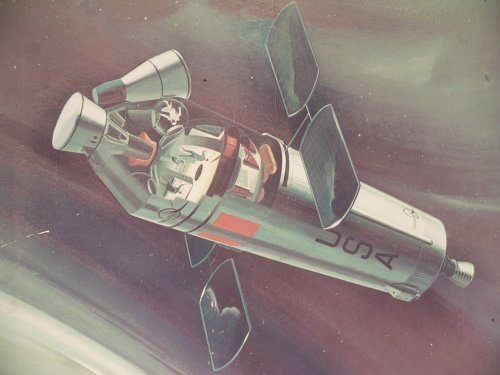

Douglas space station concept photo found on eBay.

URL:
http://www.ebay.com/itm/Douglas-Aircraft-Company-Skylab-Space-Station-Vintage-Concept-Photo-NASA-RARE-/261195692975?pt=LH_DefaultDomain_0&hash=item3cd079fbaf


Attachments

  • $T2eC16dHJHIE9nysfB4(BRNVpuBWSw~~60_57.JPG
    422.3 KB · Views: 85
  • $T2eC16RHJGoE9nuQfSeyBRNVp8sEzQ~~60_57.JPG
    356.6 KB · Views: 77
  • $T2eC16RHJHYE9nzpdUzuBRNVqNdQQQ~~60_57.JPG
    489.4 KB · Views: 50
  • $T2eC16RHJGIE9nnWqyMDBRNVqeh3bQ~~60_57.JPG
    533.7 KB · Views: 31

archipeppe

CLEARANCE: Top Secret
Joined
Oct 18, 2007
Messages
1,661
Reaction score
288

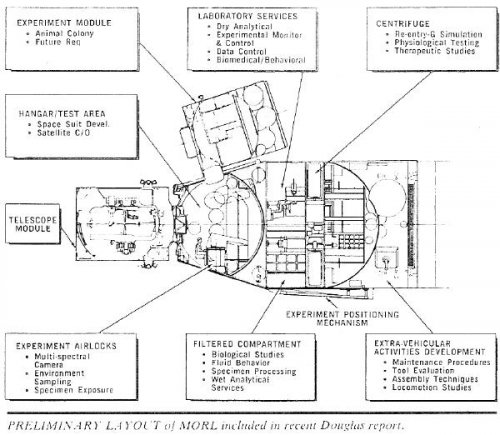

It is definitely a MORL design.


Many thanks for such interesting finding Trriton.


Attachments

  • MORL.jpg
    147.3 KB · Views: 37

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,202
Reaction score
887

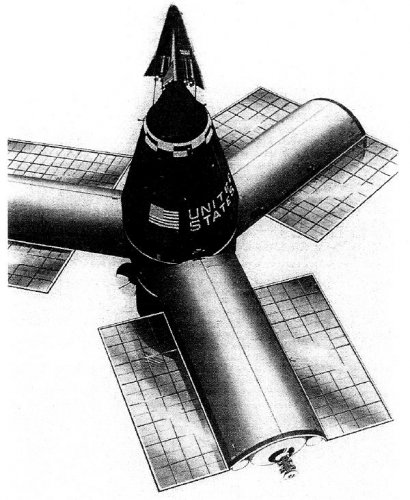

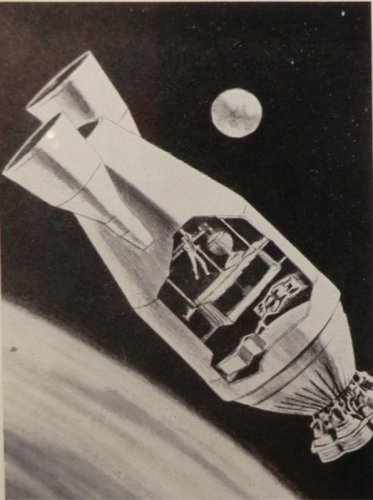

From the above mentioned article, another proposal made by the Douglas engineers
Carl Hanson and C.Allen Gilbert, providing artificial gravity, too, but only for those
astronauts sitting on a rotating bench.


Attachments

  • Douglas_MOL.jpg
    57.6 KB · Views: 176

Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,609
Reaction score
593

this here is also know under name HOPE
Factory model see picture below
but this must be pre MORL design, not MOL


Attachments

  • hope01.jpg
    265.5 KB · Views: 182

archipeppe

CLEARANCE: Top Secret
Joined
Oct 18, 2007
Messages
1,661
Reaction score
288
Michel Van said:

this here is also know under name HOPE
Factory model see picture below
but this must be pre MORL design, not MOL


Sure Michel!


This is definitely an early Douglas MORL proposal rather than anything regarding MOL.


It was pretty similiar to the late AAP-Wet Workshop proposal for the early Skylab using an S-IV stage (also manufactured by Douglas for the Saturn 1 block I) rather the S-IVB actually used into the AAP .


Similar threads

Top
