Mitsubishi JT-M1

boxkite

CLEARANCE: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
825
Reaction score
40
Which type of aircraft is hidden behind the designation Mitsubishi JT-M1 ? It seems to be a project from the mid-1950s ...


Yeager

CLEARANCE: Restricted
Joined
Nov 15, 2019
Messages
30
Reaction score
13
To answer this question, the Mitsubishi JTM-1 was a jet trainer with swept back wings that was to use a 2,200 pound thrust turbojet (the prototype was to be powered by a Continental Marbore turbojet). See this link for info:



blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,091
Reaction score
446
Mitsubishi JT-M1 trainer plan is hard to find.
In July 1953, Shin-Mitsubishi heavy industries, co.Ltd(新三菱重工) began to study JT-M1 trainer which planned to had JO-1 jet engine, side by side seats style cockpit and low wing loading value.

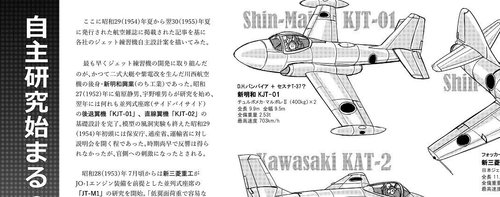

You can see tail part of JT-M1 in right side of this drawing.

Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,091
Reaction score
446

Attachments
