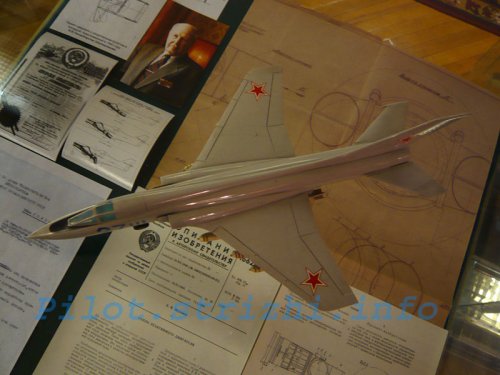

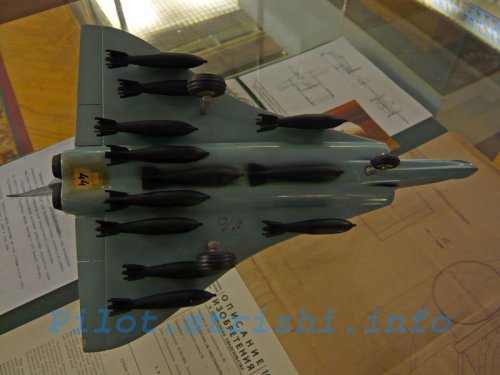

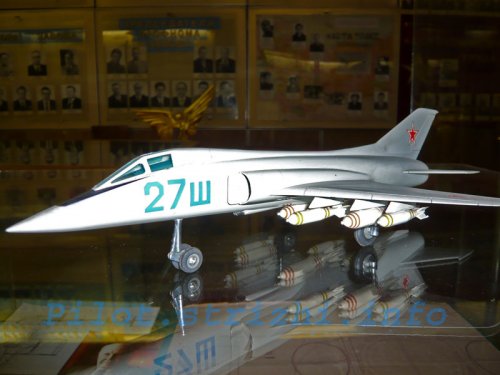

Photos from the MiG museum from http://pilot.strizhi.info/photos/v/museum+MiG/?g2_page=1

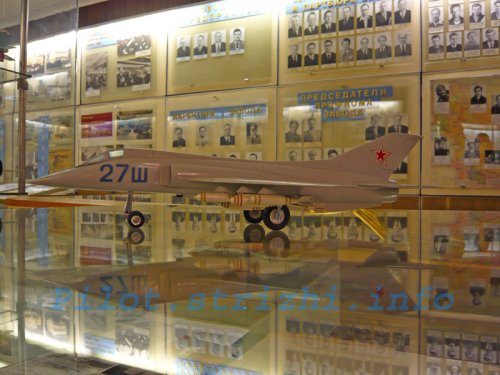

MiG-27Sh


Attachments

  • P1010730_mig.jpg
    76.6 KB · Views: 1,109
  • P1010731_mig.jpg
    112 KB · Views: 1,009
  • P1010732_mig.jpg
    94.8 KB · Views: 982

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,445
Reaction score
7,115

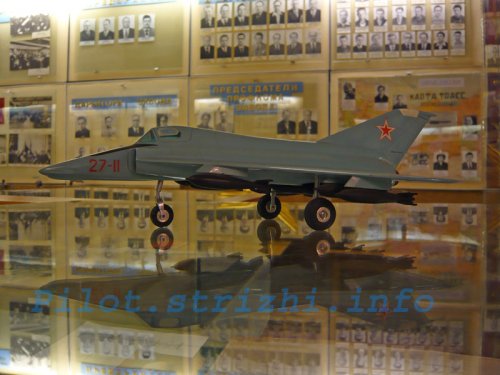

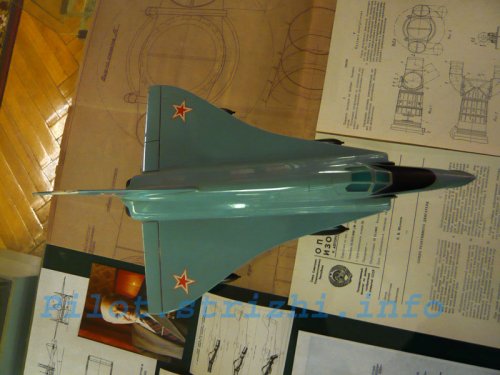

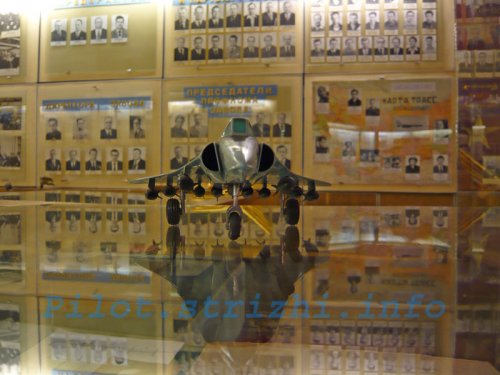

MiG-27II


Attachments

  • P1010736_mig.jpg
    73.7 KB · Views: 246
  • P1010735_mig.jpg
    100.1 KB · Views: 269
  • P1010734_mig.jpg
    99.1 KB · Views: 923
  • P1010733_mig.jpg
    97 KB · Views: 972

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,109
Reaction score
650
Sorry gents, but is there any 3-view drawings of these projects?
And where is the best place to find more info into these projects?

Regards
Pioneer


Spring

ACCESS: Confidential
Joined
Jun 4, 2008
Messages
92
Reaction score
0
Had it some relation with the S-37? -I mean the MiG-27II-


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,445
Reaction score
7,115

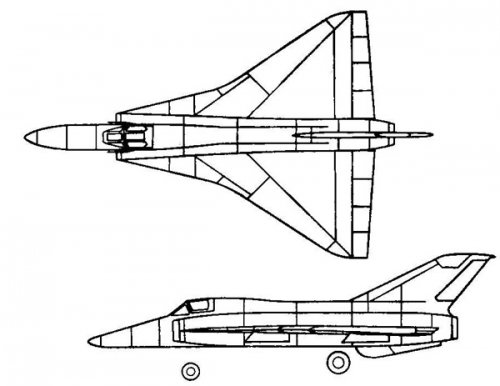

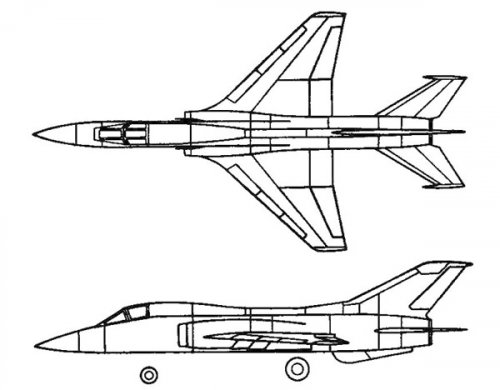

From MiG-27 book by Viktor Markovsky, published by Exprint (in Russian)


Attachments

  • MiG-27II.jpg
    47.2 KB · Views: 214
  • MiG-27Sh.jpg
    47.1 KB · Views: 217

Thorvic

ACCESS: Top Secret
Senior Member
Joined
Jan 2, 2006
Messages
651
Reaction score
165
Hmmn - Model is Twin engine and the drawing has a single engine ?,


hs1216

ACCESS: Confidential
Joined
Oct 5, 2006
Messages
110
Reaction score
9
Perhaps, that is a drawing of aa earlier version. The whole project might have originally been a direct development of the MiG-21 analog, not only utilizing the the aerodynamic configuration, but the single engine as well . Maybe Later on it was decided to use two engines for reliability reasons.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,039
Reaction score
562
In the new 'OKB Mikoyan' book, pp.247-8, the MiG-27II is described as the Mig-21K, and there's a photo of a _single_ engined model. According to this book, the Mikoyan OKB discontinued the project in favour of the swing-wing MiG-27, leading in turn to the development of the Su-25.
However in 'MiG: 50 years of Secret Aircraft Design', the Mig-21K is described as " an experimental version of the MiG-21bis designed to develop new on-board systems to be installed in cruise missiles..." ???

cheers,
Robin.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,445
Reaction score
7,115

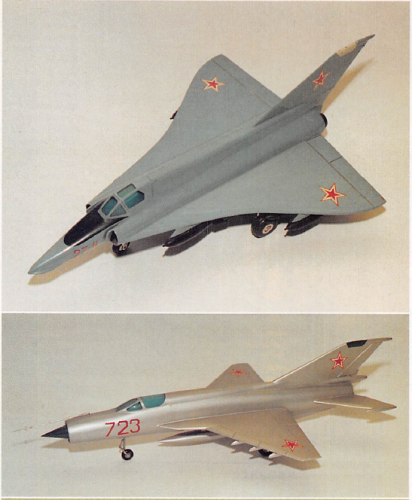

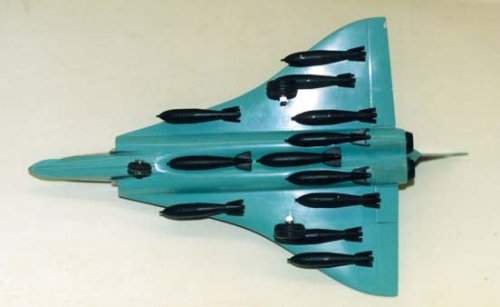

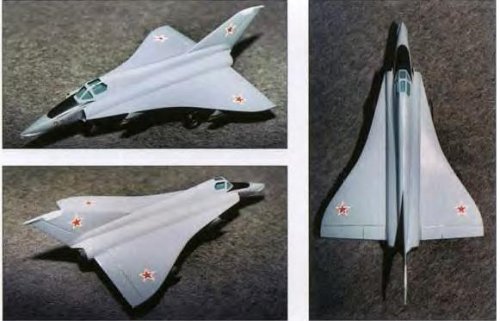

Some nice pics... the MiG-27II/MiG-21K appears to be doing a good F-16XL impersonation with the warload.

Note the LERX equipped MiG-21 723 (Idzeliye 7-23), this was a multirole fighter design.

Source:
http://www.be-and-co.com/ako_pdf/ako04098285.pdf


Attachments

  • sturmovik-11.jpg
    28.9 KB · Views: 153
  • sturmovik-10.jpg
    64.3 KB · Views: 168
  • sturmovik-9.jpg
    23.3 KB · Views: 154
  • sturmovik-8.jpg
    21 KB · Views: 158
  • sturmovik-7.jpg
    44 KB · Views: 177
  • sturmovik-6.jpg
    44.2 KB · Views: 187

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
971
Website
deeptowild.blogspot.com

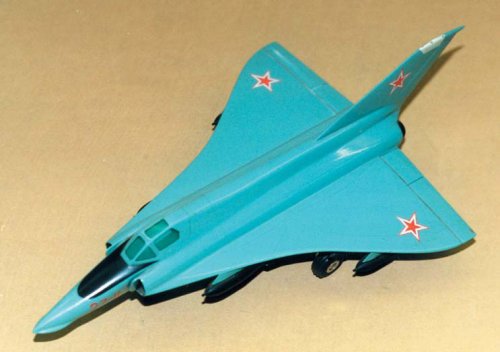

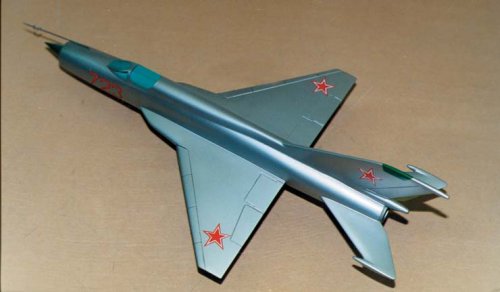

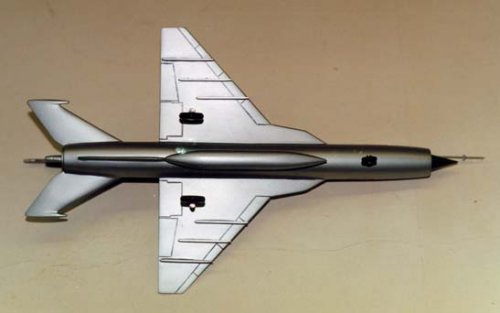

Model of Mikoyan MiG-21K.

Source:
http://www.defence.pk/forums/military-photos-multimedia/75408-combat-aircraft-designs-29.html


Attachments

  • 5550781266_373f52fbbd_z.jpg
    61.6 KB · Views: 154

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
971
Website
deeptowild.blogspot.com

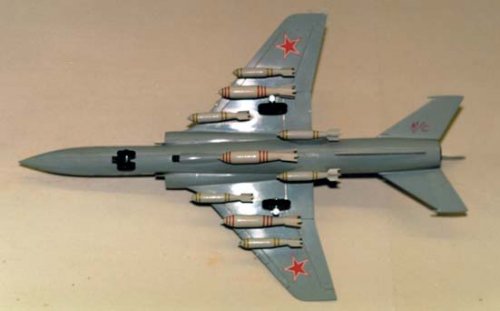

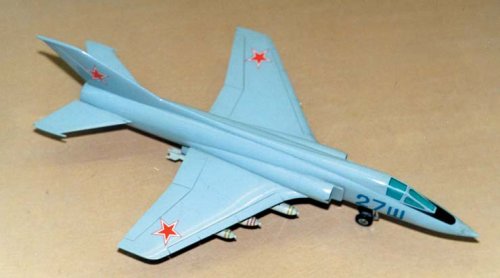

Model of Mikoyan MiG-27Sh

Source:
http://www.defence.pk/forums/military-photos-multimedia/75408-combat-aircraft-designs-29.html


Attachments

  • 5550199659_0dd16c46d8_z.jpg
    67 KB · Views: 140

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,356
Reaction score
6,003

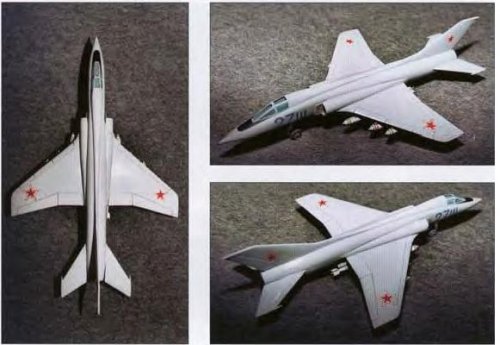

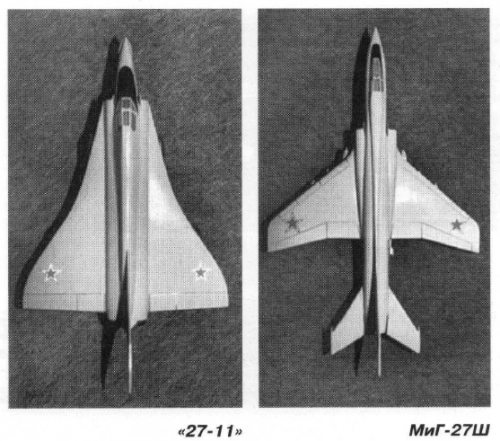

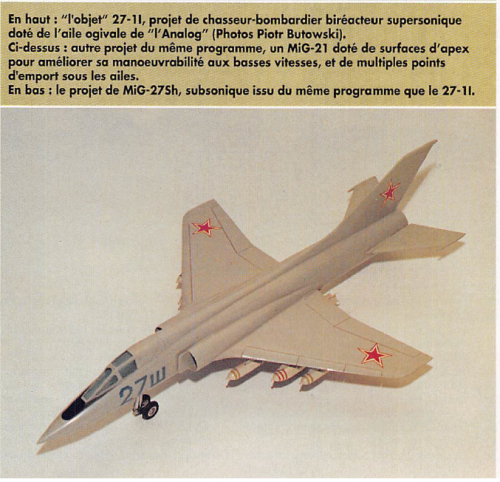

From Le Fana 305.


Attachments

  • a.png
    687.1 KB · Views: 108
  • b.png
    817.9 KB · Views: 140

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,356
Reaction score
6,003
Hi,

can anybody confirm of this Info,there was a little known Project called MiG-27R,intended to
be a recce aircraft ?.


Granit

ACCESS: Confidential
Joined
Feb 13, 2010
Messages
54
Reaction score
0
hesham said:
Hi,

can anybody confirm of this Info,there was a little known Project called MiG-27R,intended to
be a recce aircraft ?.

In Russian sources there is a mention of this project.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,356
Reaction score
6,003
I don't remember my dear Granit,

or I didn't keep with source in my files,unfortunately as many significant Infos,but I
always ask about them to confirm if they are real or not,many a magazine or book ?.
