McDonnell Douglas coplanar joined wings patent

Maki

Anytime Baby!!!
Joined
Sep 2, 2007
Messages
21
Reaction score
2

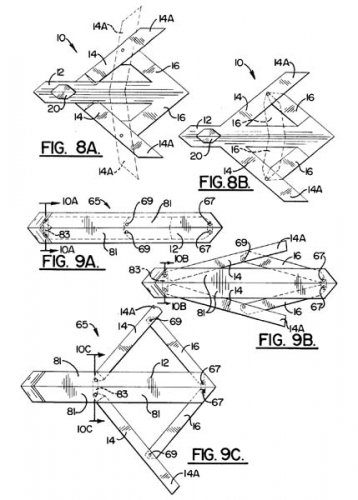

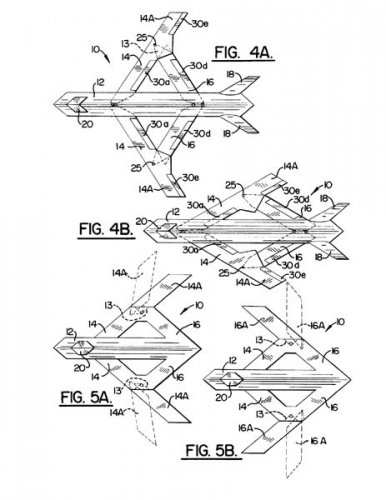

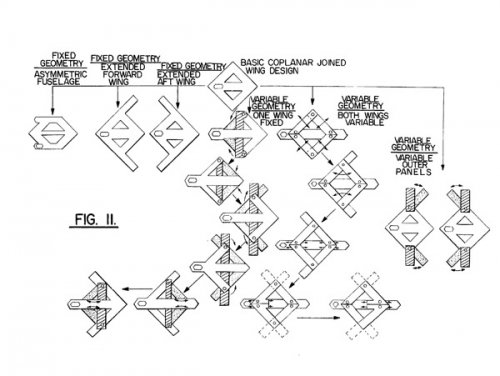

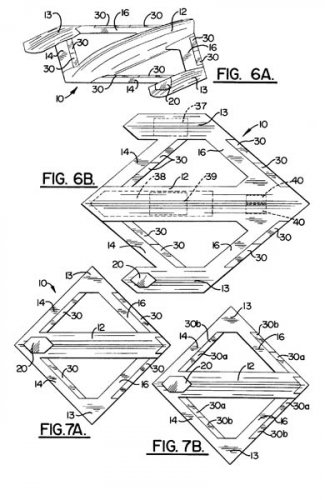

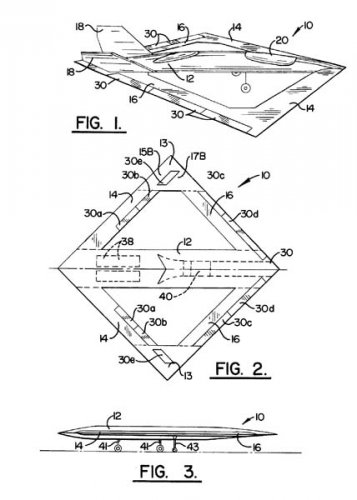

He is a McDonnell Douglas patent for aerodynamic bodies with coplanar joined wings. There are various configurations including variable geometry.


Attachments

  • 1.jpg
    59.8 KB · Views: 147
  • 2.jpg
    69.8 KB · Views: 137
  • 3.jpg
    73.1 KB · Views: 124
  • 4.jpg
    71.4 KB · Views: 124
  • 5.jpg
    80.6 KB · Views: 161
  • Aerodynamic body having coplanar joined wings.pdf
    354.5 KB · Views: 36

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,107
Reaction score
1,096

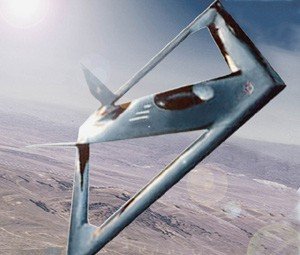

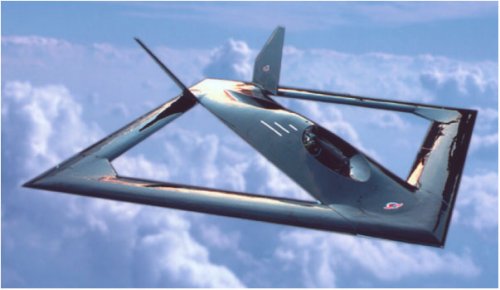

Interesting find. First pic is 1:1 of that first Sensorcaft impression that has appeared first ever.


Attachments

  • Sensorcraft1.jpg
    21.5 KB · Views: 92
  • sensorcraft.jpg
    44.5 KB · Views: 101

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,303
Reaction score
205
I understand the CJW wing arranngement is good for sensor coverage, and possibly low observables. It seems to me, though, that you don't get any of the structural advantages of a joined wing. For that, you need wings that are out of plane. This still buys you two relatively high aspect ratio wings, but one ends up being in the wake of the other. Wouldn't you be better off with a pure delta, a la X-47?
Any comments?


Abraham Gubler

ACCESS: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,555
Reaction score
203

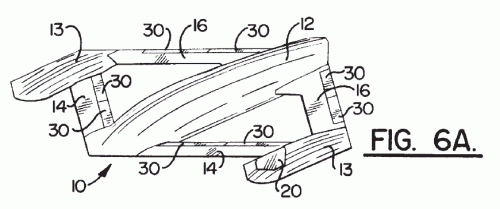

Its probably because this plane would look really cool:


Attachments

  • mcdd_asymet.gif
    13.6 KB · Views: 22

Abraham Gubler

ACCESS: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,555
Reaction score
203
Seriously I would imagine the joined wing configuration would only be of advantage for a very high aspect ratio wing aircraft like the U-2 or RQ-4. By co-joining two wings (one higher than the other to avoid wake disturbance) you avoid bending stress of high AR and keep the aircraft within a reasonable size package.


quellish

I am not actually here.
Senior Member
Joined
Aug 6, 2007
Messages
2,184
Reaction score
219
flateric said:
Interesting find. First pic is 1:1 of that first Sensorcaft impression that has appeared first ever.

Boeing/McD actually flew a model of this in the late 90s as an internal "Project Diamond" program.
