MBDA Meteor 1/2 Scale Project Help

[bibbster]

I'm an avid model rocket builder and am looking to build a 1/2 scale MBDA Meteor for a sport scale high power rocketry competition. I was hoping to find someone here that could assist with drawings/measurements or maybe point me to someone that could help. I've found lots of photos on the internet, but no measurements. I reached out to MBDA multiple times but no response.

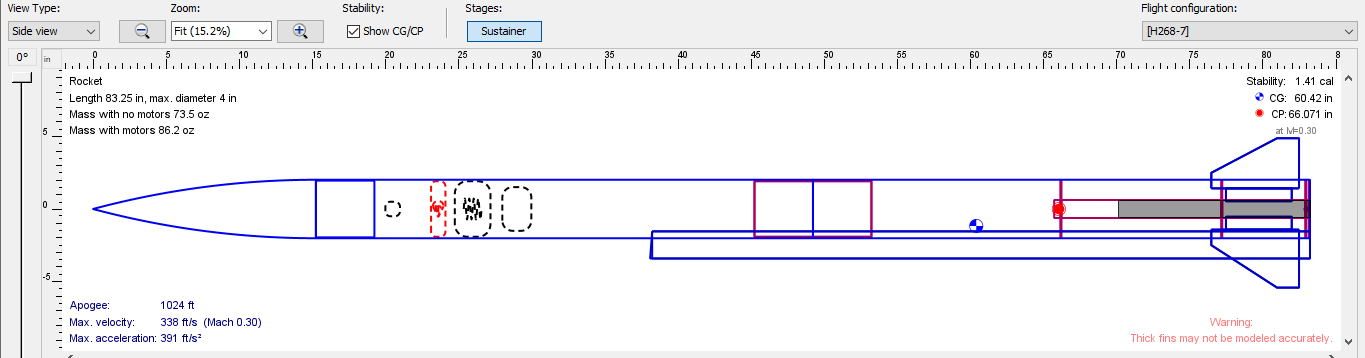

So far I have a rough model in the design software I use, OpenRocket...


Any help is greatly appreciated.



[VTOLicious]

@bibbster Did you get the measurements?

I have another question:
Is it true that the Meteor's fins were adapted, so that it fits in the IWB of the F-35? If so, does it feature the same wingspan as AIM-120 (447 mm)?
