Manually operated turret armed Boeing B-29 Superfortress

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,836
Reaction score
196
Hello all

I am looking for pictures and line drawings of the variant of the Boeing B-29 Superfortress, which was developed as a backup in the case that the then technically highly advanced remote operated defensive gun turrets failed to materialise. This variant, which Im sure was built as a flying prototype, equipped with manually operated turrets
Also does anyone have its actual designation???


Thanks in advance

Regards
Pioneer


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,221
Reaction score
926

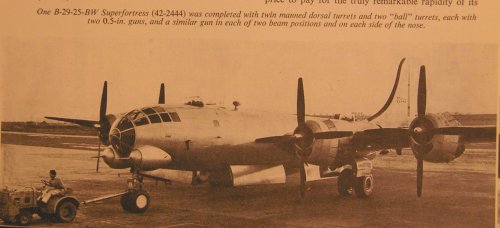

The aircraft modified had the serial 42-24441. Some years ago,I've got some photos
via another forum, but without proper mention of the source. So I'm a little bit
anxious of posting them here again (just a very low res teaser ...), just drop a PM
with your mail adress.
Another modification was that, of the YB-29, which got the nose and side blister turrets
developed for the Privateer and Dominator. Have but just one photo of it.


Attachments

  • Boeing_B-29_special_armament_0.jpg
    24.7 KB · Views: 925

Hoo-2b-2day

ACCESS: Confidential
Joined
Feb 27, 2008
Messages
66
Reaction score
1
There was no separate designation for the B-29 with manual armament - they were simply considered "development" aircraft. Several aircraft were used to test various weapon layouts which was due to the huge technical problems the remotely contolled turrets initially caused.

There are some very good photos in Squadron Signals B-29 in Action (the latter version, No 1165) but no plans.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,450
Reaction score
181
Another modification was that, of the YB-29, which got the nose and side blister turrets
developed for the Privateer and Dominator. Have but just one photo of it.

would you please post this pic?

Thanks in advance :)


pathology_doc

ACCESS: Top Secret
Joined
Jun 7, 2008
Messages
960
Reaction score
172

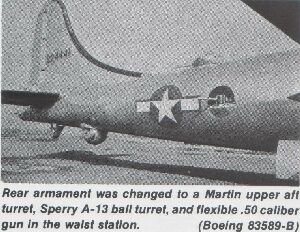

From William Green's "Famous Bombers of the Second World War", another view.


Attachments

  • IMGP7129.JPG
    891.3 KB · Views: 660

jstar

ACCESS: Confidential
Joined
Oct 12, 2007
Messages
179
Reaction score
77
There never was a official designation. The aircraft, 224441, was just modified to test the manned turrets. Detail and Scale Vol. 10 has two pages on this aircraft, including one of the manned waist position from the inside. Christopher Chant's 'Super Profile' on the B-29 has a picture showing that the tail turret is modified from standard B-29 turret in shape and mount position. The 'B-29 in Action' has some close ups of the retracted aft ball turret, and a fairly good close up of the waist and aft upper turrets, as well as two of the 'escort' B-29 with the ERCO ball.

I think there are perhaps three pictures (the nose barbetts from two views, and the waist showing the waist, upper and lower mannned turrets) that are the ones most common to books about the B-29. Hard to find others.

There are no line drawings, as the manned turrets replaced the remote turrets exactly. Except for the shape of the turrets, it looks just like a standard B-29.

If you find others, please let me know.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,221
Reaction score
926

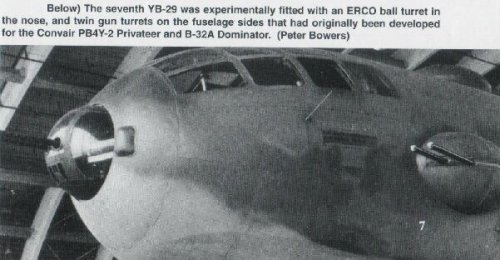

The modified YB-29 :


Attachments

  • Boeing_B-29_special_armament_06.jpg
    43.7 KB · Views: 611

jstar

ACCESS: Confidential
Joined
Oct 12, 2007
Messages
179
Reaction score
77

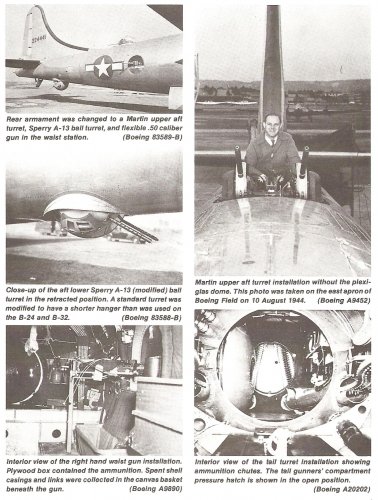

from 'Detail and Scale Vol. 10"


Attachments

  • detailandscaleB29.jpg
    560 KB · Views: 641

red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
616
Reaction score
74

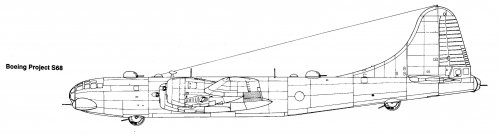

I can't remember which book it's from, so I'm not sure on the S68 designation.


Attachments

  • B-29 turrets.JPG
    B-29 turrets.JPG
    199.6 KB · Views: 645

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
450
It would be much more credible as a "Project 368" rather than "S68", given the timespan. A "3" getting replaced by an "S" is the kind of thing that happens when scanning in black-and-white instead of gray levels and then using a cheap OCR. Maybe that's what happened at some point? Of course, a mere printing mistake from the publisher is very possible. In the traditional publishing circuit, the guys who do the final work on the pages are not often knowledgeable in the material they send to the press for printing! (of course this happens less and less I guess when the authors provide a readily printable copy of the stuff thanks to word processors and pagemakers...)


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,836
Reaction score
196
Thanks for the response people

Yes this is the project I was thinking of!
Although I must say I have not seen the modified armament of the YB-29 that Jemiba has posted before!
Any more info on this modification Jemiba??

Just a bolt out of the blue - but does anyone know if there was an advantage of manual armament study over that of remotely operated armament?

I dare say that the manually operated defensive armament would have greater drag penalty = reduced speed and range!

Thanks once again

Regards
Pioneer


Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,023
Reaction score
106
How did they handle the pressure sealing on the waist positions? Or did they depressurize before combat?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,221
Reaction score
926
I just know, what was told on the site, where I found the photos:
This installation was just made as a backup against the failure of the remotely controlled
gun turret system. As the latter proved to work well, there was no need for manned
turrets. The two upper turrets were Martin products, the two lower ones made by
Sperry. About pressurisation : Am I wrong, or was just the cockpit and the rear gunner
station of the B-29 pressurized ? And I think, I've read somewhere, that those section
were usually depressurized before entering the combat area either, to prevent a sudden
depressurisation in the event of battle damage.


jstar

ACCESS: Confidential
Joined
Oct 12, 2007
Messages
179
Reaction score
77
Cockpit, waist remote gun sighting stations, and the tail gunners position were pressurized. The Cockpit and waist connected by the tunnel, the tail gunner way out there by himself.

The aircraft was normally depressurized when entering action where gunfire might cause a rapid depressurization, if the aircraft was at the time pressurized. On the later raids on Japan, pressurization was often not required because of the relatively low levels of the attacks.


jstar

ACCESS: Confidential
Joined
Oct 12, 2007
Messages
179
Reaction score
77

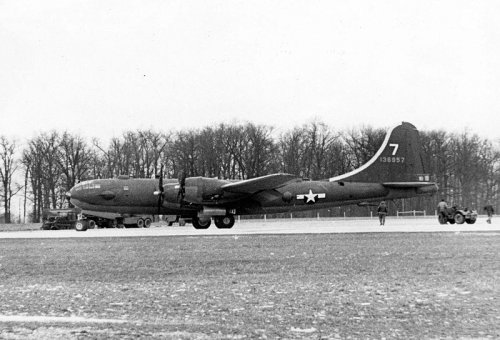

And a full side view of the erco turreted B-29


Attachments

  • 800px-Boeing_YB-29.jpg
    84.4 KB · Views: 653

pathology_doc

ACCESS: Top Secret
Joined
Jun 7, 2008
Messages
960
Reaction score
172
jstar said:
The aircraft was normally depressurized when entering action where gunfire might cause a rapid depressurization, if the aircraft was at the time pressurized.

IOW travel in airliner-like comfort (i.e. no mask) for most of the trip; oxygen on for the difficult bits, and pressurize again (if the airplane's not a colander) for the comfortable trip home.

...the tail gunner way out there by himself.

And so it continued thereafter, even to some versions of the B-52!
