Malcolm ML night fighter (Spec.F.18/40)

smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
52
Can anyone help, please, and identify this?
Found unlabelled among my ships copies!


Attachments

  • twin boom.jpg
    twin boom.jpg
    267.4 KB · Views: 813

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,811
Reaction score
121

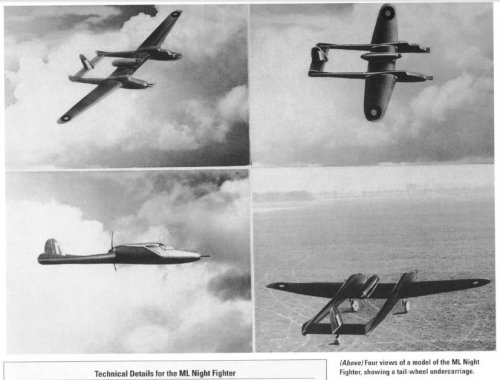

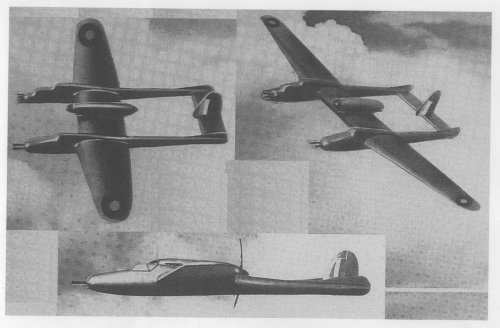

This is the ML night fighter ,Smurf.

Is was designed to Spec.F.18/40 by R.Malcolm Ltd. of Slough, U.K.
Designation ML stood for initials of the designers name , Marcel Lobelle.

M.J.O. Lobelle , a Belgian refugee in WW I , became chief designer
at Fairey and joining Malcolm just before WW II.


smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
52
Thanks vry much, Lark. Now I know where to look among the rest of my stuff!


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,811
Reaction score
121

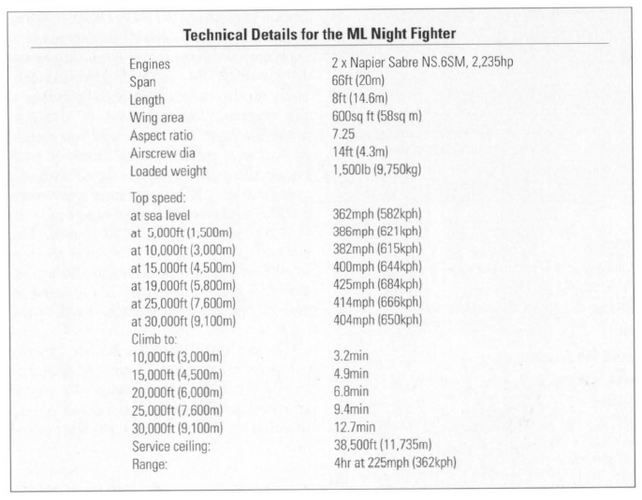

It was a pleasure.If you need me to , I can send
you some specs.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,435
Reaction score
6,098
Hi,

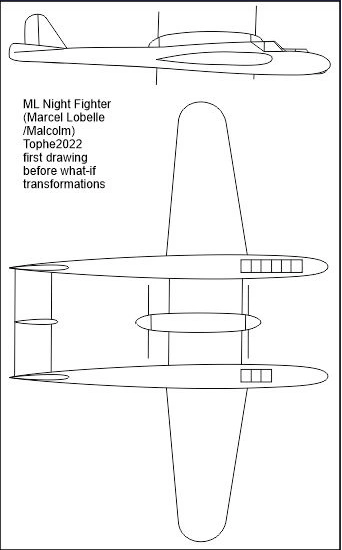

I saw a drawing to this aircraft,but I can't remember where ?.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,811
Reaction score
121
in : The Turret Fighters' by Alec Brew- Crowood....


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
144
Hi all
I'm curious !!

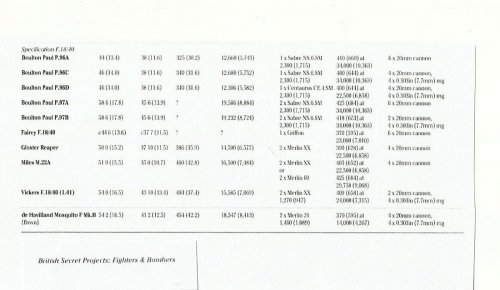

from " British secret projects fighters and bombers"
list of the spec 18/40 competitors ?


Attachments

  • test.jpg
    133.5 KB · Views: 260

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,435
Reaction score
6,098
lark said:
in : The Turret Fighters' by Alec Brew- Crowood....


Thank you my dear Lark,


and yes it is,and for my dear Toura,the Malcolm aircraft was submitted to F18/40 as
in the same source.


Attachments

  • Malcolm.JPG
    61.3 KB · Views: 245

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
144
Bonjour hasan

Well, if I understand my list is not complete !
Thank you-Bye


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,811
Reaction score
121
Bit additional info.

A simillarly powered (same engines as the Boulton Paul P.97) twinboom fighter was also designed
to Spec.F18/40 by R.Malcolm Ltd. of Slough.
It was designated the M.L.Night Fighter,using the intials of it's designer
Marcel Lobelle. M.J.O.Lobelle has been a Belgian refugee during WWI, and had become
Fairey's chief designer in 1924,joining R.Malcolm Ltd. just before the war.
The ML. Night Fighter was submitted for consideration in January 1941 and had a far
more radical engine and armament layout than the P.97. etc...

page 103 of the afore mentioned book.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,347
Reaction score
1,537
Title changed.

Interesting design, not really a turret fighter, more in the class of the Bell Airacuda,
I think. Really strange for a twin boom is the fin placed on the tail. An unnecessary
structural complexity, to my opinion.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,811
Reaction score
121
Indeed Jens,

There should have been a planned version with
a nosewheel u.c. also , but no illustration
was found yet...
