Makeev State Rocket Center Corona SSTO project

[tequilashooter]

View: https://youtu.be/vIV0gVZPvlM
demonstration for "the crown" rocket.



[Acatomic]

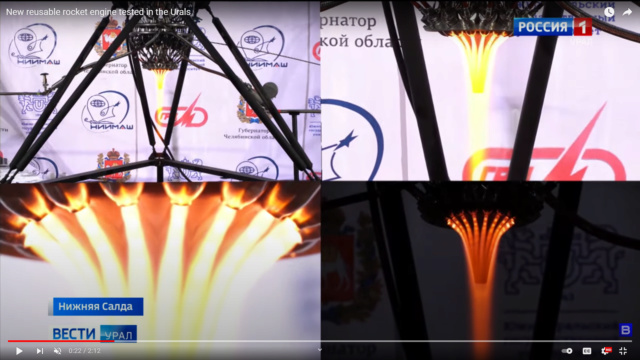

Aerospike engine being developed by the South Ural state university (I think this is for CORONA SSTO)

View: https://youtu.be/7YeqR1VaHds



[Forest Green]

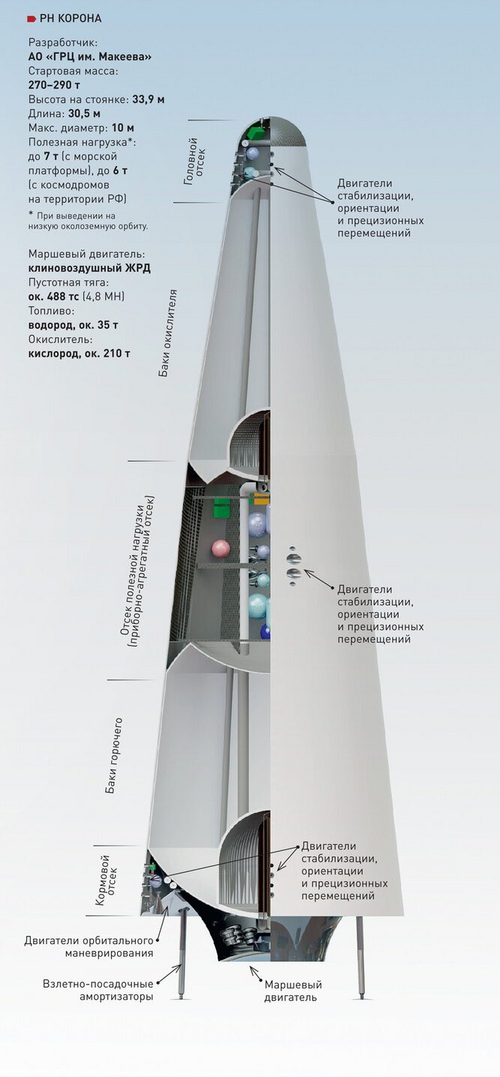

Is there a translation for the specs. on this graphic for the Corona?



[Anduriel]

Yes, it's Corona.



[publiusr]

The size of an R-7 strap-on?



[Rhinocrates]

The size of an R-7 strap-on?

My very poor reading:

Height with legs, 33.9 m

Height with legs retracted, 30.5 m

Maximum diameter, 10 m

Weight at launch, 270-290 t

Payload 6-7 t?

...um, that's it.



[NMaude]

The size of an R-7 strap-on?

Don't you mean SS-6 Sapwood?



[Anduriel]

Corona
Designer: Makeev DB
Launch mass: 270-290t
Height w/ legs: 33.9 m
Length: 30.5 m
Max diameter: 10m
Payload: 7t (sea launch)
6t (Russian cosmodrome)
Main engine: aerospike engine
Vacuum thrust: ~488tf (4.8MN)
Fuel: H2 ~35t
Oxidizer: O2 ~210t

Construction, from top to bottom:
Frontal bay with stabilization/orientation and precision movement engines
---
Oxidizer tank
---
Payload bay (instrumentation and service bay) and another set of stabilization/orientation and precision movement at this level
---
Fuel tanks
---
Rear bay + another set of stabilization/orientation and precision movement
Orbital maueuver engines
Landing/takeoff shock absorbers
Main engine
