Looking for SSBN-598 Washington class sub drawings

moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
457
Reaction score
20
Not the best, but something ! http://www.navsource.org/archives/08/08598.htm


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,908
Reaction score
1,140
Website
www.aerospaceprojectsreview.com
I found that one (actually from the globalsecurity.org website, via GIS), but it's not near good enough. Sadly, it's the *only* drawing I've found. I was promised some scans, but they never arrived. :-[


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871
Greg Sharpe from www.deepseadesigns.net (RIP) has have some exciting blueprints for sale - not sure of GW class. But site is gone...


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,629
Reaction score
512
Site worked for me - the LA Class link is:

http://www.deepseadesigns.net/laclass.html

Would be interesting to know the reasons behind the decidely different sail designs between US and USSR subs. Is it a reflection of the USSR's home base/operational area being more ice covered, hence the shorter and broader sail design?

HTH! Mark


Trident

ACCESS: Top Secret
Senior Member
Joined
May 8, 2006
Messages
1,017
Reaction score
250
You might want to ask around here:

http://www.subpirates.com/

I suppose if they don't have some drawings there aren't any in the public domain!


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871

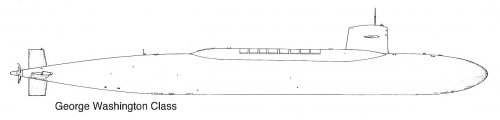

from famous and damn expensive 'U.S. Submarines Since 1945 - An Illustrated Design History' by Norman Friedman (Naval Institute Press, 1994)


Attachments

  • gw.jpg
    26.8 KB · Views: 57

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871
Got good Skipjack drawings...if it could help, let me know. But difference between Skipjack and GW (Skipjack with 'Sherwood Forest') are obviuous. At least nose/tail geometry is the same.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871
http://sneillfx.com/page10
