Lockheed XFV-1 "Salmon" variants

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,249
Reaction score
1,683

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,079
Reaction score
4,201
Website
www.amazon.com

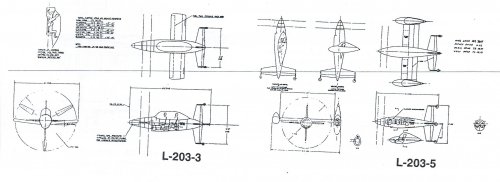

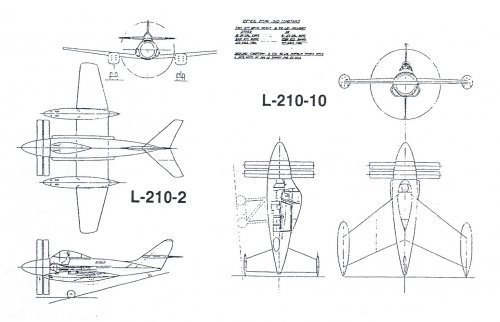

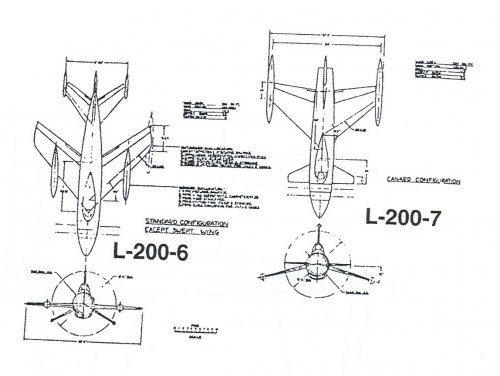

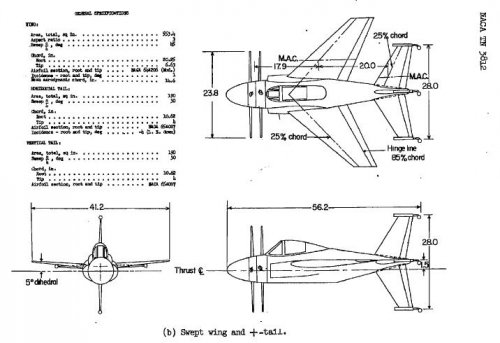

Here some Lockheed projects from "Journal American Historical Society" spring 2000


Attachments

  • Escanear0001.jpg
    138.6 KB · Views: 1,609
  • Escanear0002.jpg
    92.5 KB · Views: 1,539
  • Escanear0003.jpg
    170.1 KB · Views: 1,491
  • Escanear0004.jpg
    126.3 KB · Views: 1,481

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,079
Reaction score
4,201
Website
www.amazon.com

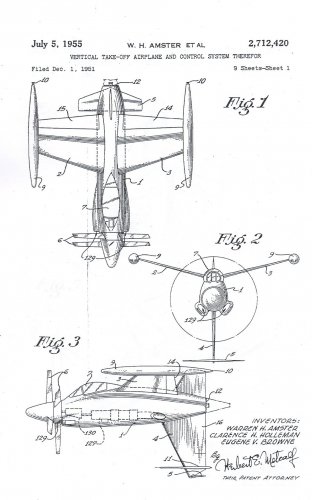

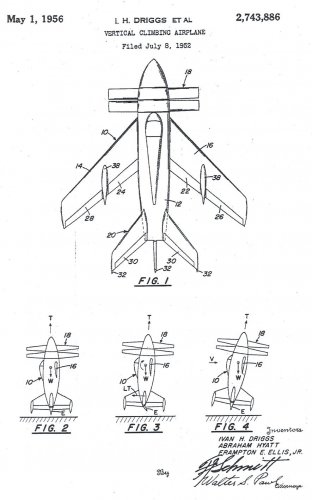

And two additional patents ...


Attachments

  • Escanear0002.jpg
    159.7 KB · Views: 251
  • Escanear0001.jpg
    111.3 KB · Views: 201

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
214

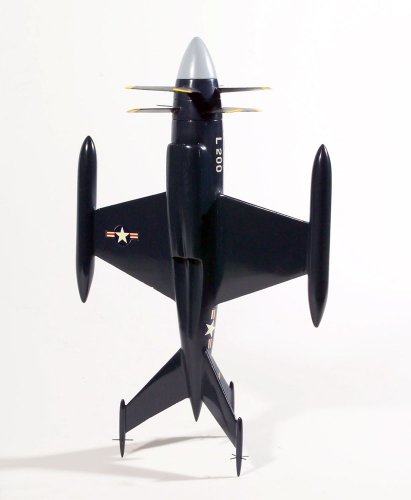

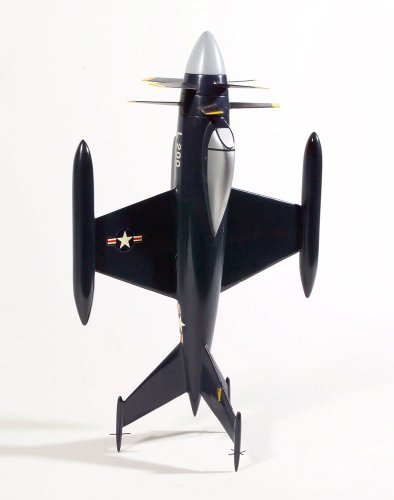

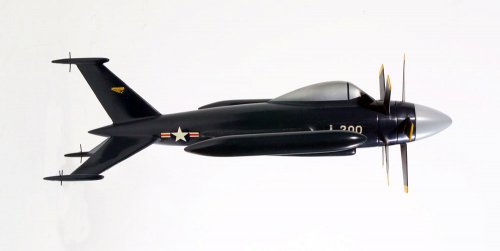

Before the XFV-1 received its USN BuAer designation, it was known in-house as the Lockheed L-200 study. Attached photos of L-200-1 manufacturer model show a number of differences with the XFV-1: Three tail stabilizers instead of four, four-bladed props, slimmer fuselage with underside instead of lateral air intakes, etc. Does anybody know what the "curb feelers" on the three legs are for?


Attachments

  • Lockheed L-200 01.jpg
    Lockheed L-200 01.jpg
    76.9 KB · Views: 195
  • Lockheed L-200 02.jpg
    Lockheed L-200 02.jpg
    75.5 KB · Views: 197
  • Lockheed L-200 03.jpg
    Lockheed L-200 03.jpg
    53.7 KB · Views: 208

Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,928
Reaction score
475
circle-5 said:
Does anybody know what the "curb feelers" on the three legs are for?

I was thinking static dischargers at first, but I've never seen those modeled on a plane model like this. Could they be antenna for some sort for a radio landing aid, giving accurate height above the ground readings, like a RADAR Alt system? That's my best guess.


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,697
Reaction score
830
I'll second Sundog's idea.

Curb feelers - now that is funny and an apt description! All we need now are some fuzzy dice on the rear view mirror :D

Impressive model Circle-5 - thanks! Mark


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
214
Thank you both -- I concur. Concept models generally don't show small details unless they illustrate unique or significant features. A special ground proximity indicator would definitely qualify in the case of this tail sitter. In addition, I believe static dischargers would have been installed parallel to the flight path.


Kevin Renner

ACCESS: Confidential
Joined
Nov 6, 2007
Messages
101
Reaction score
9
At the time the Salmon and the Pogo were unworkable ideas. Now with modern fight control systems they could be done, but why? IMO at the time they would of better off to pursue a twin engine tilt wing with the engines buried in the fuselage


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,928
Reaction score
475
Kevin Renner said:
At the time the Salmon and the Pogo were unworkable ideas. Now with modern fight control systems they could be done, but why? IMO at the time they would of better off to pursue a twin engine tilt wing with the engines buried in the fuselage

Form a weight and complexity standpoint, at least regarding aircraft performance, I doubt there would be a design that could compete, in terms of a pure vertical take-off and landing vehicle.

The drawbacks; you aren't going to be doing any rolling STOL take-offs or landings and maintenance, arming, and ingress-egress are going to be problematic without extensive ground support equipment.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
983
Website
deeptowild.blogspot.com

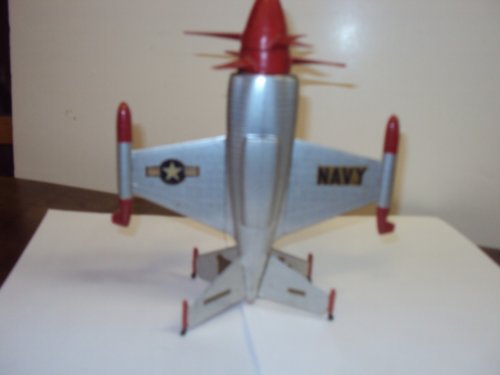

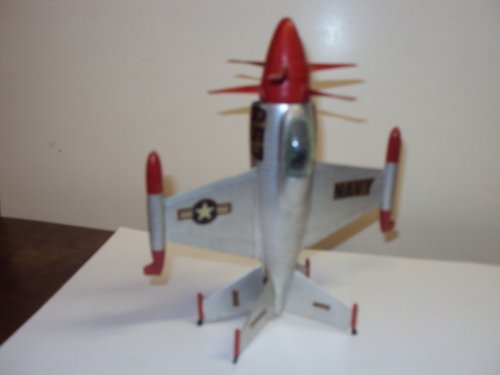

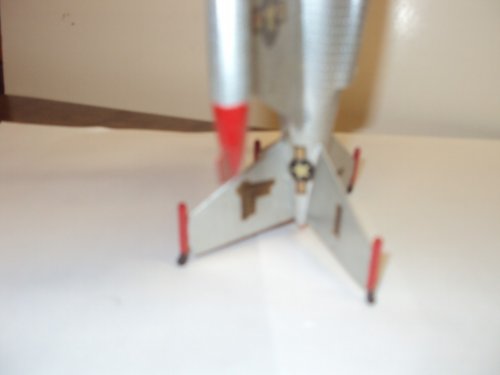

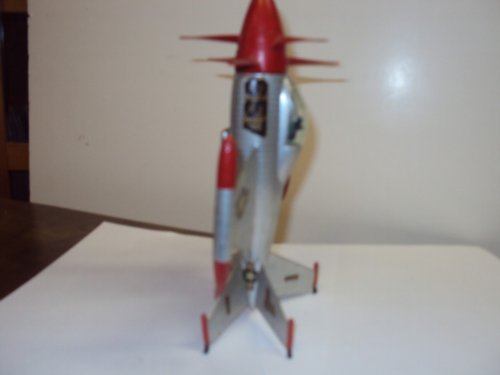

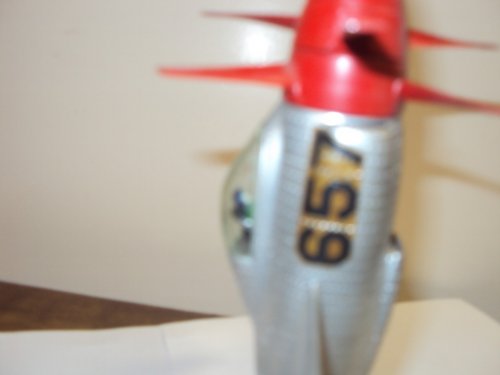

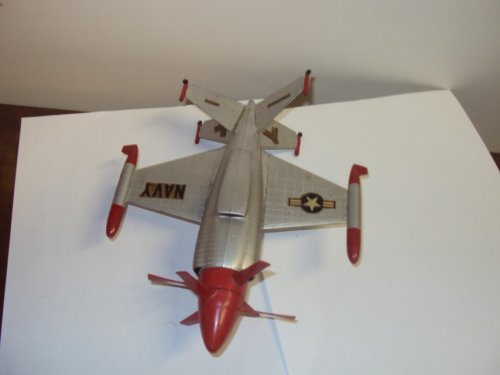

Lockheed XFV-1 "Salmon" model

Lockheed XFV-1 "Salmon" model found on eBay.

Source:
http://www.ebay.com/itm/FXV-1-Lockheed-Model-Aircraft-Vintage-Navy-Officers-Estate-Item-Rare-Military-/321049558159?pt=LH_DefaultDomain_0&hash=item4ac00b7c8f


Attachments

  • $(KGrHqR,!gwFC+lEvJGpBQ4y+qC,4g~~60_57.JPG
    69.8 KB · Views: 62
  • $(KGrHqJ,!iYFDeo,KR-6BQ4y-24Yl!~~60_57.JPG
    52.4 KB · Views: 95
  • $(KGrHqZ,!oQFCsFzpUeUBQ4y9+OqJ!~~60_57.JPG
    62.2 KB · Views: 98
  • $T2eC16d,!w0E9szN,F46BQ4y9OuQp!~~60_57.JPG
    58 KB · Views: 100
  • $(KGrHqN,!k8FC3oO3w1gBQ4y8ZjwS!~~60_57.JPG
    60.9 KB · Views: 114
  • $(KGrHqN,!jEFCZdrPJ7IBQ4y7b8lUQ~~60_57.JPG
    60.7 KB · Views: 122

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,641
Reaction score
2,871
Website
www.aerospaceprojectsreview.com
Re: Lockheed XFV-1 "Salmon" model

Looks like a built-up Aurora kit. Worth maybe $10.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
983
Website
deeptowild.blogspot.com
Re: Lockheed XFV-1 "Salmon" model

Sold for the amazing price of $26.00 with $5.00 Expedited Shipping.

I guess I can't find treasures all the time. ;)


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,697
Reaction score
830
Greetings All -

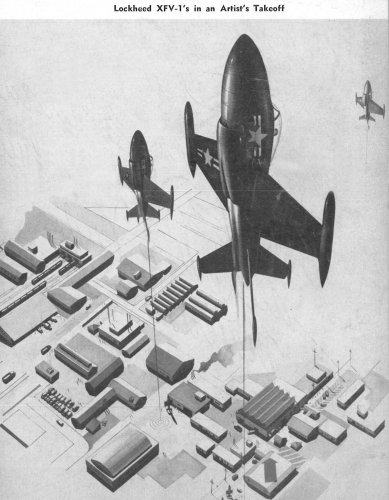

The cover of "Western Aviation 26th Annual Directory, April 1954" had this XFV-1 artwork. Being the cover of a magazine, it hasn't fared too well with scratches and the like but nice artwork nonetheless.

Enjoy the Day! Mark


Attachments

  • XFV-1 Artwork.jpg
    XFV-1 Artwork.jpg
    378.9 KB · Views: 155

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,410
Reaction score
166
Website
cluttonfred.info
Since Mark has revived this old thread -- which would be better titled "Lockheed XFV-1 variants" -- let me point out that there is one variant pictured above that is quite striking. L-210-2 in reply #2 by Justo Miranda appears to show a STOL and not VTOL version with no less than TWELVE forward-firing guns in wing pods. Wow!


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
214
Sundog said:
circle-5 said:
Does anybody know what the "curb feelers" on the three legs are for?

I was thinking static dischargers at first, but I've never seen those modeled on a plane model like this. Could they be antenna for some sort for a radio landing aid, giving accurate height above the ground readings, like a RADAR Alt system? That's my best guess.

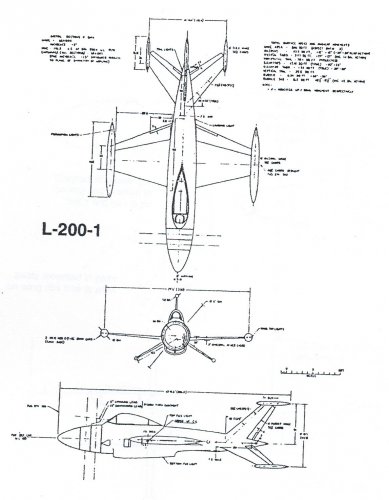

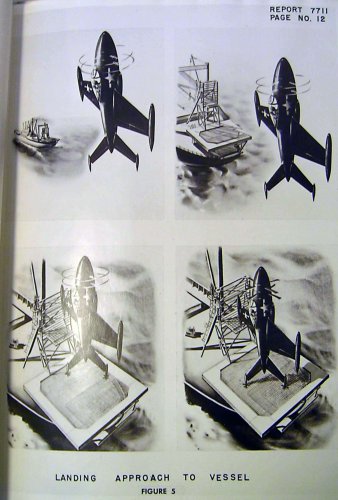

Thanks to a post by Tailspin Turtle in another thread, we now know these were retractable stoppers to rest the L-200-1 legs onto a landing net platform. The net was hydraulically pitch-compensated to cancel the ship's roll motion and had a 6-inch mesh. An additional net, mounted on a side platform, would catch one of the wingtip tanks in similar fashion, after the tank was guided in place by a wall of rubber rollers (backstop). The process of backing down into the tip net was assisted by a landing officer (LSO).


Attachments

  • L-200-1 Tip Net.jpg
    L-200-1 Tip Net.jpg
    289.9 KB · Views: 912

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023
Hi,

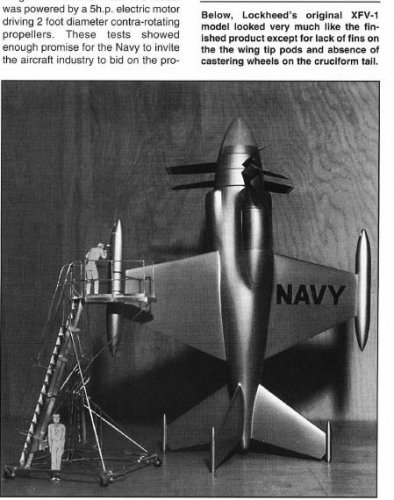

here is the orginal model to Lockheed XFV-1,from the book;
Lockheed XFV-1 VTOL fighter,by Steve Ginter


Attachments

  • XFV-1.JPG
    50.2 KB · Views: 854

NUSNA_Moebius

I really should change my personal text
Joined
May 26, 2012
Messages
191
Reaction score
63
While they never got around to it, it would've been fascinating to see what kind of dogfighting performance the tailsitters had with such high thrust to weight ratios.


jmnjohn

This Forum is AWESOME !!!!
Joined
Dec 16, 2012
Messages
44
Reaction score
22

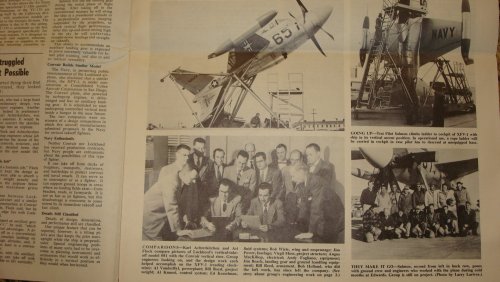

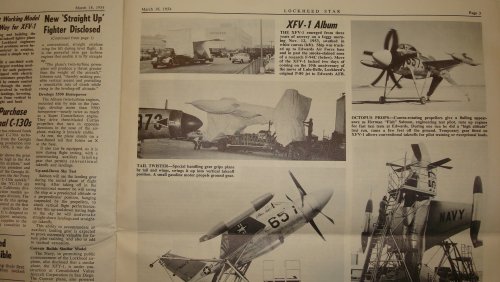

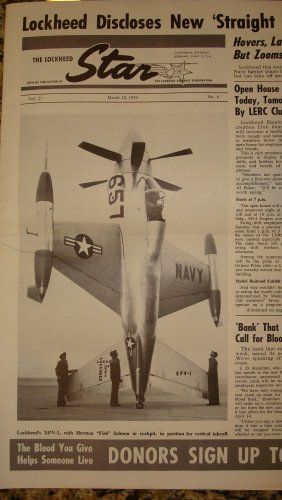

I found this Lockheed Star news paper dated march 18, 1954 vol. 21 no.6 ....enjoy .....


Attachments

  • xfv-1 003.JPG
    xfv-1 003.JPG
    798.5 KB · Views: 625
  • xfv-1 002.JPG
    xfv-1 002.JPG
    746.1 KB · Views: 683
  • xfv-1 001.JPG
    xfv-1 001.JPG
    793.6 KB · Views: 804

Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
60
I just discovered this patent re the XFV-1 program. I have no idea whether this recovery system was ever installed. -SP


Attachments

  • XFV parachute landing patent.pdf
    552.6 KB · Views: 51

Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
24
Interesting concept.
My information states that the first conventional flight of the XFV-1 was made on 16 June 1954 with a fixed undercarriage. VTOL was performed in flight but no actual VTOL landings or starts were performed. As such I think it is unlikely that the parachute concept was installed - and definitely not used.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,344
Reaction score
1,504
The chute and the opening to eject it look a bit too small, to my opinion, and IIRC, the spinner
would have housed a radar in the series version. So this arrangement probably could have been
used only on the prototype either.


NUSNA_Moebius

I really should change my personal text
Joined
May 26, 2012
Messages
191
Reaction score
63
Is there any "true" data on how fast this and the Convair XFY were? Seems I can't find any confirmed data, just projections and estimates.

It would be interesting if it really did turn out these were the fastest propeller driven aircraft ever made, even if a good deal of the thrust was from exhaust (I would figure so).


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
60
NUSNA_Moebius said:
Is there any "true" data on how fast this and the Convair XFY were? Seems I can't find any confirmed data, just projections and estimates.

It would be interesting if it really did turn out these were the fastest propeller driven aircraft ever made, even if a good deal of the thrust was from exhaust (I would figure so).
500 mph from either one would be about their best. The McDonnell XF-88B "Trimotor" - powered by two turbojets and a turbrprop, hit 1.12 Mach number in a dive.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
807
Steve Pace said:
The McDonnell XF-88B "Trimotor" - powered by two turbojets and a turbrprop, hit 1.12 Mach number in a dive.

But it had much better aerodynamics to help! None of the VTO tailsitters could have gone transonic under any circumstances.


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
60
Skyblazer said:
Steve Pace said:
The McDonnell XF-88B "Trimotor" - powered by two turbojets and a turbrprop, hit 1.12 Mach number in a dive.

But it had much better aerodynamics to help! None of the VTO tailsitters could have gone transonic under any circumstances.
I did not say that they did. But 500 mph for The XFV or XFY isn't out of the question.


Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
24
The source from which I got my information a long, long time ago did state 500 mph - I doubt if this was ever tested.


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
609
Reaction score
642

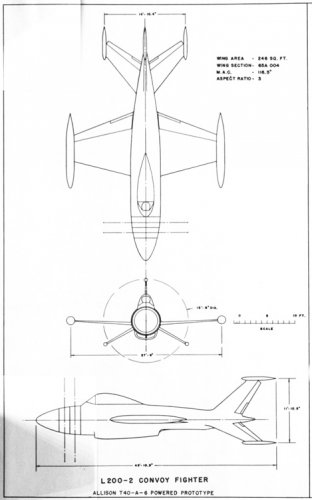

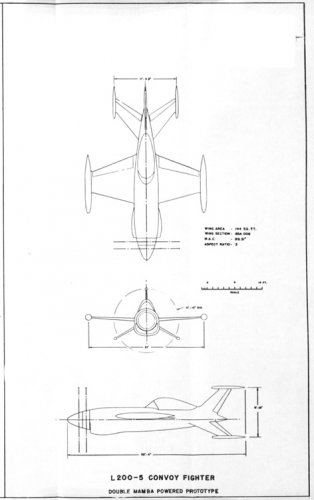

A couple of additions to post 3 of this topic are
general arrangements of the L200-2 and L200-5.
Both from NARA II files.


Attachments

  • L200-2-General-Arrangement.jpg
    56.3 KB · Views: 108
  • L200-5-General-Arrangement.jpg
    55.7 KB · Views: 123

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
609
Reaction score
642

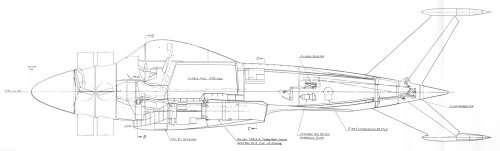

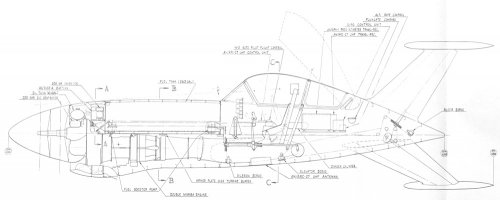

Inboard Profiles of L200-2 and L200-5
Again from NARA II research.


Attachments

  • L200-2-Inboard-Profile.jpg
    52.4 KB · Views: 162
  • L200-5-Inboard-Profile.jpg
    76.6 KB · Views: 183

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,697
Reaction score
830

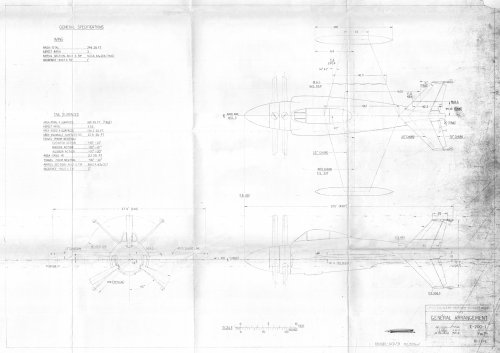

Good Day All!

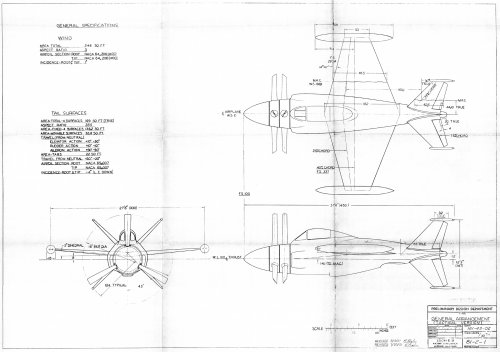

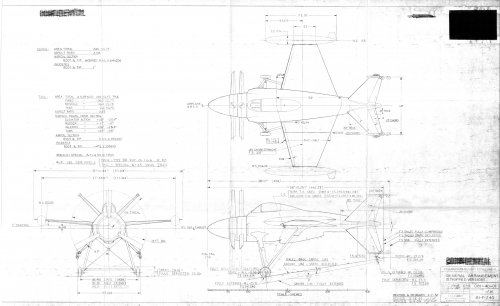

A few recent finds in the Gerald Balzer collection for your perusal.
Note the later date (and not in the L-200 range though I am not sure it is the actual Model #).

Enjoy the Day! Mark


Attachments

  • zLockheed L-200-1 General Arrangement Apr-21-51.jpg
    zLockheed L-200-1 General Arrangement Apr-21-51.jpg
    690.6 KB · Views: 647
  • zLockheed Model 081-40-01 Stripped Version General Arrangement.jpg
    zLockheed Model 081-40-01 Stripped Version General Arrangement.jpg
    607.9 KB · Views: 604

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
214
Very nice – thank you Mark. I'm surprised to see wheels (casters) on the L-200-1 empennage. A land variant, probably ...


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,697
Reaction score
830
Good Day All!

I think the "Stripped Version" may be the prototype landing gear arrangement - the bracing wires look familiar.

One more from the Gerald Balzer Collection - Model 181-43-02 Tactical Version.

Enjoy the Day! Mark


Attachments

  • zLockheed Model 181-43-02 Tactical Version General Arrangement Jul-20-51 grayscale.jpg
    zLockheed Model 181-43-02 Tactical Version General Arrangement Jul-20-51 grayscale.jpg
    614 KB · Views: 455

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,697
Reaction score
830

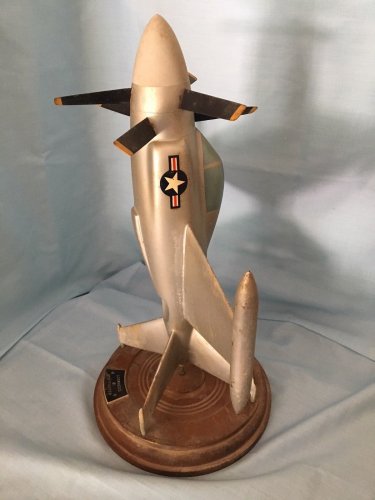

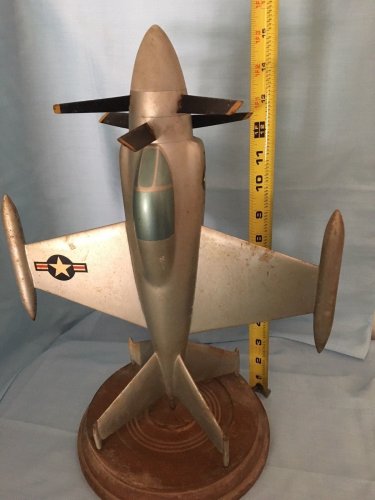

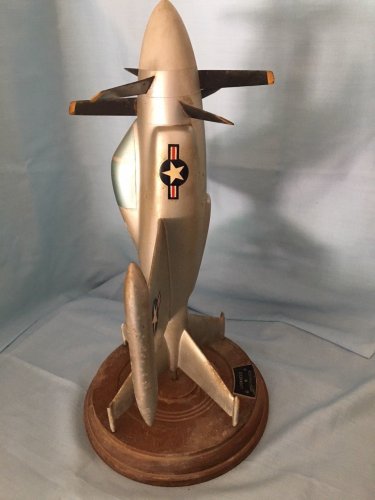

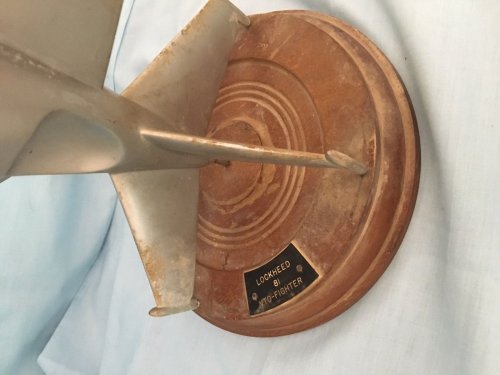

Lockheed Model 81 VTO Fighter Display Model

Good Day All -

On EPay at the moment.... Mark


Attachments

  • Lockheed Model 81 VTO Fighter Model - 1.jpg
    Lockheed Model 81 VTO Fighter Model - 1.jpg
    190.4 KB · Views: 239
  • Lockheed Model 81 VTO Fighter Model - 2.jpg
    Lockheed Model 81 VTO Fighter Model - 2.jpg
    204.8 KB · Views: 224
  • Lockheed Model 81 VTO Fighter Model - 3.jpg
    Lockheed Model 81 VTO Fighter Model - 3.jpg
    191 KB · Views: 67
  • Lockheed Model 81 VTO Fighter Model - 4.jpg
    Lockheed Model 81 VTO Fighter Model - 4.jpg
    207.8 KB · Views: 69

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023
Hi,

http://archive.aviationweek.com/image/spread/19540426/18/2


Attachments

  • 1.png
    129.4 KB · Views: 113

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023

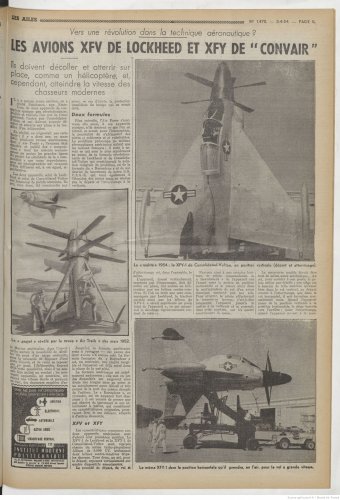

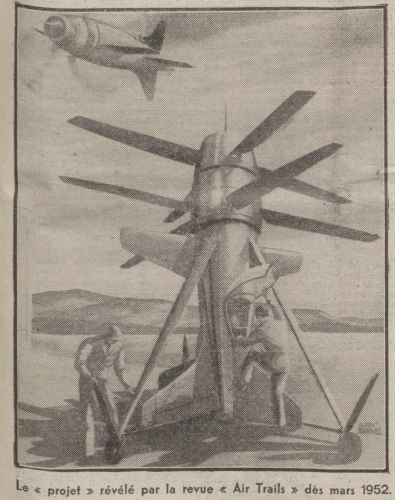

From Ailes 4/1954,

the journal shows a hypothetical imagine for Lockheed XFV-1,done by Air Trials magazine
in 1952.


Attachments

  • 1.png
    1.3 MB · Views: 77
  • Les_Ailes___journal_hebdomadaire_[...]_bpt6k32011956_5.jpeg
    1.9 MB · Views: 120

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
115
The 'Air Trails' illustration shows a Leonard concept.

(Air Trails March 1952)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023
lark said:
The 'Air Trails' illustration shows a Leonard concept.

(Air Trails March 1952)

Thank you my dear Lark,

I suspected in it at first,but they didn't mention his name in the article.

Top
