Lockheed L-205 project

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
5,817
Reaction score
4,068
The missing link between the XF-90 and F-104 was the L-205. I don't know much about this aircraft
- dorsal air intake
- mach 2
- 20 tons (that's why it's successor the F-104 was the 1st LWF)
- tail similar to the XF-90
- study closed at the end of the Korean war.
Any drawing of this project ?


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,423
Reaction score
269
Most likely one of the missing links between the F-90 and the F-104. Lockheed's LRI-X entries also fall into this evolutionary thread.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
178
There is a 3-view in the appendix of Miller's Skunk Works.


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
184
Website
www.hitechweb.genezis.eu

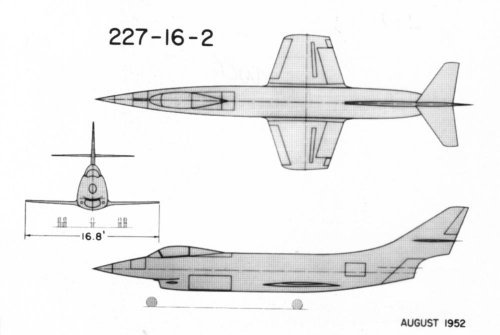

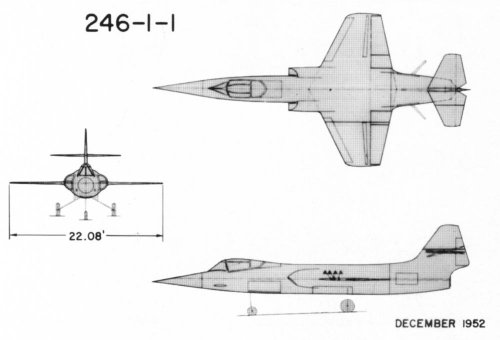

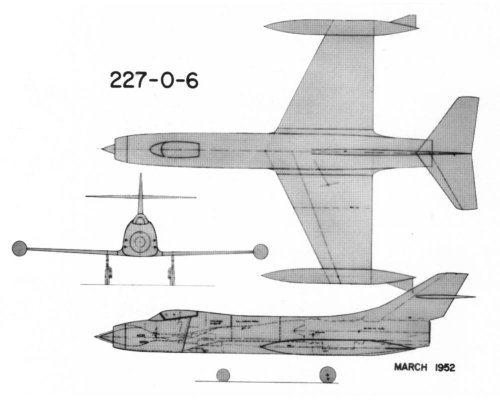

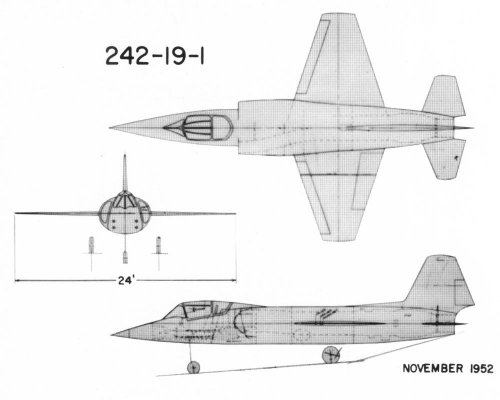

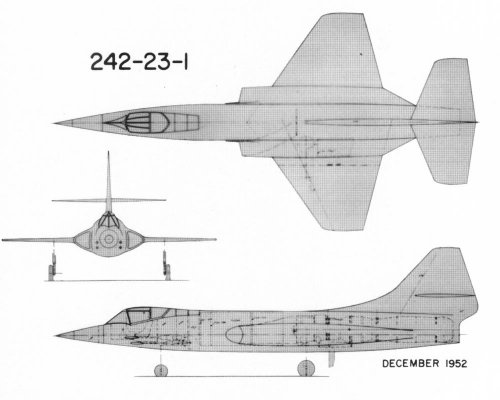

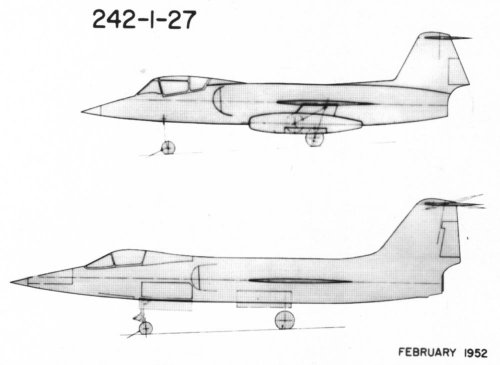

Someone is faster ;) I only hope that it is the right picture, because I found it not in appendix, but at the beginning of chapter 5.

PS: I have a lot of pre-F104 studies, but not any available time now, so I will scan and post them sometime during weekend.


Attachments

  • image012.jpg
    14.6 KB · Views: 740

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
178
Actually, the appendix is of Francillon's "Lockeed's aircrafts since 1913"... BUT, it has a nice description... ;) 8)


Attachments

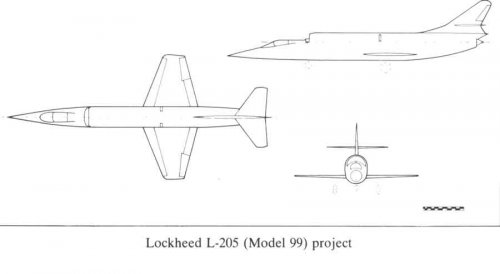

  • L-205.jpg
    10.8 KB · Views: 756

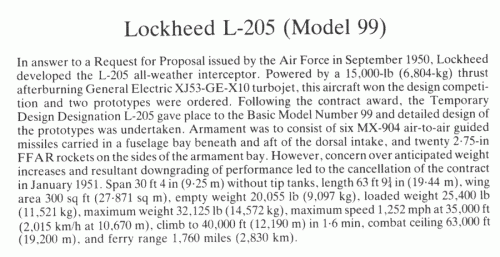

  • L-205_data.gif
    40.5 KB · Views: 626

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
5,817
Reaction score
4,068
The J-53 engine... :) I heard it developed around 17 000 Ibs
(8000 kgp) of thrust in 1951-53 but was too big and abandoned (Le Fana de l'Aviation, la deuxième génération jets)
Nice to see a fighter project with this engine :p


Akaikaze

The hardest word to define is 'Normal'
Joined
Jan 14, 2007
Messages
66
Reaction score
2
GOT IT. ;D As soon as I can, I'll get the picture scanned. There's a 3-view in Putnam's(?) book on Lockheed aircraft. It's also refered to as the Model 99.
And a reply for elmayerle, if you're refering to Jay Miller's 'Skunk Works...Offical History', no, the L-205 is not pictured. They skipped the -205 and only showed the -204 and -206. I have that book and checked three times.


Akaikaze

The hardest word to define is 'Normal'
Joined
Jan 14, 2007
Messages
66
Reaction score
2
;D

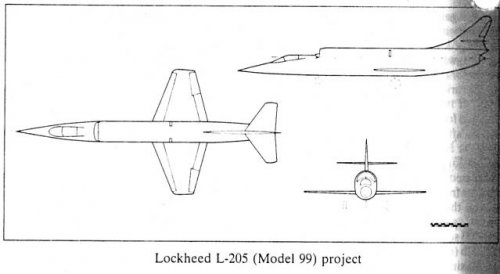

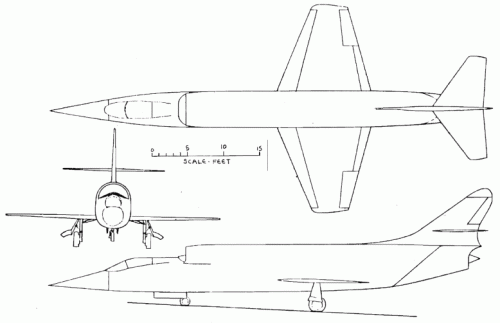

Here you go!
Credit goes to a history book on Lockheed, by Putnum. I forget the actual name. I made this copy at the library over a year ago. ;D


Attachments

  • l-205.JPG
    21.9 KB · Views: 241

Akaikaze

The hardest word to define is 'Normal'
Joined
Jan 14, 2007
Messages
66
Reaction score
2
Okay, so? It was late and I had the picture with me. So, why not? At least it gave me a good idea of how my scans turn out. Practice, practice, practice.... ::)


Akaikaze

The hardest word to define is 'Normal'
Joined
Jan 14, 2007
Messages
66
Reaction score
2
:'(
I concede defeat....
Where did you find that? Nice!


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
5,817
Reaction score
4,068
The nose is already F-104 :D Now, change the position of the air intake, shrink the whole aircraft and you obtain "the missile with the man in it"


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,991
Reaction score
5,274

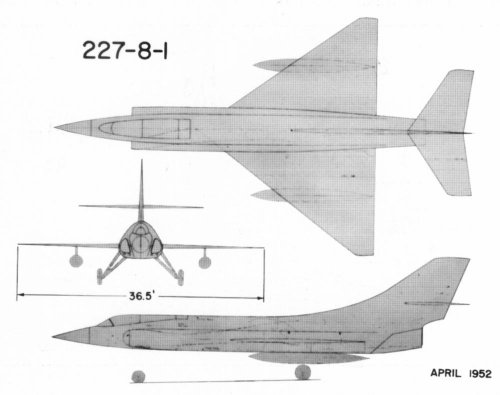

Hi,

I know dear Matej spoke about that projects before but
there is the same projects from Flightglobal.


http://www.flightglobal.com/FlightPDFArchive/1961/1961%20-%201518.pdf


Attachments

  • F-104 Evolution 1.JPG
    F-104 Evolution 1.JPG
    17 KB · Views: 557
  • F-104 Evolution 2.JPG
    F-104 Evolution 2.JPG
    13.5 KB · Views: 571

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
108
Not directly. Fight global shows the Starfighter evolution
as a light weight air superiorty fighter wile the
L-205 was Lockheeds answer to an Air Force ,September 1950, request
for an all-weather interceptor...


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
178
Actually for a missile-armed interceptor (late 1950), an RFP cancelled in 1951 (Bill Slayton dixit...), which is not the same as the famous "1954 interceptor"... Another possible tender for the missile-armed interceptor is the V-374, an USAF derivative of the F7U-3.


RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
695
Reaction score
473

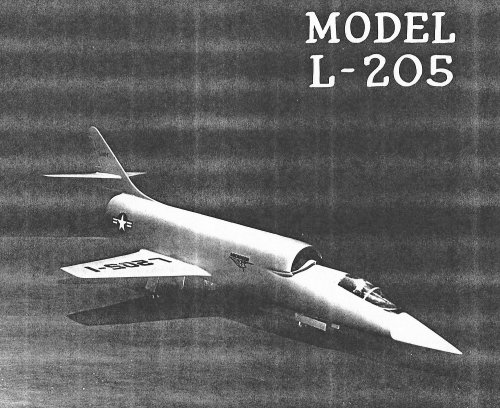

Poor quality image of a model of the L-205.


Attachments

  • L205.jpg
    915.9 KB · Views: 202

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
193

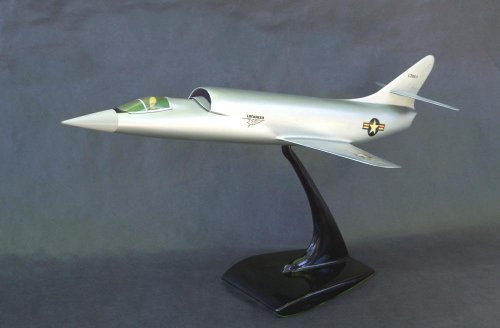

Same, but in color.


Attachments

  • Lockheed L205-1 01.jpg
    Lockheed L205-1 01.jpg
    40.4 KB · Views: 174

RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
695
Reaction score
473
I like yours better :)
