Lockheed Georgia biplane (joined wing) jet airliner of 1974

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,665
Reaction score
3,457
Hi,

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19740026364_1974026364.pdf


Attachments

  • 1.JPG
    34.4 KB · Views: 83
  • 2.JPG
    24.9 KB · Views: 97
  • 3.JPG
    24.3 KB · Views: 89
  • 4.JPG
    27.1 KB · Views: 95

OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
753
Reaction score
12
Website
www.io.com

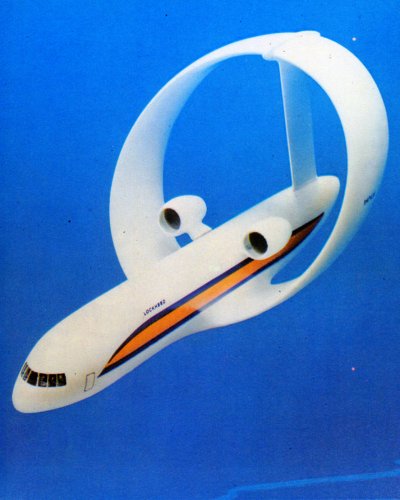

...I remember this one. Came out about the same time, IIRC, that either PopMech or PopSci was hakwing a 737 variant whose wings were the "paper loop plane" design, with the wings looped to meet directly above the fusilage and the engine at the apex. Idea was that if the engine went out, the plane would glide and retain stability much better than traditional flat wing designs.

Anyone got an image of this one? I did a search on Google and turned up nothing but standard 737 versions and a couple of stewardesses in the nude...


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,043
Reaction score
863
...


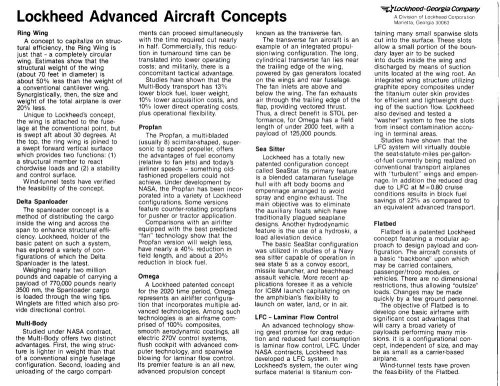

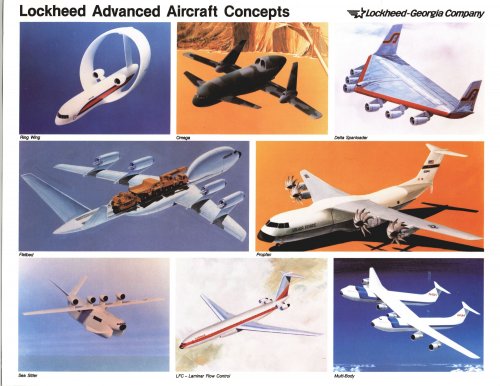

Attachments

  • loopwing.jpg
    308.9 KB · Views: 85

OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
753
Reaction score
12
Website
www.io.com
flateric said:
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=6262.0;attach=66892

...That's sort of it. Note that the one I recall had a single engine at the apex of the loop. Still, the two engine design would be more logical, even if the design itself would call for radical changes in airport infrastructure. Mainly in the fact that you'd need to have five-story hangars!


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126
Thanks Hesham, I had loose track of that report !


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
498
Website
deeptowild.blogspot.com
hesham said:
Hi,

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19740026364_1974026364.pdf

Lange, R. H.; et al. Feasibility Study of the Transonic Biplane Concept for Transport Aircraft Application Lockheed-Georgia Company June 1974

Abstract:

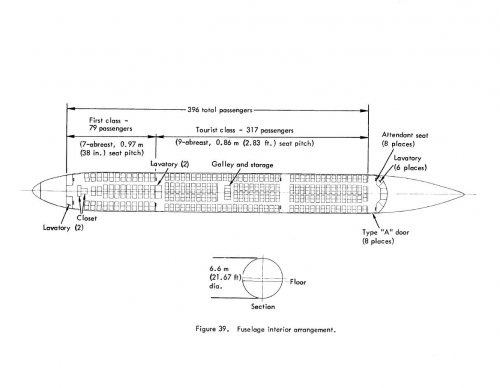

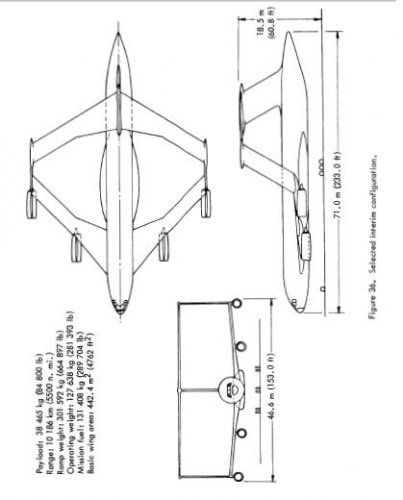

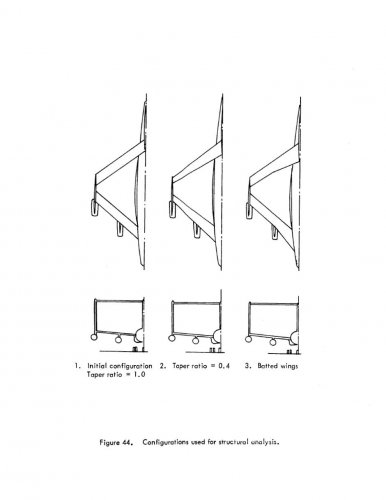

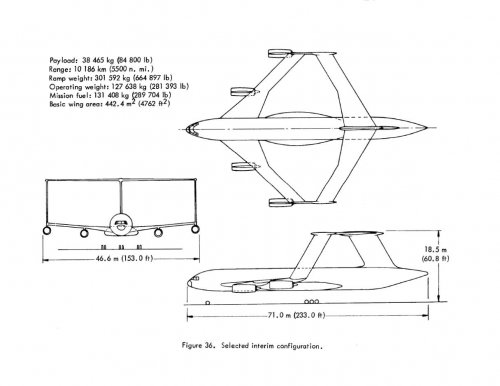

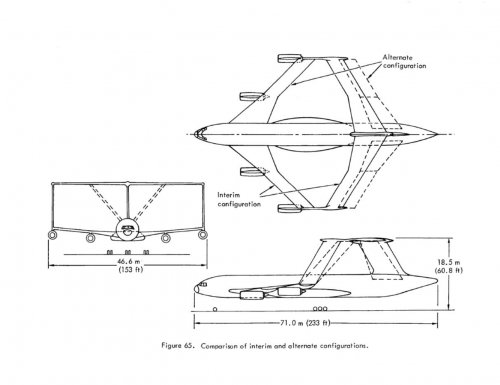

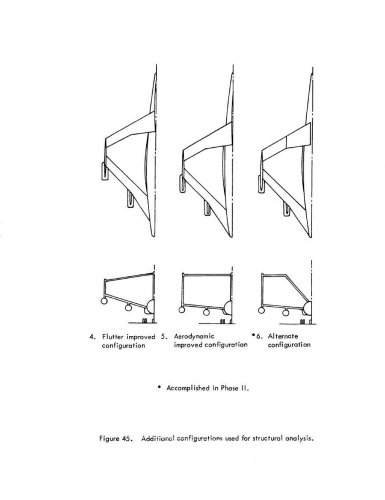

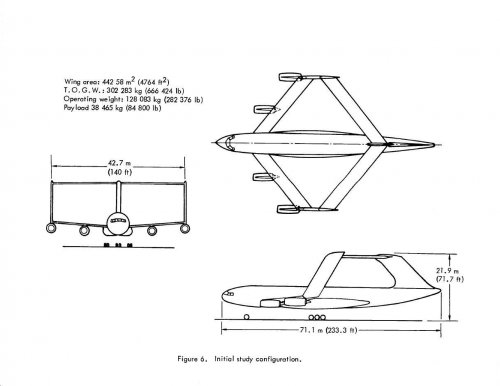

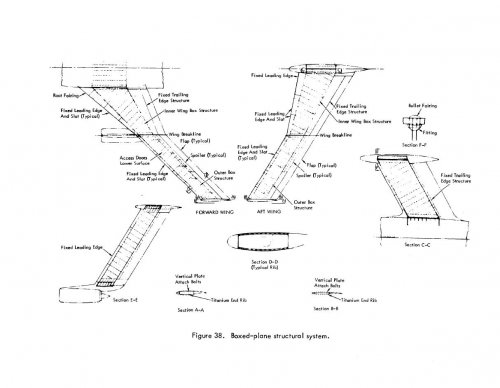

Investigations were conducted to evaluate the feasibility of a transonic biplane consisting of a forward-mounted swept-back lower wing, a rear-mounted swept-forward upper wing, and a vertical fin connecting the wings at their tips. This wing arrangement results in significant reductions in induced drag relative to a monoplane designed with the same span, and it allows for a constant-section fuselage shape while closely matching an ideal area distribution curve for M = 0.95 cruise. However, no significant reductions in ramp weight were achieved for the biplane relative to a monoplane with the same mission capability. Flutter analyses of the biplane revealed both symmetric and antisymmetric instabilities that occur well below the required flutter speed. Further studies will be required to determine if acceptable flutter speeds can be achieved through the elimination of the instabilities by passive means or by active controls. Configurations designed for other missions, especially those with lower Mach numbers and lower dynamic pressures, should be examined since the geometries suitable for those design constraints might avoid the weight penalties and flutter instabilities which prevent exploitation of induced drag benefits for the configuration studied.
