Lockheed Advanced turboprop transport concepts

I am familiar with that but cant remember at the moment what it is (probably from Lockheed). I am also sure that I have this drawing in colour. BTW the posted document is worth to download, because it contains a lot of pictures and drawings of various unusual transport planes (spanloaders, WIG, Lockheed Flatbed, etc..).

Matej said:
I am familiar with that but cant remember at the moment what it is (probably from Lockheed). I am also sure that I have this drawing in colour. BTW the posted document is worth to download, because it contains a lot of pictures and drawings of various unusual transport planes (spanloaders, WIG, Lockheed Flatbed, etc..).

Yes my dear Matej,

I remembered that I sent a picture shows a Lockheed Model aircraft with turboprop
engines but I don't remember it now,it look like the first aircraft here;


Attachments

  • 1.JPG
    29.2 KB · Views: 242
Nice! It does give technical insights into certain areas and is worthwhile for the irresistibly ironic image below alone!

I'd caption it the An-700M ;)


Attachments

  • An-700M.png
    724.4 KB · Views: 29
Artist's impression of counterrotation wing-mount propfan military aircraft.

Source:
Hager, Roy D.; Vrabel, Deborah. Advanced Turbofan Project, NASA Glenn Research Center, Jan. 1, 1988


Attachments

  • PropfanMilitaryTransport.jpg
    125 KB · Views: 27
Last edited by a moderator:

Attachments

  • L-7.png
    20.8 KB · Views: 22
  • L-6.png
    19.1 KB · Views: 18
  • L-5.png
    17.6 KB · Views: 21
  • L-4.png
    21.2 KB · Views: 22
  • L-3.png
    19.9 KB · Views: 20
  • L-2.png
    19.6 KB · Views: 17
  • L-1.png
    19.9 KB · Views: 23

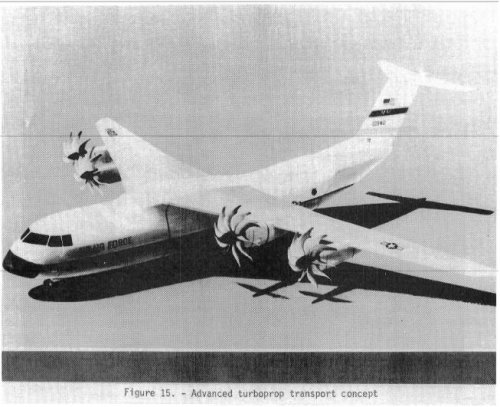

Lockheed Turboprop Cargo Aircraft Systems Study, November 1981 found on NTRS


Lockheed Georgia study on Advanced Turboprop transport aircraft. From page 102 on, study for possible dual civil-military role for a Propfan transport aircraft. Configuration No.3 was modified to USAF's C-X specifications.

The artwork on the last page is very similar to the Lockheed 4-engined Propfan concept in Post 1.

Seems like Lockheed put a lot of effort in the Propfan concept, with the Cl-1320 RECAT, various Civil and Military transport conepts and the PTA testbed.


Attachments

  • Lockheed Advanced Turboprop transport aircraft.jpg
    Lockheed Advanced Turboprop transport aircraft.jpg
    464.9 KB · Views: 24
  • No.3 Turboprop Aircraft for C-X application.jpg
    No.3 Turboprop Aircraft for C-X application.jpg
    301 KB · Views: 24
  • Lockheed Advanced Turbofan Transport for MAC.jpg
    Lockheed Advanced Turbofan Transport for MAC.jpg
    675.1 KB · Views: 32
From Aircraft Illustrated 12/1981.


Attachments

  • 1.png
    378.4 KB · Views: 30
Seems like Lockheed put a lot of effort in the Propfan concept, with the Cl-1320 RECAT, various Civil and Military transport conepts and the PTA testbed.

From Airpower Journal 1988.


Attachments

  • 2.png
    414.9 KB · Views: 39
