Dear Archiblad,

I mention here some little known aircraft and projects ,it is difficult to find it
in any site.

LeO 40:experimental aircraft ,was two seat tourer with full span slats on both wing.

LeO 41:experimental light aircraft with long control surface carried on a series
of struts behind the wing.

LeO C.41 :heavy transport autogyro Project.

Hi

Does someone know other infos (history, 3 views, other photos apart one isolated photo in the Docavia 23, derivative projects, ...) about a french heavy night bomber protototype of the 30's : the LeO 300/301

http://www.aviafrance.com/aviafrance1.php?ID=5683&ID_CONSTRUCTEUR=825&ANNEE=0&ID_MISSION=0&MOTCLEF=

http://www.aviafrance.com/aviafrance1.php?ID=5684&ID_CONSTRUCTEUR=825&ANNEE=0&ID_MISSION=0&MOTCLEF=

Hi Deltafan,

I don't understand,do you want the other proposals to this competition
with LeO-300 & 301 or what?.

Hi Hesham ! :)

I know, my english is bad :-[


I am interested in all informations about the LeO 300/301.

There was only a photo about this plane (without horizontal fins !) in the Docavia 23 (LeO 45, Amiot 350 and other B4 french bombers) and no explanation apart that it was a Bn5 (french night bomber with 5 seats).

There is nothing about this plane in the Docavia 12 (french bomber and reco aviation 1918-1940).

The two links of Aviafrance give only a few more informations (first fly, engines and power, max speed, dimensions).

Hi Deltafan,

A little information about LeO-300,it was powered by four 500
hp Renault 12Jb engines mounted in tandem pairs in wings which
spanned 38.00m and had a speed of 210 km/h,it had a shoulder wing
and the cabin location was over the wing crossing with fuselage,
nose turret and four main fixed land gear.

Thanks Hesham !


I found informations about a LeO "30" (not 300 or 301) that was competitor of the BN 4 (maybe the 300) and the later BN 5 (maybe the 301) programmes. The BN 4 programme was abandoned and the Bloch 200 and Farman 221 were winners of the BN 5 programme (but they were not used as BN 5...).

http://www.hydroretro.net/etudegh/derniersavionsfarman.pdf

I asked too in a french historians forum. I wait the answers...

I got informations and a three views drawing in the french forum (aerostories).

The LeO 300 flew and was a competitor of the abandoned BN 4 programme. He has vibrations problems with the engines.

The LeO 301 (derivative of the 300 with more powereful engines) was another plane and a competitor for the BN 5 programme. He was never finished and never flew. That's probably why i found a photo without horizontal fins.

The 3 views drawing is there :

http://www.aerostories.org/~aeroforums/imagerie/aff.php?img=agppa/File1120_WEB.jpg

Hi all,

I search for little known aircraft and projects by this firm... (drawings, pics and technical data)

... LeO.14, LeO.16, LeO.17, LeO.26, LeO.28, LeO.29, LeO.31 to LeO.39 :-\

Thanks

Servus Maveric

Hi all ,

Looking out for more info ( foto or drawing ) of the Lioré et Olivier LeO 30 ,
4-engined bomber of 1933.

Thanks in advance.

Swallow.

Hi,

It was renamed LeO-300 ; only 1 prototype made.

You have details on this page : http://www.aviafrance.com/constructeur.php?ID_CONSTRUCTEUR=825
the 4 engines where then replaced by Hispano-Suiza 12Ybrs (650 HP), and the aircraft was renamed LeO-301.

May be Stargazer,


and may be it was proceed the C.41,who knows.

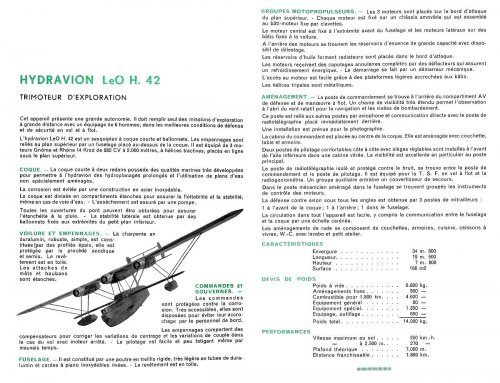

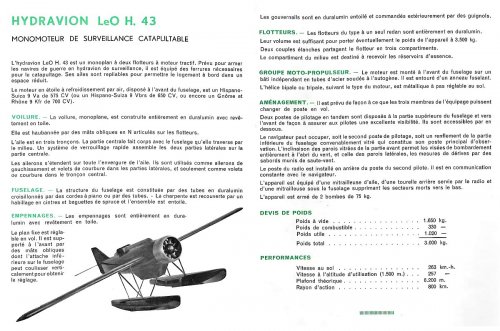

Nice pages on the LeO H.42 and H.43 from a vintage company brochure, enhanced from poor scans in the Philippe Veys collection:


Attachments

  • LeO H.42 small.jpg
    LeO H.42 small.jpg
    276.3 KB · Views: 946
  • LeO H.43 small.jpg
    LeO H.43 small.jpg
    236.1 KB · Views: 912
Hi,


LeO H-16 was a twin engined torpedo bomber project,intended for 1928 contest.

Hi,


the LeO 451 C-14 was twin engined transport project version of LeO 451 bomber,intended
to accommodate 14 passenger.


Attachments

  • LeO 451 C-14.png
    LeO 451 C-14.png
    93.9 KB · Views: 705
Hi Deltafan

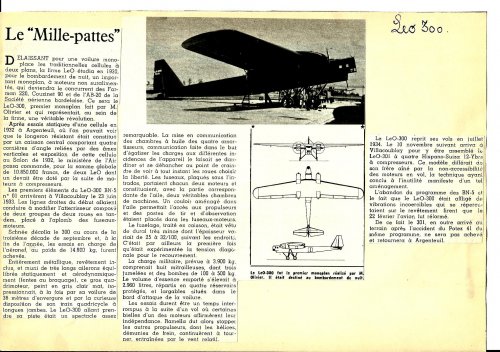

A long time ago you are asking 3 views for the Leo 300 !!!
From an old "aviation magazine" I found this
Paul


Attachments

  • test.jpg
    934.9 KB · Views: 1,194
My dear Toura,


I never saw a 3-view to it before,thanks.

Hi Hesham
Very well !!
and now have you a 3 views of the LeO 41 ?
Have a nice time
PAUL


Attachments

  • test.jpg
    807.6 KB · Views: 1,019

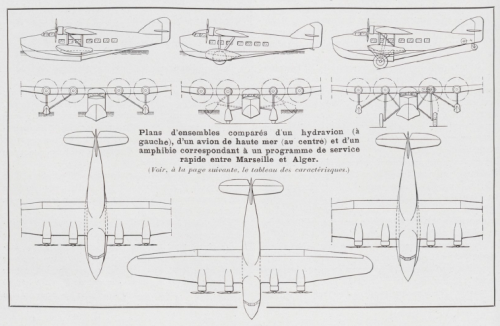

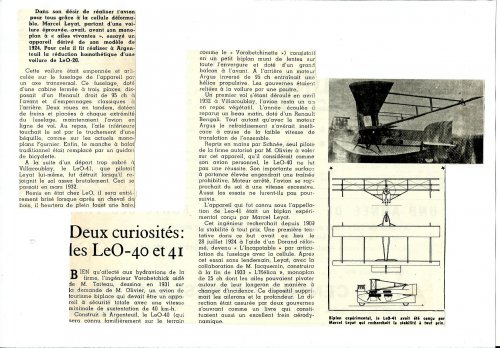

From l'Aeronautique 1934,


here is a drawings to unknown LeO flying boat project,appeared in three configurations;
flying boat,amphibian and landplane,I think it proceeded the H-440.


Attachments

  • 1.png
    420.5 KB · Views: 714
bigvlada said:
The text says it was intended for Marseille - Algiers route.


Yes my dear Bigvlada,


but the project itself was unknown.

toura said:
Hi Deltafan

A long time ago you are asking 3 views for the Leo 300 !!!
From an old "aviation magazine" I found this
Paul
A little late...

Thanks Toura ;)

Hi,


the Liore et Olivier LeO H-195 was a project derivative of H-19,military amphibian,powered
with one 500 hp Hispano-Suiza 12 Mb engine of 1928.

hesham said:
the Liore et Olivier LeO H-195 was a project derivative of H-19,military amphibian,powered
with one 500 hp Hispano-Suiza 12 Mb engine of 1928.


The source for that is TU magazine issue 233.

Hi,


LeO-202 was a four seat project derivative of LeO-20 with four 160 hp Salmson 9Abc
engines.


TU magazine issue 125

Via my dear Tophe,


the LeO-205 was a project of 1931,derivative of LeO-20,powered by four 350 hp
Renault 19 Ca engines.


TU magazine 125

Via my dear Tophe,


the LeO-251 was a low-weight version of LeO-25 bomber,with engines Lorraine Algol.

Via my dear Tophe,


the LeO H-271 was a military project derivative of H-27,explorer with 3000 km range.


TU magazine 237

Hi,


the LeO-3 was a low-wing single seat fighter monoplane project of 1915,intended to
achieve 290 km/h speed,led to developed LeO-9.

Hi,

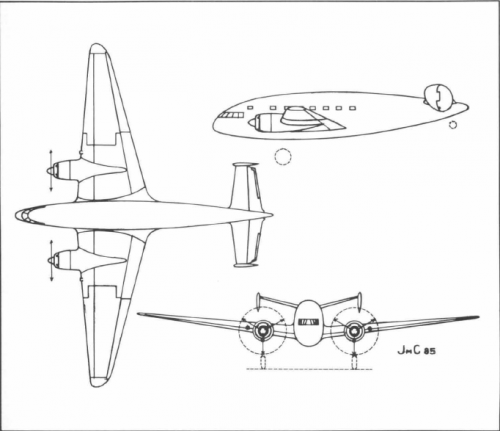

as I heard,the SNCASE SE-012 was a stratosphere Airplane Project,developed from
LeO-457,has anyone a drawing to it ?.

hesham said:
as I heard,the SNCASE SE-012 was a stratosphere Airplane Project,developed from LeO-457,has anyone a drawing to it ?.

The unbuilt LeO 457 was, itself, to have been a high-altitude version of the LeO 451 powered by 1,300 hp Gnome-Rhône 14 N-48/49 radials. I doubt that SNCASE would have been interested in resurrecting the LeO 457 ... it would compete with their SE-1010.

Besides, wasn't the SE.100, the enlarged LeO 50 concept, SNCASE's first designation?

Yes my dear Apophenia,

but SNCASE SE-012 was a real Project,developed from LeO-457.


Attachments

  • 1.JPG
    62.9 KB · Views: 871
hesham said:
Yes my dear Apophenia,

but SNCASE SE-012 was a real Project,developed from LeO-457.
That's not what the text says. It speaks of a pressurized cell similar to the one planned for the LeO 457, a circular section fuselage for the SE-012 quite unlike the 457's oval section fuselage, differently shaped vertical surfaces as well as a different side profile. A similarly shaped wing is mentioned.

hesham said:
From l'Aeronautique 1934,

here is a drawings to unknown LeO flying boat project,appeared in three configurations;
flying boat,amphibian and landplane,I think it proceeded the H-440.

By the way,

this Project was called LeO Za.

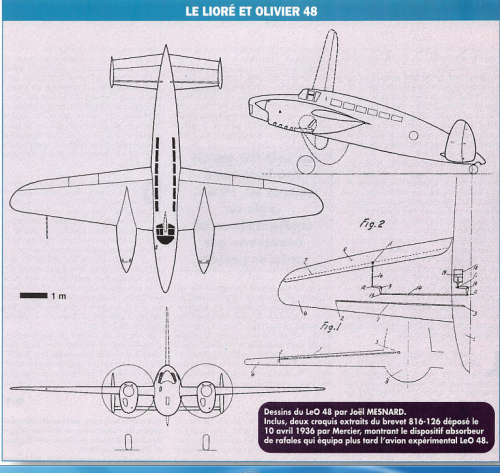

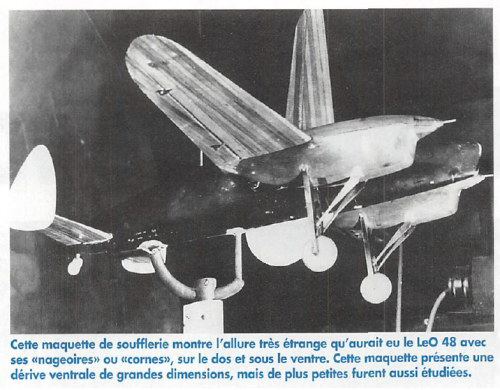

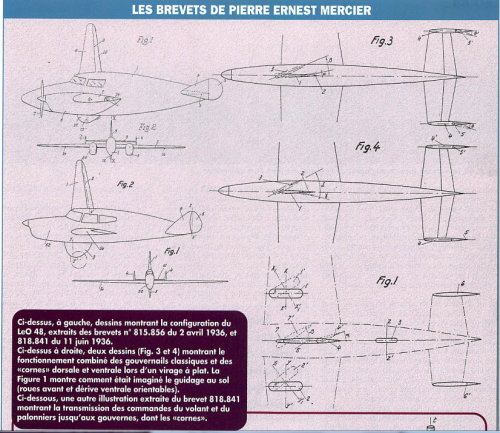

From Le Fana 334,

the LeO-48 and early concept for it.


Attachments

  • 1.png
    1.2 MB · Views: 629
  • 2.png
    998.2 KB · Views: 573
  • 4.png
    644.5 KB · Views: 519

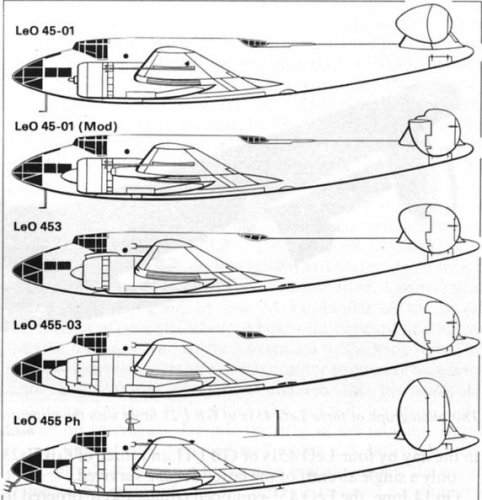

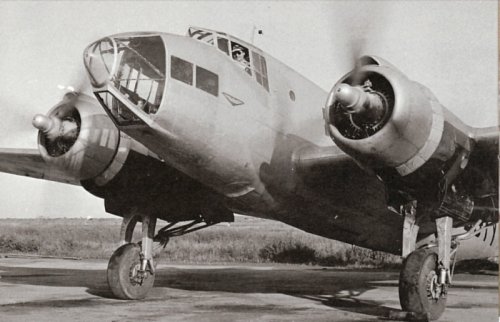

Hi! I think this picture shows LeO 45-01 prototype (Mod) base on some left wing device.
What is this device?

https://en.wikipedia.org/wiki/Lior%C3%A9_et_Olivier_LeO_45
"On 16 January 1937, the LeO 45-01 prototype, powered by a pair of Hispano-Suiza 14AA-6 / Hispano-Suiza 14AA-7 radial engines producing 1,120 hp (835 kW) each, flew for the first time. Despite problems experienced with longitudinal instability, engine reliability and overheating, the aircraft demonstrated excellent overall performance. During flight testing, the prototype was capable of reaching 480 km/h (260 knots, 300 mph) at 4000 m and of attaining 624 km/h (337 knots, 388 mph) in a shallow dive.

In September 1937, the prototype was delivered to the Centre d'Essais de Matériels Aériens at Vélizy-Villacoublay for the type's official evaluation. On 6 December 1937, it was involved in a forced landing incident as a result of both engines having failed simultaneously in mid-flight; the pilot, Jea Doumerc, was able to land without sustaining any damage. The prototype was promptly returned to the manufacturer for adjustments prior to the resumption of evaluation flights. In July 1938, the prototype, fitted with the new Mercier-designed cowlings, attained 500 km/h (270 knots, 311 mph). The earlier instability issues were partially addressed via the adoption of redesigned twin fins and rudders on the tail unit.

Various issues with the troublesome Hispano-Suiza engines had been experienced and this resulted in several changes being made to the prototype, such as the adoption of broader, more efficient air intakes for the oil coolers, which in turn reduced instances of engine overheating. On 29 August 1938, it was decided to replace the existing Hispano-Suiza engines by Gnome-Rhone 14N 20/21 engines, which were capable of producing 1,030 hp (768 kW) each; as a result of these changes, the aircraft was re-designated as LeO 451-01. Following the completion of the re-engining, the flight test programme was resumed, running from 21 October 1938 to February 1939. In spite of the new engines being slightly less powerful, the speed and general performance of the prototype remained relatively unchanged.


Attachments

  • liore-et-olivier-leo-451-01 etc.png
    liore-et-olivier-leo-451-01 etc.png
    259 KB · Views: 211
  • 14-2.jpg
    76.8 KB · Views: 182
  • Leo45-01 (mod).jpg
    Leo45-01 (mod).jpg
    84.6 KB · Views: 387

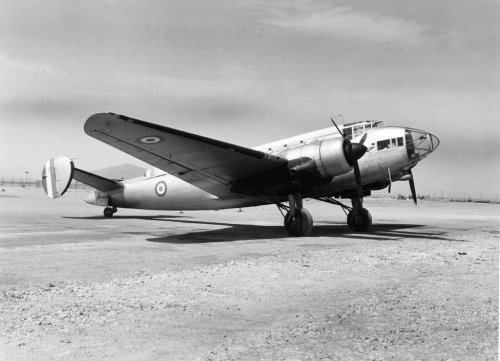

I think these pictures shows LeO 45-01 prototype.
Shape of front wind shield for pilot is apparently different from LeO 45 -01(Mod) prototype.
But propeller spinner shape is different between two pictures. ???

French wings 4 LeO-45
http://www.britmodeller.com/forums/index.php?/topic/234988484-french-wings-4-lior%C3%A9-et-olivier-leo-45-frrom/


Attachments

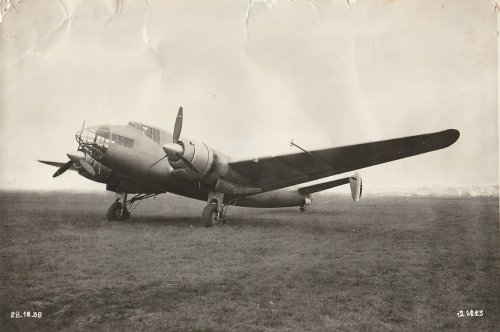

  • Leo 45-01 prototype.jpg
    Leo 45-01 prototype.jpg
    129.3 KB · Views: 146
  • leo 45-01 prototype picture2.jpg
    leo 45-01 prototype picture2.jpg
    123.5 KB · Views: 137

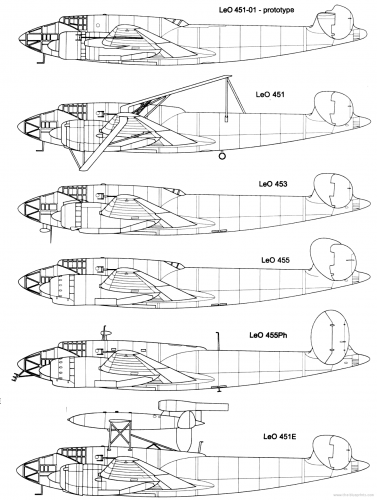

LeO 45.01 First prototype, powered by two Hispano-Suiza 14AA-6 / Hispano-Suiza 14AA-7 radial piston engines.
LeO 451.01 The first LeO 45.01 prototype was redesignated, fitted with two Gnome-Rhone 14R engines.
LeO 451 Production version variously fitted with Gnome-Rhône 14N-48 / Gnome-Rhône 14N-49 or Gnome-Rhône 14N-38 / Gnome-Rhône 14N-39 or Gnome & Rhône 14N-46 / Gnome-Rhône 14N-47 engines
LeO 451C Twelve LeO 451T aircraft were redesignated, used as mail transport aircraft for Air France.
LeO 451E Post-war flying laboratory, 11 modified.
LeO 451T German-captured bombers modified for freight duty, seating for up to 17 troops. Around about 50 aircraft were modified.
LeO 453 Post-war conversion to high-speed transports and search-and-rescue aircraft, powered by two 895 kW (1,200 hp) Pratt & Whitney R-1830-67 engines, seating for 6 passengers, range 3,500 km (1,890 nm, 2,175 mi) at 400 km/h (215 knots, 250 mph) cruising speed, 40 modified.
LeO 454 Bristol Hercules II engines, one prototype left unfinished.
LeO 455 High-altitude version with turbo-supercharged Gnome-Rhône 14R engines producing 1,375 hp (1025 kW) each, 400 ordered, one prototype built. The aircraft flew on 12 March 1939 but was later destroyed on the ground.
LeO 455Ph Post-war photo-reconnaissance variant, powered by two 1,600 hp (1195 kW) SNECMA 14R engines. Five LeO 451s were modified and were used by the Institut Géographique National.
LeO 456 (LeO 451M) Naval version for the French Navy, 68 ordered. Also known as the LeO 451M.
LeO 458 Wright GR-2600-A5B engines, ten ordered

http://redtarget.pagesperso-orange.fr/Leo45.htm


Attachments

  • LeO45-01 after re-engining as the LeO 451-01 with Gnome-Rhones supplanting the Hispano-Suizas..jpg
    LeO45-01 after re-engining as the LeO 451-01 with Gnome-Rhones supplanting the Hispano-Suizas..jpg
    186.8 KB · Views: 156

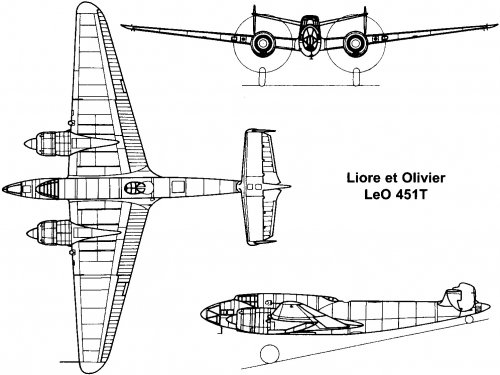

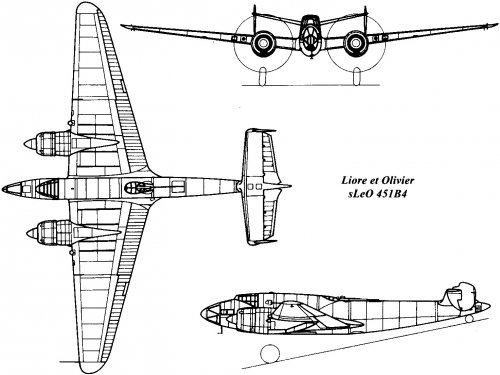

  • LeO 451B4.jpg
    LeO 451B4.jpg
    236.9 KB · Views: 174
  • LeO 451T.jpg
    LeO 451T.jpg
    244.7 KB · Views: 166

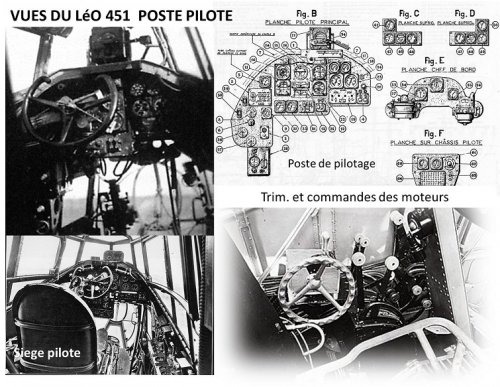

  • poste-de-pilotage1.jpg
    205.9 KB · Views: 172
  • 16-1.jpg
    793.8 KB · Views: 343

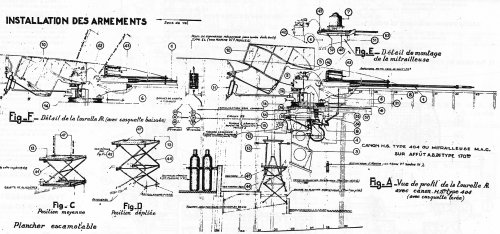

  • armament installation.jpg
    armament installation.jpg
    1,007.9 KB · Views: 195
