Langley Variable-Sweep Wing fighter Projects of 1960s

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,669
Reaction score
4,650

Attachments

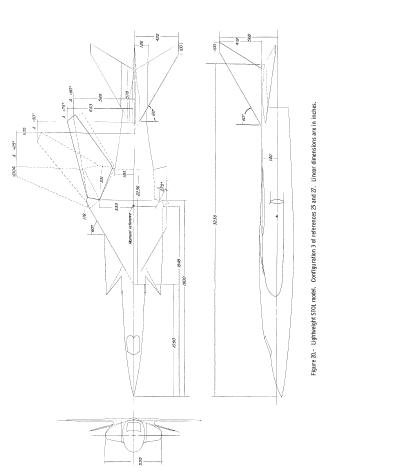

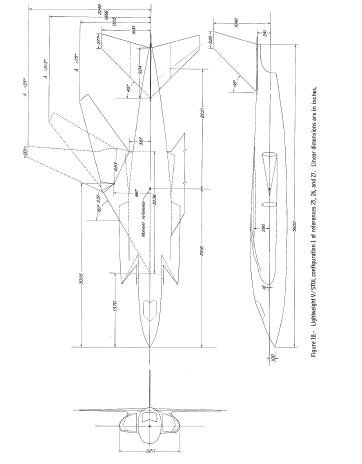

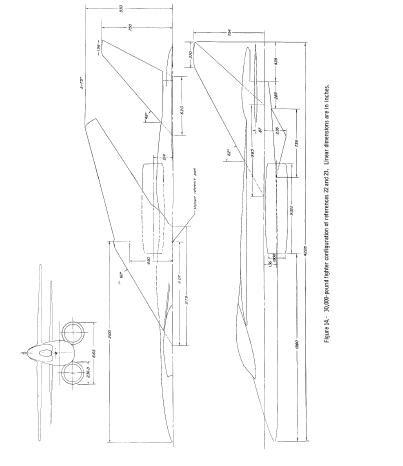

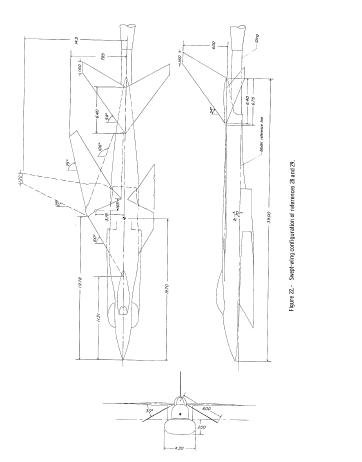

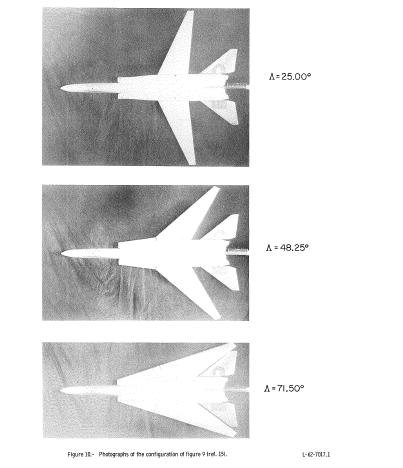

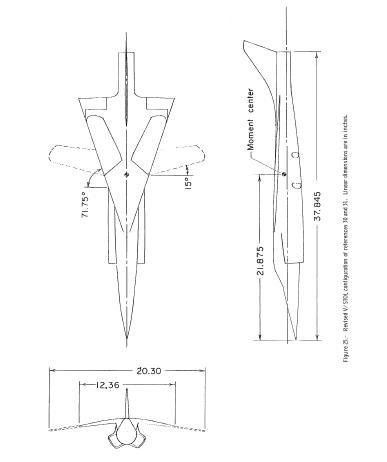

  • VS 1.JPG
    VS 1.JPG
    15.1 KB · Views: 154
  • VS 8.JPG
    VS 8.JPG
    18.2 KB · Views: 72
  • VS 7.JPG
    VS 7.JPG
    15.2 KB · Views: 72
  • VS 6.JPG
    VS 6.JPG
    20.9 KB · Views: 75
  • VS 5.JPG
    VS 5.JPG
    15.8 KB · Views: 130
  • VS 4.JPG
    VS 4.JPG
    18.4 KB · Views: 134
  • VS 3.JPG
    VS 3.JPG
    16.1 KB · Views: 113
  • VS 2.JPG
    VS 2.JPG
    21.6 KB · Views: 118
Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,669
Reaction score
4,650

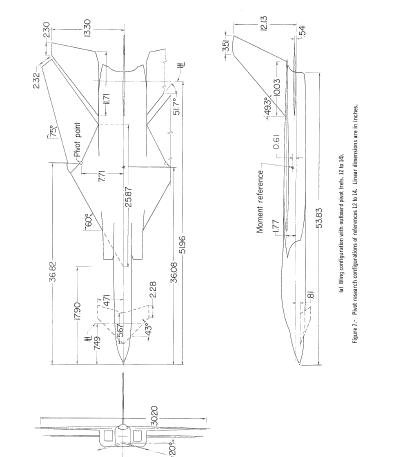

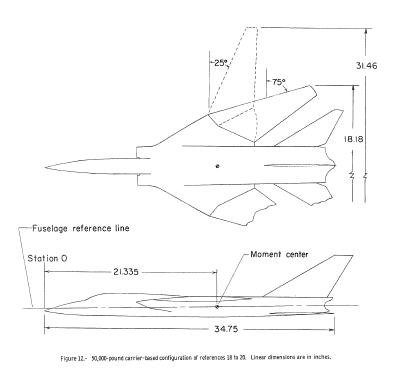

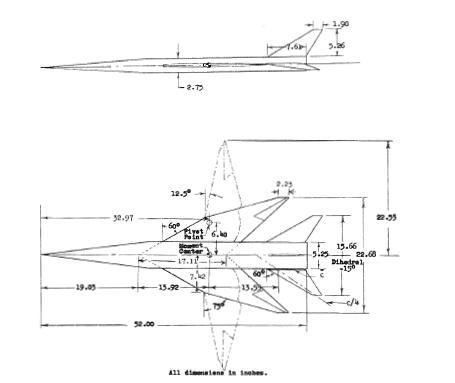

And;


Attachments

  • VS 10.JPG
    VS 10.JPG
    17.2 KB · Views: 76
  • VS 16.JPG
    VS 16.JPG
    14.6 KB · Views: 77
  • VS 15.JPG
    VS 15.JPG
    16.4 KB · Views: 92
  • VS 14.JPG
    VS 14.JPG
    13.1 KB · Views: 66
  • VS 13.JPG
    VS 13.JPG
    14.8 KB · Views: 59
  • VS 12.JPG
    VS 12.JPG
    15.5 KB · Views: 70
  • VS 11.JPG
    VS 11.JPG
    15.8 KB · Views: 75
  • VS 9.JPG
    VS 9.JPG
    19.7 KB · Views: 85

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,669
Reaction score
4,650
Hi,

and also from 1960.

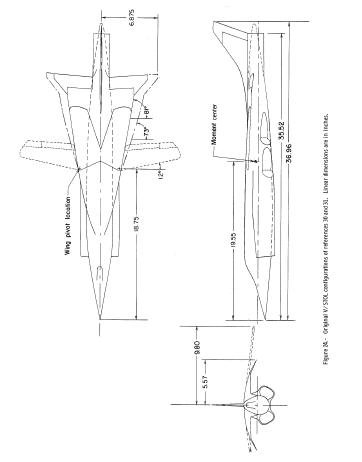

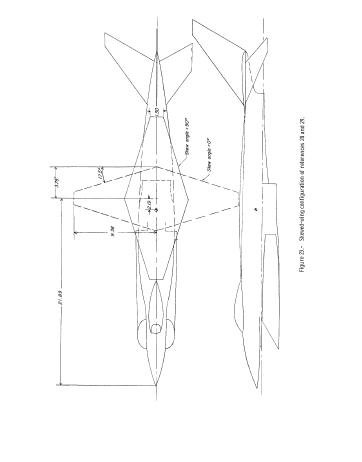

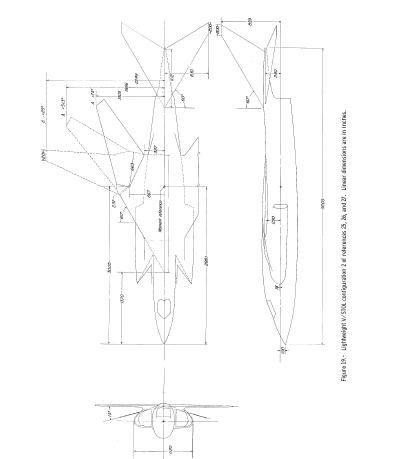

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19720063432_1972063432.pdf


Attachments

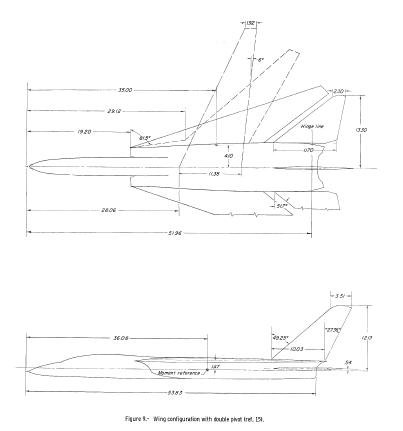

  • VG 1.JPG
    VG 1.JPG
    30.6 KB · Views: 74
  • VG 2.JPG
    VG 2.JPG
    25 KB · Views: 67

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,669
Reaction score
4,650

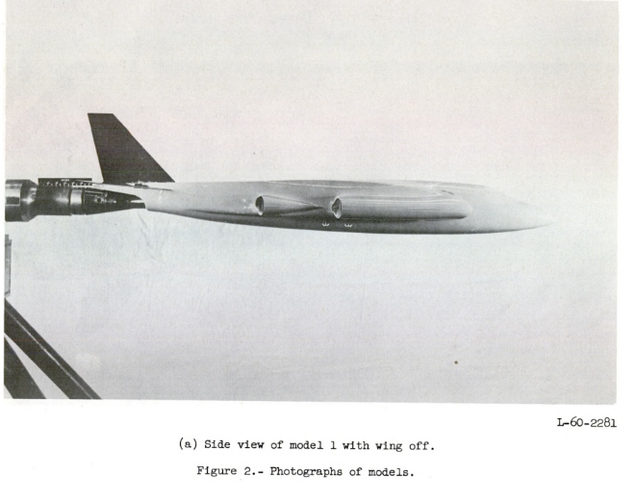

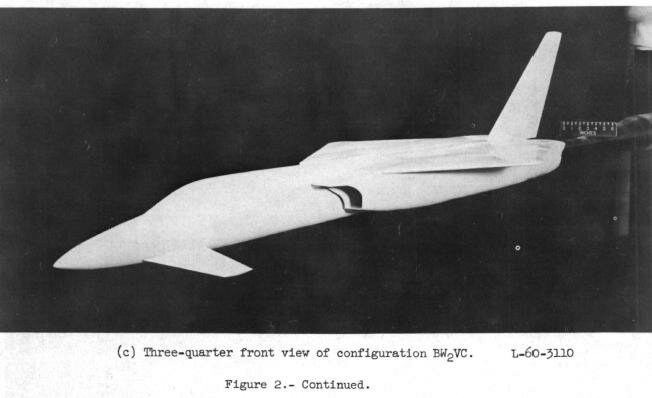

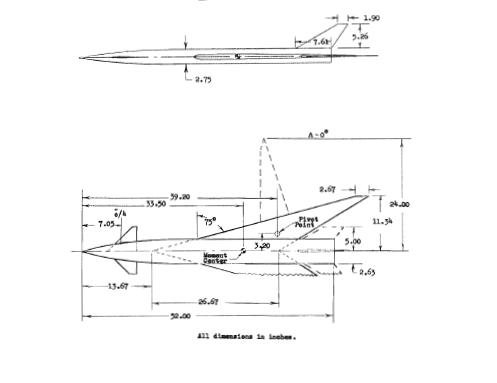

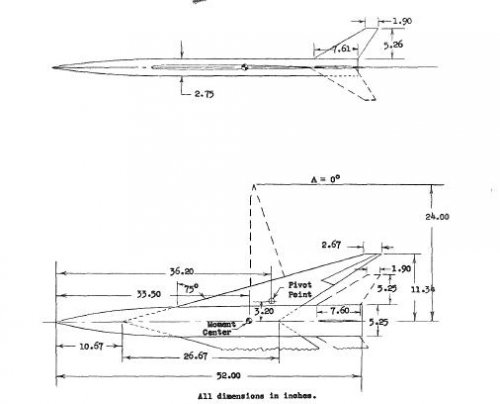

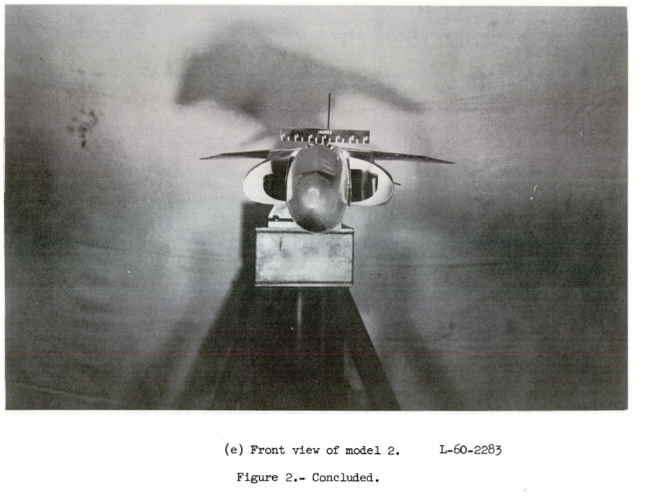

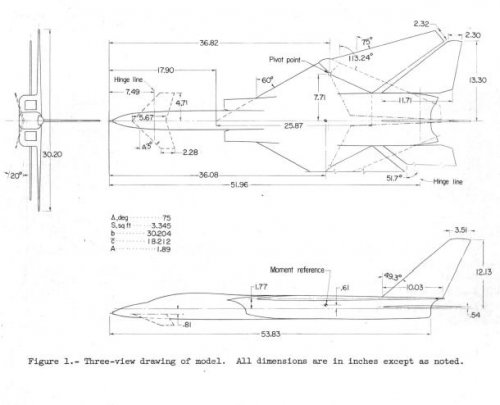

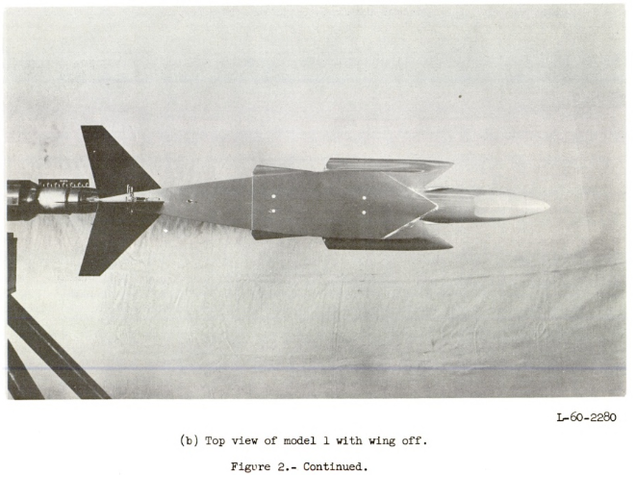

From NASA report of 1960.


Attachments

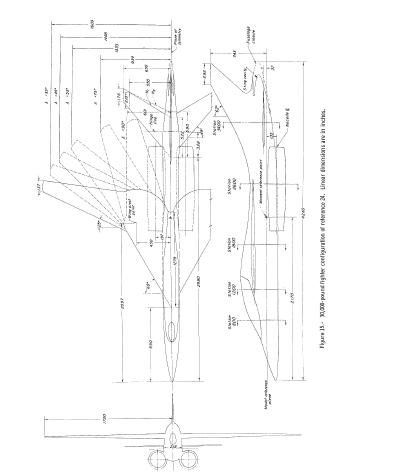

  • 1.png
    373.7 KB · Views: 25
  • 2.png
    411.3 KB · Views: 25
  • 3.png
    361 KB · Views: 25
  • 4.png
    447.2 KB · Views: 23
  • 5.png
    474.6 KB · Views: 42

aim9xray

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Feb 20, 2007
Messages
594
Reaction score
280

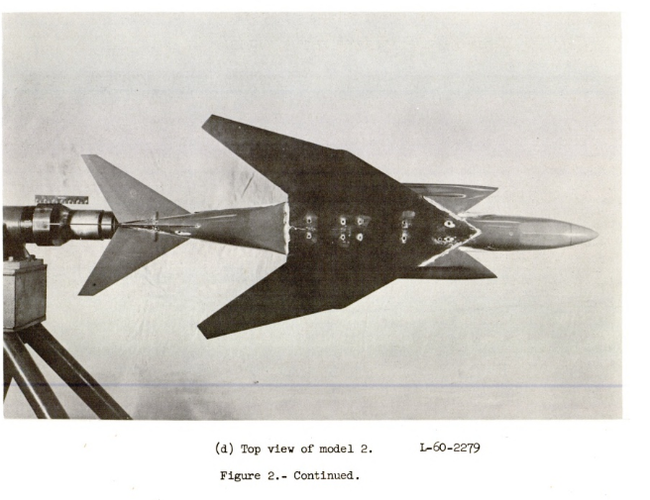

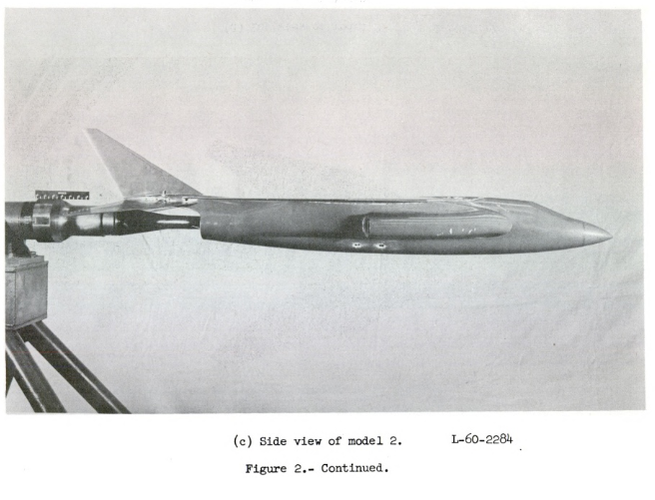

Yes, the fuselage is familiar - that is the A3J-1Vigilante with the early intake cowl as seen on the full size mockup. NASA Langley modified this wind tunnel model for a number of VG studies.
