Kugisho 16-shi carrier fighter: real or fake project?

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,212
Hi! Kugisho(空技廠)16-shi carrier fighter.
http://www.warbirds.jp/kakuki/kaksei/16-shi_2.htm
Kugisho studied small size(smaller than Zero) carrier fighter as 16-shi carrier fighter in 1941.
Wing loading was 170kg/m2. This fighter was considered to operate from the carrier which had catapult. Some mock-up were built.
But lower visibility was very poor to operate as carrier fighter.
Wing span:10.5m, Overall length:8.85m, height:3.95m, wing area:20.5m2, empty weight:2,650kg, MTOW:3,400kg, engine:Nakajima Homare 11(take off power 1,800hp), Max speed:670km/h, service ceiling:11,000m, Range:1600km, Armament:two 20mm cannon and two 13mm gun.
It was Japanese F8F.


Attachments

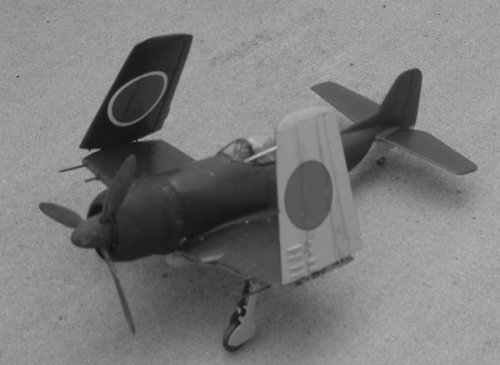

  • kugisho16shi00s.jpg
    29.9 KB · Views: 452

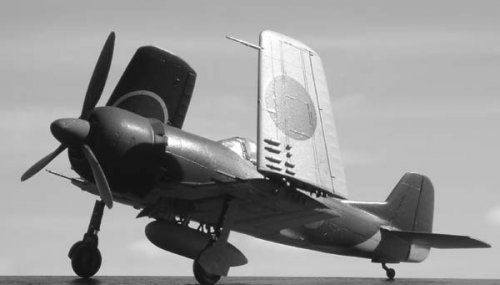

  • 16-shi-2_006s.jpg
    25.6 KB · Views: 436

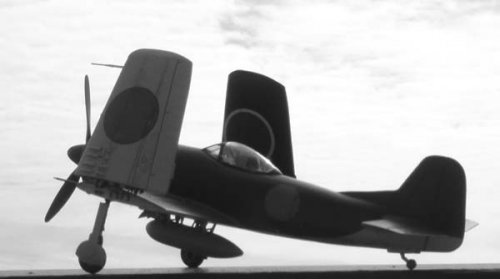

  • 16-shi-2_004s.jpg
    35.6 KB · Views: 358

airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,300
Reaction score
151
Website
zeef.com
blackkite said:
Hi! Kugisho(空技廠)16-shi carrier fighter.
http://www.warbirds.jp/kakuki/kaksei/16-shi_2.htm
Kugisho studied small size(smaller than Zero) carrier fighter as 16-shi carrier fighter in 1941.
Wing loading was 170kg/m2. This fighter was considered to operate from the carrier which had catapult. Some mock-up were built.
But lower visibility was very poor to operate as carrier fighter.
Wing span:10.5m, Overall length:8.85m, height:3.95m, wing area:20.5m2, empty weight:2,650kg, MTOW:3,400kg, engine:Nakajima Homare 11(take off power 1,800hp), Max speed:670km/h, service ceiling:11,000m, Range:1600km, Armament:two 20mm cannon and two 13mm gun.
It was Japanese F8F.
seems be Kawanishi A8K1 mentioned on "Japonskie Samoloty Marynarki 1912-1945 tom.1"


Robert

ACCESS: Confidential
Senior Member
Joined
Feb 9, 2007
Messages
66
Reaction score
17
Website
hud607.fire.prohosting.com
blackkite said:
Hi! Kugisho(空技廠)16-shi carrier fighter.
http://www.warbirds.jp/kakuki/kaksei/16-shi_2.htm
Kugisho studied small size(smaller than Zero) carrier fighter as 16-shi carrier fighter in 1941.
Wing loading was 170kg/m2. This fighter was considered to operate from the carrier which had catapult. Some mock-up were built.
But lower visibility was very poor to operate as carrier fighter.
Wing span:10.5m, Overall length:8.85m, height:3.95m, wing area:20.5m2, empty weight:2,650kg, MTOW:3,400kg, engine:Nakajima Homare 11(take off power 1,800hp), Max speed:670km/h, service ceiling:11,000m, Range:1600km, Armament:two 20mm cannon and two 13mm gun.
It was Japanese F8F.

This appears to be fictional "what-if" type plastic model. Looking at a translation of the main page of this website: "Welcome to the fictional aircraft museum! Here is a fictional aircraft / vessels / vehicles with a focus on museum by CG"

And the page that links to the the above entry: http://www.warbirds.jp/kakuki/kaksei/kaksei-f.htm


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,212
Oh it's fake! Many thanks. :eek:


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
822
New topic split from the old "Japanes Projects before 1945" thread. If anyone can add to this (notably to determine once and for all that this is a fake project) please do, and we will move it to the "Speculation" section...
