Kolesnikov Gliders

[hesham]

Hi,

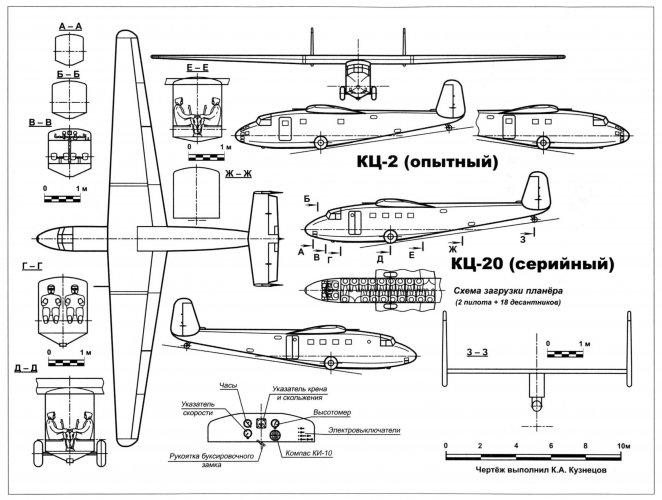

we know the Russian designer D. Kolesnikov and he created many gilder and assault gilder
aircraft and projects,here is a drawings to KTs.2,KTs.10 and KTs.20.


Kryl'ya Rodine 11-12/2013



[Silencer1]

Re: Kolsenikov Gliders

Dear hasham!


You misspelled the surname of designer - he was Kolesnikov.
In England he could be a Wheeler



[hesham]

Hi,

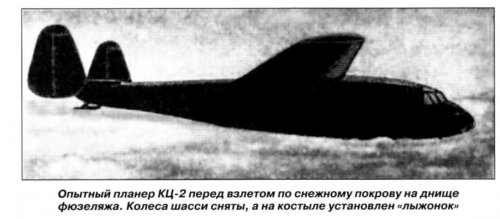

here is a Kolesnikov KTs.2 glider picture,with a strange drawing to seaplane version,land on water
glider.

Десантные планеры Сталина 1930-1955 гг. "С неба - в бой!"



[Cy-27]

Kolesnikov KTs-20 transport glider details


WING SPAN: 23.8 m
LENGTH: 14.12 m
HEIGHT: 2.84 m
WING AREA: 55.2 sq m
WING ASPECT RATIO: 10.3
HORIZONTAL TAIL AREA: 8.0 sq m
VERTICAL TAIL AREA: 5.30 sq m
AILERON AREA: 5.70 sq m
MAXIMUM TAKE OFF WEIGHT: 2,050 kgs
ACCOMODATION: 20
WING LOADING: 81 kgs sq m
WING SECTION: R-II
MAX AERODYNAMIC QUALITY: 16

SOURCES:
Soviet Gliders Resov, U.A. (Moscow Mashinostroen)

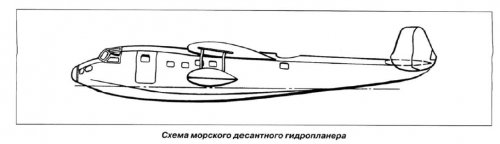

PS I think the water-glider shown in Hesham's post could be the KTs-20 Gidro project from 1944 (see attached).



[hesham]

My dear Cy-27,

now we have those series; KTs-1,KTs-2,KTs-10 & KTs-20,for this designer,was there
any more or not ?.



[igor-mich]

"KTs" is Kolesnikov + Tsybin ( "КЦ" Колесников Д.Н и Цыбин П.В.)



[igor-mich]

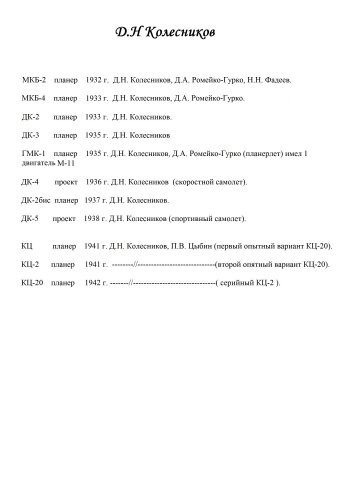

List of Kolesnikov's works



[hesham]

Thank you my dear Igor.



[Stargazer]

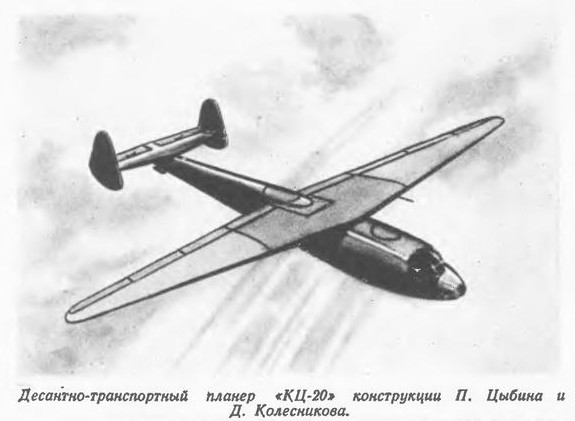

Kolesnikov KTs-20:



[igor-mich]

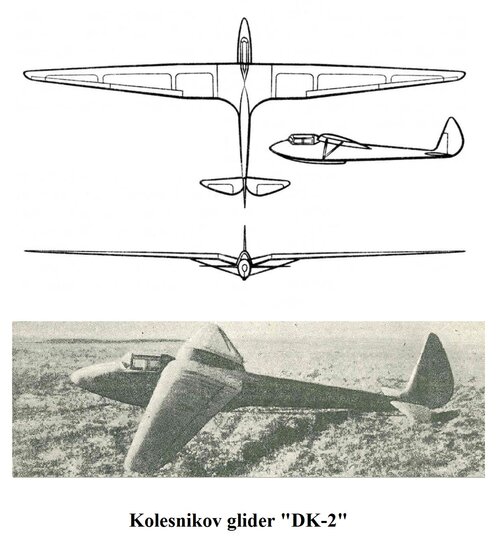

Kolesnikov glider "DK-2"



[igor-mich]

Планер ДК-2.

Планер ДК-2. :: Планер ДК-2. Разработчик: Д.Н.Колесников Страна: СССР Первый полет: 1934 г. Одноместный рекордный планер конструкции Д.Н.Колесникова спроектирован в 1933

xn--80aafy5bs.xn--p1ai



[hesham]

List of Kolesnikov's works

Translate,

D. N. Kolesnikov

MKB-2 glider 1932 D.N. Kolesnikov, D.A. Romeiko-Gurko, N.N. Fadeev.
MKB-4 glider 1933 D.N. Kolesnikov, D.A. Romeiko-Gurko.
DK-2 glider 1933 D.N. Kolesnikov.
DK-3 glider 1935 D.N. Kolesnikov
GMK-1 glider 1935 D.N. Kolesnikov, D.A. Romeiko-Gurko (glider)
had 1 M-1 engine[ 1]
DK-4 project 1936 D.N. Kolesnikov (high-speed aircraft).
DK-2bis glider 1937 D.N. Kolesnikov.
DK-5 project 1938 D.N. Kolesnikov (sport aircraft).
KTs glider 1941 D.N. Kolesnikov, P.V. Tsybin (first experimental version of KTs-20).
KTs-2 glider 1941 --------//-----------------------------(second experimental version of KC-20).
KTs-20 glider 1942 -------//------------------------------=(serial KTs-2).

There was also KTs-10



[igor-mich]

Dear Himmash. Specify the source of information about the KTs-10 airframe. Your first message where the drawings are given is incorrect, there is no KTs-10 airframe.



[igor-mich]

On the basis of the KTs-20 airframe, Kolesnikov offered to work out projects: - motor gliders with two M-11 engines- seaplane. But they were not worked out in detail.



[hesham]

Dear Himmash. Specify the source of information about the KTs-10 airframe. Your first message where the drawings are given is incorrect, there is no KTs-10 airframe.

I will check from it.



[igor-mich]

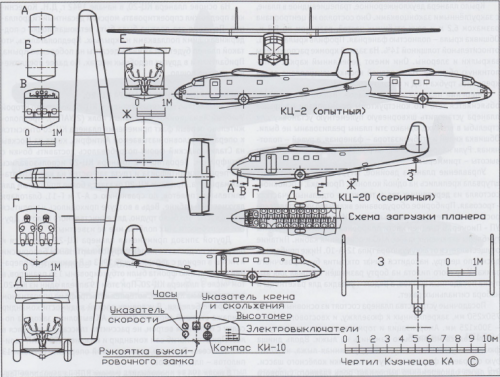

Here is the drawing, show where the designation KTs-10 is on it. KTs-20 indicated that it accommodates 20 people (2 pilots + 18 paratroopers)
