Kawasaki Ki-45 Projects, Prototypes & Variants

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,238
Reaction score
1,893

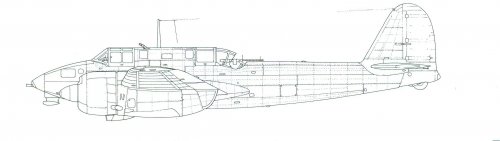

From "Japan Project Aircraft" 1945 WWII Illustrated , KOEI publishig,1997


Attachments

  • Escanear0002.jpg
    189.6 KB · Views: 227

shaba

ACCESS: Confidential
Joined
Jan 28, 2008
Messages
124
Reaction score
1
that is an early kawasaki ki-45 with a ducted spinner
the third prototype c/n 4503 had aducted spinner, cooling air being forced through teir centeres and exhausting through slots in the wings.
from Rj Francillon japanese aircraft of the paciffic war.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,228
Reaction score
940
Couldn't find a clue, that the SN-2 radar was sent to Japan. And judging the
efforts, that were made to keep it secret (remember the erroneus landing of a
Bf 110nightfighter fitted with the SN- 2 in Switzerland), I don't think, that it
would have been send to Japan. From what I've read, generally the Germans
seemed to be quite reluctant to give their radar technology to other nations,
even at those times, they already weren't state-of-the-art. Radar warning
receivers were given to Japanese submarines, bt this was more or less just
self-interest, as those submarines brought desperately needed resources to
Germany, too.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,381
Reaction score
2,569
I confirmed from Japanese internet site that Sumitomo Taki 2 go radar were experimentally installed to about 10 Toryu fighters.
But I can't find the picture of Taki 2 go radar.

Taki 2 go fire control radar
Weight : 120kg, 375MHz, Detecting range : 3km.
(While SN-2 "Lichtenstein" radar : 90MHz)


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,228
Reaction score
940
Was the Taki 2 go radar identical to the SN-2 "Lichtenstein", or maybe
a development, like the Miktsubishi J8M Shusui, which was broadly
based on the Me 163, but no direct copy ?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,381
Reaction score
2,569
Jemiba said:
Was the Taki 2 go radar identical to the SN-2 "Lichtenstein", or maybe
a development, like the Miktsubishi J8M Shusui, which was broadly
based on the Me 163, but no direct copy ?


Huuuum.Perhaps identical. Give me some time.


Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
946
Reaction score
93
Fake!!!
The actual japanese night fighter radar used different yagi aerials and had a completelly different electronics package. Even the projected airborne radars continued to use the japanese aerial pattern, as well as a parabolic dish intended for one of the versions considered. Most of these "wishfull thinking" designs are described as so, but some may wreck havoc among the uninformed community. Please consult this website:
http://www.fischer-tropsch.org/primary_documents/gvt_reports/USNAVY/USNTMJ%20Reports/USNTMJ_toc.htm
Many 1945/46 reports on japanese equipment, among them airborne radars, either produced or projected. Mind that it isn`t a primary source, I have found many incomplete and sometimes erroneous informations on allied reports dealing with german equipment.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,228
Reaction score
940

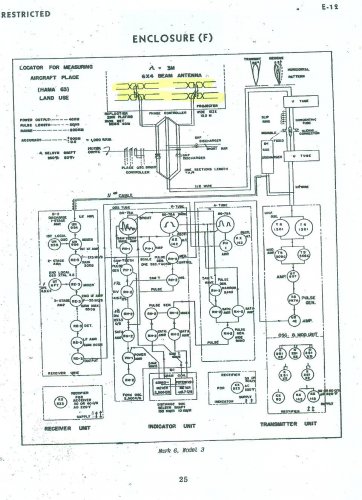

Justo Miranda said:
Yagi or Matratzen?

Not a Yagi, I think, as besides the receiving/transmitting dipole, a Yagi antenna uses a dipole behind
as a reflector and one or more dipoles in front as directors, all lined up perpendicular to the
transmitting/receiving direction. In your scheme, there is a reflector/projector mentioned, made
from zinc plating, so I don't think it's a real Yagi antenna
(sketch below from Wikipedia, blue: Reflector, orange: director, black: receiving/transmitting dipole)

BTW, "Matratze" (matress) was just a nickname for an antenna installation like that, for the FuG 202,
not actually a type of antenna.


Attachments

  • Yagiantenne.png
    2.1 KB · Views: 730

Artie Bob

ACCESS: Confidential
Joined
Jan 6, 2008
Messages
167
Reaction score
28
IIRC, but unfortunately I cannot remember the source, the Japanese had developed and used yagi antennae during WWII.
Best Regards,
Artie Bob


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,381
Reaction score
2,569
Hi! Yagi antenna.


Attachments

  • yagi antenna (1).jpg
    yagi antenna (1).jpg
    36.8 KB · Views: 501

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,228
Reaction score
940

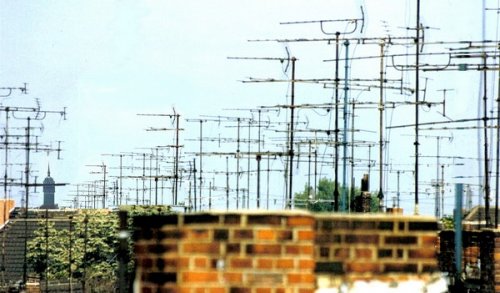

That's indeed a typical Yagi antenna, using directors for obtaining a narrow beam. I think, we all have seen
thousands of such antennas not too long ago.
The FuG 220 Lichtenstein used conical scanning, so could use a wider beam from every single set of antennas.


Attachments

  • TV-antennas.jpg
    78.5 KB · Views: 455

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,381
Reaction score
2,569

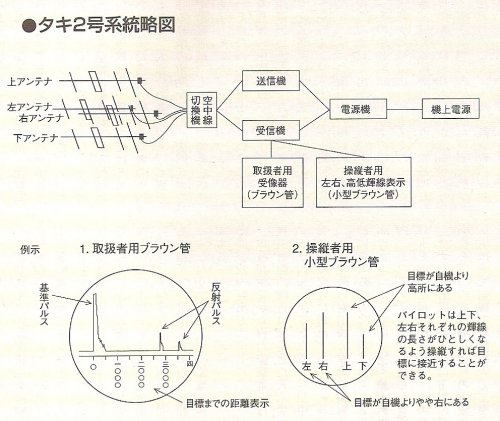

Hi! Taki 2 go(タキ二号) radar(レーダー). It had four Yagi(八木) antenna.
It had a rather modern shape.
So Justo's post is perhaps fake. But number of antenna(4) is correct. ;D

Source : Maru magazine, June 2010.


Attachments

  • Taki 2 go radar.jpg
    Taki 2 go radar.jpg
    967.5 KB · Views: 374
  • Taki 2 go system.jpg
    Taki 2 go system.jpg
    216.3 KB · Views: 101

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,228
Reaction score
940

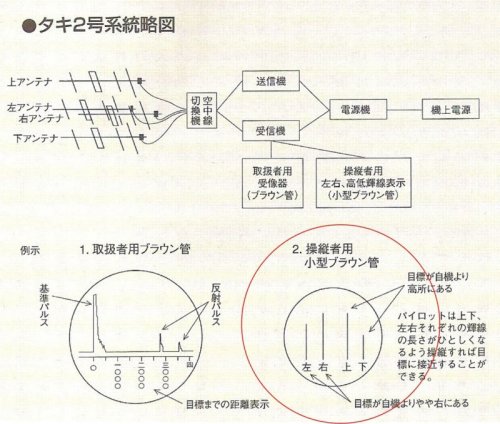

Sorry, cannot read it ;) , but the drawing in the lower right corner suggests, that a
similar system as in the "Lichtenstein" was used If the received signals for all
four antennas had the same strength, the target was dead ahead.


Attachments

  • Taki2go.jpg
    95.6 KB · Views: 65

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,381
Reaction score
2,569
Jemiba said:
the drawing in the lower right corner suggests, that a
similar system as in the "Lichtenstein" was used If the received signals for all
four antennas had the same strength, the target was dead ahead.

That's right!
取扱者用ブラウン管 : Cathode -ray tube for the radar operator, 操縦者用小型ブラウン管 : Small cathode-ray tube for the pilot, 基準パルス : reference pulse, 反射パルス : reflected pulse, 目標までの距離表示 : The indication of the distance to the target, 左 : left, 右 : right, 上 : upper direction, 下 : lower direction.

This sample indication shows that the target is high altitude and right direction compared with this Toryu interceptor.
4 Yagi antenna were covered with see through plexiglass dome. Because of B-29's high speed, Taki Toryu had a only one chance to attack B-29 and chance was very short time. Taki radar's reliability was very poor because reliability of each parts were poor.


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,238
Reaction score
1,893
Hi

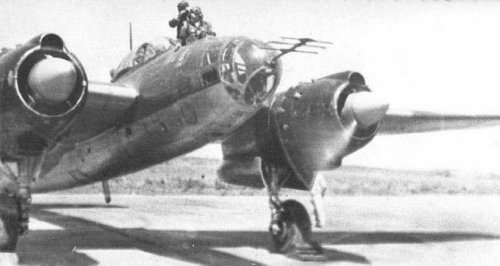

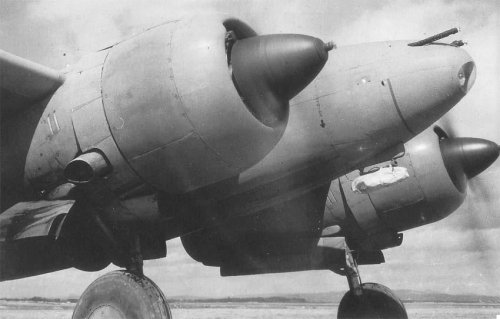

Here you are a pic of one Night Fighter Kawasaki Ki-45-KAI-Ko
Could anyone identify the type of radar used by this antenna?
Experimental?...prototype?....in service?


Attachments

  • Ki-45.jpg
    50.1 KB · Views: 416

windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
355
Reaction score
103
I don't what kind of exact radar this might be, but I have a list from Wikipedia of Japanese airborne radar:

Airborne radar
  • Ta-Ki 1 Model 1 Airborne Surveillance Radar
  • Ta-Ki 1 Model 2 Airborne Surveillance Radar
  • Ta-Ki 1 Model 3 Airborne Surveillance Radar
  • Ta-Ki 11 ECM Device
  • Ta-Ki 15 Aircraft Guidance Device Receiver (for Tachi 13)
Maybe it is one of these models (they are sometimes spelled Taki instead of Ta-ki).


LAW

ACCESS: Restricted
Joined
Jan 9, 2011
Messages
41
Reaction score
4
It is not a radar but a guncamera, used mainly for training purpose.

Regards,
LAW


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,788
Reaction score
1,922
I could be wrong, but that looks more like an IR sensor setup to me.


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,238
Reaction score
1,893
I can better accept the idea of being a camera, rather than a radar.
Sorry, wrong source... and thanks everybody. :)


Attachments

  • NS 002.jpg
    NS 002.jpg
    407 KB · Views: 283
  • NS 001.jpg
    NS 001.jpg
    80.6 KB · Views: 297
  • NS.jpg
    119.4 KB · Views: 314

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,381
Reaction score
2,569

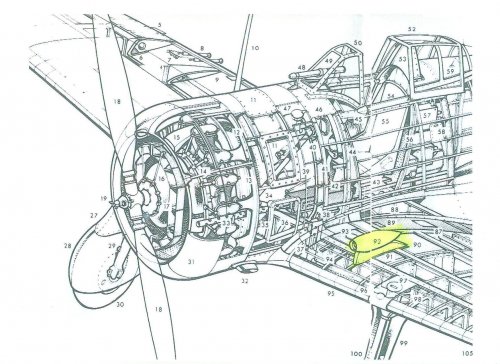

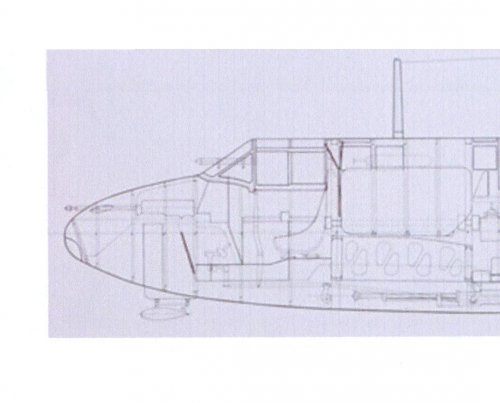

If you have Japanese text or explanation about this equipment...... (No.92 parts.)


JimK

ACCESS: Confidential
Joined
Apr 15, 2010
Messages
56
Reaction score
8

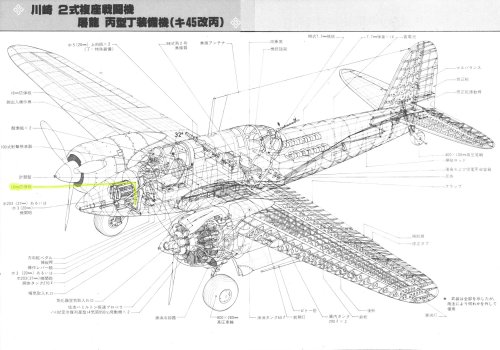

Perhaps you could provide a translation of the highlighted item?


Attachments

  • Kawasaki Ki-45 Toryu.jpg
    Kawasaki Ki-45 Toryu.jpg
    1.5 MB · Views: 245

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,381
Reaction score
2,569
Justo Miranda said:
I can better accept the idea of being a camera, rather than a radar.
Sorry, wrong source... and thanks everybody. :)
Yes. Radar is here.
http://www.secretprojects.co.uk/forum/index.php/topic,14964.msg149946.html#msg149946


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,381
Reaction score
2,569

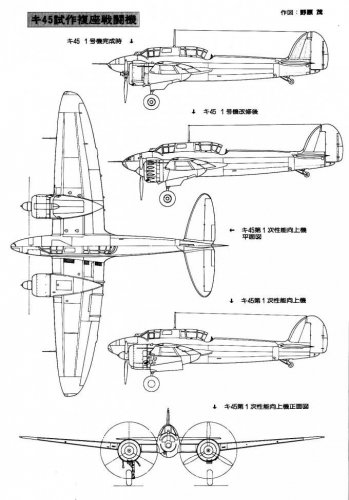

Hi! Kawasaki Ki-45 prototype,etc.

https://www.the-blueprints.com/blueprints/modernplanes/modern-jk/68791/view/kawasaki_ki-45/

http://japaneseaircraftofwwii.blogspot.jp/2015/03/toryu-redux.html

1号機完成時 : At the completion of the first aircraft
1号機改修後 : After renovation of the first aircraft
第1次性能向上機 :The first step performance improvement aircraft


Attachments

  • kawasaki-ki-45.png
    1.6 MB · Views: 139
  • firstproto1.jpg
    40.6 KB · Views: 109
  • secondproto2.jpg
    49.5 KB · Views: 71
  • thirdprototype3.jpg
    35.3 KB · Views: 93
  • 3fd386fc87b7ee7bca5c4e187091cb36.jpg
    82.1 KB · Views: 153

Hood

ACCESS: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
1,890
Reaction score
1,199
No, because as pointed out in post 2, its the third prototype Kawasaki Ki-45, nothing to do with the IMAM Ro.57 at all there is no mystery.


windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
355
Reaction score
103

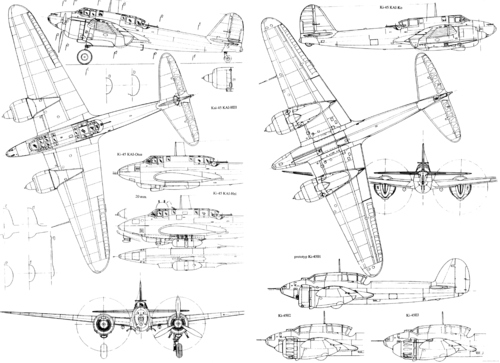

If you look at the half profile in the lower right of the image you will see the Ki-45 with the ducted fan, listed as "Ki-4503" meaning third prototype.


Attachments

  • Ki-45 variants multi view.png
    Ki-45 variants multi view.png
    3.3 MB · Views: 144

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,381
Reaction score
2,569

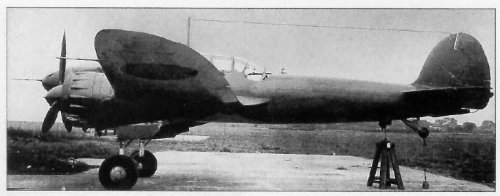

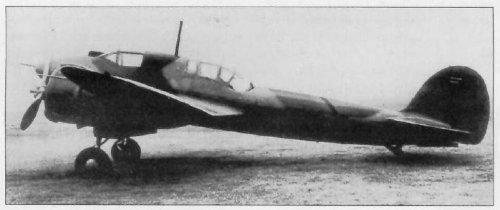

Hi! Source ; No21.


Attachments

  • Ki-4503.jpg
    638.6 KB · Views: 88

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,381
Reaction score
2,569

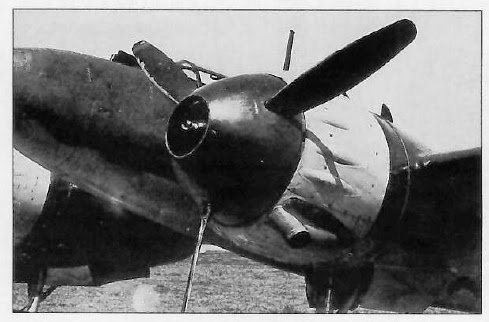

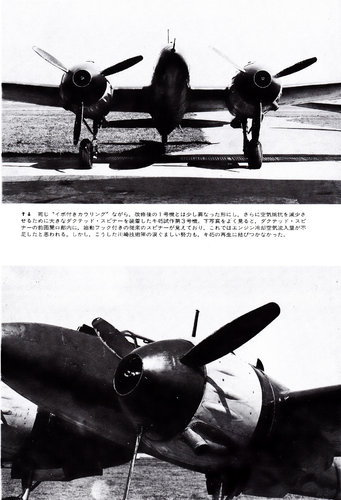

Japanese explanation of this picture says that

If you look closely at the photo below, you can see original spinner with starting hook inside the front of a ducted spinner, and seems insufficient engine cooling air flow in it.

However, this tearful efforts of the Kawasaki engineers did not lead to the regeneration of the Ki-45.
