Ka-31 AEW helicopter

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,361
Reaction score
3,395

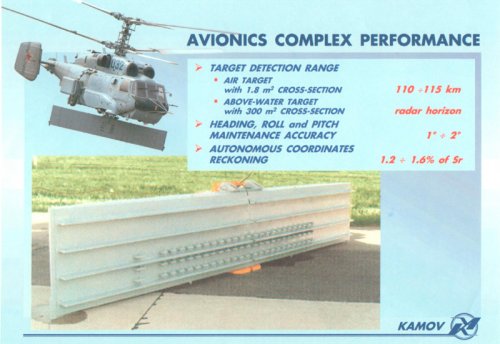

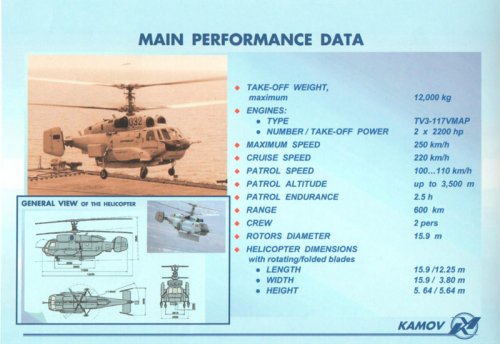

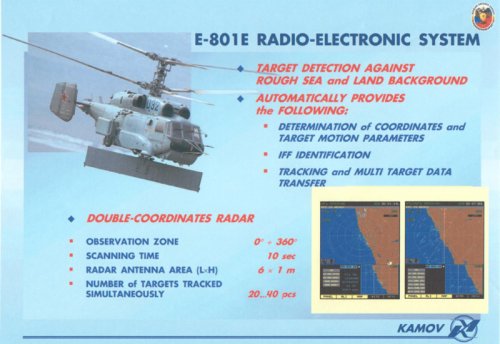

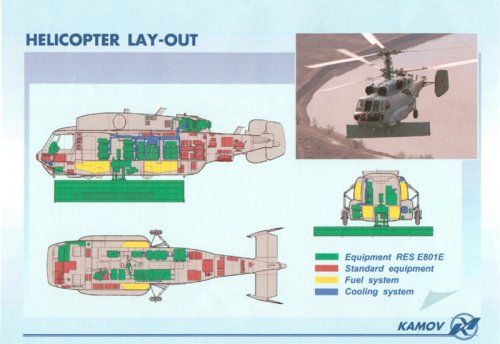

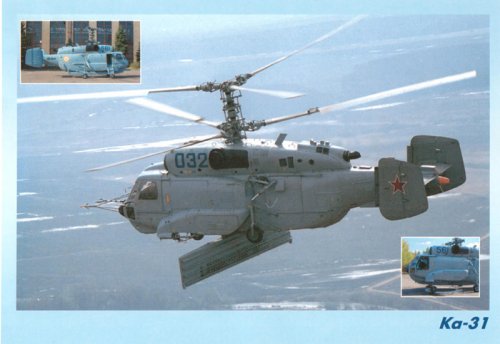

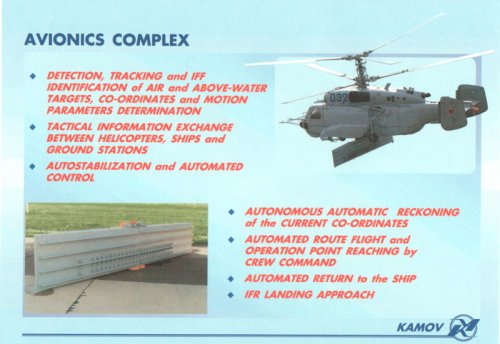

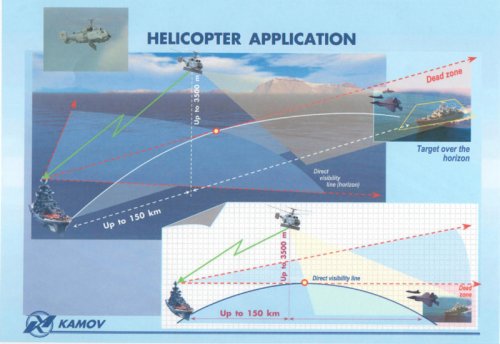

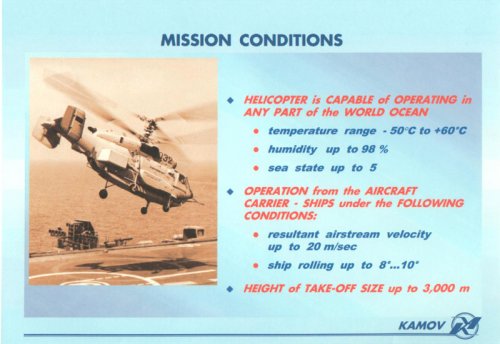

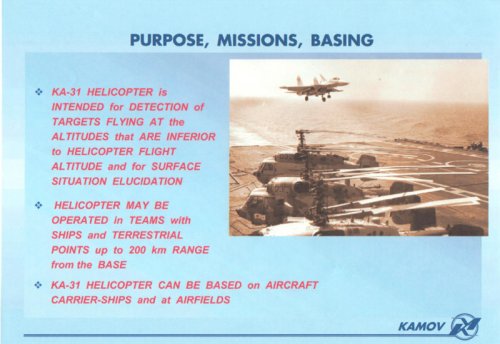

Kamov Brochure I picked up from Farnborough 2004


Attachments

  • Kamov01.jpg
    119.3 KB · Views: 190
  • Kamov02.jpg
    123.1 KB · Views: 229
  • Kamov03.jpg
    132.9 KB · Views: 185
  • Kamov04.jpg
    129.9 KB · Views: 151

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,361
Reaction score
3,395
More


Attachments

  • Kamov08.jpg
    143.5 KB · Views: 120
  • Kamov07.jpg
    126.9 KB · Views: 152
  • Kamov06.jpg
    134.8 KB · Views: 116
  • Kamov05.jpg
    148.4 KB · Views: 192

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,361
Reaction score
3,395
End:


Attachments

  • Kamov09.jpg
    135 KB · Views: 116
  • Kamov10.jpg
    144.9 KB · Views: 117
  • Kamov11.jpg
    96 KB · Views: 108
  • Kamov12.jpg
    117.3 KB · Views: 117

Austin

ACCESS: Confidential
Joined
Jan 30, 2006
Messages
194
Reaction score
3

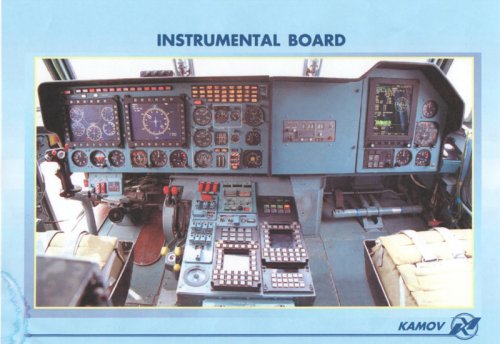

I have been in side the cockpit of the KA-31 of the IN , althought the cockpit has many switches , Display ,Panels and instrument etc and dosent look exactly neat , But its still a comfortable one .

Well the KA-31 can be described as a Chopper full of instrument , the whole place inside the chopper or every possible place is just fitted with one avionics system, computers and other systems ,and some how they even found a place for the pilot.

The Radar is very effective out to a Range of 250 Km but it requires some onboard system on ships so that it can datalink with the chopper , the processing etc is done on ships.

It is also a mainteinance intensive chopper and neverthless a reliable machine and IN likes its performance , The KA-31 on the IN is also fitted with certain Indian system


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,361
Reaction score
3,395

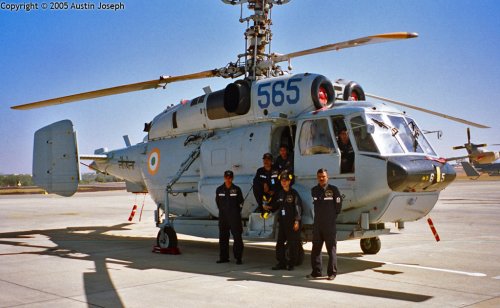

Pictures from Aero India 2005 courtesy of Austin


Attachments

  • Ka-31a.jpg
    194.3 KB · Views: 113
  • Ka-31b.jpg
    184.1 KB · Views: 69

rotorheadtx

ACCESS: Restricted
Joined
Jul 4, 2006
Messages
14
Reaction score
1
Any chance I could get a larger size/better resolution scan for the "Kamov02.jpg" file???

Thanks,
Tony
