JAXA Future Projects Report

XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,171
Reaction score
116
Check it out. Intersting report. Check out the X-43 type vehicle around Page 50.
www.aiaa.org/pdf/conferences/Maita.pdf


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023
Re: JAXA Future Projects

Hi,

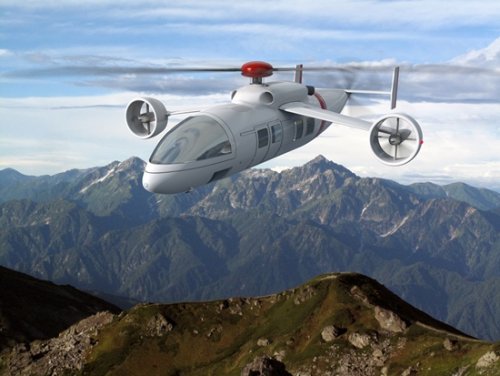

here is a JAXA future compound helicopter project;


http://www.aero.jaxa.jp/eng/research/frontier/rotary/


Attachments

  • frc01.jpg
    132.3 KB · Views: 342

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,075
Reaction score
4,170
Hi!

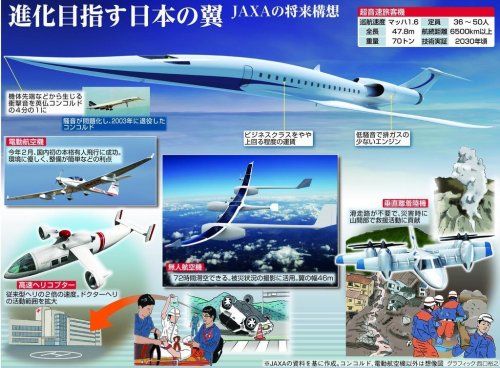

JAXA future plan.
(1)Quiet supersonic business jet.
Cruising mach number : 1.6, Range : over 6500km, 36 to 50 passengers, Sonic boom level at mach1.6 : 0.5psf(1/4 of Concorde), Low noise,
Low emission, Overall length : 47.8m, MTOW : 70ton class, Boarding ticket price : little expensive compared with recent airliner business class seat,
Realization date : around 2030
(2)High speed compound helicopter
(3)Electric powered aircraft, Endurance : 72 hours, Span : 46m
(4)VTOL aircraft
(5)Unmanned aircraft


Attachments

  • lif15120712000009-l1.jpg
    159.7 KB · Views: 222

yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,835
Reaction score
1,533

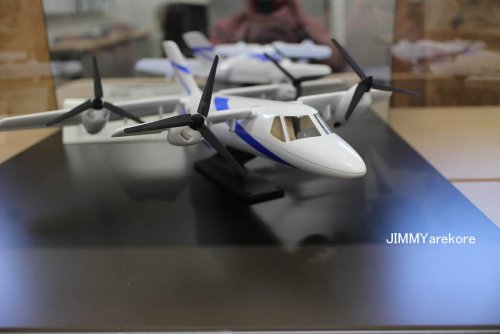

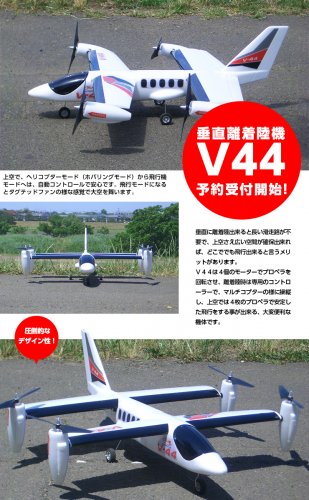

Quad Tilt Wing!??! X-19 lives! Probably won't make it but I love the idea.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,075
Reaction score
4,170

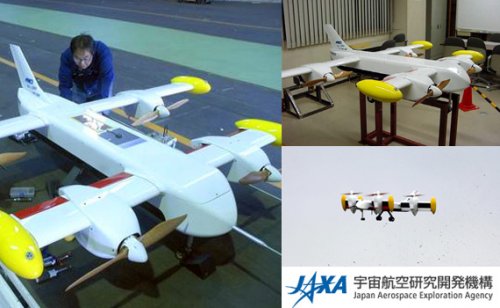

Please enjoy flying test model movie.
You can watch perfectly controlled transition flight. ;)
http://www.aero.jaxa.jp/research/frontier/vtol/qtw/news140401.html


Attachments

  • 04_JAXA2cf4d98e.jpg
    78.4 KB · Views: 92
  • 03_JAXA2055.jpg
    70.3 KB · Views: 91
  • s44-2.jpg
    916 KB · Views: 92
  • f0358004_14104422.jpg
    50.6 KB · Views: 22
