Japanese T-2 trainer projects

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,856
Reaction score
3,686
Hi! Fuji, Kawasaki and Nihon hikoki's joint proposal for Japanese T-2 supersonic trainer project(T-X).
Basically this plan was designed by Fuji Heavy Industries. Fuji approached Northrop to ask T-X design assistance or T-38 licence production at the day.

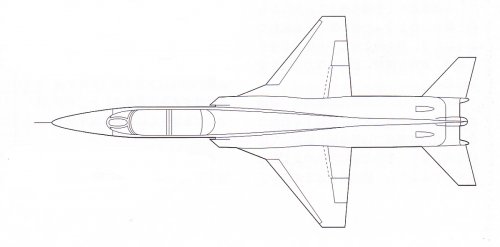

This drawing is not a original one. This is a reconstruction drawing based on designer's memory. I hope we find original drawing near future.


Attachments

  • Fuji Kawasaki Nippi T-X proposal.jpg
    Fuji Kawasaki Nippi T-X proposal.jpg
    296.7 KB · Views: 332

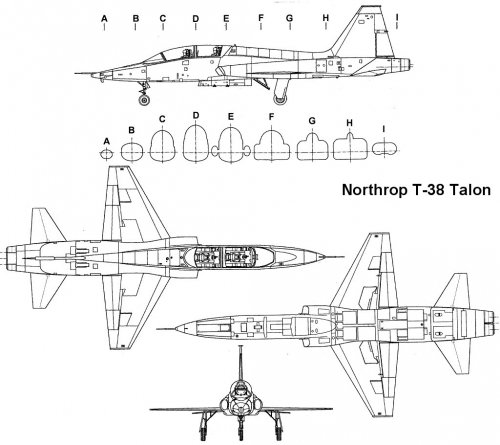

  • t38_3v.jpg
    122.4 KB · Views: 290

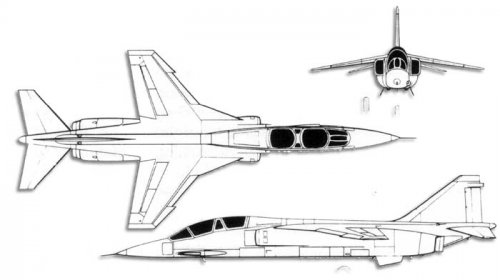

  • Mitsubishi T-2.jpg
    Mitsubishi T-2.jpg
    28.2 KB · Views: 219

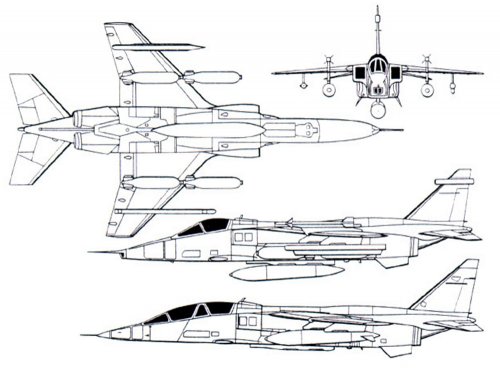

  • JAGUAR.jpg
    376.2 KB · Views: 212

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,939
Reaction score
5,207
blackkite said:
Hi! Fuji, Kawasaki and Nihon hikoki's joint proposal for Japanese T-2 supersonic trainer project(T-X).


That's new for me my dear Blackkite,thank you for sharing us.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,856
Reaction score
3,686
Not at all my dear hesham. It looks like Northrop T-38. Unfortunately I can't find front view and side view. Perhaps these were T-38 like shape.
Source : FAMOUS AIRPLANES OF THE WORLD.No.116 MITSUBISHI T-2. ISBN4-89319-139-X


Attachments

  • 41170KR1XXL__SS500_.jpg
    32.4 KB · Views: 253

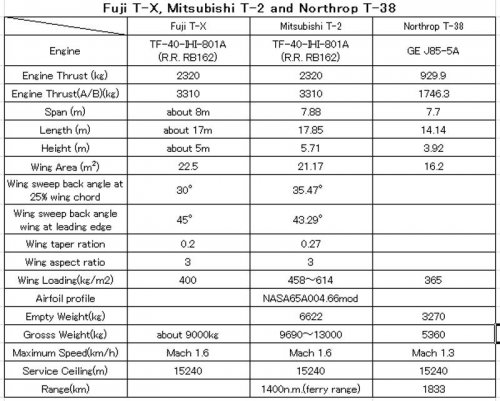

  • FUJI_T-X_MITSUBISHI_T-2_AND_NORTHROP_T-38.jpg
    99.7 KB · Views: 59
