Henschel's competive design to the Arado Ar 232???

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,114
Reaction score
658
'Happy New Year to you all'

I am after some assistance if I may regarding the design that Henschel submitted to the Reichsluftfahrtministerium (German Air Ministry, RLM) in late 1939 for a replacement for the Ju 52 transport.
Both Arado and Henschel were asked for rear-loading designs powered by two of the 1,193 kW (1,600 hp) BMW 801A/B radial engine.

Does anyone have any drawings or pictures of the design?
Was a prototype built?
was a mockup built?
Any specifications???


Thanks in advance

Regards
Pioneer


Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
988
Reaction score
137
Hi,

specifications:

span - around 30m
lenght - around 20m
wing area - 140sm
weight ( empty ) - 8500kg
cargo - 9500kg
maximum speed - 350km/h
landing speed - 106 km/h
range - 1500 km

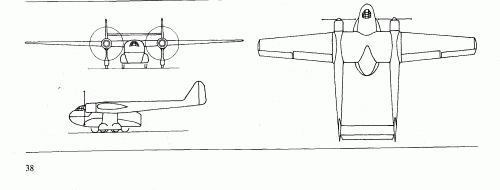

Source: "Die Deutsche Luftrüstung 1933-1945", Heinz Nowarra, Vol.3, p.38.


Attachments

  • Digitalizar0002a.gif
    17.5 KB · Views: 289

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
138
hi
Yes it's the same I have !
And what about the FIESELER FI 333 ,
a good new year
Bye


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,114
Reaction score
658
Thank you very much gents for your time and effort

Regards
Pioneer


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
138
Hi all
I don't remenber where, but I've read sometime ago
that a float version of the ar 232 has been considered ?
have you something about this ?
Bye and thanks


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
138
HI Maveric
thank you.
The Fieseler has a same under fuselage pood as the
Henschel plane but I don't know if it compete for the
same query ?
Thaks again and bye.


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,025
Reaction score
430
sorry toura, no info in my Source: "Die Deutsche Luftrüstung 1933-1945", Heinz Nowarra, Vol.2


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
48
Website
cmeunier.chez-alice.fr
Pioneer said:
Does anyone have any drawings or pictures of the design?

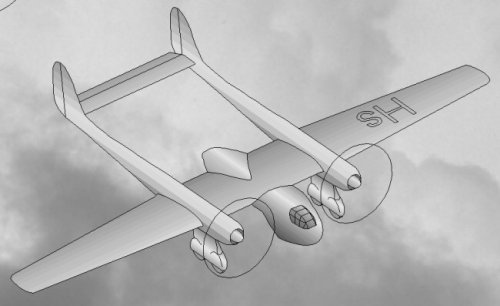

Here is the drawing (without load) of the Henschel Transport Flugzeug that I included in 1998 in my book "Forked Ghosts", now free in line.
http://cmeunier.chez-alice.fr/Free_EoFG_MV.htm


Attachments

  • Hs.JPG
    44.3 KB · Views: 155
