Over the years the STOVL ability of the Harrier has led to various proposals for ships for it to operate from.

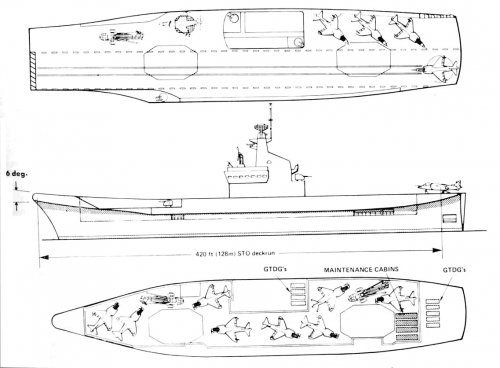

First was the VT Harrier Carrier concept of the mid-1970s. 8,000 tons, c. 400ft length at WL, 420 ft flight deck with ski-jump.

Electric propulsion powered by 9x5000 hp gas turbine driven alternators and modular maintenance facilities in 'cabins'. Note VTO spot ahead of island with exhaust deflector grid and turntable at rear of flight deck.

Air group of 8 Harriers and 2 helos. 3 x twin 40mm guns. Essentially like a small Giuseppe Garibaldi/large San Giorgio.

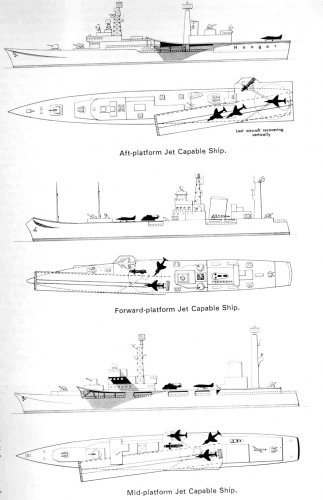

Also shown are 3 concepts for Harrier Carriers from HSA/BAe in mid-1970s. Not serious designs, but show range of possible deck configurations. Perhaps link to Type 43 with ski-jump studies.

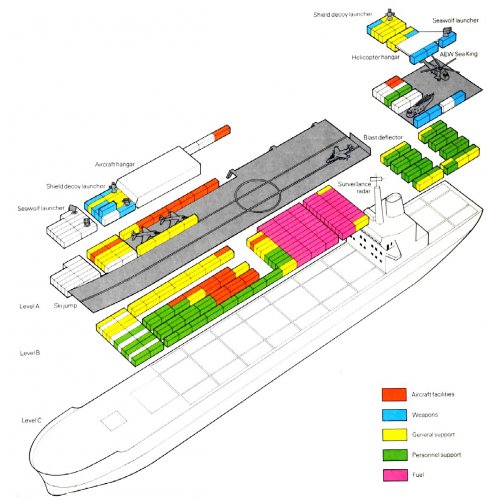

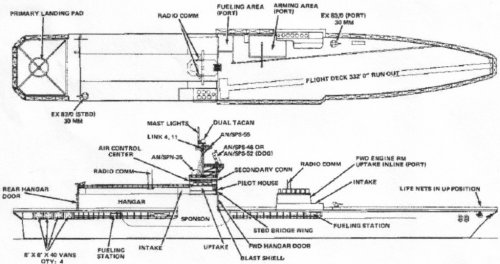

BAe in the 1980s proposed the SCADS concept, based on US Arapaho, to base 5 Sea Harriers plus two Sea Kings for convoy escort.


Attachments

  • VTHarrierCarrier.jpg
    123.2 KB · Views: 2,128
  • HSHarrierCarriers.jpg
    155.1 KB · Views: 2,174
  • SCADS.jpg
    274.7 KB · Views: 2,793

Mike Pryce

BAe P.1216 book: harrier.org.uk/P1216.htm
Senior Member
Joined
Dec 21, 2006
Messages
1,056
Reaction score
135
Harrier Carriers - SkyHook

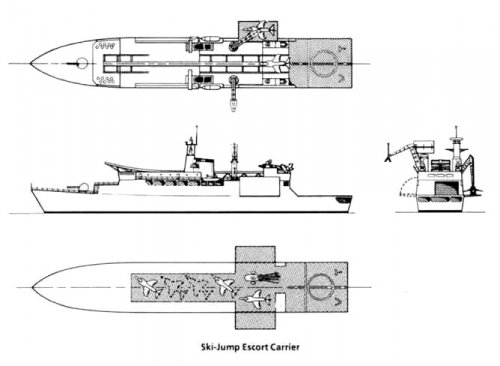

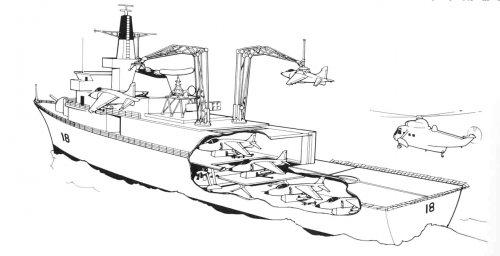

After the idea of SCADS BAe also came up with the SkyHook idea. The initial idea saw BAe propose two ships, one in their patent application (http://www.google.com/patents?vid=USPAT4523729&id=IcEyAAAAEBAJ&pg=PP2&dq=heinz+frick) and one used in publicity brochures. Both relied on SkyHook for take-off and landing, probably not too practical.

However, VT designed a 'proper' ship around the concept and this featured a skeletal ski-jump atop the supersturcture for take-off. This increased payload, with recovery via SkyHook. Aircraft were stowed in a hangar with lateral doors for entry/exit, SkyHook being used to move aircraft to the launch position.

2x 25mm Sea Dragon CIWS, 1 medium gun, plus 16 VLS missiles for defence.

5,200t diplacement, 416ft 8in OA

45,000shp = 26kts

5 Sea Harriers, one helo.

The idea was to use the ship as a 'forward base', allowing greater endurance in CAP patrols, with the aircraft returning to a large carrier for major maintenance. In other words, a naval version of the Harrier's land-based use of forward operating strips.


Attachments

  • BAeSkyhookship.jpg
    98.1 KB · Views: 1,468
  • VTSkyHookShip.jpg
    37.8 KB · Views: 1,464

Mike Pryce

BAe P.1216 book: harrier.org.uk/P1216.htm
Senior Member
Joined
Dec 21, 2006
Messages
1,056
Reaction score
135
Land-based SkyHook

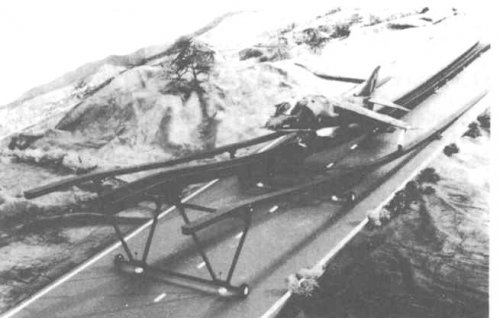

To illustrate the final point in above post, land based skeletal ski-jump and SkyHook pics. These equate to the VT SkyHook ship with, say, an Invincible-class playing the role of a main base in the maritime role.


Attachments

  • MobileSkyHook.jpg
    44.5 KB · Views: 769
  • MobileSkiJump.jpg
    41.4 KB · Views: 513

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,820
Reaction score
188
This is some great time and research you have put together here ‘Harrier’!
I have found this very interesting
Hats of to you my friend!

If you have more please keep it coming

Regards
Pioneer


red admiral

CLEARANCE: Top Secret
Joined
Sep 16, 2006
Messages
610
Reaction score
70
Skyhook still amazes me. Its just such a strange idea. Similar to the point defense interceptors launching off the back of lorries - i think this was tried with MiG-19 and others...


PMN1

CLEARANCE: Top Secret
Senior Member
Joined
Jun 4, 2006
Messages
737
Reaction score
82
Given that the Harrier is out of production, what size would the ship be to carry and equal number of F35's?


Mike Pryce

BAe P.1216 book: harrier.org.uk/P1216.htm
Senior Member
Joined
Dec 21, 2006
Messages
1,056
Reaction score
135
I guess such a ship would need to be a bit larger. However, I would not like to see what happens if the SkyHook 'probe' got into an F-35B lift fan!

One problem I have not seen discussed is what happened if the pilot ejects while hovering near SkyHook. Presumably this was looked into, especially as the inventor was a BAe test pilot.

Afraid that is all I have!


elmayerle

CLEARANCE: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,329
Reaction score
106
That's where the alignment markings for the Skyhook come in. Besides, if you come up with the fan already forward of the latch point, you'll have to bust through the door before you can get to the fan. There are ways of dealing with the problem.


TinWing

CLEARANCE: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
888
Reaction score
49
PMN1 said:
Given that the Harrier is out of production, what size would the ship be to carry and equal number of F35's?

With long inflight endurance and higher availability, would you really need the same number of F-35Bs as compared to Harrier IIs, or even first generation Sea Harriers?

I think that it is siginificant that the RAF has reduced projected squadron size for the JCA from 12 airframe to only 9! Of course, this also means that the peacetime combat airgroup of the 60,000 ton CV-F will only be 9 F-35B aircraft!


elmayerle

CLEARANCE: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,329
Reaction score
106
I keep thinking of that SCADS design installed on an upgraded container ship derivative of the NS Savannah.


roberto_yeager

CLEARANCE: Confidential
Joined
Oct 19, 2006
Messages
93
Reaction score
1
Some about the Iowa Harrier Carrier:






1Saludo


elmayerle

CLEARANCE: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,329
Reaction score
106
I've seen one suggestion to improve the airflow over the flight deck on that configuration by trunking together the funnels as was proposed on the original, unbuilt, South Dakota-class of circa-1920.


Firefly 2

CLEARANCE: Secret
Joined
Jun 30, 2009
Messages
461
Reaction score
8
Wow... Now that would have had a lot of firepower. Ideal to support massive landings.
But of course the design is hideous.


elmayerle

CLEARANCE: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,329
Reaction score
106
"Hideous" is a matter of aesthetics, of course. I find this design more aesthetically pleasing that the one with only a single launch ramp to one side. 'Twould be interesting to see a pair of these operating in conjunction with another pair of Iowa-class ships converted to the amphibious landing support ship configuration studied in the 1950s.


Firefly 2

CLEARANCE: Secret
Joined
Jun 30, 2009
Messages
461
Reaction score
8
Hmmm, do you have info on the latter proposal?

You know, these babies might have been a cheap option for the so called Arsenal ships as proposed by that french engineer René Loire.
Imagine... GPS guided 406mm shells...


elmayerle

CLEARANCE: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,329
Reaction score
106
The amphibious landing support ship conversion of the Iowa-class? I saw the centerline profile of that one in Friedman's book on US Battleships.


Mike Pryce

BAe P.1216 book: harrier.org.uk/P1216.htm
Senior Member
Joined
Dec 21, 2006
Messages
1,056
Reaction score
135
I see some people have been busy building 'Harrier Carriers' (well, F-35Bs probably).

See:
http://www.freewebz.com/jeffhead/worldwideaircraftcarriers/index.htm
and:
http://www.freewebz.com/jeffhead/worldwideaircraftcarriers/index2.htm

Italian Cavour and South Korean Dokdo now at sea. India, Spain and Japan also starting on new carriers.


roberto_yeager

CLEARANCE: Confidential
Joined
Oct 19, 2006
Messages
93
Reaction score
1
harrier said:
I see some people have been busy building 'Harrier Carriers' (well, F-35Bs probably).

See:
http://www.freewebz.com/jeffhead/worldwideaircraftcarriers/index.htm
and:
http://www.freewebz.com/jeffhead/worldwideaircraftcarriers/index2.htm

Italian Cavour and South Korean Dokdo now at sea. India, Spain and Japan also starting on new carriers.


I wish!!!!

But no :'( :'( :'( :'(, Spain is making a new LL (Landing Logistics) but really it´s a LHA. With possible use for some Harrier when the Principe de Asturias will be in dock... but not a raelly aircraft carrier...


1Saludo


JAZZ

CLEARANCE: Secret
Joined
Mar 12, 2006
Messages
295
Reaction score
71

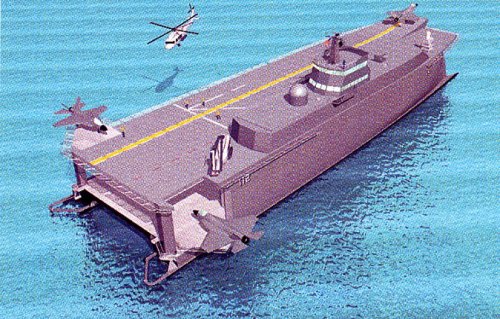

Incat thinking more a F-35 VSTOL carrier - seems that this very small carrier idea never seems to go away.


Attachments

  • AUS- Incat Airsupport-Seaframe.jpg
    AUS- Incat Airsupport-Seaframe.jpg
    170.4 KB · Views: 707

JAZZ

CLEARANCE: Secret
Joined
Mar 12, 2006
Messages
295
Reaction score
71
Thanks golfus, I remember making a few contributions myself to that forum subject. In fact there are a number of contributors that also used images I had posted....in the 8000t carrier thread.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
480
Website
deeptowild.blogspot.com

Attachments

  • VTHarrierCarrier.JPG
    46.4 KB · Views: 304
  • UK- VT Harrier Carrier_1.jpg
    UK- VT Harrier Carrier_1.jpg
    19.6 KB · Views: 649

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
480
Website
deeptowild.blogspot.com

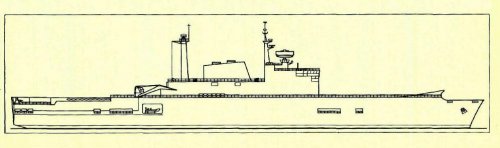

Vickers Shipbuilding and Engineering Ltd. (VSEL) Light Fleet Carrier (1983)

Length overall (m): 203
Length on waterline (m): 190
Displacement tonnes: 24,000
Maximum speed (kt): 26
Cruising speed (kt): 19
Crew: 998

Typical aircraft load:
Sea Harrier: 8
Sea King: 9

Armament: 2 CIWS

"Vickers proposes new carrier", Flight International, 8 October 1983
http://www.flightglobal.com/pdfarchive/view/1983/1983%20-%201847.html


Attachments

  • VickersLightFleetCarrier3.JPG
    35 KB · Views: 278

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
480
Website
deeptowild.blogspot.com
Vickers Shipbuilding and Engineering Ltd. (VSEL) Versatile Aircraft Carrier (V-VAC) (1980)

Length overall (m): 184
Length on waterline (m): 174
Displacement tonnes: 13,000
Maximum speed (kt): 26
Cruising speed (kt): 19
Crew: 550

Typical aircraft load:
Sea Harrier: 12
Sea King: 2

Armament: 3 CIWS

Warwick, Graham, "V/STOL shapes tomorrow's ships", Flight International, 12 January 1980
http://www.flightglobal.com/pdfarchive/view/1980/1980%20-%200090.html

"Vickers proposes new carrier", Flight International, 8 October 1983
http://www.flightglobal.com/pdfarchive/view/1983/1983%20-%201847.html


Attachments

  • V-VAC.JPG
    23.7 KB · Views: 345

red admiral

CLEARANCE: Top Secret
Joined
Sep 16, 2006
Messages
610
Reaction score
70

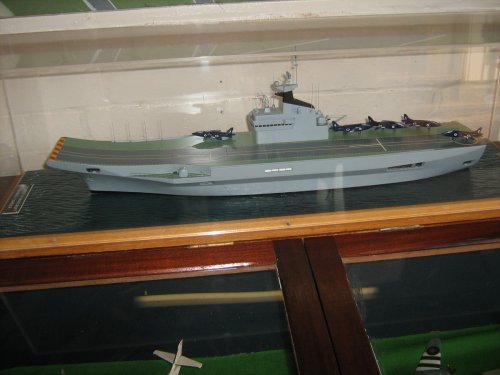

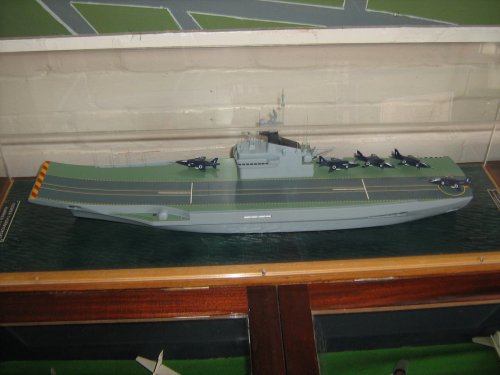

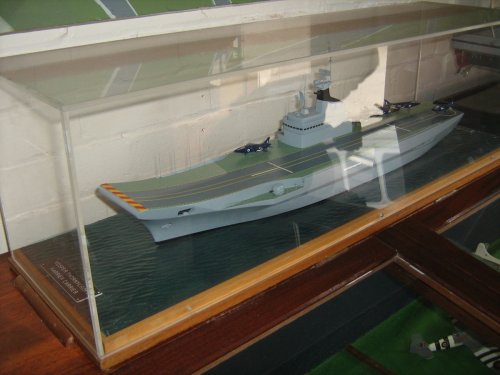

Vosper Thornycroft Harrier Carrier

From the Hovercraft Museum. I forgot I'd taken some pics there, SES and hovercraft projects next.


Attachments

  • IMG_2014.jpg
    317.3 KB · Views: 1,459
  • IMG_2015.jpg
    323.8 KB · Views: 1,339
  • IMG_2017.jpg
    313.8 KB · Views: 1,250

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,709
Reaction score
1,863

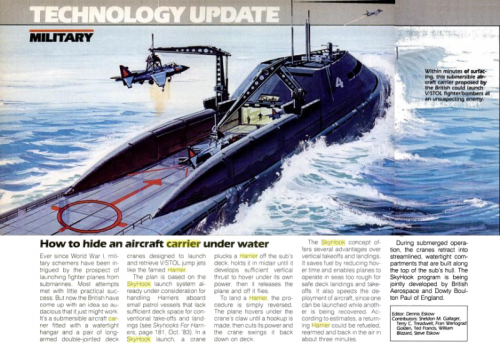

'Acquired' from the Aircraft Carriers thread over at whatifmodelers.com (h/t GTX and Mossie). Appears to be a mid-80's VSEL (Vickers Shipbuilding and Engineering Limited) proposal for a submersible carrier, but I haven't been able to track down any hard details.

Note: Black and white drawing from 'The Hybrid Warship'.


Attachments

  • submarineskyhookcarrier.jpg
    96 KB · Views: 871
  • SkyhookSubmarinePopularMechanicsarticle.png
    655.6 KB · Views: 920

thebig C

CLEARANCE: Confidential
Joined
Dec 28, 2010
Messages
108
Reaction score
4
Here is an interesting link dealing with "Harrier Carriers". Of particilar note are the Bremer Vulkan proposals. On the link you can read some of their advertising which promotes small carriers in an OPV role. An interesting concept, if probably prohibitively expensive for the Navies it was aimed at:

http://forum.keypublishing.co.uk/showthread.php?p=971612

C


Bgray

I really should change my personal text
Joined
Feb 2, 2012
Messages
74
Reaction score
13
I honestly wonder how expensive a very austere carrier concept would be-- you're not talking about something dealing with supersonic missiles-- you might be able to get away with a few small caliber autocannons, because it's main purpose is to help patrol helicopters and --maybe-- VTOL aicraft.

When I was listening to some comments about Katrina, I recall a coast guard pilot mentioning the shortage of landing pads and areas where they could refuel and such and I was wondering what a USCG "carrier" woudl look like.

It'd be excellent for disaster relief and wide area patrols, but you'd have to be very draconian when people started talking about making it "just a bit more capable" which has been the deathknell of many a lowcost concept.


thebig C

CLEARANCE: Confidential
Joined
Dec 28, 2010
Messages
108
Reaction score
4
Hey Gang
Interesting comments Bgray and nice link GreyHavoc!
The concept of an OPV ACcarrier is extremely interesting but as pointed out above is very susceptable to escalating costs and increasing exponentially into something totaly different.
My interest stemed from the fact that the Irish Naval Service had ceased Helicopter operations due to the fact that Helicopters when used for long range patrols, as opposed to traditional asw work, were deemed inoerable once the Sea State nudged past 5. Something which happens daily in the North Atlantic. At or above Sea tate 5 it was found that the ship pitch and roll would be such that the Helicopter would have to be land based, negating any advantage in basing it aboard ship. The only alternative was a landing pad significantly larger then those which occupy the rear quarter of a ship....as is the case in most Navies.
In that context an OPV carrier might actually work. They are relatively cheap and with multiple medium helicopters can cover many multiples of EEZ with only a handfully of helis and a single hull.
However, as with alot of ideas that work in theory....there are drawbacks. For the knid of Navies that are aimed at, such as those that primarily do OPV work they are probably a step too far. For larger Navies, its probably cheaper to build multiple conventional OPVs and deploy Frigates in support. And for Navies that operate Carriers they are useless as they are single roled (more or less) and very under armed.

C


archipeppe

CLEARANCE: Top Secret
Joined
Oct 18, 2007
Messages
1,662
Reaction score
290
red admiral said:
Vosper Thornycroft Harrier Carrier

From the Hovercraft Museum. I forgot I'd taken some pics there, SES and hovercraft projects next.


Really interesting!!


It is any connection with the Italian Garibaldi?
Since the two ship share more elements and the general architecture of both is quite similiar.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,709
Reaction score
1,863
Vosper Thornycroft Harrier Carrier

The first ship ever to be conceived and laid out specially for the Harrier is the 1975/76 project by Vosper Thornycroft Ltd.

"Vosper studies 'Harrier Carrier'", Flight International, 25 September 1975
http://www.flightglobal.com/pdfarchive/view/1975/1975 - 1959.html


A new design proposed by Vosper Thornycroft, in conjunction with the
Hawker Siddeley Aviation Company, is for a completely new type of warship:
a vessel of frigate size (6,000 tons) with a carrier deck capable
of launching either eight Sea Harrier VSTOL (vertical short take-off and
landing) aircraft, or eight Sea King antisubmarine helicopters, or any
mix totaling eight aircraft. The ship is, in essence, a small version
of the Invincible, and for that reason may bring the cost within reach
of many navies that could not otherwise afford the larger vessel.

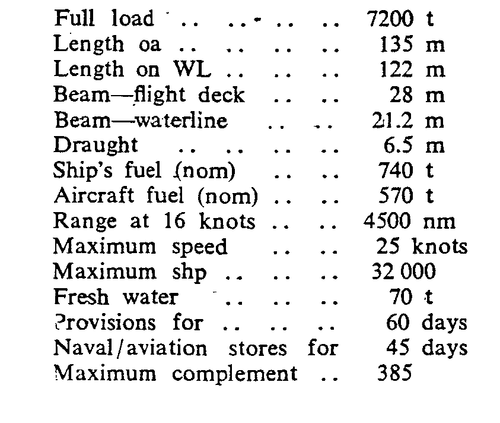

The following Table gives the principal data about the proposed vessel,
which is called a Harrier Carrier:

CAPTION: Source: British Ministry of Defense
