"Half - Jet" Fighters

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,285
Reaction score
4,043
And from the book; Реактивные первенцы СССР: МиГ-9, Як-15, Су-9, Ла-150, Ту-12, Ил-22


Attachments

  • 1.png
    50.3 KB · Views: 849
  • 2.png
    103 KB · Views: 855

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,285
Reaction score
4,043
So Weird,

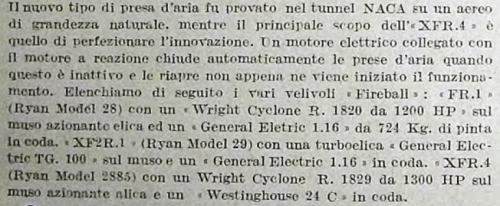

in Italian magazine,the Ryan FR-4 called Model-2885 !,maybe they meant Model-28-85 ?
page 57.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala/L'Ala%201947%2008.pdf


Attachments

  • 2885.png
    600.9 KB · Views: 82

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,558
Reaction score
2,961
pometablava said:
Borovik, could you give somo details about that Er-2 version powerplant?

The designation is E-3130?

Thanks in advance,

Antonio

I think that front engine is ACh-30B piston engine and rear engine is Lyulka Two-stage centrifugal compressor Turbojet engine RTD-1/VDR-2 or axial flow compressor Turbojet engine S-18/VDR-3. Each engine have turbo charger?
But I can't understand how to use these turbochargers.
https://en.wikipedia.org/wiki/Lyulka

Front view by borovik-san.
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=2417.0;attach=194949;image


Attachments

  • Gudkov-9_zps668fa3e8.jpg
    45.3 KB · Views: 92

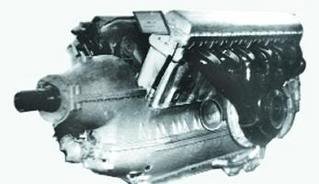

  • Charomsky ACh-30B V 12 turbo-supercharged airplane Diesel engine.jpg
    Charomsky ACh-30B V 12 turbo-supercharged airplane Diesel engine.jpg
    10.1 KB · Views: 82

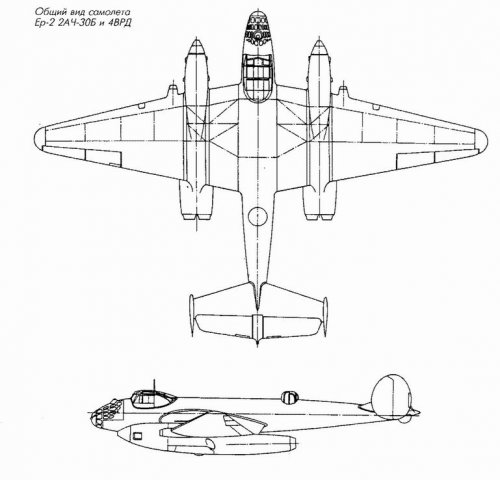

  • Er-2 (4VRD).jpg
    Er-2 (4VRD).jpg
    51.5 KB · Views: 90
  • ACh-30B + 2  VRD.jpg
    ACh-30B + 2 VRD.jpg
    76.8 KB · Views: 79

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,653
Reaction score
1,004
hesham said:
... in Italian magazine,the Ryan FR-4 called Model-2885 !,maybe they meant Model-28-85 ? ...

Since they were discussing the XFR-4 Super Fireball, that "Model-2885" would be a typo for the Ryan Model 28-5.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,558
Reaction score
2,961

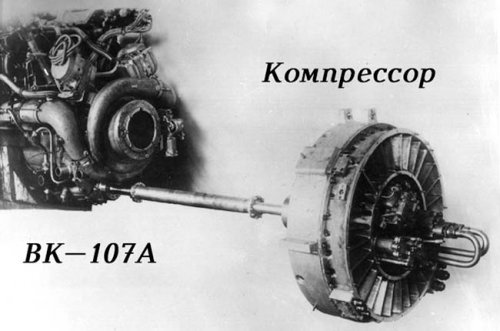

Hi! VRDK compressor pictures.
http://testpilot.ru/russia/mikoyan/i/250/i250_1_e.htm

Mig-13 Japanese wikipedia semi auto translation
"Soviet Union ordered Sukhoi Design Bureau and the Mikoyan Design Bureau to develop mixed power fighter powered by piston engine with VRDK accelerator which started development from 2/1944 to counteract German Messerschmitt Me 262.
Mig-13 prototype maiden flight date was 3/3/1945, but crashed caused by damage to the horizontal stabilizer in 5/7/19457/5. Flight test continued by No.2 prototype which modified vertical stabilizer and rolled out in 26/5/1945.
In flight test, powered only by piston engine, maximum speed was 677 km/h, while the VRDK operating speed improved up to 825 km/h. However she could fly only 10 minutes at this speed. Soviet Union decided to order 50 aircraft. Design Bureau completed 9 aircraft until the air show in 7/11/1945, but the air show was canceled because of bad weather.
However, production was discontinued after 16 aircraft production because need for power mixture aircraft decreased from the advent of flooded into Germany's Jet engine technology to the Soviet Union by the surrender of Germany and realization of MiG-9 and Yak-15 which developed by German jet engine technology.
Completed 16 aircraft deployed to Naval Aviation of the Baltic fleet and the northern fleet and was decommissioned in about 1950, but not went to the mission."


Attachments

  • VRDK booster.jpg
    VRDK booster.jpg
    37.2 KB · Views: 47
  • i250vdrk.jpg
    25.5 KB · Views: 55

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,558
Reaction score
2,961
Larger image. Hard to understand for me. ;D

http://www.secretprojects.co.uk/forum/index.php/topic,2417.0.html

http://coollib.com/b/329654/read

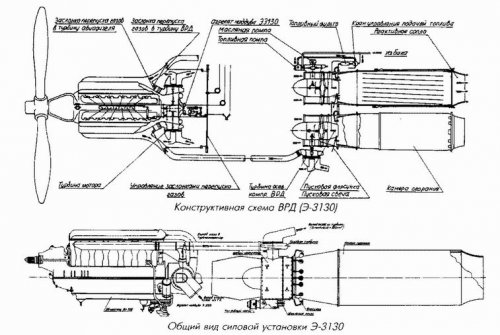

Ermolaev Er-2(Yermolayev Yer-2 bomber in a mixed-power version with M-30B diesel engine and quasi-turbojet booster.)
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=2417.0;attach=46711;image


Attachments

  • i_061.jpg
    133.2 KB · Views: 935

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,558
Reaction score
2,961

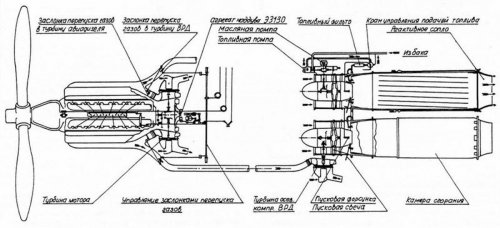

"This powerplant was combining the M-30B diesel engines with quasi turbojet boosters which were to be used in certain flight modes.
There was no mechanical connection between the piston engine and booster's compressor, the latter was driven by a turbine using the energy of the diesel engine's exhaust gases. Each of the two M-30Bs was to be fitted with two such air breathing boosters.The auxiliary installation was expected to produce a thrust of 850kgp(1,870lbst) at a flight speed of 800km/h(497mph)."
Also M-30B had power recoverly turbine same as pure turbo compound engine?

Source : UNFLOWN WINGS, Soviet/Russian unrealised aircraft projects 1925-2010, YEFIM GORDON and SERGEY KOMISSAROV

Sorry I made a big mistake again. It's not turbocharger.

So when take off, use VRDK booster without M-30B engine power recoverly turbine operation?.
When cruise, use M-30B power recoverly turbine only?(same as turbo compound engine?)
When dash, same as take off?

I can see shut off valve in diesel engine exhaust gas duct to front turbine and rear turbine. Use these shut off valve to change engine operation mode?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,558
Reaction score
2,961

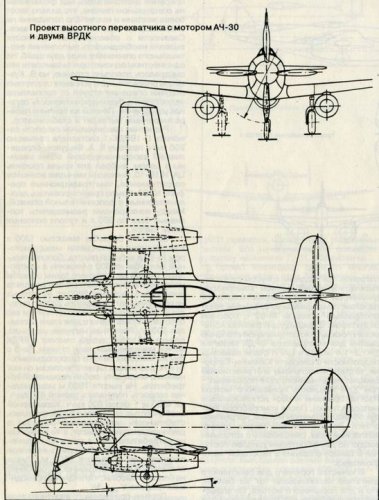

This aircraft also had quasi jet engines. Compressor of this engine was driven by turbine which driven by diesel engine exhaust gas.


Attachments

  • TsAGI  high-altitude reconnaissance project (with ACh-30 + 2 VRDK-2).jpg
    TsAGI high-altitude reconnaissance project (with ACh-30 + 2 VRDK-2).jpg
    76.9 KB · Views: 860

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,558
Reaction score
2,961

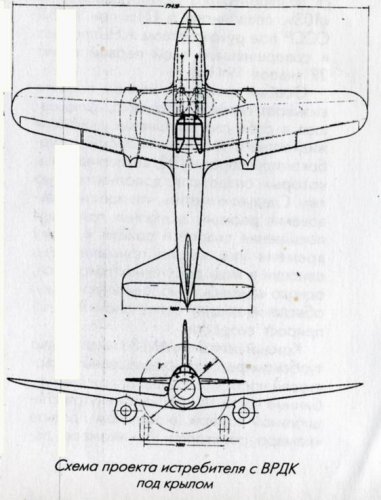

The engines which located wing were ramjet engine. Diesel engine exhaust gas to the ramjet engine increase ramjet engine pressure.


Attachments

  • Su fighter with M-30B(ACh-30) + 2 (VRDK-2).jpg
    Su fighter with M-30B(ACh-30) + 2 (VRDK-2).jpg
    60.8 KB · Views: 827

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,558
Reaction score
2,961

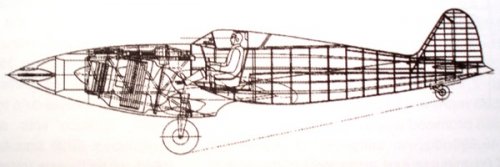

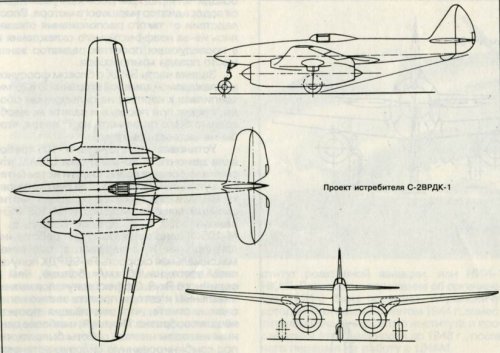

Compressor of this quasi-jet engine was driven by air cooled radial piston engine which located each engine nacelle.
Fuselage is too slim to accomodate piston engine which supply quasi jet engine compressor drive power.

Almost same concept.
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=2417.0;attach=20565;image


Attachments

  • TsAGI  S-2 (VRDK-1).jpg
    TsAGI S-2 (VRDK-1).jpg
    66.4 KB · Views: 820

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
791
Reaction score
125
blackkite said:
The engines which located wing were ramjet engine. Diesel engine exhaust gas to the ramjet engine increase ramjet engine pressure.

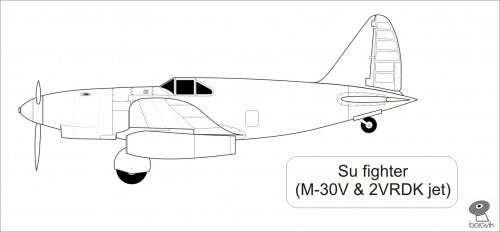

missing a side view of the fighter


Attachments

  • Su VRDK.jpg
    Su VRDK.jpg
    95.9 KB · Views: 761

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,558
Reaction score
2,961
Oh super drawing!! :eek:
Thanks a lot borovik-san. :D


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,285
Reaction score
4,043

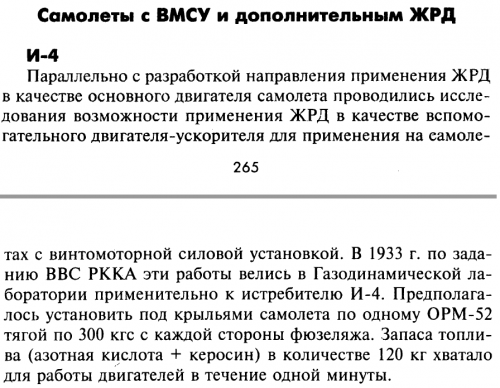

From; Козырев - Авиация Красной Армии (Москва, 2011)


Aircraft with VMSA and additional LPRE
I-4
In parallel with the development of the direction of the liquid rocket engine
As the main engine of the aircraft conducted research
The possibility of using liquid rocket engines as an auxiliary
Accelerator for use on airplanes with a propeller-driven power unit. In 1933, on assignment
The Air Force of the Red Army, these works were conducted in the Gasdynamic Laboratory
With reference to the I-4 fighter. It was supposed
Install under the wings of the aircraft one OPM-52
Thrust of 300 kgf from each side of the fuselage. Fuel supply
(Nitric Acid + kerosene) in the amount of 120 kg was enough
For running the engine for one minute.


Attachments

  • a.png
    77.7 KB · Views: 42

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,285
Reaction score
4,043

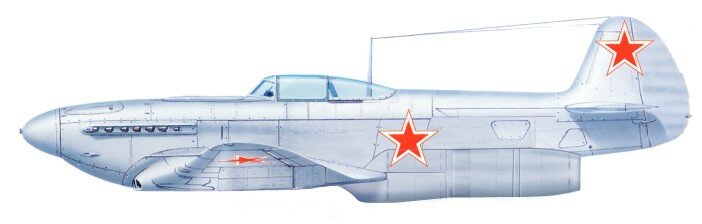

The Yak-7R in details.


Attachments

  • 10.jpg
    6.1 KB · Views: 736
  • 6.png
    149.6 KB · Views: 67

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,558
Reaction score
2,961

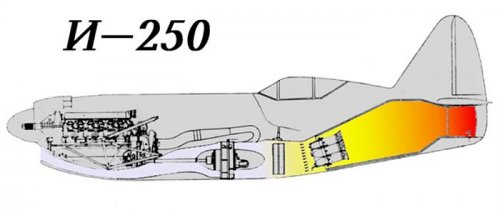

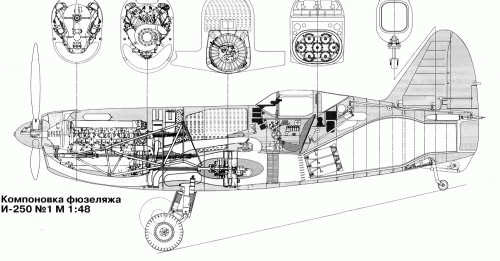

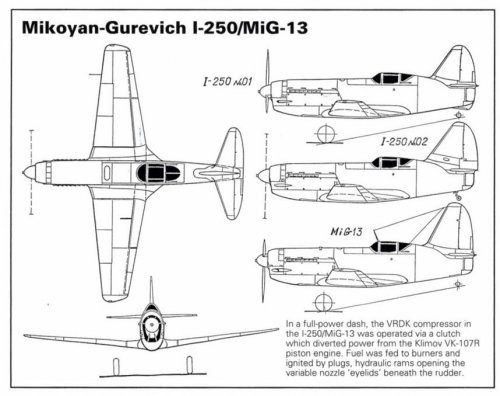

Hi! Mikoyan I-250 larger image and other project images.

https://weaponsandwarfare.com/2016/10/06/soviet-mixed-power-fighters/

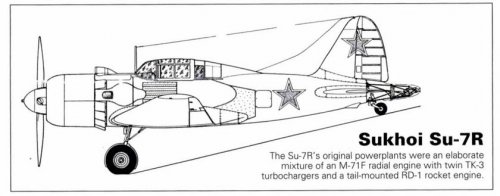

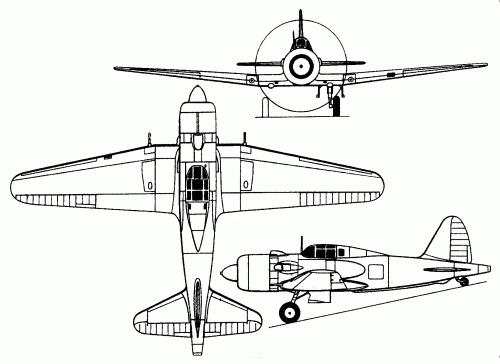

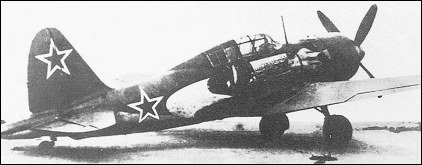

Su-7R(without intercooler?). Sorry for off topic.
http://www.aviastar.org/air/russia/su-7.php
http://aviadejavu.ru/Site/Crafts/Craft21249.htm


Attachments

  • Power unit Su-6 with engine M-82FNV with turbocharger TK-3 and engine RD-1 in the tail section.jpg
    Power unit Su-6 with engine M-82FNV with turbocharger TK-3 and engine RD-1 in the tail section.jpg
    146.8 KB · Views: 74

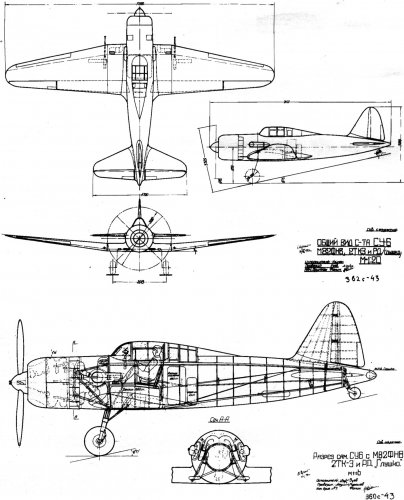

  • The project of the Su-6 aircraft with engines M-82FNV and RD Glushko.jpg
    The project of the Su-6 aircraft with engines M-82FNV and RD Glushko.jpg
    311.4 KB · Views: 69
  • su-7_1.jpg
    19.6 KB · Views: 57
  • su-7.gif
    31.6 KB · Views: 61
  • juyhjm.jpg
    41.1 KB · Views: 92
  • mjfymmk.jpg
    105.4 KB · Views: 93
  • mjfmfy.jpg
    89.4 KB · Views: 80
  • fkhnmm.jpg
    75.2 KB · Views: 75
  • Mikoyan I-250.gif
    Mikoyan I-250.gif
    312 KB · Views: 65

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,285
Reaction score
4,043

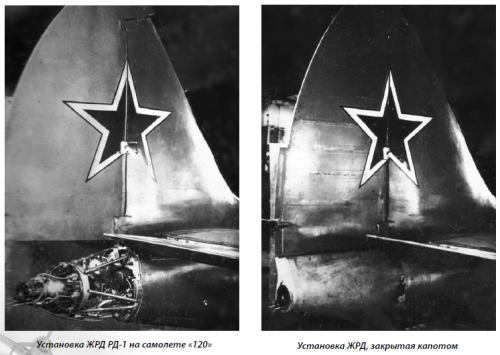

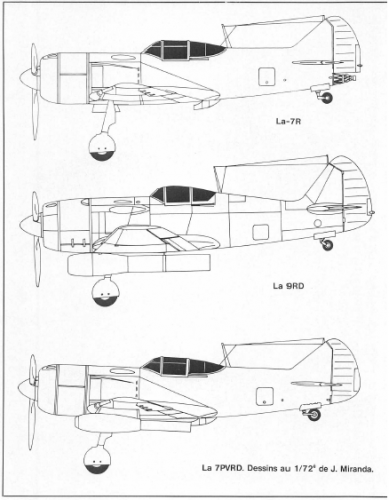

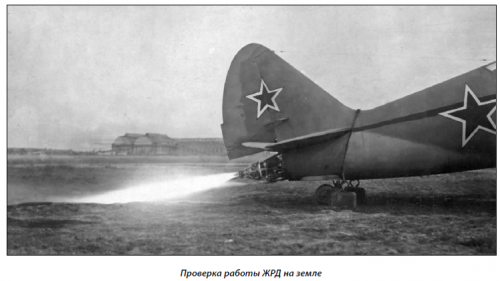

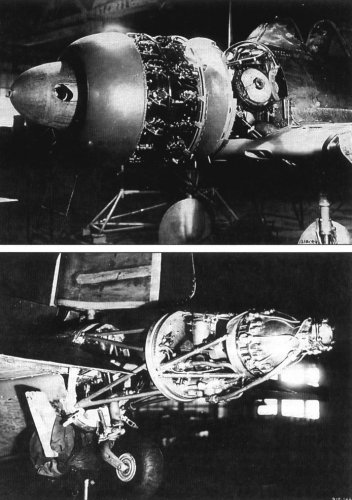

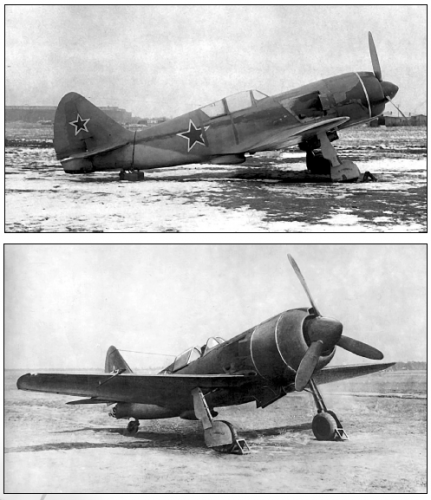

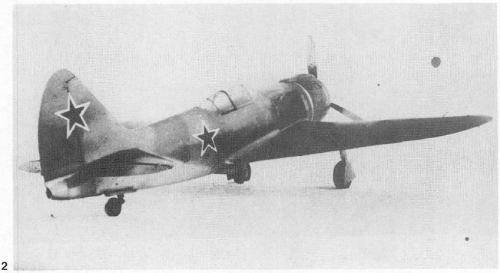

From the book; Истребитель Ла-7


Attachments

  • 4.png
    236.8 KB · Views: 43
  • 3.png
    329.6 KB · Views: 58
  • 2.png
    266.3 KB · Views: 67

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
635
Reaction score
93

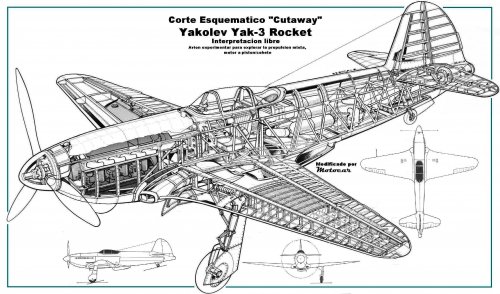

Cutaway Yakovlev Yak-3 Rocket engine, author weal and modified by Motocar


Attachments

  • Cutaway Yakovlev Yak-3 Rocket engine.JPG
    Cutaway Yakovlev Yak-3 Rocket engine.JPG
    528.8 KB · Views: 82

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,285
Reaction score
4,043

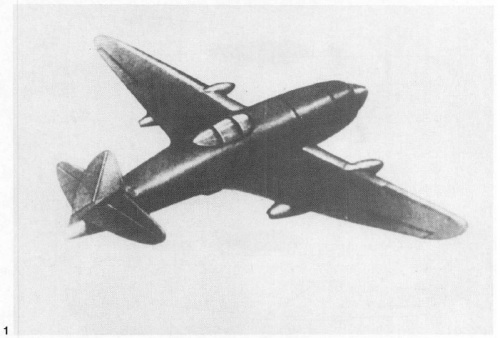

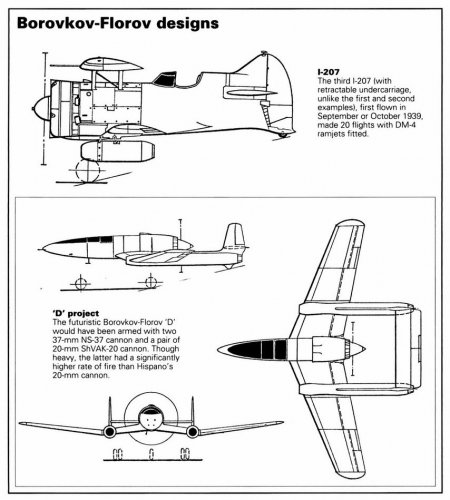

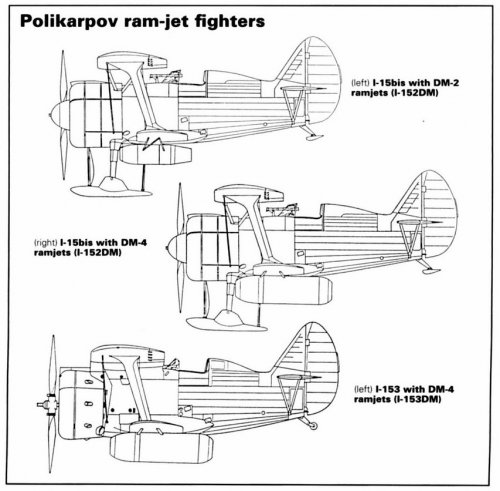

From Le Fana 210.


Attachments

  • 1.png
    305.8 KB · Views: 47
  • 2.png
    400.4 KB · Views: 48
  • 3.png
    155.5 KB · Views: 75

leaded50

ACCESS: Restricted
Joined
Mar 9, 2020
Messages
33
Reaction score
78

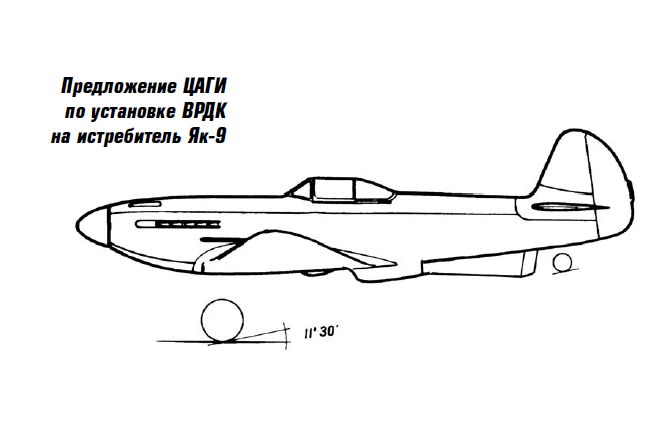

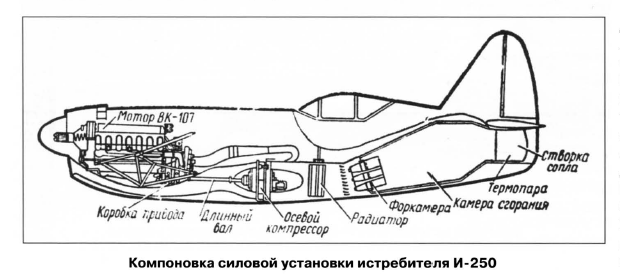

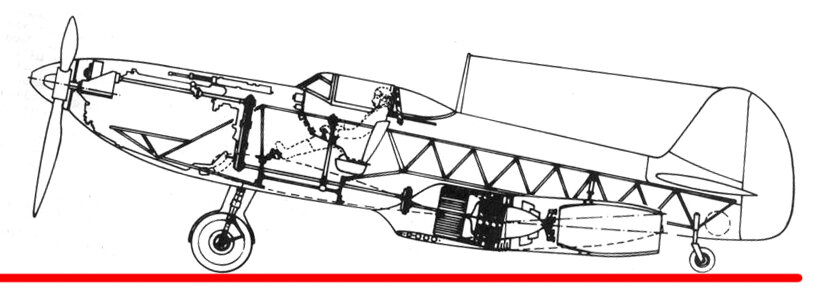

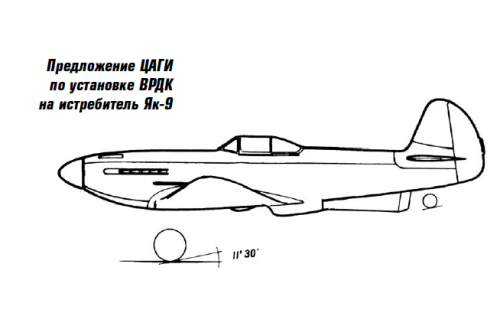

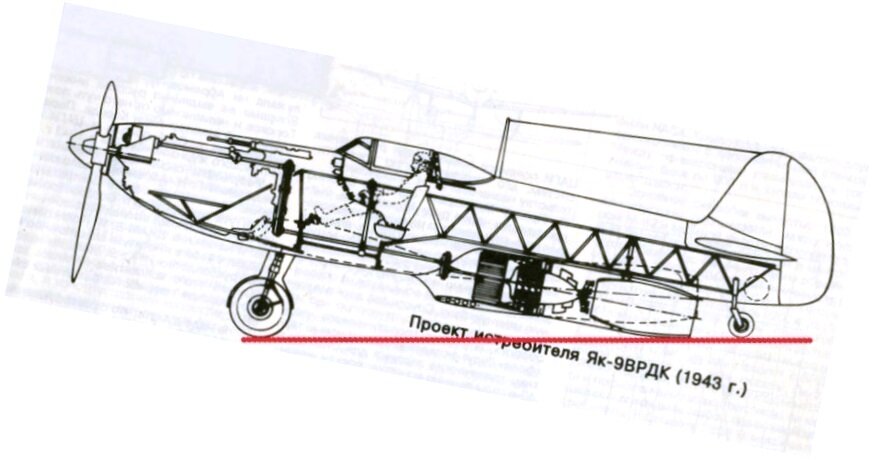

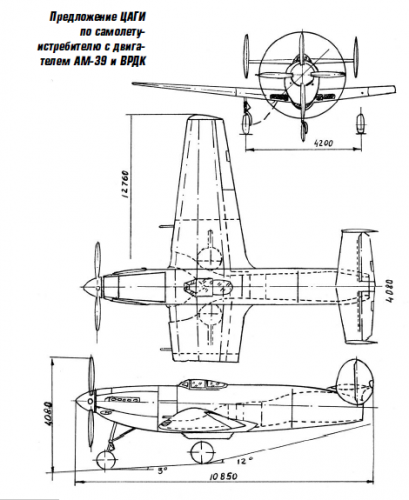

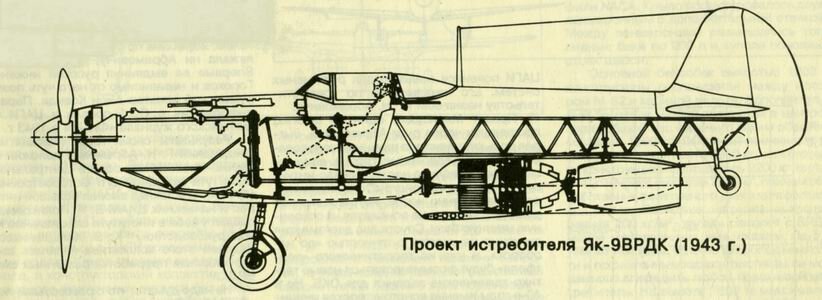

Projects plane with VRDK development TsAGI and other OKB.
I - 250 (MiG-13)

sources:“Samolety mira” = (Planes of the world) 2/1995
“Aircraft creation in USSR (1917-1945) Vol. II” Publishing division TsAGI 1994
"Aviatsiya & Cosmonautic" magazine
L 250 (Mig 13) a auxiliary compressor "jet engine" (CJE) to act as a booster. The CJE compressor was rotated by the M-107A prop engine using a shaft., so not a pure jetengine, Same with the Su-5 .
Caproni-Campini CC-2 was a"pure" jet engine.

Last edited:

leaded50

ACCESS: Restricted
Joined
Mar 9, 2020
Messages
33
Reaction score
78
Last edited:
