Grumman stealthy ground attack

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,628
Reaction score
2,839
Website
www.aerospaceprojectsreview.com

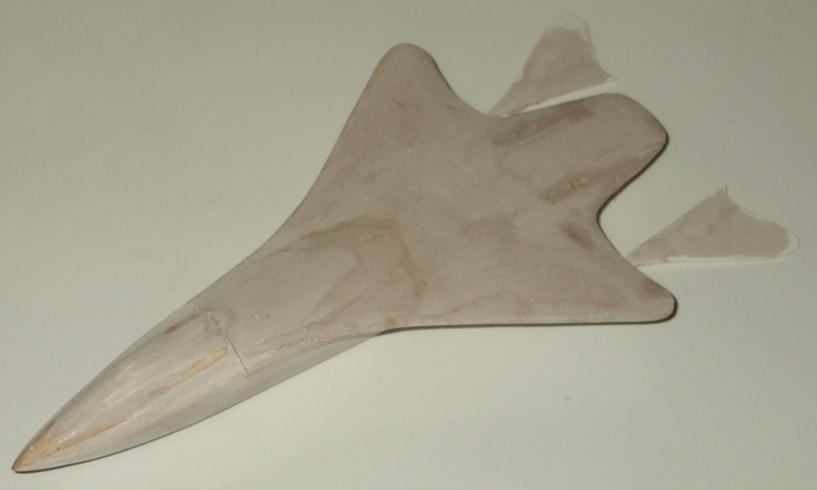

Another work in progress. More and bigger pics at the site.

http://www.up-ship.com/models/stealth1.htm





Deino

Moderator
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,986
Reaction score
1,167
Interesting design; never seen that before. But do You know where are the engine intakes ?? That "strange assembly" on top seems to be something like a top-mounted weapons release system/platform I’ve seem somewhere else before... ???

Cheers, Deino


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,628
Reaction score
2,839
Website
www.aerospaceprojectsreview.com
Deino said:
do You know where are the engine intakes ??

Flush-mounted on the underside. Haven't cut that part out yet. The weapons were small "WASP" missiles mounted in packed on the topside. This would help shield them from ground-based radars.

See: http://www.designation-systems.net/dusrm/m-124.html
