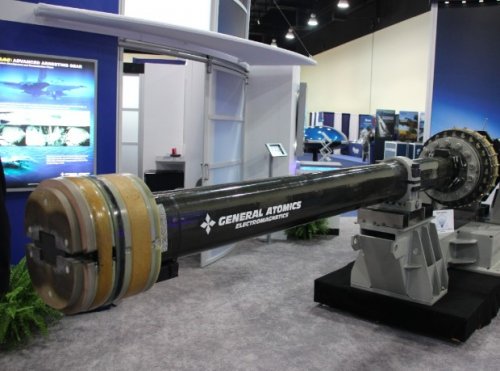

General Atomics Electromagnetic Rail Gun

Kadija_Man

CLEARANCE: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
1,924
Reaction score
25
TomS said:
The fuel requirement isn't that terrible -- I recall a figure of 8 gallons per shot a few years ago. Compared to the usual consumption of the ship's engines, that's not much. Radar has a much worse impact because it's consumption is continuous -- railguns are pulsed and the extra power to charge the pulse power generators is required only for short periods.
At the previous stated 10 rounds a minute ROF that equates to 80 gallons per minute's firing. That will quickly add up to a substantial quantity of fuel.


Abraham Gubler

CLEARANCE: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,559
Reaction score
16
8 gallons of diesel is 26kg (57 lbs) which is about the same weight as a full propellant charge for a six inch (155mm) gun. The EX-175 high energy propellent cartridge for the 127mm weighes in at 18kg (41 lbs). So when one factors in savings in magazine space, fittings and protection compared to fuel bunkerage its about shot per shot weight equal. Plus of course the rail gun is far more effective and its burning the same fuel that creates the same electricity that can be used to turn the propeller, run the air conditioning or download emails.


TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
3,208
Reaction score
125
Yes, it's a fairly heavy weight of fuel in absolute terms.
But let's let's look at it in relative terms. Propulsion fuel burn on a DDG-51 would be no less than about 25,000 gallons per day (even at low-speed cruise). Assuming a 600-round magazine (similar to conventional 127mm gun magazines and significantly larger than the DDG-1000's AGS magazines) even 8 gallons per round only eats up 4,800 gallons, which is a small fraction of one day's fuel use. That might not be a huge savings over the weight of separate propellant, but it sure is a logistical simplification, as Abraham notes. Being able to replenish gun propellant witha simple alongside connected refuelling rather than having to manhandle the charges below in a separate evolution is a major step forward.

And that 8-gallon figure may be a high estimate. I'm seeing one Navy-sourced article talking about 3 gallons per shot for a 64-MJ railgun projectile. That makes the total fuel use for a reasonable railgun magazine less than two hour's steaming at battlegroup speeds.


fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,134
Reaction score
104
bobbymike said:
The Navy is planning an at-sea demonstration with an electromagnetic railgun on board a Joint High Speed Vessel sometime in fiscal year 2016,...

Edit.

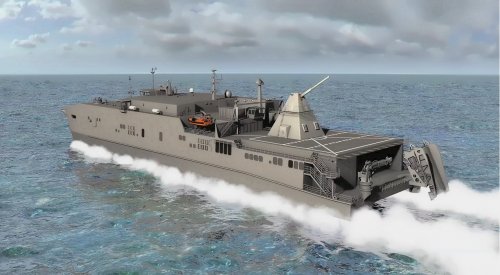

A newer picture with more details, taken as a screenshot from this YouTube video.
I won't embed the YouTube video, because just only the screenshot is new to us.


Video:
Code:
http://youtu.be/qJQfAcBs5vQ
Screenshot:
Code:
http://youtu.be/qJQfAcBs5vQ?t=1m11s


Attachments

sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
11,948
Reaction score
286
That seems like a strange selection to trial a railgun. ???


bobbymike

CLEARANCE: Above Top Secret
Joined
Apr 21, 2009
Messages
8,781
Reaction score
146
sferrin said:
That seems like a strange selection to trial a railgun. ???
Does it have something to do with the gas turbines that power it (easier to tap into :-\ ) and maybe the deck space?


TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
3,208
Reaction score
125
It's probably just a convenient platform -- it's available, has a big flat deck to bolt on a turret, and enough open space to mount a generator and test equipment.


TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
3,208
Reaction score
125
bobbymike said:
sferrin said:
That seems like a strange selection to trial a railgun. ???
Does it have something to do with the gas turbines that power it (easier to tap into :-\ ) and maybe the deck space?
Actually, there are no gas turbines on thse ships. JHSV has four disel engines and reduction gears driving water jets for propulsion. They have four separate 600 kW diesel generators for ship-service and hotel loads, but that's not terribly large as these things go. (The generators on combatants are ~2.5 MW each).

I'd expect power generation for the railgun testbed to be a standalone system.


SpudmanWP

CLEARANCE: Top Secret
Senior Member
Joined
Nov 10, 2008
Messages
1,076
Reaction score
20
Given the huge power requirements for a railgun, this platform makes sense as the RORO section directly under the gun is perfect.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
186
Website
deeptowild.blogspot.com
bobbymike said:
The Navy is planning an at-sea demonstration with an electromagnetic railgun on board a Joint High Speed Vessel sometime in fiscal year 2016,...
Isn't this electromagnetic railgun manufactured by BAE Systems rather than General Atomics?


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
11,948
Reaction score
286
Triton said:
bobbymike said:
The Navy is planning an at-sea demonstration with an electromagnetic railgun on board a Joint High Speed Vessel sometime in fiscal year 2016,...
Isn't this electromagnetic railgun manufactured by BAE Systems rather than General Atomics?
They're both building one.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,732
Reaction score
9
fightingirish said:
Edit.
A newer picture with more details...
USS Dalek... ;D

cheers,
Robin.


Moose

CLEARANCE: Top Secret
Senior Member
Joined
Jul 4, 2010
Messages
1,023
Reaction score
37
For the first test of the LaWS laser weapon at sea they just parked the laser turret and a diesel generator on the fantail of a destroyer. And the upcoming Ponce LaWS deployment will be similar. It appears this test (or series of tests) will be along similar lines. The weapon will be parked on the JHSV helipad and the generators will either be rolled onto the cargo deck or parked next to the weapon up top.

sferrin said:
Triton said:
bobbymike said:
The Navy is planning an at-sea demonstration with an electromagnetic railgun on board a Joint High Speed Vessel sometime in fiscal year 2016,...
Isn't this electromagnetic railgun manufactured by BAE Systems rather than General Atomics?
They're both building one.
They have both produced prototypes, Navy language is a little murky but it seems they intend to put both of the recent generation at sea in turn. BAE is building a new prototype with an automated loading mechanism after winning a down-elect last year. GA will compete with BAE again for the first prototype of a fully realized railgun weapon system for sea testing later this decade.


VH

CLEARANCE: Secret
Joined
Feb 24, 2008
Messages
205
Reaction score
0

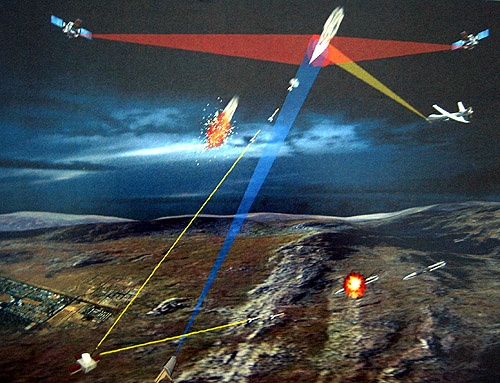

Has there been any consideration for the railgun firing a beehive / grapeshot / flechette type round? Launched at an antiship weapon like the Chinese DF-21D, a flechette round would inflict serious damage on the warhead.


Attachments

sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
11,948
Reaction score
286
VH said:
Has there been any consideration for the railgun firing a beehive / grapeshot / flechette type round? Launched at an antiship weapon like the Chinese DF-21D, a flechette round would inflict serious damage on the warhead.

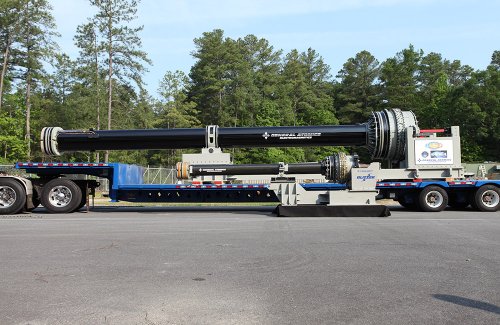

http://media.ga.com/video-library/land-based-mobile-railgun/


VH

CLEARANCE: Secret
Joined
Feb 24, 2008
Messages
205
Reaction score
0

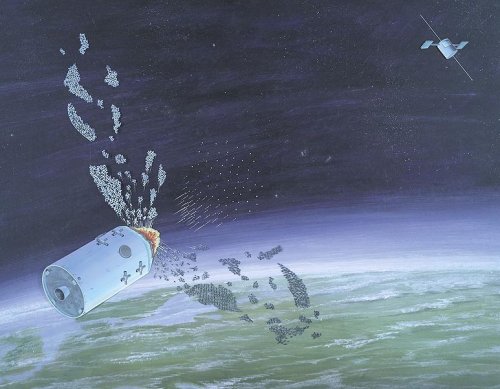

Love that cloud of steel pellets knocking out those IRBM warheads! Thanks!


J.A.W.

"Keep on Truckin'.."
Joined
Mar 1, 2014
Messages
662
Reaction score
1
The test round shown in the vid (post #55) really looks kinda like this..

http://en.wikipedia.org/wiki/File:Wind_channel_model_of_an_A4.JPG


bobbymike

CLEARANCE: Above Top Secret
Joined
Apr 21, 2009
Messages
8,781
Reaction score
146
Missile Defense Agency Nudged to Pursue Navy's Rail Gun

May 2, 2014
A draft House bill envisions the Missile Defense Agency assuming management from the Navy of a project to develop an electromagnetic rail gun. The House Armed Services Subcommittee on Strategic Forces in its mark-up of yearly defense authorization legislation noted the promise of the technology as a "more affordable air and missile defense" alternative, Inside Defense reported on Thursday. The legislation includes a directive for the Missile Defense Agency to work with the Pentagon's Strategic Capabilities Office to draft a report by mid-November that details a testing strategy for determining the "suitability of this [electromagnetic rail gun] technology for transfer to MDA for further development activity." The subcommittee said the Missile Defense Agency, with its special authority to speed along the acquisition process, was in a unique position to move forward the work done thus far by the Navy and the Strategic Capabilities Office. The Missile Defense Agency has already singled out the rail gun as a "priority" technology in light of its possibilities as a comparatively reasonably priced antimissile technology for use against theater-level ballistic missile threats. The rail gun is operated by an energy pulse instead of explosive fuel and is envisioned for use against a large number of targets, including cruise and ballistic missiles, and warships.


Orionblamblam

CLEARANCE: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,361
Reaction score
227
Website
www.aerospaceprojectsreview.com
seruriermarshal said:
Blitzer ;D

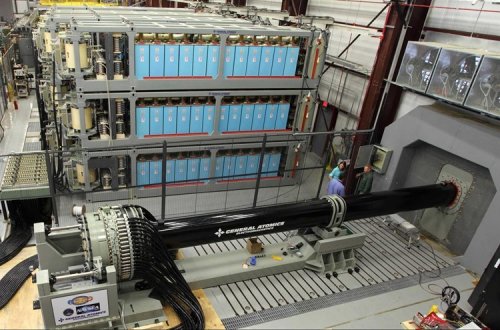

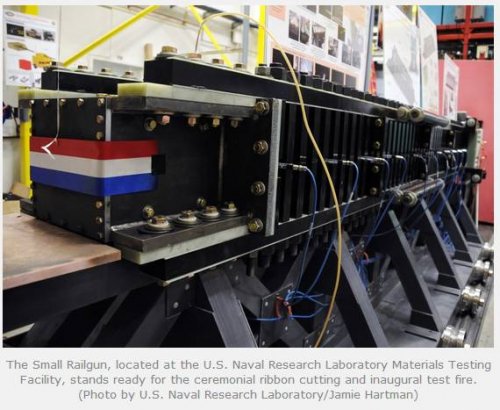

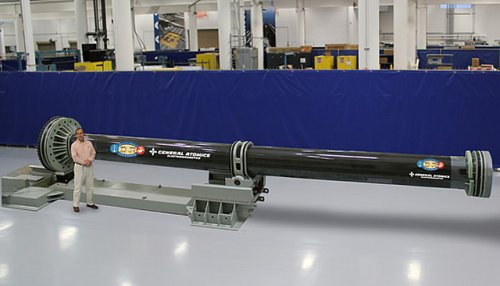

Thing I often notice is how *boring* real-life advanced weapons look compared to their sci-fi equivalents. The actual railgun looks pretty much like some pipe with some fat fittings, not like what sci-fi tells us a railgun is supposed to look like:


bobbymike

CLEARANCE: Above Top Secret
Joined
Apr 21, 2009
Messages
8,781
Reaction score
146
http://www.sandiego6.com/news/local/Navy-unveils-railgun-266345791.html


donnage99

"Robert Gates, is that you??" sublight
Joined
Jun 17, 2008
Messages
954
Reaction score
4
The article in the link said the navy may implement the gun into their ship the following year after the test, which date at 2017. That sounds a little too good to be true, if not a lot. Can anyone verify that?


bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
1,910
Reaction score
8
donnage99 said:
The article in the link said the navy may implement the gun into their ship the following year after the test, which date at 2017. That sounds a little too good to be true, if not a lot. Can anyone verify that?
Yes the EMRG is going out to sea in 2016.

https://www.youtube.com/watch?list=WL&feature=player_detailpage&v=DJ2v92EMJu0#t=926


bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
1,910
Reaction score
8
bring_it_on said:
donnage99 said:
The article in the link said the navy may implement the gun into their ship the following year after the test, which date at 2017. That sounds a little too good to be true, if not a lot. Can anyone verify that?
Yes the EMRG is going out to sea in 2016. Where they go after those tests depends on the tests and what they need to correct from the lessons learnt.

https://www.youtube.com/watch?list=WL&feature=player_detailpage&v=DJ2v92EMJu0#t=926


donnage99

"Robert Gates, is that you??" sublight
Joined
Jun 17, 2008
Messages
954
Reaction score
4
Bring_it_on, I'm asking if people can varify that they plan on reaching operational stage by 2017. We already know they will start testing by 2016.


kcran567

CLEARANCE: Top Secret
Joined
Aug 15, 2009
Messages
663
Reaction score
0
How many rail guns per (Navy) ship, one or two? And will be a standard armament or just for certain ship?


bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
1,910
Reaction score
8
donnage99 said:
Bring_it_on, I'm asking if people can varify that they plan on reaching operational stage by 2017. We already know they will start testing by 2016.
From what I have read, its going to be hard to nail down a tentative date to operationalize it before the testing is completed in the 2016. I'll try to find out whether they have a timeframe in mind.


TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
3,208
Reaction score
125
I expect that we'd be looking at something similar to the deployment of a Laser Weapon System prototype on USS Ponce -- a single system, still more or less in a test configuration, fitted on a forward-deployed ship.


Moose

CLEARANCE: Top Secret
Senior Member
Joined
Jul 4, 2010
Messages
1,023
Reaction score
37
TomS said:
I expect that we'd be looking at something similar to the deployment of a Laser Weapon System prototype on USS Ponce -- a single system, still more or less in a test configuration, fitted on a forward-deployed ship.
Essentially yes. Instead of Ponce they're going to use a JHSV, not the least reason being that the JHSV has a big vehicle deck onto which generators and capacitors for the gun may be loaded. A "proof of concept" deployment.


Moose

CLEARANCE: Top Secret
Senior Member
Joined
Jul 4, 2010
Messages
1,023
Reaction score
37
fredymac said:
Hard to be sure but I think the JHSV is carrying the GA and BAE railguns on the aft deck.
Yes they put the two prototypes on her Helipad for a photo op and left them on for the exercise.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
186
Website
deeptowild.blogspot.com
"Navy chooses high-performance batteries from K2 Energy to power electromagnetic railgun capacitors"

Source:
http://www.militaryaerospace.com/articles/2014/07/electromagnetic-railgun-batteries.html

WASHINGTON, 30 July 2014. U.S. Navy hypervelocity weapons experts needed powerful and reliable batteries to power a large modular capacitor bank for the electromagnetic railgun. They found their solution from K2 Energy Solutions Inc. in Henderson, Nev.

Officials of the Naval Sea Systems Command in Washington announced a potential $81.4 million contract to K2 Energy on Tuesday for the fully self-contained battery intermediate energy store system to power capacitor banks for the Navy's future electromagnetic railgun.

K2 Energy specializes in lithium iron phosphate battery technology -- a special kind of lithium battery that addresses the four major issues with current lithium technologies: safety, life, power, and environmental friendliness.

Navy leaders plan to use electromagnetic railguns aboard future surface warships to shoot non-explosive shells at a speed of Mach 8 -- eight times the speed of sound, or roughly 6,000 miles per hour. At that speed the weapon doesn not require explosives; the kinetic energy alone is enough to vaporize vehicle-size objects.

The Navy's electromagnetic railgun, under development by BAE Systems, requires staggering amounts of electricity to operate. The Navy envisions 64-megajoule electromagnetic railguns for future shipboard use.

The Office of Naval Research in Arlington, Va., has a functional 32-megajoule Electro-Magnetic Laboratory Rail Gun from BAE Systems, and operates it for research purposes at the Naval Surface Warfare Center in Dahlgren, Va.

The Navy's ability to deploy future electromagnetic railguns will hinge on producing the incredibly large amounts of electricity necessary to operate them. The 64 megajoules of power necessary to shoot the future electromagnetic railgun is equal to about 18 kilowatt hours, or about the same amount of power an average American household uses in an entire day.

Future warships carrying these kinds of weapons will need advanced power plants, and the requirement for electricity production is likely to have a profound influence over future ship design.

K2 Energy is involved in several advanced battery programs that help push the limits of the company's technology. The company is trying to develop an all-electric version of a Shelby Cobra high-performance sports car, for example.

The car, which company officials say will be faster and will have more power than the gasoline-powered Shelby Cobra will use high-performance K2 Energy 26650P cells with a 240-volt 300-horsepower electric engine that produces 1,000 pounds per foot of torque.

On this contract K2 Energy will do the work in Henderson, Nev., and should be finished by December 2016. For more information contact K2 Energy online at www.k2battery.com, or Naval Sea Systems Command at www.navsea.navy.mil.


bobbymike

CLEARANCE: Above Top Secret
Joined
Apr 21, 2009
Messages
8,781
Reaction score
146
Possible on next generation armored vehicles?

http://defensetech.org/2014/10/23/bae-proposes-rail-guns-for-armys-future-fighting-vehicle/

Top
