GD Convair/USAF Suborbital Vehicle (SOV) 1988

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,177
Reaction score
1,393

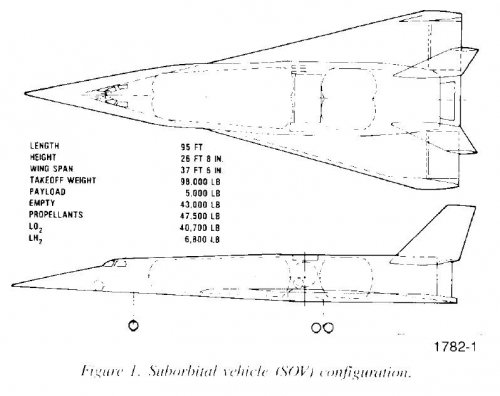

Some GD papers from 1988-1989 timeframe describes one of what GD used to call HVV or HAV family - HyperVelocity Vehicles or Hypersonic Aerospace Vehicles. This one was dubbed SOV (SubOrbital Vehicle), and said to be based on GD TAV studies (1983-1985).

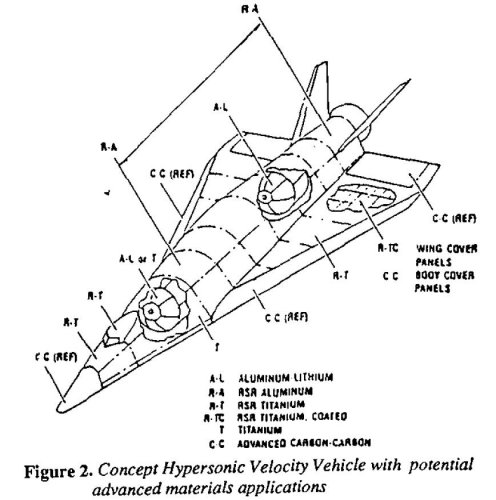

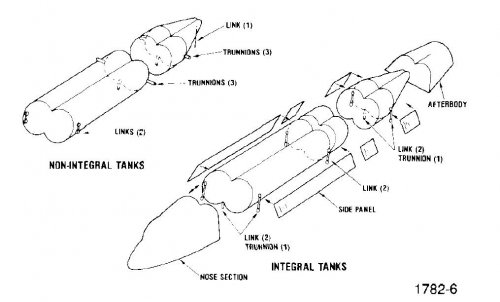

An rocket-powered SSTO with Al-Li non-integral tanks, that were choosen over integral ones, 'hot' TPS with Rene 41/Inconel Type 718/titanium hi-temperature alloys used. Engine type is not described, though.


Attachments

  • GD_1988_SOV_HAV.jpg
    84.4 KB · Views: 332
  • GD_1988_SOV_HAV_1.jpg
    49.2 KB · Views: 326

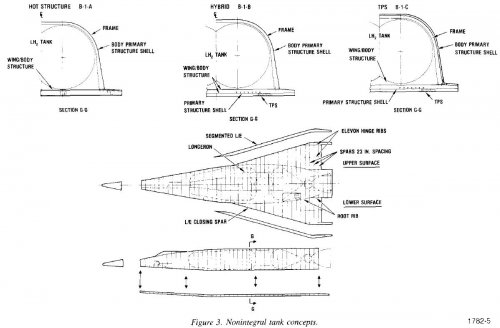

  • GD_1988_SOV_HAV_2non-integraltankage.jpg
    87.8 KB · Views: 293

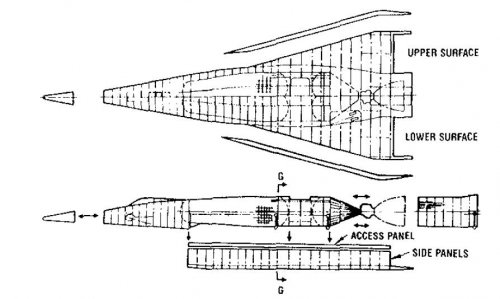

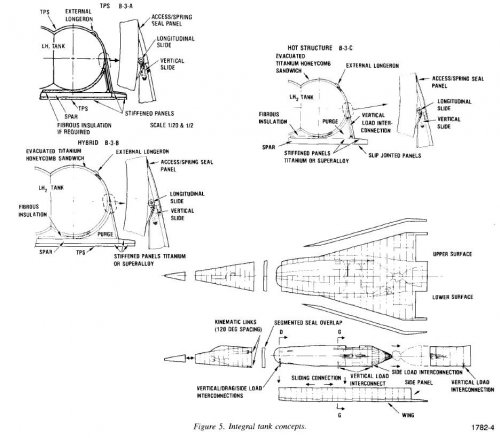

  • GD_1988_SOV_HAV_3integraltankage.jpg
    94.6 KB · Views: 278
  • GD_1988_SOV_HAV_3integraltankageb.jpg
    61.7 KB · Views: 269
  • GD_1988_SOV_HAV_4integralvsintegraltankage.jpg
    58.9 KB · Views: 71

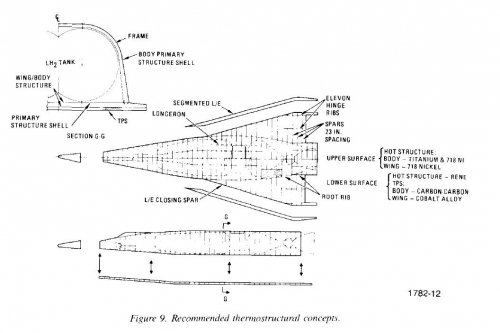

  • GD_1988_SOV_HAV_5thermostructures.jpg
    71.5 KB · Views: 74

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,967
Reaction score
5,253

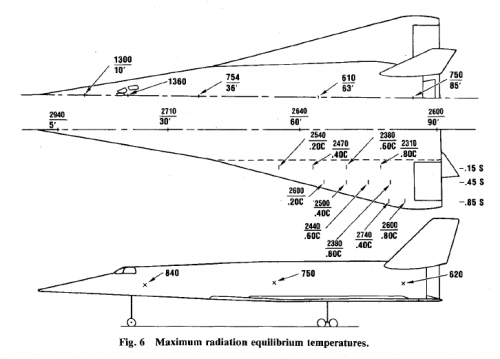

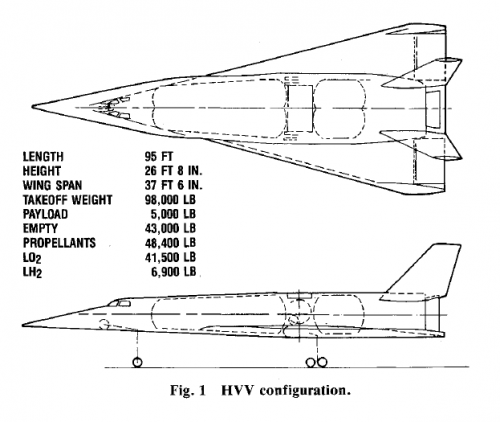

And a clearer views.


http://arc.aiaa.org/doi/abs/10.2514/3.46032


Attachments

  • HVV  1.png
    HVV 1.png
    25 KB · Views: 42
  • HVV  2.png
    HVV 2.png
    29.2 KB · Views: 38
