The German riverine flotilla intended for the Danube would have Fluss-Schnell (FS)/Panzer-Motor(PM) boote, armed with 2 3,7 cm armoured cupolas, for which I haven`t found any detailed plans. On the other hand, they would also have an armoured cupola atop the command tower, with two Rheinmetall C/30 2 cm automatic guns. I have found at BA/MA their Solothurn ancestor. Just compare!


Attachments

  • RH_8_184_0022.lq.jpg
    6 MB · Views: 48

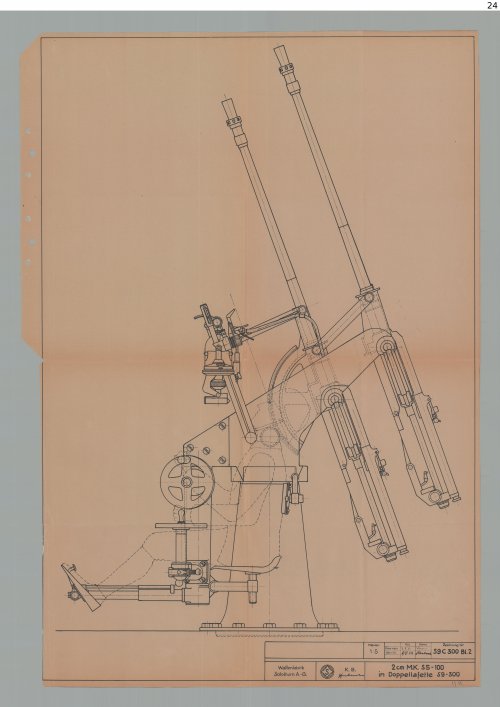

  • RH_8_184_0024.lq.jpg
    5.8 MB · Views: 51

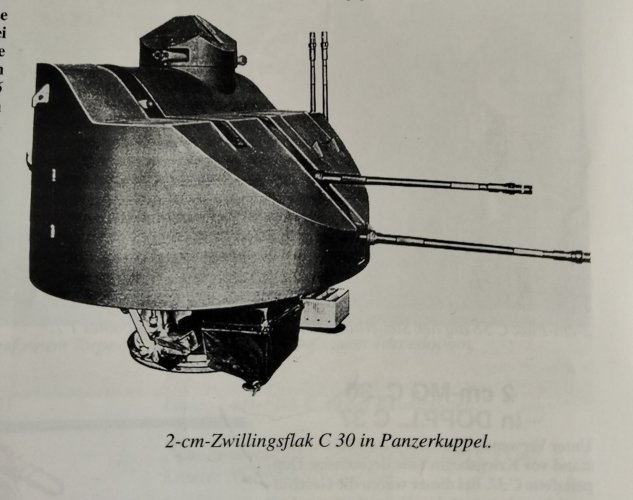

  • 2 cm-MG C 30 in Dopp.L. mit Panzerkuppel.jpg
    2 cm-MG C 30 in Dopp.L. mit Panzerkuppel.jpg
    2.7 MB · Views: 50
