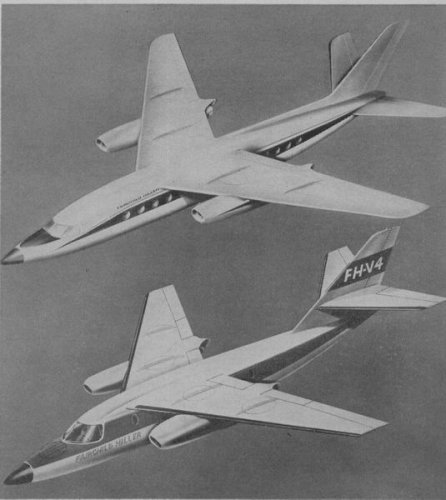

The FH-V4 was intended as a VTOL bizzjet for 10 to 14 passengers,
and would have been powered by four GE J85 engines.

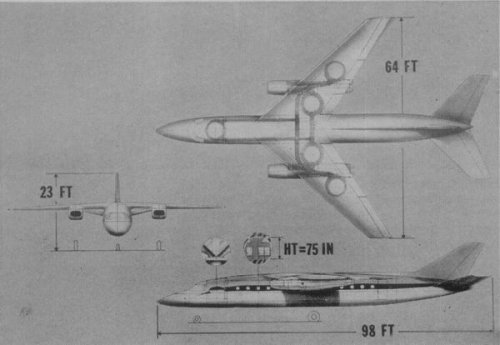

The V6 was a design for up to 42 passengers, powered vyfour GE GE-1
engines and could have achieved VTOL, too, but was more seen as a
STOVL aircraft, landing vertically, when the most fuel would have been
consumed.
(from Aviation Week 8/68 )


Attachments

  • FaichildHiller-V4.jpg
    31.9 KB · Views: 1,000
  • FaichildHiller-V6.jpg
    29.4 KB · Views: 904
  • FaichildHiller-VSTOL-studies-1.jpg
    39.7 KB · Views: 878
Hi,

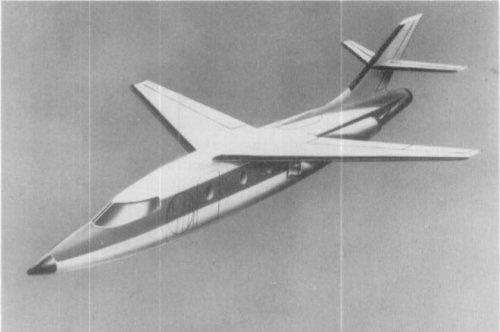

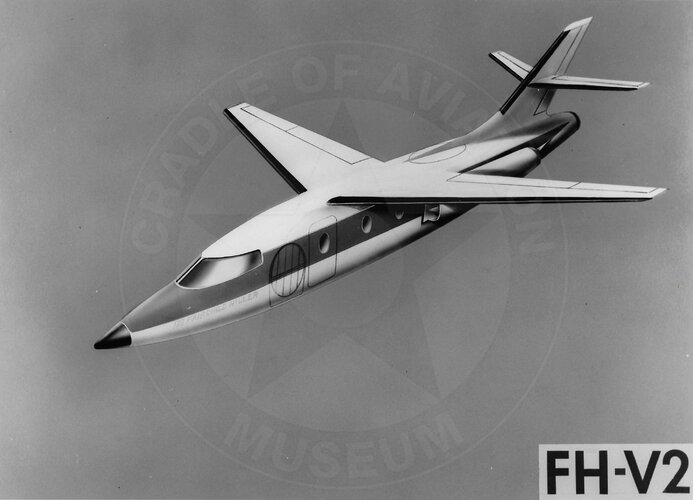

the Fairchild FH-V1 was a 14-passenger aircraft powered by four GE J85 engines,
two wing-mounted for lift and two fuselage-mounted for cruise,it would have been
66ft long,with a 46ft wing span and a cruising range of 1,000 miles,and its speed
would have been mach 0,8 at 40,000ft.The FH-V2 business jet was smaller 50ft
long,and would have been powered by three J85s,one main fuselage lift fan and
two deployable fuselage lift/cruise fans.It would have carried 7-passenger plus
two crewmen.

Source; The Thunder Factory,book.


Attachments

  • FH-V2.JPG
    26.7 KB · Views: 776

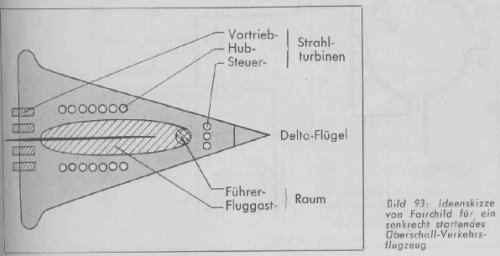

A concept (probably not really a project !) for a supersonic VTOL airliner,
using lift-fans, too :
(from FlugWelt II/60)


Attachments

  • Fairchild-VTOL.jpg
    37.3 KB · Views: 744
Good find my dear Jemiba,

it look like the Rolls Royce concept.

Was there that design,FH-V3 or not ?.

Hi,


about the Germany site which was originally a museum site,we ask that
person who run this site about his sources,but he didn't answer,and I
guess he had many sources,but why he didn't respond !.


If we look at those PDF documents,it had many real aircraft,projects and patents,
we can't ignore a many aircraft designs on them,but we can discuss their reality
to be frankly with ourselves.

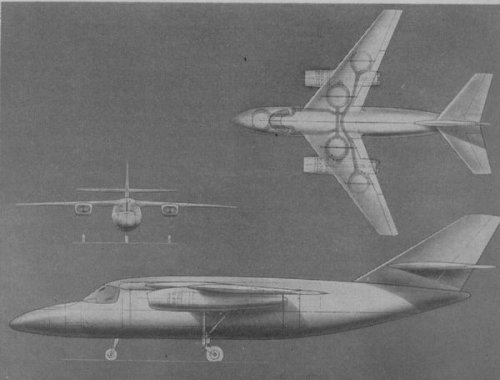

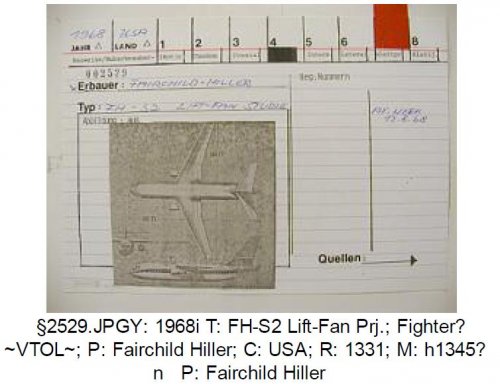

Here is a design for Fairchild-Hiller called FH-S2,a high wing medium jet transport
aircraft projects,can anybody confirm on its existance.


http://kulturserver-nds.de/home/hubtest/medien/Typenkartei3953xGUN7x9T3Z7.pdf


Attachments

  • FH-S2.JPG
    55 KB · Views: 119
hesham said:
Hi,

the Fairchild FH-V1 was a 14-passenger aircraft powered by four GE J85 engines,
two wing-mounted for lift and two fuselage-mounted for cruise,it would have been
66ft long,with a 46ft wing span and a cruising range of 1,000 miles,and its speed
would have been mach 0,8 at 40,000ft.The FH-V2 business jet was smaller 50ft
long,and would have been powered by three J85s,one main fuselage lift fan and
two deployable fuselage lift/cruise fans.It would have carried 7-passenger plus
two crewmen.

Source; The Thunder Factory,book.

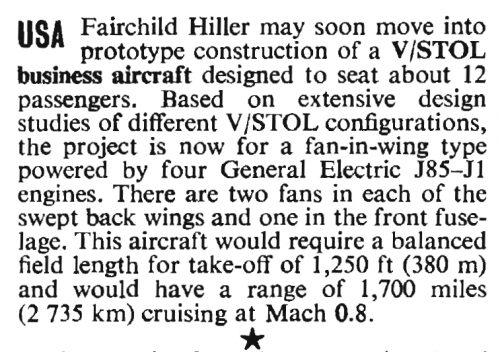

And from Flying Review 12/1967


Attachments

  • 1.png
    137.4 KB · Views: 94

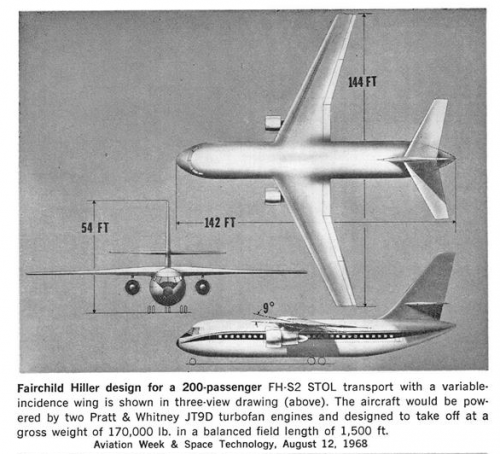

FH-S2


Attachments

  • FHS2.png
    309.6 KB · Views: 151
hesham said:
Hi,


about the Germany site which was originally a museum site,we ask that
person who run this site about his sources,but he didn't answer,and I
guess he had many sources,but why he didn't respond !.


If we look at those PDF documents,it had many real aircraft,projects and patents,
we can't ignore a many aircraft designs on them,but we can discuss their reality
to be frankly with ourselves.


Here is a design for Fairchild-Hiller called FH-S2,a high wing medium jet transport
aircraft projects,can anybody confirm on its existance.


http://kulturserver-nds.de/home/hubtest/medien/Typenkartei3953xGUN7x9T3Z7.pdf

An extremely odd format with what appears to be a microfiche/microdot setup.

I'm somewhat missing the lift-fans in the FH-S2 ...

Hi,

the Fairchild FH-V1 was a 14-passenger aircraft powered by four GE J85 engines,
two wing-mounted for lift and two fuselage-mounted for cruise,it would have been
66ft long,with a 46ft wing span and a cruising range of 1,000 miles,and its speed
would have been mach 0,8 at 40,000ft.The FH-V2 business jet was smaller 50ft
long,and would have been powered by three J85s,one main fuselage lift fan and
two deployable fuselage lift/cruise fans.It would have carried 7-passenger plus
two crewmen.

Source; The Thunder Factory,book.

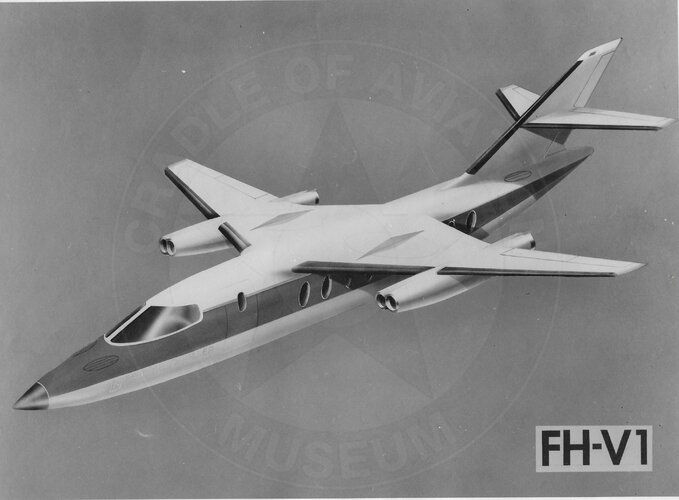

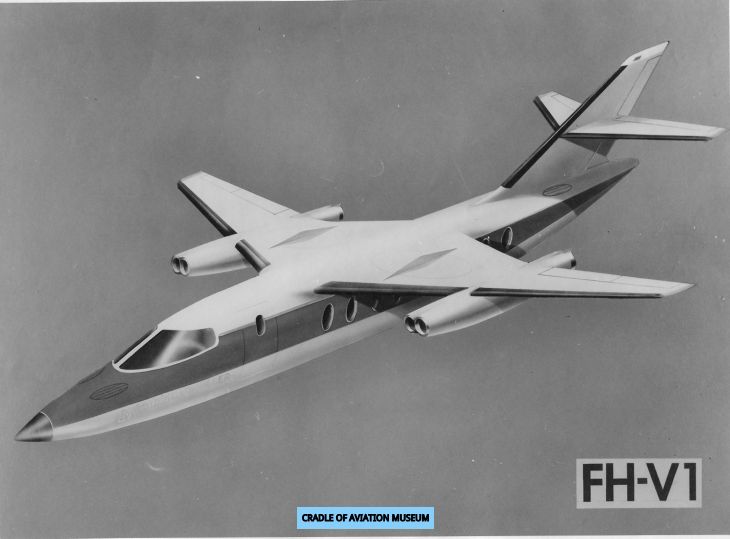

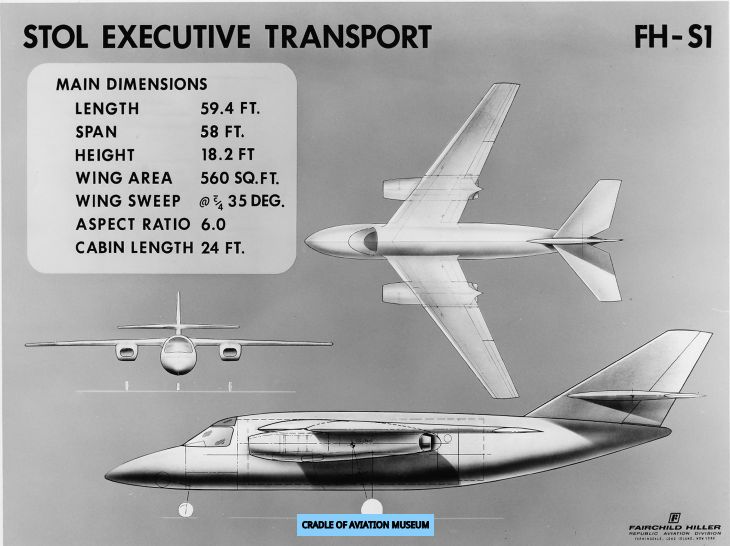

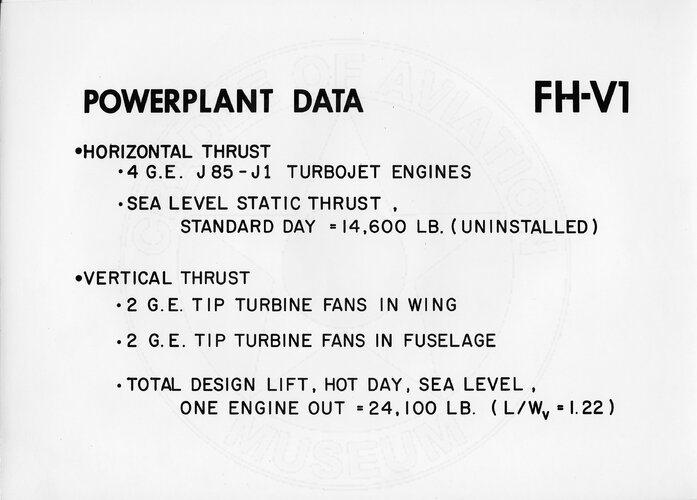

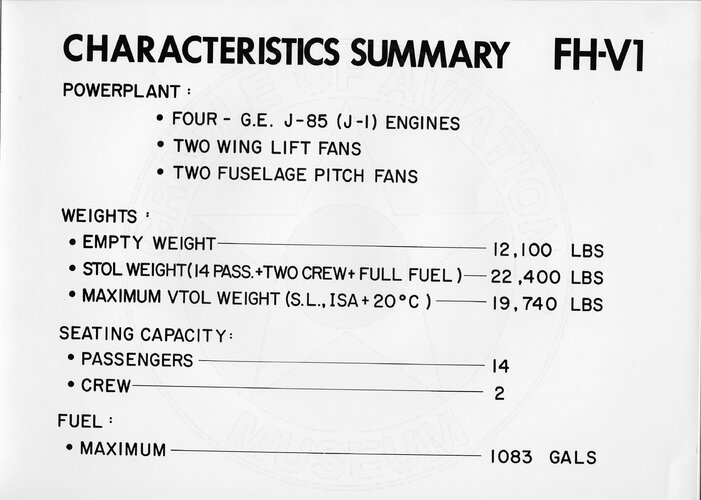

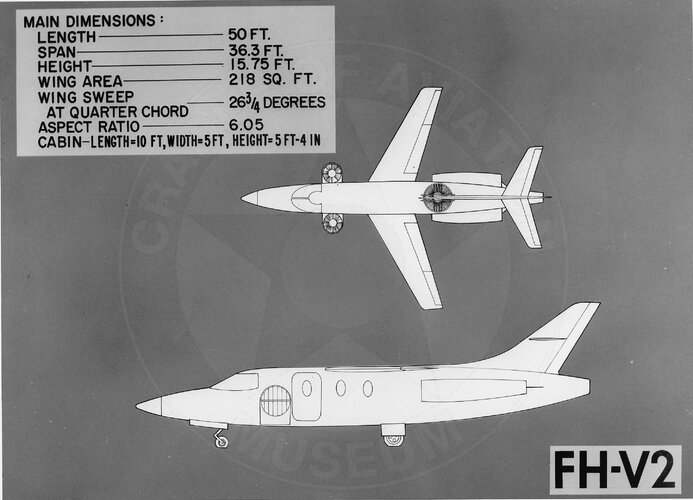

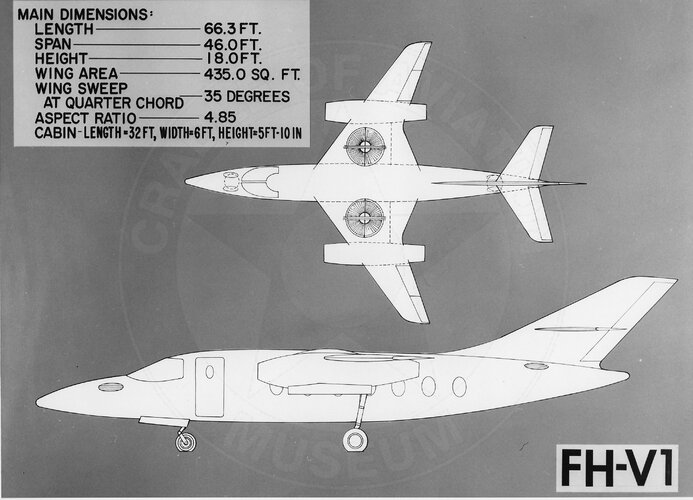

I found them and more pictures at the Cradle of Aviation Museum web archive.
Source:
If I am wrong or these pictures have been posted before, please let me know.

A concept (probably not really a project !) for a supersonic VTOL airliner,
using lift-fans, too :
(from FlugWelt II/60)

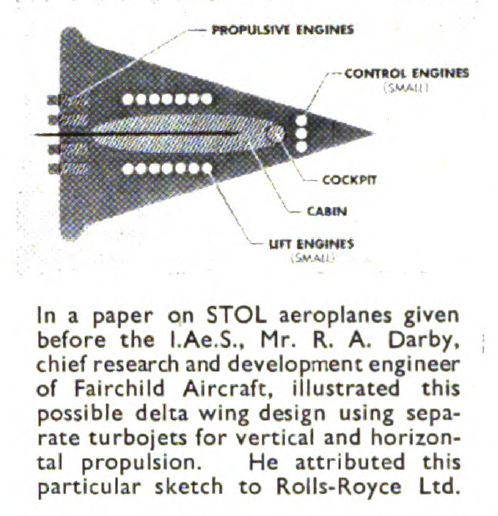

Also from Aeroplane 1956,

I can't imagine how it looks like,who can make a sketch for it ?.


Attachments

  • 10.png
    351.4 KB · Views: 40
