Early jet-transport project: Fairchild M-186

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126

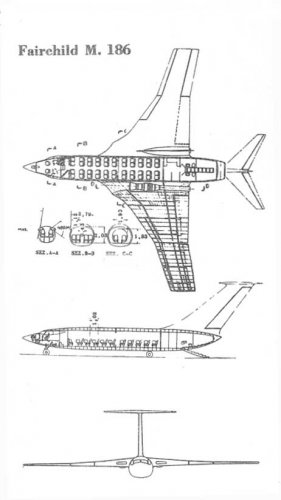

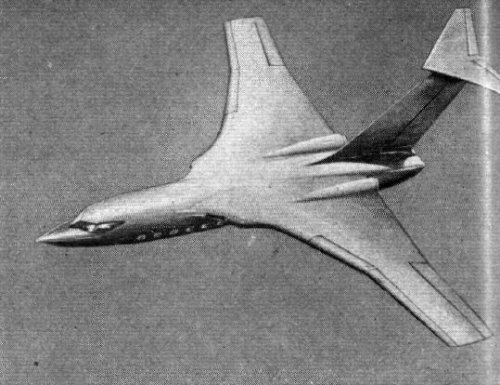

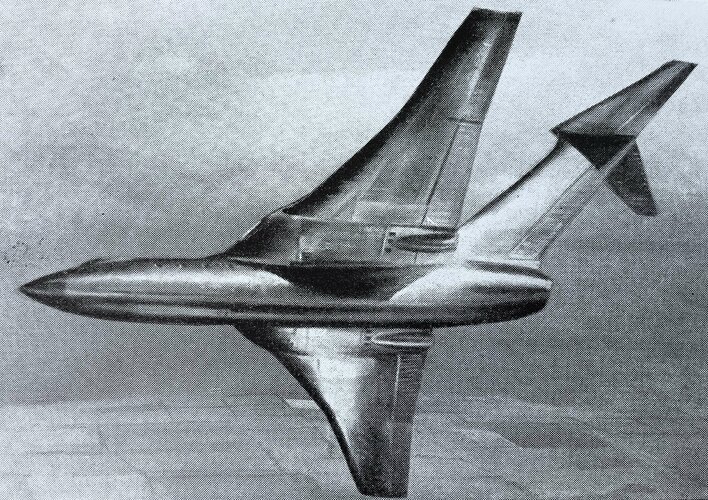

This comes from 1953-54. Two Wright J-67, cruise speed 900 KM/h, 44 passengers and 3 crew. High-density seat disposition for 64 passengers. Take-off run 800 m at 34,000 kg. Dimensions: lenght 30,1 m, span 30,48 m. Cargo version with 15,876 Kg payload. There was probably a bomber version too (actually the orginal design, I presume). The Smithsonian has complete documentation of the M-186B, that could be, or not, the bomber. Probably my friend Lark has more info in his VERY OLD collection of magazines.. ;)


Attachments

  • Fairchild M-186.jpg
    Fairchild M-186.jpg
    25 KB · Views: 501

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,222
Reaction score
930

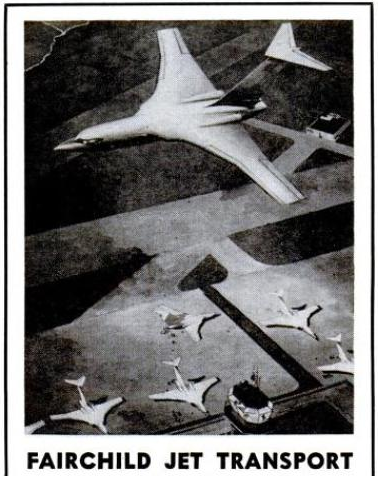

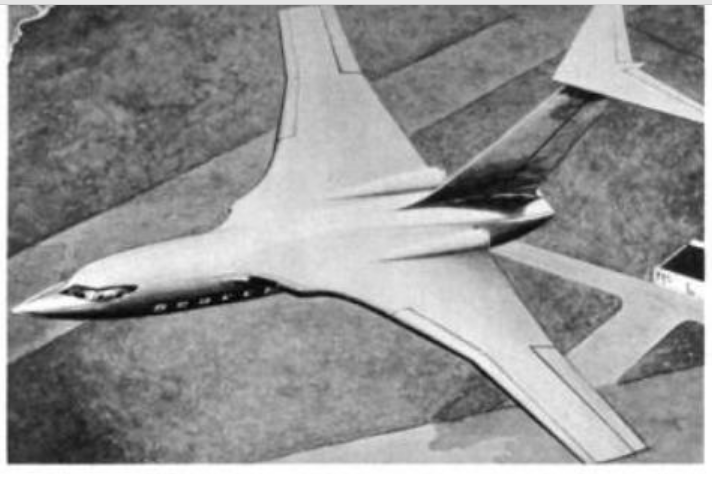

I can add this artist's impression from Aviation Week .11.53 :
(it's the civil version, too )


Attachments

  • Fairchild-Jettransport-1.JPG
    64.1 KB · Views: 413

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126
So the -B was civilian... The A was the bomber, i'd bet... 8)


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
70
In the Aero Digest of December 1953 and Flugwelt VI 1/1954 this
Fairchild concept is only described as a passenger aircraft.Flugwelt gives the 186B designation too and mentions that the plane easly can
be converted for bulk freight operations.
Beaver tail doors would permit end-loading of cargo.
Illustrations are the same as presented by Skybolt and Jemiba.
To my regret ,not a single mention of a bomber development..


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,358
Reaction score
3,379

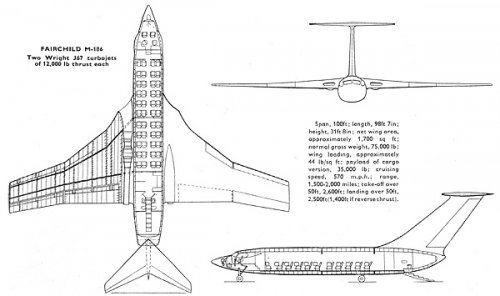

M-186 from Flight International
FAIRCHILD'S AIRLINER

Two Buried Turbojets Specified in a "Cusp-wing" Project

THE drawings on this page illustrate a jet-transport project by the Fairchild company's aircraft division. This novel design was revealed to representatives of 12 American domestic airlines on November 17th by the division's chief engineer, Mr. Walter Tydon.

Although it is at present no more than a project it is worth some comment, for it is the first modern American transport design to be freely published by the company responsible.Fairchild's president, Mr. Richard S. Boutelle, stated last June that a $1.5m research programme was under way; the first two results are this design—known as the M-186—and a turboprop military aircraft which is still secret, but is believed to be a deltawing assault-transport. It may also be remembered that Fairchild unsuccessfully approached Avros in September with a view to acquiring that company's research data on delta-wing aircraft. The Fairchild M-186 is a most provocative design. It differs radically from all other modern transports in several respects: it has a high wing, aft loading door and on!y two engines—and the engines are buried in the wing. The last feature is certainly worth noting, in view of what has been said and written in America to indicate that the buried engine is neither safe nor efficient. The power unit specified is the Wright J67 two-spool turbojet developed directly from die Bristol Olympus. It is, in fact, being developed in much the same manner as is the Bristol engine, and the thrust available is predicted as 12,000 lb minimum; but it is certain that no civil J67 will materialize for three years at least. Advantages of the J67 are its good fuel economy and light weight, which should more than make up for its high initial cost. The fuel will be wide-cut gasoline. There is to be provision for "Comet 3-type" external leading-edge tankage for later transcontinental versions of the aircraft.

The M-186 wing has a span of 100ft and a plan-form for which Fairchild use—not altogether accurately—the geometrical term "cusp." The character of this wing can clearly be seen in the drawing; it is a straight mixture of swept and delta forms in an exactly similar manner to that used in the A.ST. high-speed target glider. The delta inner portion houses power units, fuel and main landing gear, while the thin outer sections are noteworthy for their leading-edge flaps. It is probable that, were no trailing-edge flaps fitted, the M-186 would be tailless. As it is, the inner wing has large split flaps and the tail is, as a consequence, reminiscent of mat of the Javelin. For that matter, the wing layout parallels that of the Victor.

The drawing shows plainly the interior arrangement which, at a seat pitch of 40in and a gangway width of 17in, provides 44 seats—the same as the Comet Series 2. Up to 64 seats are foreseen in "coach" versions. In the rear are the galley and coat/baggage spaces, to starboard and port respectively, followed by two toilets further aft. Immediately in front of the passenger accommodation is a further baggage hold and a stewardess space, while the flight deck is laid out for two pilots, navigator and radio officer. All accommodation is well forward of the jet nozzles.
Points of note are the "bubbles" on the canopy (a la Accountant) and the interior dimensions across the spar bulkheads—76in wide by 72in high; full width is 110 in. The floor is 48in above ground. Altogether the M-186 is well worth serious consideration. The aircraft would sell for $1.7m, assuming a production-run of 100. The data below is that published by Fairchild, except for the wing area and loading, which are our own estimates. The performance claimed is high; in practice we feel that the weight would be likely to rise well above the quoted figure.

http://www.flightglobal.com/PDFArchive/View/1953/1953%20-%201584.html


Attachments

  • M-186.jpg
    51.5 KB · Views: 295

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
847
Reaction score
146
Two small performance additions (from Taschenbuch der Luftfahrt 1954 by Georg W. Feuchter - thanks to my friend mechan for the source):

service ceiling: 15,000 m
initial rate of climb: 1,730 m/min


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454

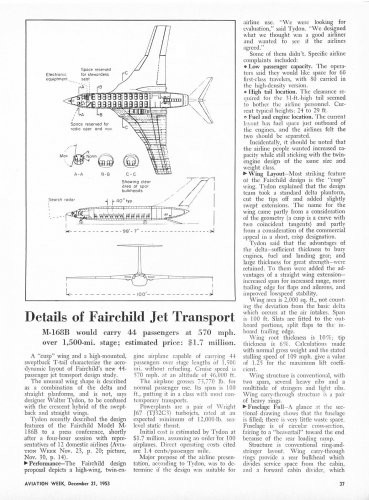

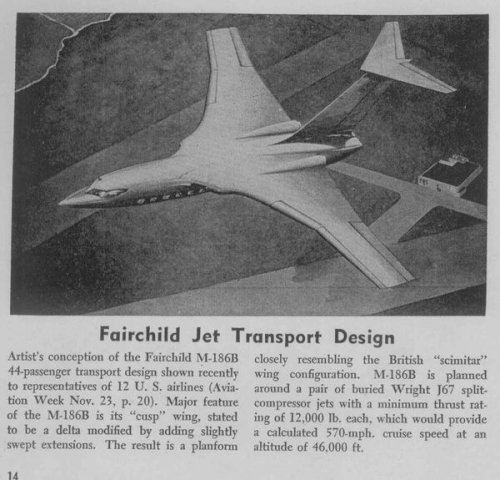

A full-page article on the M-186B (wrongly labeled "M-168B" in the subtitle) was published in Aviation Week, December 21, 1953:


Attachments

  • M-168B article.jpg
    M-168B article.jpg
    325.4 KB · Views: 150
