Hi,

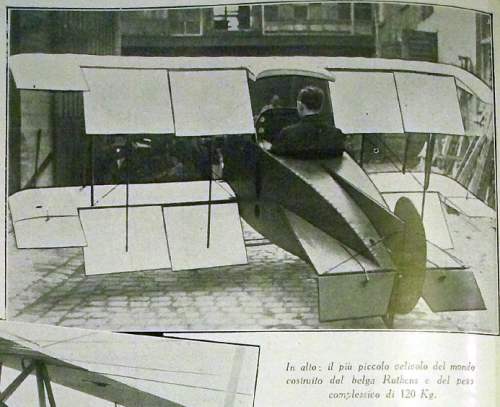

here is a very light biplane,wrote on the text; Ruthens,I don't know if it's the
name of the designer or not ?.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201928%20012.pdf


Attachments

  • 1.png
    899.5 KB · Views: 61

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,797
Reaction score
4,962

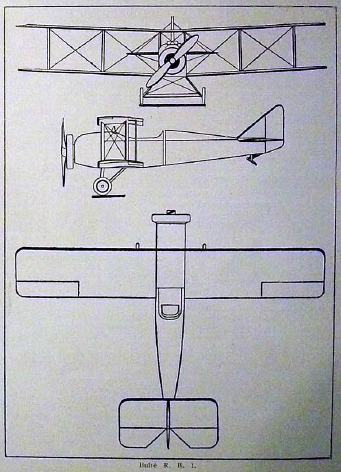

The Bulte RB.1;

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201929%2001-2.pdf


Attachments

  • 1.png
    360.8 KB · Views: 59

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,797
Reaction score
4,962
In reply # 38,

my dear C460 spoke about Wouters W.4,does anyone know W.1 to W.3 ?.


c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
31
Hi,
The projects by Jean de Wouters d'Oplinter were studied by Guy Roberty, here is a summary:
http://www.secretprojects.co.uk/forum/index.php/topic,15575.msg305139.html#msg305139
Wouters used various designation systems, and there is nothing about W.1 to W.3.


c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
31
hesham said:
here is a very light biplane,wrote on the text; Ruthens,I don't know if it's the
name of the designer or not ?.

This is a very small biplane with STOL capabilities built in 1928 by Ferdinand Ruttiens, an engineer at SABCA. It is studied in the book about SABCA by Charles Mali.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,797
Reaction score
4,962
Thank you my dear4 Afrien,

but was it related to SABCA (From its products or not).


c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
31
Charles Mali says that the plane was probably built by its designer with some help from SABCA. It was apparently a common pattern at SABCA: various employees worked on their own projects and the company provided assistance to build them.


fabulousfour

ACCESS: Restricted
Joined
Oct 20, 2009
Messages
43
Reaction score
37

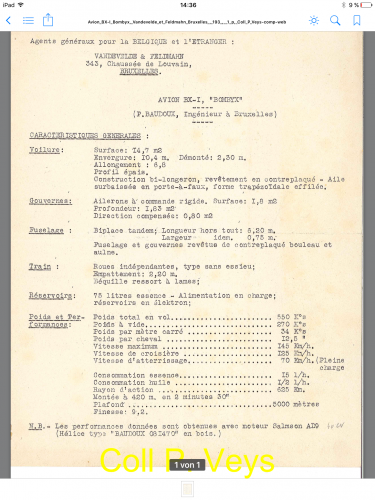

I have found a datasheet of a light Belgian aircraft which is completely unknown to me and from which I can't find anything else.
Has anybody here ever heard of an Avion BX-1 Bombyx?

Link to the datasheet


Attachments

  • IMG_0815.PNG
    4 MB · Views: 246

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,797
Reaction score
4,962
No,I never heard about it Fabulousfour,

let me a little time to search,but what is the name of the company ?.


fabulousfour

ACCESS: Restricted
Joined
Oct 20, 2009
Messages
43
Reaction score
37
That's a good question. I don't know, this sheet is the only evidence I could find.
I tried Baudoux but this led only to this site on secretprojects.


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,977
Reaction score
1,345
The document defined BX-1 Bombyx as bi-plane
And design by engineer P. Baudoux from Brussels

But i not found any on-line information about P. Baudoux and BX-1 Bombyx (pronounce Bomb-x)
Maybe a Belgium library give more information ?


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
45
Some info about Pierre Baudoux , but nothing about his Bombyx design :

http://gallica.bnf.fr/ark:/12148/bpt6k65605157/f8.item.r=Baudoux

https://www.j2mcl-planeurs.net/dbj2mcl/planeurs-machines/planeur-fiche_0int.php?code=3982


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,977
Reaction score
1,345
thanks richard

that was info i needed

Pierre Baudoux was engineer of Brussels University
Work also with José Orta, of Ateliers Orta, at Saint-Hubert in Belgium.

José Orta was captain of Belgium Army, pilot and director of Aerodrome of Saint-Hubert
in december 1933 he got permission to open a Pilot school and Atelier for construction of aircrafts

then they build in 1933/34 The Saint-Hubert 135 B.O. (B.O. stands for Baudoux & Orta)
A low-wing monoplane equipped with a "Cirrus-Hermes IV" engine, and has a maximum speed of 152 m.p.h. and a cruising speed of 127 m.p.h.
http://www.fnar.be/avionsjpdecocq/FNARStHubert135BOJPDecock.pdf
http://www.fnar.be/avionsjpdecocq/FNARStMichelSBO.pdf
http://www.fnar.be/avionsjpdecocq/FNARStHubertSG1JPDecock.pdf
http://www.fnar.be/avionsjpdecocq/FNARStMichelSG2JPDecock.pdf

i guess his bi-plane BX-1 Bombyx was a design before 1933.


fabulousfour

ACCESS: Restricted
Joined
Oct 20, 2009
Messages
43
Reaction score
37
I don't think that the BX-1 was a biplane.

From what I could translate from the sheet it was a low wing aircraft (aile surbaissée) and the wing had two spars (bi-longeron).


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,797
Reaction score
4,962
Hi,

Baudoux Bombyx is registered as a civil aircraft actually built here;

http://www.airhistory.org.uk/gy/reg_OO-.html


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,977
Reaction score
1,345
fabulousfour said:
I don't think that the BX-1 was a biplane.

From what I could translate from the sheet it was a low wing aircraft (aile surbaissée) and the wing had two spars (bi-longeron).

your right
i mistakenly translate bi-longeron as biplane
I'm sorry for this error

back to topic
the link Hesham found give this info:

reg: OO-AMG
Type: Baudoux Bombyx

>Pierre Baudoux/Etterbeek (based Bruxelles)
>Georges Marechal/Berchem St Agathe (based Brussels)
>Mme B Messiers /Brussels
>Robert Jourdain /Brussels
>Alphonse Daury /Antwerp

Project begin 09.10.1931
Cancellation: 5.4.1946
Certificate of Registration: 253

Another interesting question:
How far was the Saint-Hubert 135 B.O. related to Baudoux Bombyx ?
both aircraft same layout: low wing aircraft, two seats and almost same size
except it engine is over double in horsepower: 135 against 50 of Bombyx


fabulousfour

ACCESS: Restricted
Joined
Oct 20, 2009
Messages
43
Reaction score
37
Thanks for all the help so far!

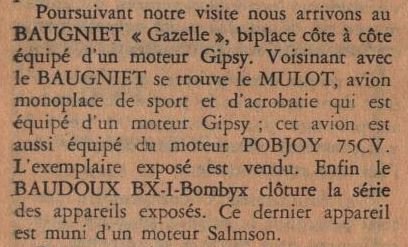

I have found a note about the Bombyx in a vintage newspaper "Le Sud" from 2nd August 1936 in an article about the "1er Salon National De L'Aeronautique"
So, at least the Bombyx must have been shown at that exposition

The article can be found here

Has anyone got more about that "1er Salon National De L'Aeronautique"and the exposed Bombyx there?


Attachments

  • Baudoux Bombyx.JPG
    Baudoux Bombyx.JPG
    35.6 KB · Views: 148

fabulousfour

ACCESS: Restricted
Joined
Oct 20, 2009
Messages
43
Reaction score
37
Does anybody have access to the magazine "Le trait d'union"?

According to this site the Baudoux Bombix (with an "i"!) has appeared in number 253 on page 57.


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,977
Reaction score
1,345
fabulousfour said:
Does anybody have access to the magazine "Le trait d'union"?

According to this site the Baudoux Bombix (with an "i"!) has appeared in number 253 on page 57.

sorry, i don't have it


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,797
Reaction score
4,962
fabulousfour said:
Does anybody have access to the magazine "Le trait d'union"?

According to this site the Baudoux Bombix (with an "i"!) has appeared in number 253 on page 57.

OK,I will try to get it.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,797
Reaction score
4,962
By the way,

I got the page 57 from TU issue 253,nothing at all was in it about Bombix ?,maybe
they were wrong in determind its place.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,797
Reaction score
4,962
fabulousfour said:
Maybe they made a mistake with that list :-[

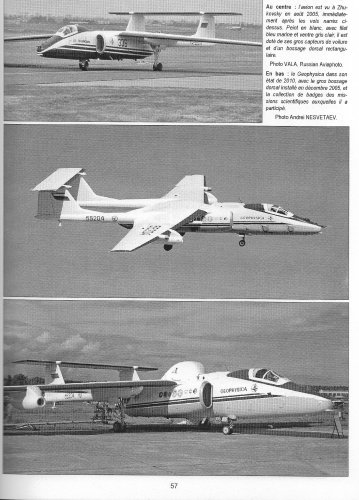

I agree with you,and here is the page 57 from issue 253,nothing at all (via my dear Tophe).


Attachments

  • 2017-09-01 17-41-39_0897.jpg
    2017-09-01 17-41-39_0897.jpg
    1.8 MB · Views: 287

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,797
Reaction score
4,962
Hi,

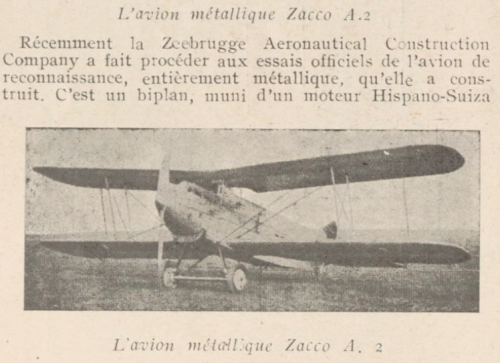

here is a picture to ACAZ (ZACCO) A.2,a two-seat recce biplane,very similar to C.2.

L'Air 1927


Attachments

  • 1.png
    618.4 KB · Views: 191

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,797
Reaction score
4,962

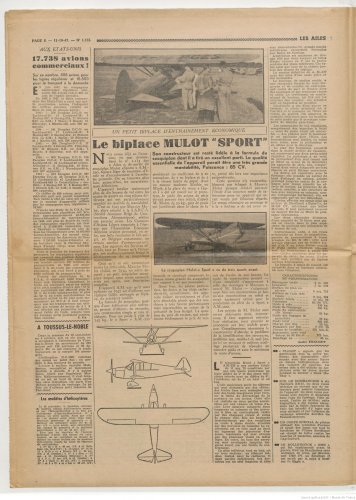

c460 said:

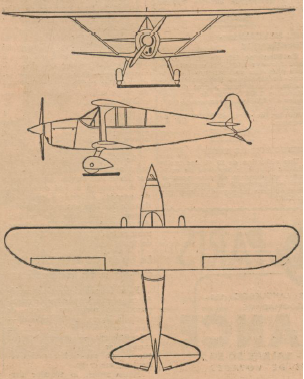

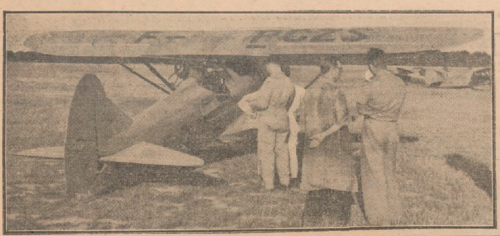

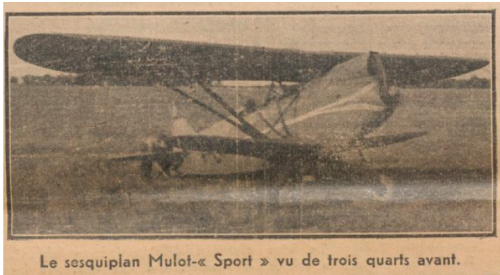

Some additions about the Mulot AM.20.

The Mulot AM.20 was reportedly shown at the 1937 Bruxelles salon with Gipsy I engine:
http://www.flightglobal.com/pdfarchive/view/1937/1937 - 1478.html

The article in Les Ailes 19 August 1937 and the brochure at Collection Philippe Veys only mention the Train 60 hp six-cylinder or the Cirrus Minor 85-90 hp four-cylinder engine. The Train was an inverted engine, and there is no photographic proof that it was mounted on the Mulot.

In late 1937, André Mulot was looking for a financial backing for his aircraft, placing an ad in les Ailes.

In 1939, one of the AM.20 was in France, under testing for the CNRA registration (permit to fly).

A good article about Mulot AM.220 in Ailes 10/1947.


Attachments

  • 1.png
    548.8 KB · Views: 102
  • 2.png
    623.7 KB · Views: 95
  • 3.png
    185.8 KB · Views: 100
  • Les_Ailes___journal_hebdomadaire_[...]_bpt6k9794942p_8.jpeg
    1.5 MB · Views: 54

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,797
Reaction score
4,962

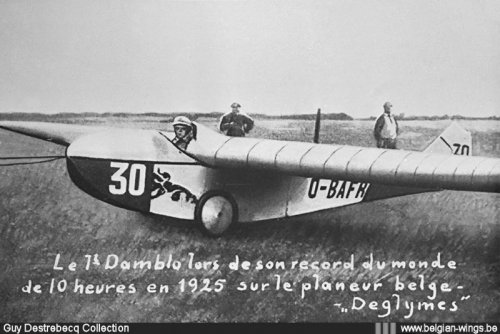

Attachments

  • 1.jpg
    78.6 KB · Views: 46
  • DG X2.jpg
    DG X2.jpg
    20 KB · Views: 44

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,797
Reaction score
4,962

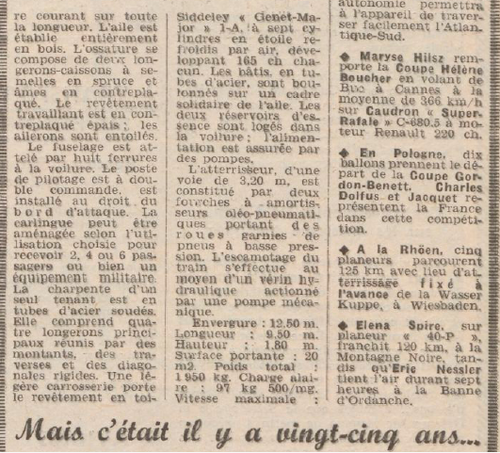

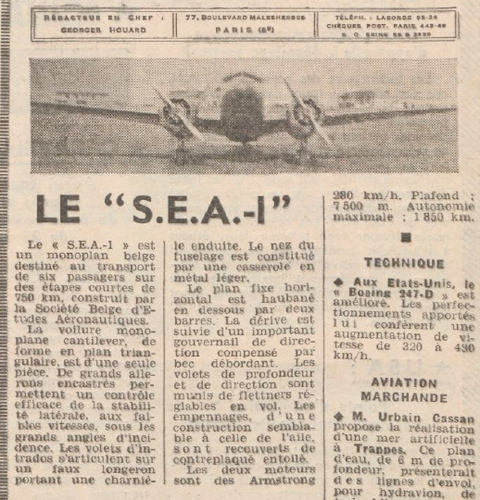

From Ailes 1/9/1961,

the S.E.A.1


Attachments

  • 1.png
    215.4 KB · Views: 29
  • 2.png
    499.7 KB · Views: 25
  • 3.png
    462.5 KB · Views: 24

woodville

I really should change my personal text
Joined
May 15, 2013
Messages
27
Reaction score
72

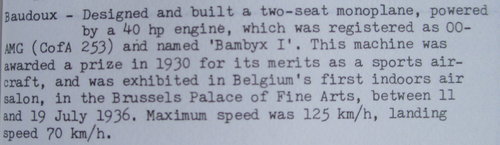

A little more information about the Baudoux Bombyx from Belgian Civil Aircraft since 1920 (Midland Counties). There is an interesting (but brief) section - Appendix D Belgian Aircraft Production - which lists some lesser known Belgian aircraft types.


Attachments

  • IMG_4129.JPG
    1.1 MB · Views: 19

woodville

I really should change my personal text
Joined
May 15, 2013
Messages
27
Reaction score
72

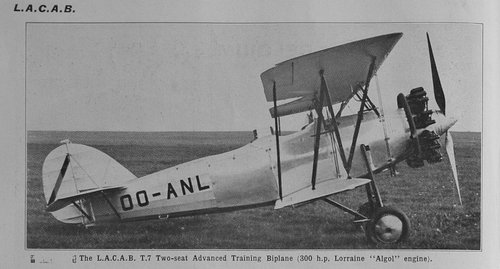

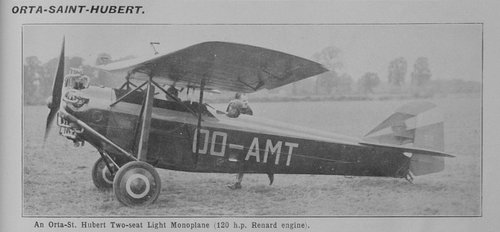

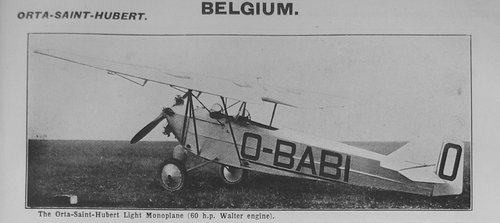

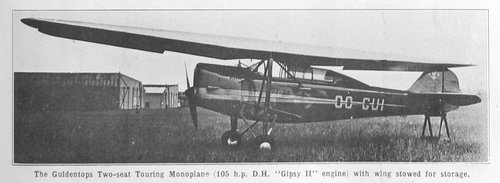

A few photos from Janes 1930, 1932 & 1934 of St Hubert G1 OO-BABI, OO-AMT; LACAB T.7 OO-ANL & Guldentops St Michel SG.2.


Attachments

  • St Hubert G1.jpg
    St Hubert G1.jpg
    245.5 KB · Views: 22
  • St Hubert G1 2.jpg
    St Hubert G1 2.jpg
    252.9 KB · Views: 22
  • LACAB T.7.jpg
    LACAB T.7.jpg
    269.6 KB · Views: 27
  • Guldentops St Michel SG2.jpg
    Guldentops St Michel SG2.jpg
    195.6 KB · Views: 26

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,797
Reaction score
4,962
Hi,

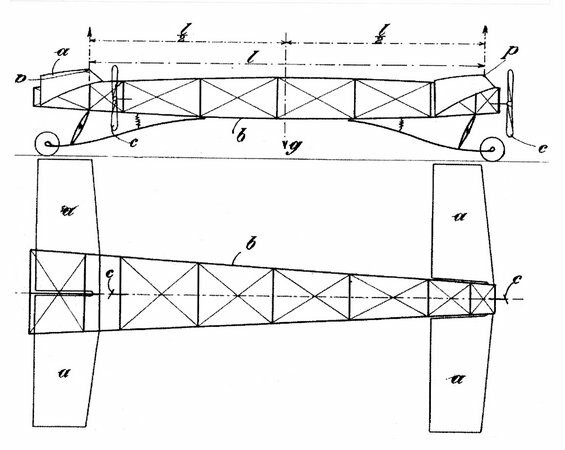

On May 3, 1910, Platon Dziułyński registered the plane (Aéroplane) for a patent in Belgium. Patent No. 225,543 was issued to him, which covered the legal protection covering the solution of the aircraft with a tandem airfoil arrangement, controlled by changing the angle of attack of the airfoils.

A multi-wing airplane with sets of lifting planes arranged in tandem, with two sets of propellers (in front and at the back of the fuselage in front of the leading edges of the wings), characterized in that the lifting surfaces simultaneously perform the functions of a tail plane by changing the angle of attack by rotating around the axis (symmetrically - height elevator, directional differential, either synchronously and differently in such a way as to ensure the simultaneous execution of e.g. a flight rising in a turn).

At that time, many inventors used similar solutions. It is visible in the proposals, incl. Stefan Drzewiecki and Alfred Joachimczyk. In the interwar period, it was used by the creators of the Mignet HM-14 "Pou-du-Ciel" aircraft, and nowadays by some amateur designers due to the aerodynamic attractiveness of such a system.



Attachments

  • d.jpg
    41.6 KB · Views: 11

fabulousfour

ACCESS: Restricted
Joined
Oct 20, 2009
Messages
43
Reaction score
37
Can anybody here identify this little biplane?
I found the photo on ebay, however, the type is not mentioned. According to the text on the back of the photo the picture was taken in Genck (probably Genk!) by a photographer of Bruxelles, so this is most probably a Belgian type.

The fuselage seems to be similar to the photo in post 42 but the wings are different.
Could this be another aircraft built by Ferdinand Ruttiens?





Last edited:

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,741
Reaction score
1,201
The back side says that the photograph taken across the border at Asch but I think you're right about Belgian origins. The uniforms, at least, say Aéronautique militaire. Both men are wearing Belgian Army peaked caps. The 'erk' on the left wears what I assume is some form of working dress. The officer (capitaine-commandant?) on the right wears the pre-1935 button-up tunic with his 'wings' displayed on the left sleeve.


fabulousfour

ACCESS: Restricted
Joined
Oct 20, 2009
Messages
43
Reaction score
37
I think I have it.
It looks like this is the Fabry/EMA Aviette or Simonet SHBF Aviette built from a glider by the Ecole Militaire d'Asch.
Some more information with poor photos can be found in this pdf starting at page 18


or slightly better photos at (bottom of the page)


It seems that the Aviette got several modifications during its life.

Since my French is poor could anybody summarize the first article?

I have edited post 74 with my own scan of the photo, it is now in my possession.

Last edited:

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,741
Reaction score
1,201
No summary but here's a rather thunky translation ...

L'OISEAU RARE DU No 42: L'AVIETTE EMA / FABRY / SHBP

THE RARE BIRD No. 42: L'AVIETTE EMA / FABRY / SHBP

In number 42 of the second quarter 1984 of the review AELR, Rare Bird section, appeared two photos of a small biplane whose identification was offered to readers.

It seems that no response was received and the rare bird was forgotten.

Fortunately one of our members, R. Heymans, in a correspondence published in No. 77 asked if the competition for the identification of this aircraft remained open. This was confirmed in No. 78 and to broaden the supply of answers, the rare bird was identified by the editorial staff as the Fabry aviette, a set of 13/18 photos remaining offered to readers who would provide more details on the history of this aircraft - a subject of which we don't know much.

Monsieur R. Heymans was, again, the only one to come forward by sending us two documents: an extract from the "Conquete de l'Air" of March 1928 and a photocopy of the OO-AKF. R. Heymans will therefore receive the set of photos.

The March 1928 article, written by Victor Boin, was particularly interesting because it confirmed Fabry as the designer, dating from 1923, and called l'Aviette EMA.

We had never made a connection between the two because the differences between these two small machines
were more striking than their similarities. However, assuming that Victor Boin had his information from a primary source at the time, we are obliged to accept an evolution of EMA / Fabry.

L'AVIETTE EMA

Space is lacking here to describe the circumstances of the blossoming of the series of gliders and aviettes which marked the 1920s and whose promoters, designers, and builders were the pioneers of our aeronautical industry between the two wars. This period, forgotten today, is rich in success since our gliders and airplanes held their rank - sometimes coming first, moreover - in international competitions.

These early gliders were quickly equipped with small engines to facilitate their movements, becoming aviettes, the ancestors of modern sport and tourism aviation.

At the time, there was only military aviation which also controlled civil aviation and an embryonic technical service.

The beginnings of gliding in Germany, followed by the same movement in France, aroused great enthusiasm among our pilots, craftsmen, and engineers. The civilians were mixed with the soldiers and among these last the commandant-aviateur.

Daumerie, at the time commanding the EMA (EMA: Ecole Militaire d'Aviation or Ecole Militaire d'Asch) decided to build a glider meeting the demands of the moment. He was the only one to choose the biplane formula, his 'competitors' (here, we speak of competition and not of commerce) - Simonet, Poncelet, Jullien, de Glymes and others - all opted for the monoplane.

In the "Conquete de l'Air" of 01 December 1923, Daumerie happily explained the origins of this machine which seems to have survived a decade - from April 1923 to January 1933. However it underwent several modifications including a radical one.

Commandant Daumerie made the plans and calculations for the EMA glider/aviette on the basis of surplus aircraft parts. The construction, or rather the assembly, was carried out by the artisans of the EMA. The biplane formula was chosen for a greater safety factor (solidity), despite increased aerodynamic drag. Daumerie hardly believed in the monoplane. He does not cite the origin of the recovered parts - probably coming from decommissioned WW1 aircraft. What is immediately striking is the fuselage shape which matches that of a large wing profile.

A closer examination suggests a fuselage created from surplus Nieuport parts. The bottom of the fuselage shows a straight line while the upper edge clearly shows a very pronounced rounding. If Daumerie hoped to obtain additional lift from the fuselage in this way, he did not mention it. The wing could be of German origin (modified Fokker D VII?). The leading and trailing edges are straight and the ends square. The four cabane struts connecting the upper wing to the fuselage are sharply tilted forward. The horizontal stabilizers have a generous span while the vertical tail and its rudder were triangular in shape. The glider was completed in April 1923 and weighed 170 kg. The bearing surface was 21 m2, the span of the upper wing was 8 m 64, that of the lower wing 6 m 40. Total length was 4 m 23.

It was capitaine Lambert who made the flight tests and who appears to have remained the titular pilot of this hybrid machine during the first years of its existence. The EMA glider was first tested on the slopes of the small dunes of Mechelen-sur-Meuse which offered a drop of about 25 meters. Lambert made 4 flights there with an average duration of 35 seconds. Then, it was a series of flights along the cliff of Lixhe where Simonet also trained on the Poncelet 'Castar'. The most beautiful flight lasted 75 seconds. Finally, at Remouchamps, during four flights, the EMA glider succeeded in a flight of 2 minutes 54 seconds - at the time, an (unofficial) duration record for Belgian gliding. But all these tests took time because of the teaching demands of the EMA, the difficult roads and slow set-up at launching points, and poor weather conditions all conspired to prevent a continuous and rapid tune-up. The EMA glider was therefore unable to participate in the Vauville competition.

However, under the patronage of King Albert, a competition of aviettes (motorized gliders) was organized in Brussels in November 1923. Daumerie and Lambert decided to motorize the glider which thus became the EMA aviette. Note that this aircraft was also called on a few occasions the Lambert Aviette, named after its pilot, or the Daumerie Aviette, named after its designer, or simply l'aviette militaire. The 1000 cc Anzani 2-cylinder engine, although ordered in July, was only delivered a few days before the meeting and installation could not be completed in time. In the powered version, weight increased to 240 kg (70 kg of which was for the engine, fuel, and oil tanks).

The first day of the Brussels meeting was embarrassing for the EMA aviette, Lambert barely managing to take off without being able to gain altitude. The culprit of this poor demonstration was the EMA-built propeller. It is assumed that another propeller was then mounted because, the next day, Lambert had climbed to an altitude of 300 meters.

Note that witnesses of this performance have emphasized that the aircraft was flying low tail. In the absence of modification - changing the location of the wing or the pilot - the centre of gravity had to
have moved forward making the aviette nose-heavy nose. Lambert also complained of its handling, giving witnesses the impression that the c/g had shifted too far aft.

Returning from Asch, Lambert continued to focus and climbed to 1,200 meters, hoping to improve performance later.

In December 1923, Daumerie wrote that the technical service had carried out static tests on the EMA aircraft, finding no deformation of the structure under load 4. The experiment was not continued beyond this but calculation/extrapolation established that the trim had a safety coefficient at least equal to 6.5.

After this, we hardly hear of the EMA aviette. She followed the EMA and Daumerie to Wevelghem in 1924 - this transfer being due to the closure of the Asch aerodrome. Maybe Lambert or other EMA pilots continued to fly the aviette for fun? Maybe she was put back in a shed awaiting a better day?

Anyway, it seems that it was profoundly modified as we will discuss later.

L'AVIETTE FABRY

R. Fabry is one of the plus belles figures of Belgian military aviation between the two wars. Let us cite a 1924 a parachute jump of 1000 meters and, in 1925, an endurance flight of 15 hours.

In 1927, Fabry traveled 15,000 km alone on a motorcycle in black Africa, including the Congo. In 1928, with 3 teammates and two cars, he linked Liege to Cape Town via the Sahara and the Congo. It was a sporting feat doubling as a reconnaissance mission in order to find the potential stopovers for a future Belgium-Congo air link.

In December 1930, with capitaine Vanderlinden, capitaine Fabry made the 3rd successful Belgium-Congo flight - the second via the Sahara. On board a Breguet 19 (OO-AKP) Vandedinden and Fabry reached the Belgian colony 8 days, 9 hours and 25 minutes after leaving Brussels. The return, alas, will result in a breakdown near Lake Chad which will delay them there for many weeks. Nevertheless, finally recovered, the two airmen covered the Chad-Brussels distance in less than 6 days. But, let's go back to 1928, when Fabry - still a lieutenant - was on duty at EMA Wevelghem. Always in search of adventure, he explored a hangar. There he discovered Daumerie's aviette less its engine. According to Victor Boin's article, he adapted a 500 cc Gillet motorcycle engine to the aviette. Some remarks are in order: the Fabry aviette no longer looks much like the EMA aviette. The fuselage was different and there is a notch in the wing above the cockpit. The cabane struts are vertical instead of tilting forward, modifying the upper wing positioning. The fin is rounded to the shape of a comma, presumably recovered from an aircraft of German origin. The distinctive geometry of the engine frame, the landing gear, and the horizontal stabilizers visually connect the two aviettes.

If we accept the story of the 1928 Boin article, Fabry would have adapted the Gillet engine to the existing structure. Thus, it remains to be determined when the radical modification of the airframe took place and who was the initiator. There are several identified photos of Aviette Fabry but at least one, according to better researchers than us, was taken in front of the hangars of Asch, with an unidentified engine. So what was Fabry's role? That of a pilot or a transformer? According to Victor Boin, Fabry executed very beautiful flights - even in bad weather, climbing without difficulty up to an altitude of 200 meters (to be compared with Lambert's 1,200 meters with the much larger Anzani engine (with a cylinder capacity double that of the Gillet). Fabry would have declared his total satisfaction with the handling and the handling of the aviette.

L'AVIETTE SHBP OO-AKF

A third existence will soon be offered to the EMA / Daumerie / Fabry aviette, while opening up another mystery.

In July 1930, the registration OO-AKF was granted to a SHBP aircraft (n° 208 of the Belgian registration sequence). The name Simonet is associated with this plane although Victor Simonet died during the 1925 meeting at Vauville in the accident of the Poncelet 'Castar'.

There is little doubt that OO-AKF (photographic evidence only) is indeed the same machine that concerns us today. We can only assume that the aircraft was always attached to Daumerie and that, after Fabry's restoration to flight condition, the owner ceded it to SHBP. Previously. from 1923 to 1930, the aviette was not registered. The separation of the civil and military aeronautical authorities, occurring in the meantime, could not possibly tolerate the existence of an anonymous plane - despite it having been submitted to the technical service in 1923. Perhaps Daumerie was forced to part with the aviette?

When it comes to SHBP, we have a lot more questions than answers. It seems that these initials initially represent an association, a union, of four enthusiasts: Simonet, Haus, Bulte, and Poncelet (or Pelletier, according to a SABCA brochure published in 1970). These initials appeared for the first time in 1925 when Victor Simonet had an aviette built which became O-BAFQ. Simonet had asked the engineer Haus, from the technical service, to calculate the possibility of creating a monoplane aviette using the upper wing of a Fokker D VII. Bulte would have designed the fuselage and the whole would have been built by Poncelet. This last point is far from established because 'P', according to that SABCA brochure, could mean Pelletier (about whom we know absolutely nothing). On the other hand. Bulte was also a constructor and could very well have built this aviette for Simonet. Professor Haus confirmed to us that he had done the calculations for O-BAFQ but does not remember a SHBP connection. Anyway, after the death of V. Simonet, this plane became O-BAJO with a more powerful engine. Haus refused to be associated with it.

The evolution of this O-BAFQ/O-BAJO plane does not directly interest us here and has nothing to do with the EMA/Fabry plane. Except that SHBP appears in July 1930 as the new owner of OO-AFK. Victor Simonet died in 1925, his brother inherited his various planes but he was a goldsmith. We do not know if the brother was interested in aviation - beyond the donation of a sports cups in memory of Victor. Haus' intervention was strictly limited to O-BAFQ. Haus certainly had nothing to do with SHBP in 1930. Bulte, meanwhile, has established his own aircraft construction firm and we doubt that he is still interested in acquiring a aviette when he has struggling to create his own designs. As for 'P' - Poncelet or Pelletier - we have nothing to add. It is true that other names revolve around the successive planes of SHBP: the pilots Hage (who would have flown O-BAFQ?) And Bauthier (the pilot of the O-BAJO) whose initials would perhaps have replaced those of the initial holders? But, here, we are deep in speculation and, once again, we can only implore the reader who could elucidate this mystery to contact us.

Still, photographic evidence proves that the SHBP OO-AKF aviette was the Fabry aviette which Victor Boin assures us to have been the EMA aviette. OO-AKF remained on the official registration until being cancelled on 25 January 1933. We do not know if there is a link but the other plane of which the SHBP remained the owner, the OO-AJO, ex O-BAJO. ex O-BAFQ, was removed from the registry on 02 February 1933. After the start of 1933, the SHBP had disappeared.

Guy ROBERTY


papacavy

ACCESS: Confidential
Joined
Apr 13, 2006
Messages
98
Reaction score
12
Other than the Renard 40 and related projects, did Belgium have any other combat aircraft designs in the works between 1930 and 1940?


dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
888
Reaction score
442
Other than the Renard 40 and related projects, did Belgium have any other combat aircraft designs in the works between 1930 and 1940?
Yes. Off the top of my head, ACAZ / ZACCO (Ateliers de Contructions Aeronautiques de Zeebruge), Avions Fairey, LACAB, SABCA, Stampe & Vertongen, and probably many others.


Similar threads

Top
