Downturned outer wings on supersonic aircraft

Woody

Passionate about the advancement of technology
Joined
Mar 8, 2007
Messages
291
Reaction score
5
Website
www.freewebs.com
I know subsonic transports often have dihederal wings to counteract the side slip yaw effect of large tail surfaces or something but can anyone tell me the point of downturner outer wings on fast jets. I know (or think I know) the XB-70 had fold down tips to trap the supersonic shock wave against the wedge shaped fuselage for compression lift but why did planes like the F-108 Rapier and TSR-2 have them in a moderate form? Are there any advantages to be had as I think they're cool.
Cheers, Woody (first post after intro)


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,820
Reaction score
266
They do it for various reasons, but usually pertaining to stability at high speeds. It can also relate to roll power as well. It's usually unique to each design. i.e.-The reason the F-108 had it isn't likely the same reason the TSR.2 had it. I have some books that explain why some of the designs ahd their specific wingtips, but I'm not sure where they are right now.


Woody

Passionate about the advancement of technology
Joined
Mar 8, 2007
Messages
291
Reaction score
5
Website
www.freewebs.com
Thanks Sundog for the answer. I'm learning Maya 3D animation at the mo and intend to use my plain designs to make a mini show-reel eventually. I'm a keen amatuer jet designer from way back but would like my ideas to be bassed on good current design. You say this sort of information is available in books, are there any internet sources that might do the same as I'm stuck in Japan on limited funds? Same goes for my 'America hates canards' question: I know they must have their reasons but I find it disappointing that America's new planes look, dare I say it, boring. Apart from being smoothed and profiled for stealth they look utterly conventional and have plan forms that should pre-date the teen series to my mind.
Cheers, Woody


Attachments

  • AttackFighter72dpi.jpg
    76.8 KB · Views: 241

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,387
Reaction score
1,430
Sundog said:
They do it for various reasons, but usually pertaining to stability at high speeds. It can also relate to roll power as well. It's usually unique to each design. i.e.-The reason the F-108 had it isn't likely the same reason the TSR.2 had it. I have some books that explain why some of the designs ahd their specific wingtips, but I'm not sure where they are right now.

I'm pretty sure the F-108 didn't have it. It sure looks like it in some photos because of the kink in the leading edge and the forward-swept trailing edge on the tip but I'm 99% certain it's just an illusion. That said I know I'm not the only one a little confused on that issue and if someone has concrete evidence one way or the other I'd appreciate it.


Woody

Passionate about the advancement of technology
Joined
Mar 8, 2007
Messages
291
Reaction score
5
Website
www.freewebs.com
I'm pretty sure the F-108 did have down turned tips. I did have a 3 view drawing that proved it but I left a lot of stuff behind in NZ. Anyway I've attached some pics and a few other examples for your concideration. Still open to suggestions as to what they're for though.
Cheers, Woody


Attachments

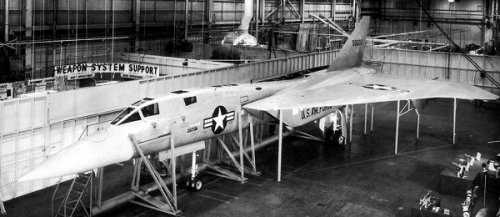

  • xf108photo.jpg
    46.6 KB · Views: 195

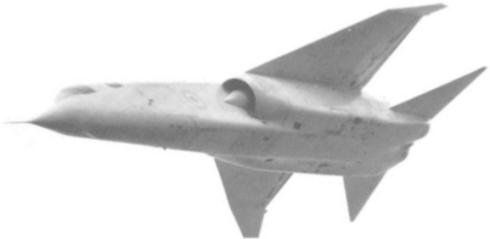

  • tsr2xr219lowlevel.jpg
    6.2 KB · Views: 154

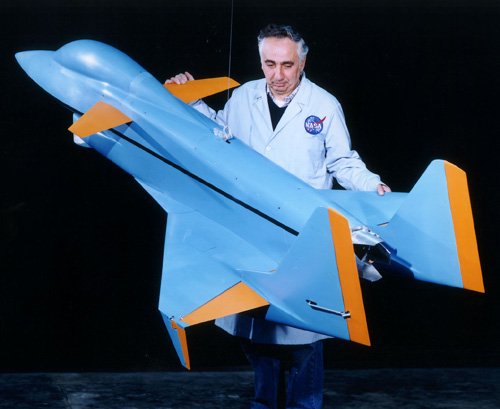

  • Rockweel Snake Model.jpg
    Rockweel Snake Model.jpg
    58 KB · Views: 179

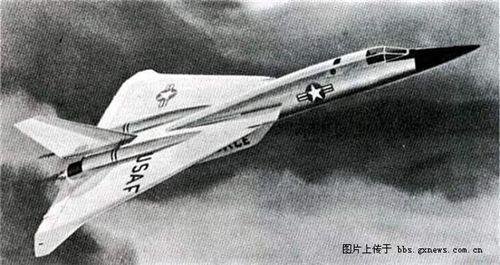

  • f108.jpg
    15.6 KB · Views: 275

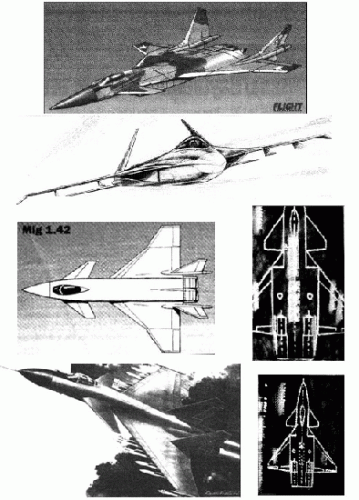

  • mig142.gif
    144.1 KB · Views: 186

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,348
Reaction score
118
Going by what references I can quickly find online, I can't say for certain that the F-108 has downturned tips (if they are, it's not by much). To this engineer's eye, it looks more like an effect of sweep, taper, and twist.


Woody

Passionate about the advancement of technology
Joined
Mar 8, 2007
Messages
291
Reaction score
5
Website
www.freewebs.com
Agreed the downturn on the F-108 is subtle but it's definately there (you guys are scaring me now). I've attached are the images I've got and I think the final one's the clincher. My question is why, and while I'm on, how would this effect high alpha or stealth in a modern fighter.
Cheers, Woody


Attachments

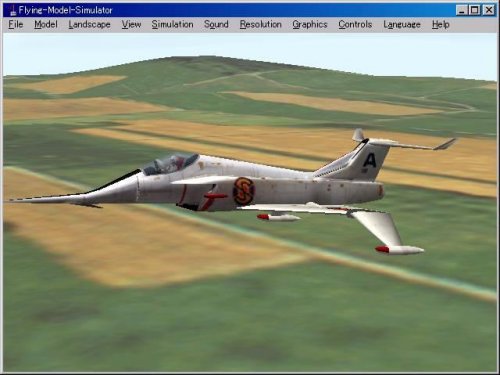

  • Angel interceptor FS image.jpg
    Angel interceptor FS image.jpg
    39.3 KB · Views: 186

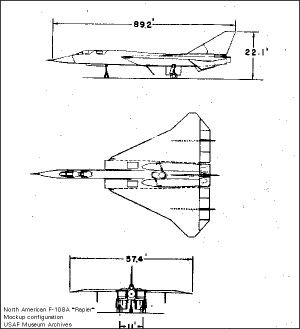

  • F-108a_drawing-300px.jpg
    18.8 KB · Views: 117

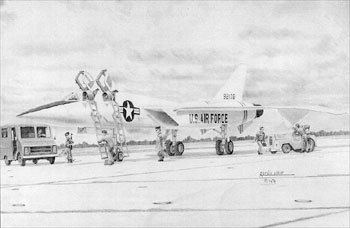

  • F-108 Down Turned Wing Tips.jpg
    F-108 Down Turned Wing Tips.jpg
    35.2 KB · Views: 113

dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
769
Reaction score
291
Woody said:
I've attached are the images I've got and I think the final one's the clincher.

Mmmm...
Are you aware that the Angel Interceptor is a TV fantasy for a Sci-fi series? not remotely a design.


Woody

Passionate about the advancement of technology
Joined
Mar 8, 2007
Messages
291
Reaction score
5
Website
www.freewebs.com
Thanks Dan_inbox, but as they say on The Simpsons, 'well durr'.
Cheers, Woody


Firefly 2

ACCESS: Secret
Joined
Jun 30, 2009
Messages
461
Reaction score
8
By Jove, Captain Scarlet... :eek:
Never thought I'd see those babies again. Darn puppets!

Anyways...
I don't know much about aerodynamics, but as I understood downturned wings where more satbile in higher supersonic regions? So it would have been quite logical for the F108 to have it since it was a high speed interceptor.


kitnut617

ACCESS: Secret
Joined
Dec 15, 2006
Messages
374
Reaction score
91
An aerodynamist could probably explain this better but I've read that most shoulder wing aircraft have anheadral because when the aircraft banks in a turn, the air under the wing (the wing that's on the lower side) gets trapped between the wing and the fuselage therefore creating more lift, so the wing is drooped down more so that it will point more to the ground when the aircraft is banked and so not create lift. That's the gist of it anyway.


Woody

Passionate about the advancement of technology
Joined
Mar 8, 2007
Messages
291
Reaction score
5
Website
www.freewebs.com
kitnut617 said:
therefore creating more lift, so the wing is drooped down more

Thanks for the attempted explanation but the bit I've quoted leaves me more confused. More lift makes a wing drop? I can see that a high wing adds a bit of stability being some way towards a parasol wing and adding some anhedral at the tips might counter this but, as I seam to be saying a lot, why not just have a low wing (with a bit of dihederal if it's too much)? I'm thinking it's got something to do with shock waves at high Mach as it seam weird to only slope the tips not the whole wing like a Harrier. But if I knew I wouldn't be asking. Thanks again as yours is the most considered answer I've had.

The reason I'm asking is I wanted to put in on a 3D modeling design for a big interceptor as I think it looks cool but I wanted to have good reason first.

Cheers, Woody

I thought of another candidate if anyone wants to explain the wings on this:-


Attachments

  • Beoing Bird of Prey#1.jpg
    Beoing Bird of Prey#1.jpg
    15.2 KB · Views: 61
  • Beoing Bird of Prey#2.jpg
    Beoing Bird of Prey#2.jpg
    5.7 KB · Views: 75

kitnut617

ACCESS: Secret
Joined
Dec 15, 2006
Messages
374
Reaction score
91
Hi Woody,

yeah I didn't explain that too good did I (I'm not an aero engineer so I don't know the correct termology for it all), but the way I understand it is that if you have a dyheadral or even a level wing in the shoulder position, and you bank as you turn, the air gets trapped as I said and adds even more lift on that side on top of what lift the wing creates (on the wing which is pointed down in the turn). The solution was to give the wing anheadral so when banked in a turn, the wing which is pointing down would be pointing further down (towards vertical) so as not to create lift (the lift of the trapped air being mostly the only means of lift on that side).

On a low mounted wing and in a bank, the air doesn't get trapped but slides off towards the other wing, so the wing which would be pointed down is given dyheadral, to remain as horizontal as possible for as long as possible therefore creating lift on that side.

In the case of the Harrier I think the wing position was determined by 1. the engine, 2. the position of the nozzles and 3. the need to have a continuous wing spar (I think). A low mounted wing would have got in the way.

The Concorde on the other hand has both dyheadral and anheadral. The wing is low mounted to the fuselage (and given dyheadral) but then it has two very larger underslung engine nacelles which would behave the same way as if there was a high wing, so the wing tips were given anheadral to counter the trapped lift (I'm surmising here ::))


Woody

Passionate about the advancement of technology
Joined
Mar 8, 2007
Messages
291
Reaction score
5
Website
www.freewebs.com
Cheers for that. I think I get now. The down-side wing and fuselage behaves like a lift generating wing Tunnel? Maybe a straight anhedral wing would still be a simpler/lighter solution, so there must be something else going on high Mach-wise in addition I think. Any potential advantages/disadvantages at high AoA? I've noted that winglets have gone out of vogue since HiMAT on agile fast(ish) jets like the Yak-130/Aermacchi. Any thoughts?
Cheers, Woody


Attachments

  • Yak-130-Aermacchi Winglets.jpg
    Yak-130-Aermacchi Winglets.jpg
    3.1 KB · Views: 64
  • Yak-130 Aermacchi No Winglets.jpg
    Yak-130 Aermacchi No Winglets.jpg
    5.2 KB · Views: 650

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,260
Reaction score
160
Umm, this thread has been languishing for more than a year, so I apologize for reviving it briefly, but I thought I could give an semi-definitive answer.

-in supersonic flight, the center of lift generated by a wing shifts backward, which generates a nose down moment. that has to be balanced by a tail or foreplane, but either way it's detrimental.

-another effect of supersonic flight is a decrease in lateral stability. This is why supersoic aircraft have very large (comparatively) vertical tails.

one solution is to vary the geometry of the wing by turning the tips down. I guess turning them up would work equally. The net effect is a reduction in wing area behind the center of gravity, thus re-establishing the proper location of the center of lift. Additionally, you increase the lateral area behind the cg, improving lateral (yaw) stability. So you kill two birds with one stone.

hope this helps ;)


zen

ACCESS: Top Secret
Senior Member
Joined
Jul 15, 2007
Messages
2,008
Reaction score
711
XB-70 and F108 where both mach3 aircraft.
They both have variable anhedral wingtips and for the same reason. Compression lift.

This is where the airflow is trapped by the downward wingtips preventing it spilling out sideways, the result is lift.

At low speeds the wingtips are flat with the rest of the wing to provide low speed lift. At high speeds their bent down to produce compression lift. This is also a variable wingloading.

Its the same reason such things are seen on a number of mach3 aircraft and other faster (hypersonic) aircraft.

Waveriders take this rather further of course.

The TSR.2's however is I think for different reasons and is not variable.

Though both high speed at high altitude and high speed a low level tend to require a high wingloading, its for different reasons.
TSR.2 needed to be smooth through the rough conditions prevelent for flight low level.


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,820
Reaction score
266
XB-70 and F108 where both mach3 aircraft.
They both have variable anhedral wingtips and for the same reason. Compression lift.

I've yet to see any evidence for the F-108 having variable wingtip geometry.


Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
676
Reaction score
10
I'm surprised nobody's mentioned that the Concorde's wing incorporated this type of aerodynamic design.


Weaver

Clarence: stop secrets...
Joined
Apr 1, 2008
Messages
49
Reaction score
14
TSR.2's downturned wingtips were a simple alternative to normal high-wing anhedral (as seen on the Mirage F1, for instance). Basically, they did the calcs and found that the weight saving from making the wing box flat, straight and simple was worth the slight complication of the downturned tips. It is, in fact, exactly the same logic (but upside down) that lead to the F-4 Phantom's upwards kinked outer wing panels.

Either low or high mounted wings suffer undesirable effects in sideslip, due to air "piling" up against the fuselage, hence most high-wing aircraft have anhedral, most low-wing aircraft have dihedral, and most mid-wing aircraft have neither, since the effects above and below the wing cancel each other out. There are exceptions, of course, depending on the detailed aerodynamics of the aircraft in question.

There are plenty of other design reasons influencing the choice of high, mid or low wing. High, or at least shoulder-mounted, wings are common on high-agility types primarily because at high AoAs they leave a low tailplane in nice, clean airflow, rather than in the turbulent wing wake.


frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
13
As does the Tu-144.



Just call me Ray said:
I'm surprised nobody's mentioned that the Concorde's wing incorporated this type of aerodynamic design.
