Douglas XA-42

Clioman

ACCESS: Confidential
Joined
Mar 8, 2007
Messages
130
Reaction score
7
Since there have been some recent postings about experimental USAAF attack acft of the 1940s, I thought I'd post the earliest drawing I've been able to find on Douglas' Model DS-459, AKA the XA-42. The specification report is dated 10 June 1943, but my text is actually an extract from a set of replacement pages dated 4 August 1943. Useful info: Air Materiel Comd issued contract no. W535 ac-40188 under Exp. Order #427-75; the Project No. was MX-392. What's especially interesting is the third canopy on the dorsal--not to be seen again in subsequent drawings--and the clear indication of defensive armament on both wing trailing edges, but also a tail turret. How ammo belts would have worked around the propellor shaft/gearing must have been interesting. [Source: NPRC NARA 342-66A-1717, Box 153]


Attachments

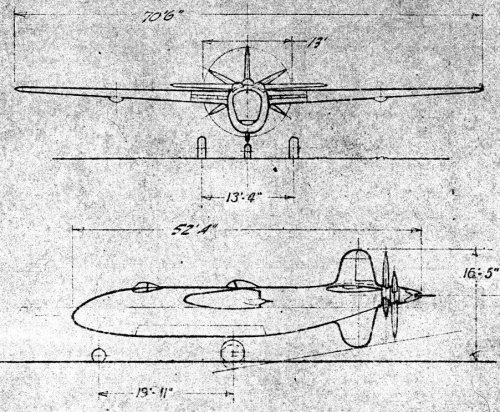

  • XA-42  side-vew.jpg.jpg
    XA-42 side-vew.jpg.jpg
    251.3 KB · Views: 221
  • XA-42 top view.jpg.jpg
    XA-42 top view.jpg.jpg
    327 KB · Views: 199

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,515
Reaction score
245
Excellent contribution Clioman, thanks a lot.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
130
Great Clioman ! As I said, great things in the National Archives are....
