Douglas D-571

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,916
Reaction score
1,164
Website
www.aerospaceprojectsreview.com
You might consider "source grading" your drawings:
http://www.secretprojects.co.uk/forum/index.php/topic,2849.0/highlight,source%20grade.html

This idea is being picked up by a few other authors (Robert Godwin, Dennis R. Jenkins).


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,238
Reaction score
1,895

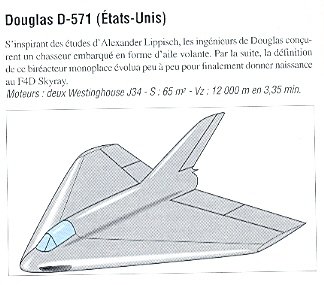

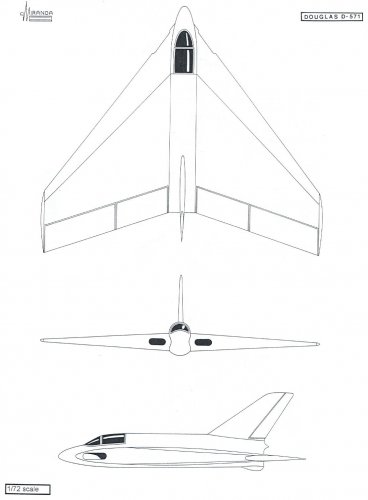

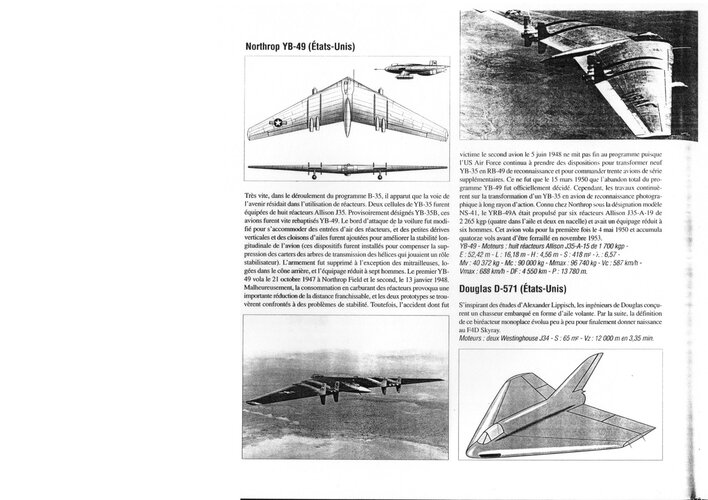

The information I used for this drawing was published by Alain Pelletier in his book "Les Ailes Volantes"
(The Flying Wings) ,ETAI publishing,1998
Como muchos de mis dibujos debe ser clasificado como "Hypothetical reconstruction"


Attachments

  • Escanear0002.jpg
    48.1 KB · Views: 447

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,238
Reaction score
1,895
Sorry for spanish text


The information I used for this drawing was published by Alain Pelletier in his book "Les Ailes Volantes"
(The Flying Wings) ,ETAI publishing,1998
As many of my drawings , it must be classified as an "Hypothetical reconstruction"


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,475
Reaction score
203
Sorry for spanish text
No problem :D

The same drawing was published at Pelletier's Minidocavia Nº7 "Les Chasseurs Navals Américains" (2ème partie)


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
104

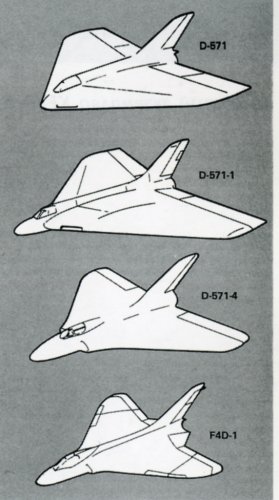

The Evolution "Skyray". From D-571 before F4D-1.
source - D.SOBOLEV "Centennial history flying wings"1998


Attachments

  • L-571....jpg
    291.9 KB · Views: 476

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,629
Reaction score
512
Very nice Tailspin Turtle - thanks for posting!

My Father flew F4D-1 Skyrays with VF-23 and VF(AW)-3 so anything in the Skyray lineage is interesting to me.

Enjoy the Day! Mark


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,238
Reaction score
1,895

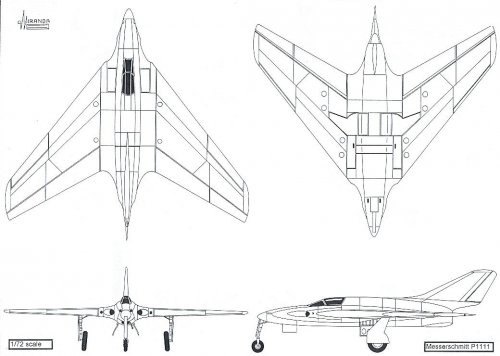

It looks like an evolution from the Lippisch P.11 an Me P.1111 (source grading 3) wartime projects.


Attachments

  • Escanear0004.jpg
    46.3 KB · Views: 367
  • Escanear0005.jpg
    82.9 KB · Views: 134

Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
696
Reaction score
78
Website
www.tommythomason.com
Orionblamblam said:
Tailspin Turtle said:
Source Grade 6:

Can you read off the dimensions on that (span & length)?

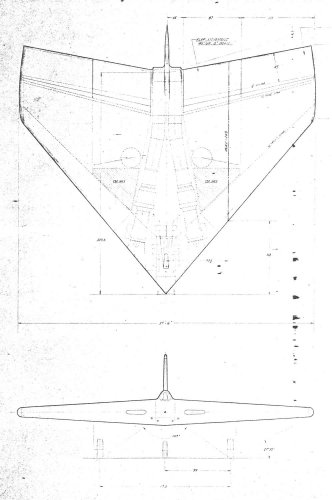

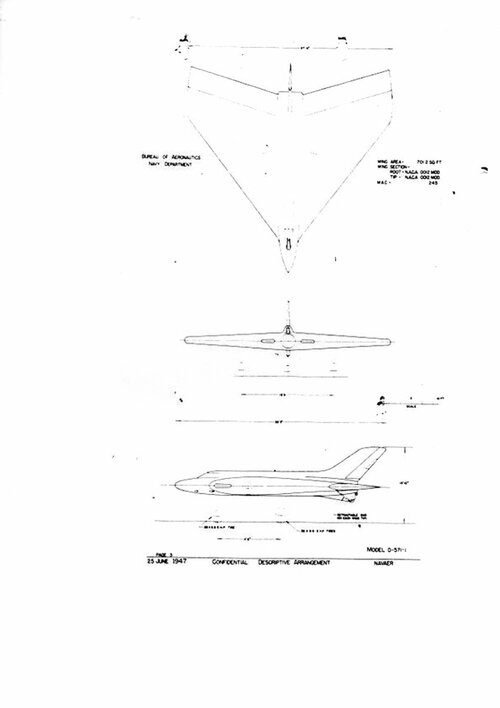

Unfortunately, that drawing is in Connecticut and I'm in Texas for a couple of months. However, this is a pretty good trace of the original and the span is readable:


Attachments

  • 9-01 D571 Three View.jpg
    9-01 D571 Three View.jpg
    122.2 KB · Views: 114

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,629
Reaction score
512
Greetings All -

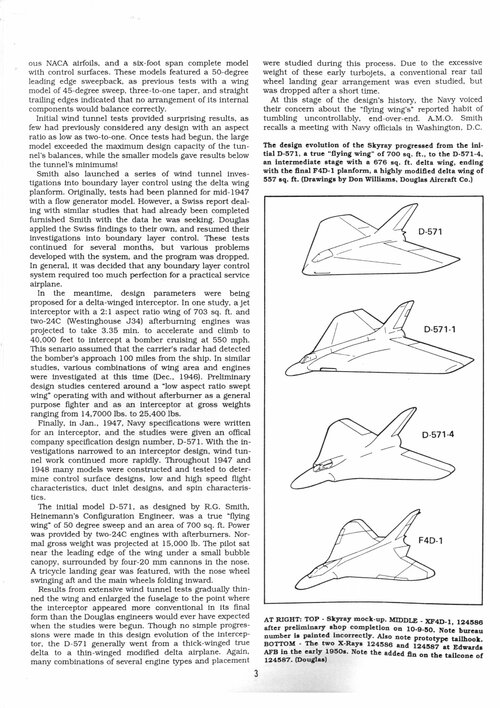

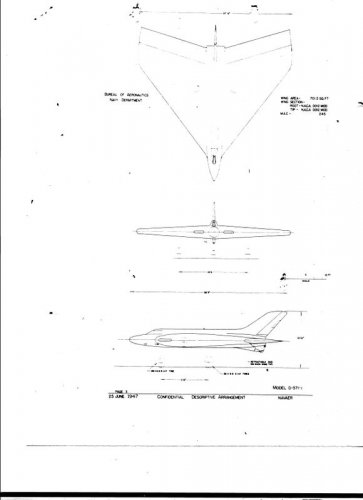

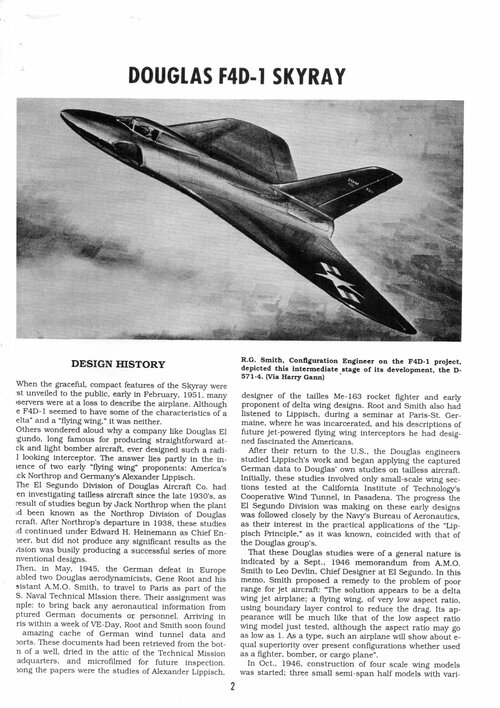

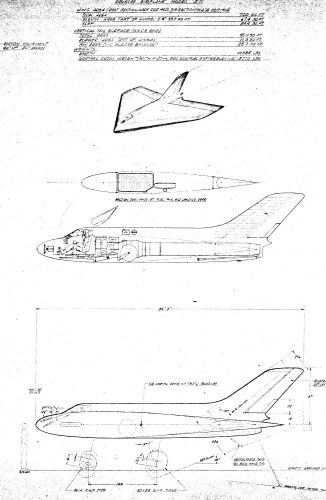

Years ago I received a number of Skyray related drawings from Harry Gann at McDonnell Douglas and this past weekend finally uncovered them while sorting thru some boxes I have had stored. I'll scan the rest soon but here is the D-571 drawings - the beginning of the design evolution that led to the F4D and then F5D.

Enjoy the Day! Mark


Attachments

  • xDouglas Model 571 3V and Inboard Profile - 2.jpg
    xDouglas Model 571 3V and Inboard Profile - 2.jpg
    124.8 KB · Views: 99
  • xDouglas Model 571 3V and Inboard Profile - 1.jpg
    xDouglas Model 571 3V and Inboard Profile - 1.jpg
    180.6 KB · Views: 90

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,629
Reaction score
512
Greetings All -

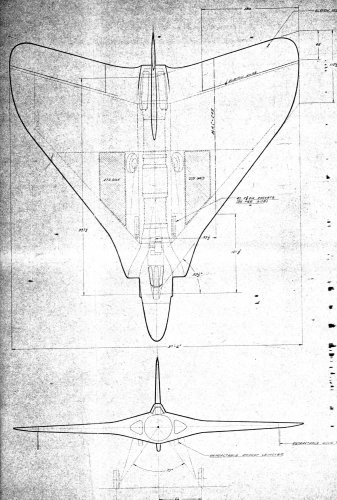

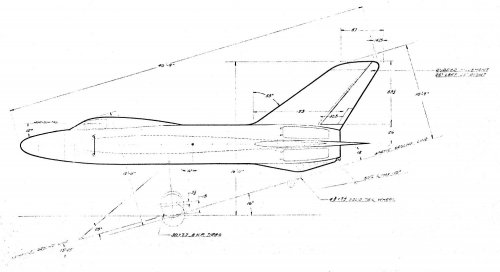

Here are drawings of D571-4, note it's a tail dragger much as the early A3D designs were.

Enjoy the Day! Mark


Attachments

  • xDouglas Model 571-4 inboard profile.jpg
    xDouglas Model 571-4 inboard profile.jpg
    169.1 KB · Views: 52
  • xDouglas Model 571-4 side view.jpg
    xDouglas Model 571-4 side view.jpg
    79.2 KB · Views: 55
  • xDouglas Model 571-4 top & front view.jpg
    xDouglas Model 571-4 top & front view.jpg
    557.5 KB · Views: 55

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,629
Reaction score
512

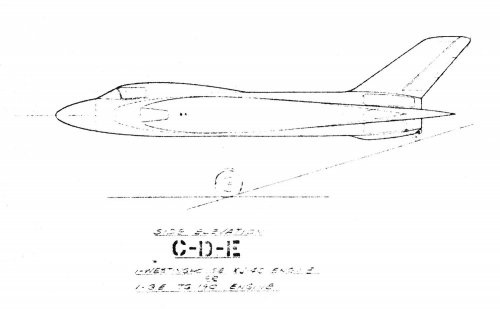

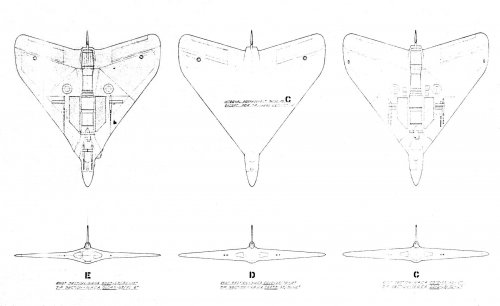

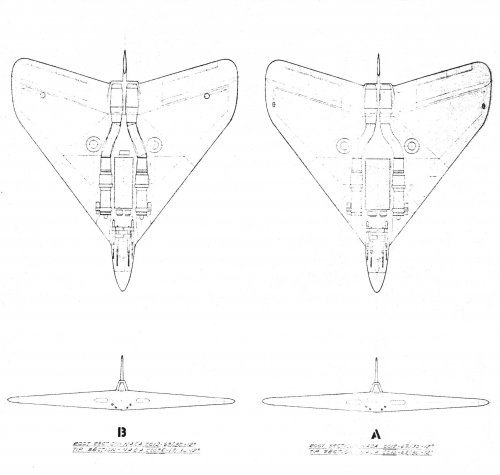

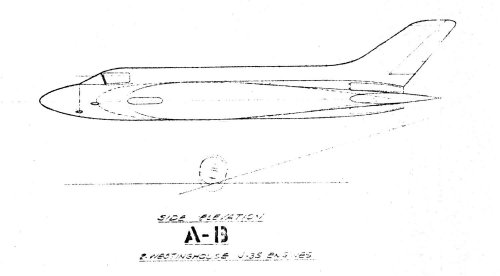

I have one drawing that shows 5 D-571 designs but does not give a -X number for any of them - I've referred to them by the alphabetical designation for now. Note A-B designs use two J-35s whereas the single engine designs C-D-E use either an XJ-40 or a GE TG-190. Still all taildraggers....

Enjoy the Day! Mark


Attachments

  • xD-571A & B front top view.jpg
    xD-571A & B front top view.jpg
    188.6 KB · Views: 184
  • xD-571A & B side view.jpg
    xD-571A & B side view.jpg
    66.8 KB · Views: 173
  • xD-571C-D-E front top view.jpg
    xD-571C-D-E front top view.jpg
    122.7 KB · Views: 160
  • xD-571C-D-E side view.jpg
    xD-571C-D-E side view.jpg
    69.6 KB · Views: 145
