Dornier Kleinstjäger

[Justo Miranda]

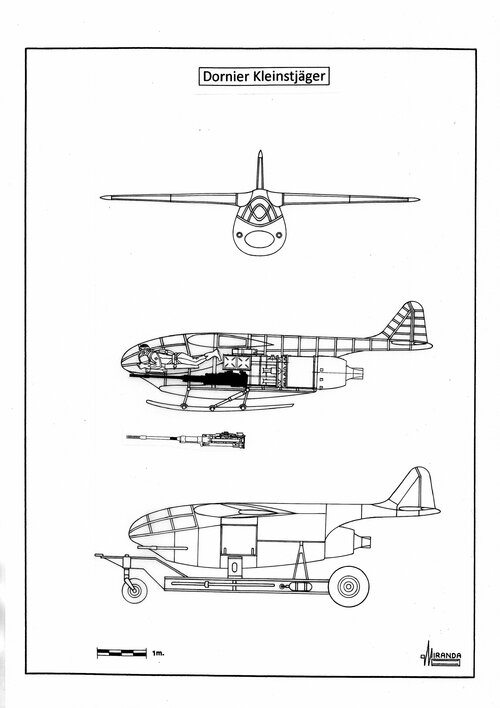

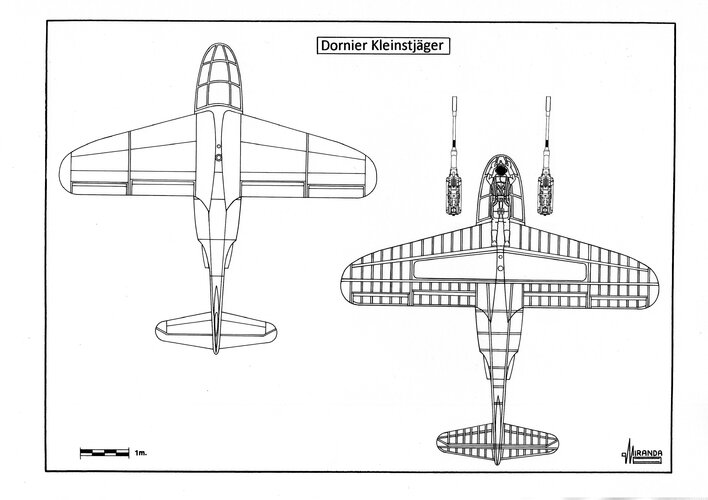

Dornier Kleinstjäger​

It was a small Volksjäger fighter powered by one BMW 003 A-0 turbojet.

The fuselage, built in light alloy and steel, housed the prone pilot, the air duct, two Mk 103/30 heavy cannons, one ventral retractable skid, the tail boom and the engine.

The wings built in wood/plywood, housed flaps, ailerons and one fuel tank with 520 liters of J2 kerosene.

Probably a detachable trolley was used during the take-off.

Dornier Kleinstjäger technical data

Wingspan: 6.2 m. Length: 6.2 m. Height: 2.5 m. Wing area: 10 sq. m. Max weight: 2,050 kg. Power plant: one BMW 003 A-0 turbojet rated at 800 kg static thrust. Armament: two fuselage mounted Mk 103/30 heavy cannons.



[athpilot]

Hi Justo, thanks for sharing! I never heard of that particular one before. Is this part of a new publication? Best wishes



[Dilandu]

It was a small Volksjäger fighter powered by one BMW 003 A-0 turbojet.

The fuselage, built in light alloy and steel, housed the prone pilot, the air duct, two Mk 103/30 heavy cannons, one ventral retractable skid, the tail boom and the engine.

The next step in Volksjager evolution would probably be "strap the pilot to the RATO unit and give him a hand grenade"



[Justo Miranda]

The next step in Volksjager evolution would probably be "strap the pilot to the RATO unit and give him a hand grenade"

Next step



[Justo Miranda]

Hi Justo, thanks for sharing! I never heard of that particular one before. Is this part of a new publication? Best wishes

Next book cover prototype



[edwest4]

With all due respect, get a better cover artist.



[Justo Miranda]

With all due respect, get a better cover artist.

P-R-O-T-O-T-Y-P-E



[Basil]

Dornier Kleinstjäger​

It was a small Volksjäger fighter powered by one BMW 003 A-0 turbojet.

The fuselage, built in light alloy and steel, housed the prone pilot, the air duct, two Mk 103/30 heavy cannons, one ventral retractable skid, the tail boom and the engine.

The wings built in wood/plywood, housed flaps, ailerons and one fuel tank with 520 liters of J2 kerosene.

Probably a detachable trolley was used during the take-off.

Dornier Kleinstjäger technical data

Wingspan: 6.2 m. Length: 6.2 m. Height: 2.5 m. Wing area: 10 sq. m. Max weight: 2,050 kg. Power plant: one BMW 003 A-0 turbojet rated at 800 kg static thrust. Armament: two fuselage mounted Mk 103/30 heavy cannons.

Historical source?



[Orionblamblam]

With all due respect, get a better cover artist.

Perhaps an AI cover artist, yes?



[Justo Miranda]

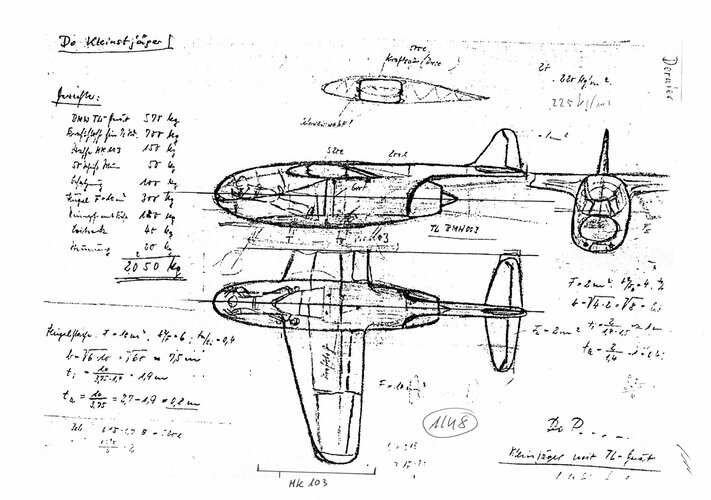

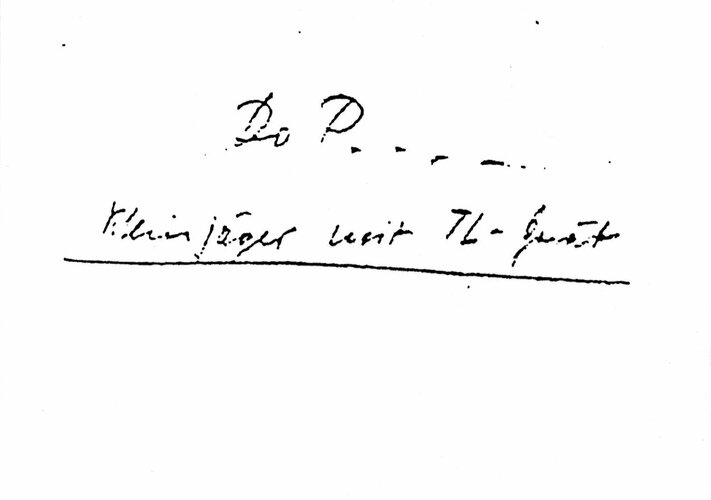

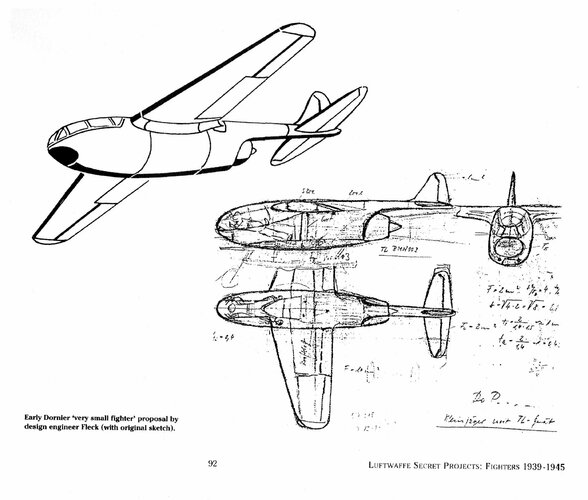

Historical source?

Hi



[edwest4]

Perhaps an AI cover artist, yes?

That would be NO....



[Basil]

Hi

Thanks!
