Doak Model 16 (VZ-4DA) ducted-fan VTOL

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,047
Website
deeptowild.blogspot.com

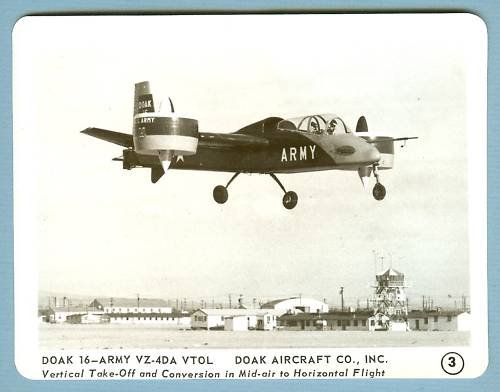

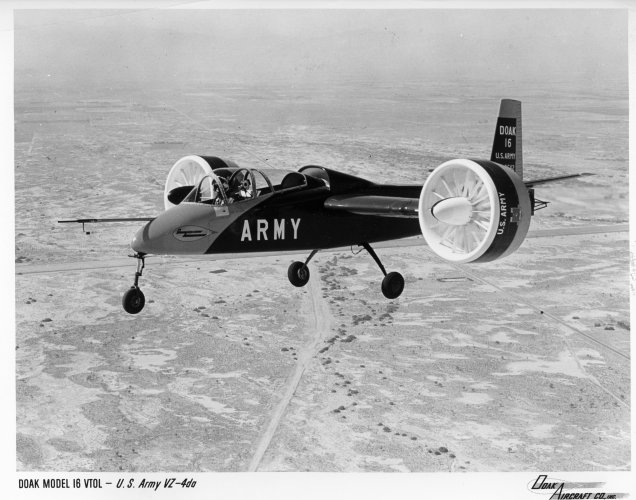

Photograph of Doak Model 16 (VZ-4DA) found on eBay.

[link no longer active]
Seller's description:
An original black and white photograph from Doak Aircraft Co. of the DOAK Model 16, the U. S. Army VZ-4DA. This aircraft made the first successful cross country VTOL flight.


Attachments

  • !B0s2C,gBGk~$(KGrHqZ,!hIEw5!2kMyrBMbZ0yLbu!~~_12.jpg
    22.5 KB · Views: 168

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,047
Website
deeptowild.blogspot.com

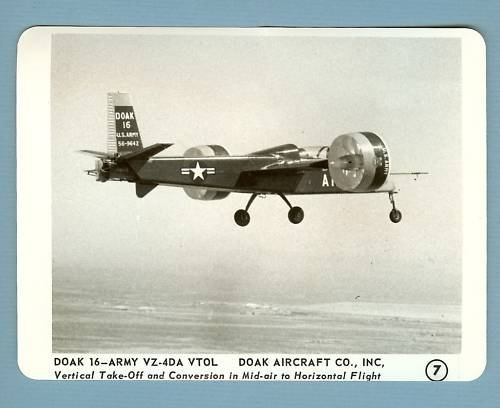

Another photograph of the Doak Model 16 (VZ-4DA) found on eBay.

[link no longer active]


Attachments

  • !B0s2EP!CGk~$(KGrHqZ,!hYEw5P05ggIBMbZ04kuyQ~~_12.jpg
    22.8 KB · Views: 167

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,042
Reaction score
253
Dear Boys and Girls, here is an extensive article in French about the Doak Aircraft Company Model 16 or VZ-4 tilting ducted-fan VTOL prototype tested by the U. S. Army……

The article comes from the 26th March 1960 issue of Les Ailes......

Terry (Caravellarella)


VTOLicious

ACCESS: Top Secret
Senior Member
Joined
Nov 24, 2008
Messages
778
Reaction score
442
Great find Boxman!

To see this amazing aircraft in the middle of all the old cars and helicopters seems somehow surreal. This confirms my opinion that it was far ahead of its time.
1959: +50years ago!!! Imagine such an aircraft designed, build and equipped with technologies available nowadays!

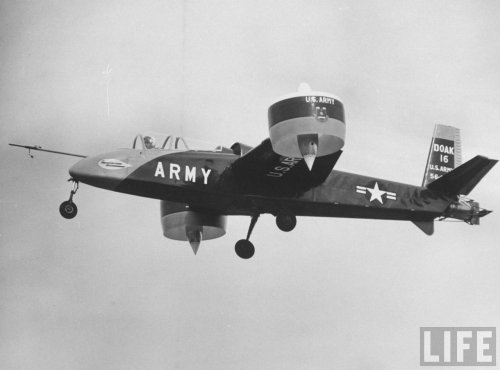

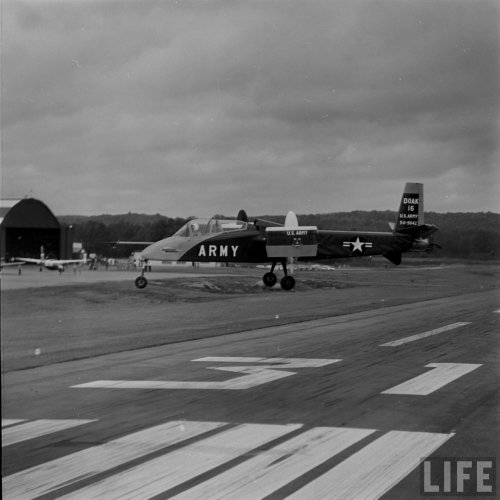

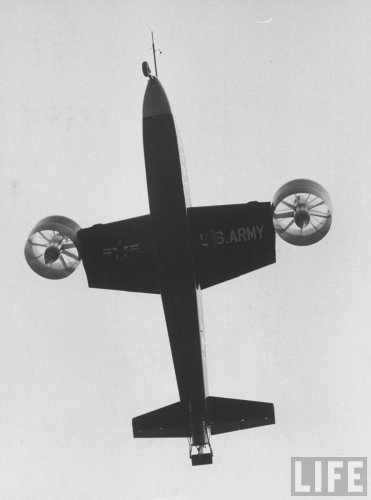

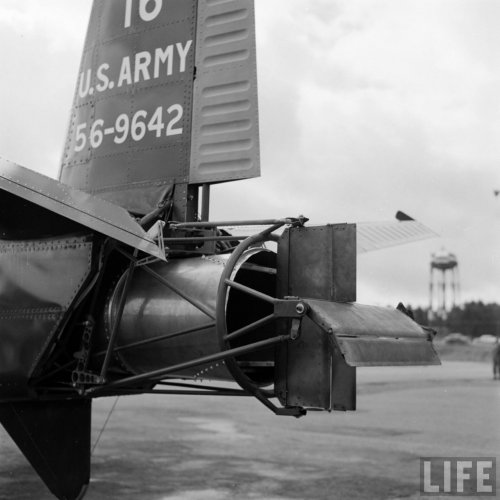

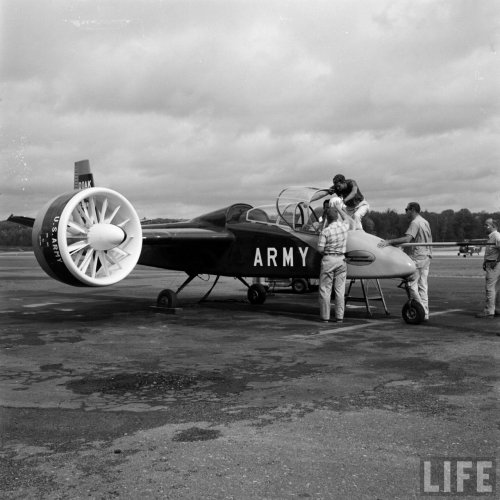

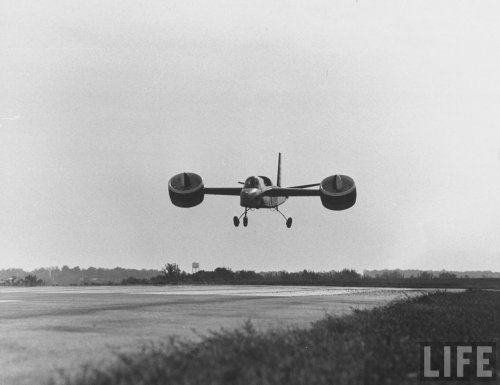

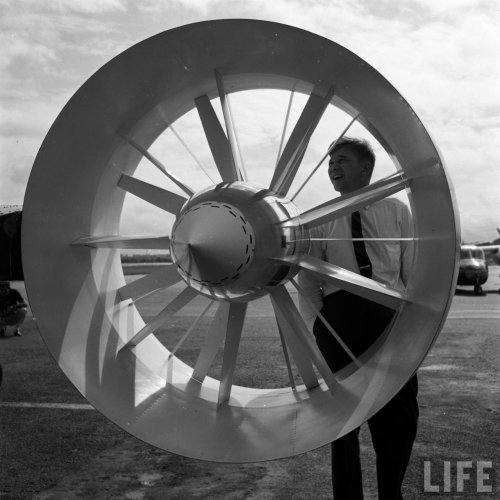

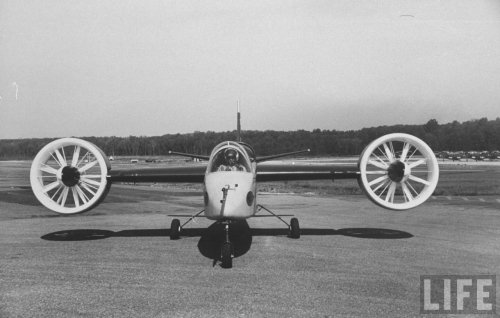

...found some nice doak-pics recently.

Cheers Michael


Attachments

  • LIFE_25.jpg
    84.8 KB · Views: 56
  • LIFE_22.jpg
    82.9 KB · Views: 45
  • LIFE_21.jpg
    100.4 KB · Views: 47
  • LIFE_20.jpg
    121.3 KB · Views: 50
  • LIFE_16.jpg
    105.1 KB · Views: 50
  • LIFE_13.jpg
    141.4 KB · Views: 135
  • LIFE_3.jpg
    117.6 KB · Views: 141
  • LIFE_1.jpg
    183.5 KB · Views: 253

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
858
Topics merged.

Is it yet another internet fanciful invention, or did Doak really call their Model 16 the Archaeopteryx (after the world's most ancient bird known)? I once found that bit of info somewhere, but never saw it again since.


Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
685
Reaction score
227
Hello!
Hope, this thread could be suitable place to add two links for the lectures about Edmond Doak and his personal and his' company achievements in aviation, including VTOL aircraft. Both lectures have been presented by retired Doak's flight test engineer Ray Ulyate by Peninsula Seniors Video:

Edmond Doak Aviation Pioneer Part 1
Edmond Doak Aviation Pioneer Part 2

Not only Doak' aircraft, as well other types mentioned. In my humble opinion - interesting story of few decades of aviation development and people behind the process.
Enjoy!
