Diamondback: China Lake's Nuclear "Sidewinder"

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,781
Reaction score
4,478
In the early 1950s, the possibility of Soviet supersonic high altitude bombers resulted in a desire for a longer range, higher speed Sidewinder. This was called Diamondback and had a 12 inch diameter instead of the 5 inch diameter of Sidewinder. A demand thrust bipropellant liquid fuel propulsion unit was needed to accelerate and then maintain missile velocity just short of IR dome overheating speeds.

Diamondback also used a nuclear warhead, to guarantee a kill.

The project ran from 1955 to 1958.

Sources:

D. G. Blanchard "A brief history of Air-Intercept Missile 9 (Sidewinder)"
J. M. Robbins "The China Lake Propulsion Laboratories"


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,067
Reaction score
1,504
Website
www.aerospaceprojectsreview.com
overscan said:
In the early 1950s, the possibility of Soviet supersonic high altitude bombers resulted in a desire for a longer range, higher speed Sidewinder. This was called Diamondback and had a 12 inch diameter instead of the 5 inch diameter of Sidewinder. A demand thrust bipropellant liquid fuel propulsion unit was needed to accelerate and then maintain missile velocity just short of IR dome overheating speeds.

Diamondback also used a nuclear warhead, to guarantee a kill.


Doesn't sound a whole lot like a Sidewinder...


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,781
Reaction score
4,478
Well, it was a scaled up Sidewinder in basic configuration I think. However, changing size, propellant and warhead would rather change the basic design.


Andreas Parsch

ACCESS: Secret
Joined
Mar 2, 2006
Messages
246
Reaction score
16
Orionblamblam said:
Doesn't sound a whole lot like a Sidewinder...

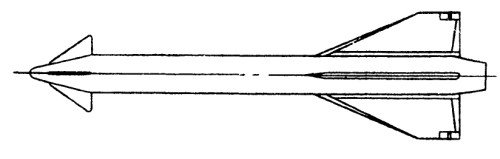

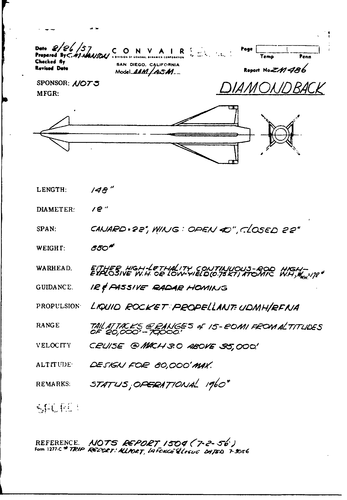

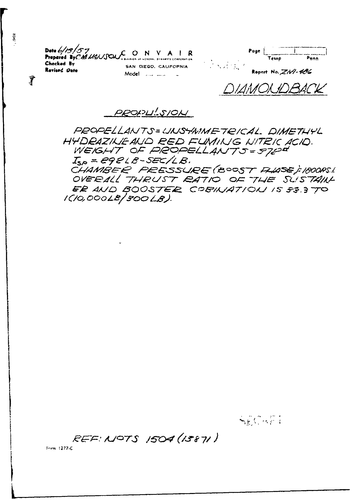

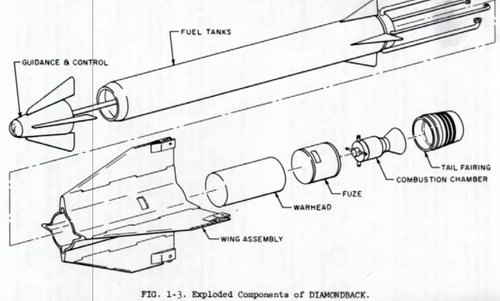

Doesn't look like one, either (see attached image).

Source of the drawing is

C.M. Hanson: "Characteristics of Strategic, Tactical and Research Missiles", Convair San Diego, 1954/58

The document is online at https://apps.dtic.mil/dtic/tr/fulltext/u2/388603.pdf

[link updated - admin]


Attachments

  • diamondback.jpg
    11.8 KB · Views: 316
  • diamondback1.png
    144.9 KB · Views: 64
  • diamondback2.png
    124 KB · Views: 85
Last edited by a moderator:

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,139
Reaction score
1,251
Andreas, cool stuff as always! Seems they have shortage of typewriters this time)


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,781
Reaction score
4,478
Length: 148" (3.76m)
Diameter: 12" (0.305m)
Span: 22" (0.559m) (wings folded, canards) 40" (1.01m) wings unfolded
Weight: 850lb
Warhead: continuous rod HE or 0.75Kt nuclear
Guidance: IR & Passive radar
Propulsion: Liquid proplellant rocket, UDMH/RFNA
Range: Tail attack, 15-20 miles at altitudes of 20,000-70,000ft
Speed: Cruise at Mach 3 above 35000ft
Altitude: 80,000ft max

Expected to be operational in 1960.


PMN1

ACCESS: Top Secret
Senior Member
Joined
Jun 4, 2006
Messages
795
Reaction score
237
Orionblamblam said:
overscan said:
In the early 1950s, the possibility of Soviet supersonic high altitude bombers resulted in a desire for a longer range, higher speed Sidewinder. This was called Diamondback and had a 12 inch diameter instead of the 5 inch diameter of Sidewinder. A demand thrust bipropellant liquid fuel propulsion unit was needed to accelerate and then maintain missile velocity just short of IR dome overheating speeds.

Diamondback also used a nuclear warhead, to guarantee a kill.


Doesn't sound a whole lot like a Sidewinder...

Obviously mutated by the radiation.....


Graham1973

ACCESS: Top Secret
Senior Member
Joined
Dec 16, 2010
Messages
1,593
Reaction score
357
PMN1 said:
Orionblamblam said:
overscan said:
In the early 1950s, the possibility of Soviet supersonic high altitude bombers resulted in a desire for a longer range, higher speed Sidewinder. This was called Diamondback and had a 12 inch diameter instead of the 5 inch diameter of Sidewinder. A demand thrust bipropellant liquid fuel propulsion unit was needed to accelerate and then maintain missile velocity just short of IR dome overheating speeds.

Diamondback also used a nuclear warhead, to guarantee a kill.


Doesn't sound a whole lot like a Sidewinder...

Obviously mutated by the radiation.....

One wonders what other serpents are hiding in the archives...


dannydale

ACCESS: Secret
Joined
May 13, 2007
Messages
250
Reaction score
40
Graham1973 said:
PMN1 said:
Orionblamblam said:
overscan said:
In the early 1950s, the possibility of Soviet supersonic high altitude bombers resulted in a desire for a longer range, higher speed Sidewinder. This was called Diamondback and had a 12 inch diameter instead of the 5 inch diameter of Sidewinder. A demand thrust bipropellant liquid fuel propulsion unit was needed to accelerate and then maintain missile velocity just short of IR dome overheating speeds.

Diamondback also used a nuclear warhead, to guarantee a kill.


Doesn't sound a whole lot like a Sidewinder...

Obviously mutated by the radiation.....

One wonders what other serpents are hiding in the archives...
Holy necropost, Batman! :eek:


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,930
Reaction score
1,251
Warhead 0.75Kt nuclear ,that must be a Variant of W54 called W72, Wat was used in AGM-62 Walleye bomb.
AGM-62 use some technology from the AIM-9 Sidewinder...


pathology_doc

ACCESS: Top Secret
Joined
Jun 7, 2008
Messages
983
Reaction score
241
Orionblamblam said:
overscan said:
In the early 1950s, the possibility of Soviet supersonic high altitude bombers resulted in a desire for a longer range, higher speed Sidewinder. This was called Diamondback and had a 12 inch diameter instead of the 5 inch diameter of Sidewinder. A demand thrust bipropellant liquid fuel propulsion unit was needed to accelerate and then maintain missile velocity just short of IR dome overheating speeds.

Diamondback also used a nuclear warhead, to guarantee a kill.


Doesn't sound a whole lot like a Sidewinder...

I think it's only a Sidewinder inasmuch as "evolution or modification of existing design" is a lot easier to sneak past the bean counters than "concept for a new missile".


Milos

ACCESS: Restricted
Joined
May 12, 2008
Messages
1
Reaction score
0
they could fit nuclear warhead in 12" diameter cylinder back then ???


Sea Skimmer

ACCESS: Secret
Senior Member
Joined
Jul 13, 2008
Messages
394
Reaction score
43
In 1958 the US tested the Swift device which was only 127mm diameter and weighed about 100lb. Supposedly a 105mm device weighing 40lb was declared feasible by the US military in the late 1960s, but not developed because of the limited range of 105mm artillery. If you had a nuke like that then you could make a normal AIM-9 Sidewinder nuclear given a shortened rocket motor and heavier 40lb vs 25lb warhead!


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
14,090
Reaction score
3,926
Found a little tidbit:
In 1956, the U. S. Naval Ordnance Test Station (NOTS) first
originated the idea of using a variable-area type of injector system for
varying thrust to meet an operational requirement for an air-to-air
missile system called Diamondback. A year later NOTS demonstrated
the feasibility in a 0-5, 000-pound thrust motor using the variable-area
injector principle.

I found a reference in another old document that suggests Aerojet may have played a direct role in the Diamondback project, but it is not very clear unfortunately (there was a possible hint of an institutional memory hole within Aerojet circa. 1999 in this regard).

Last edited:

RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
691
Reaction score
440

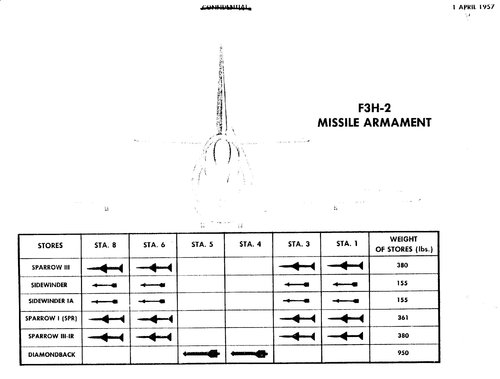

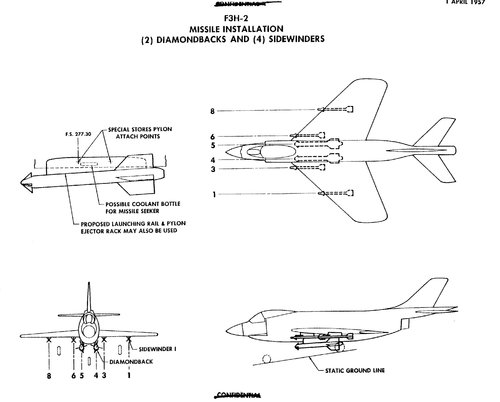

F3H-2 was designed to use this missile. Info from McDonnel Report No. 5263 dated April 1, 1957 on the F3H-2 Demon All-Weather Fighter.


Attachments

  • Diamondback 1.jpg
    Diamondback 1.jpg
    352.7 KB · Views: 102
  • Diamondback2.jpg
    386 KB · Views: 139

TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,618
Reaction score
1,769
F3H-2 was designed to use this missile. Info from McDonnel Report No. 5263 dated April 1, 1957 on the F3H-2 Demon All-Weather Fighter.

Interesting that this slide also mentions Sparrow III-IR. We just had a question about that somewhere else. Where was it?

Edit: Here


Dilandu

I'm dissatisfied, which means, I exist.
Joined
May 30, 2013
Messages
1,194
Reaction score
683
Website
fonzeppelin.livejournal.com
Frankly I think that nuclear version of Sparrow was a better starting point... It was bigger, and could be adapted to carry nuke more easy, than rather narrow Sidewinder.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,781
Reaction score
4,478
Its only using the general layout of Sidewinder - its actually a lot bigger than a Sparrow.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,781
Reaction score
4,478
The video has some great information on the original NOTS Sidewinder 1A/1B/1C (different from the produced designs) folding fin Sidewinder ("Foldwinder"), Raywinder, DIamondback, and the various improved homing heads. I didn't know the Foldwinder seeker was used on the Redeye SAM/ It also shows the IRAH (Infra-Red Alternate Head) and SARAH (Semi-Active Radar Alternate Head) and the dual-mode seeker.


uk 75

ACCESS: Top Secret
Senior Member
Joined
Sep 27, 2006
Messages
3,099
Reaction score
1,805
The USAF did deploy a nuclear version of the ubiquitous and not very effective Falcon family.. Interestingly the warheads were then paased on to a nuclear version of the Walleye glide bomb.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,781
Reaction score
4,478

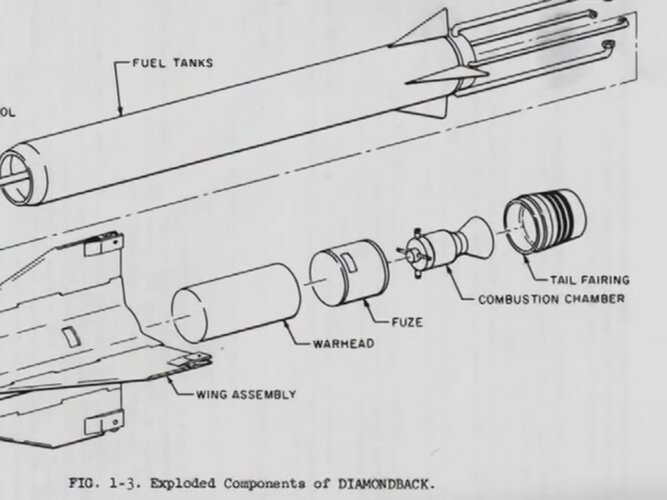

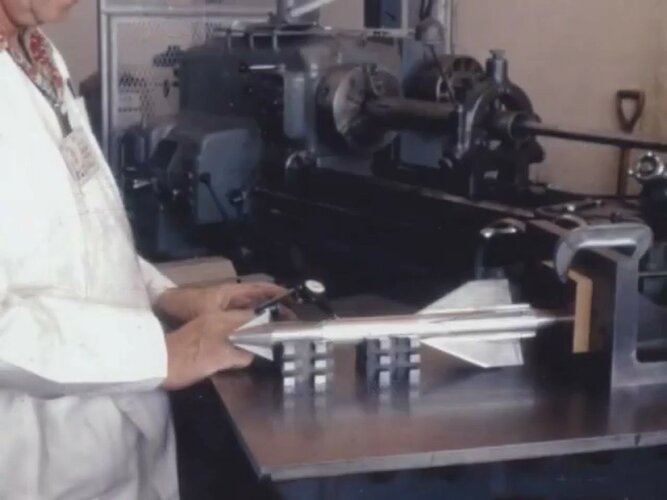

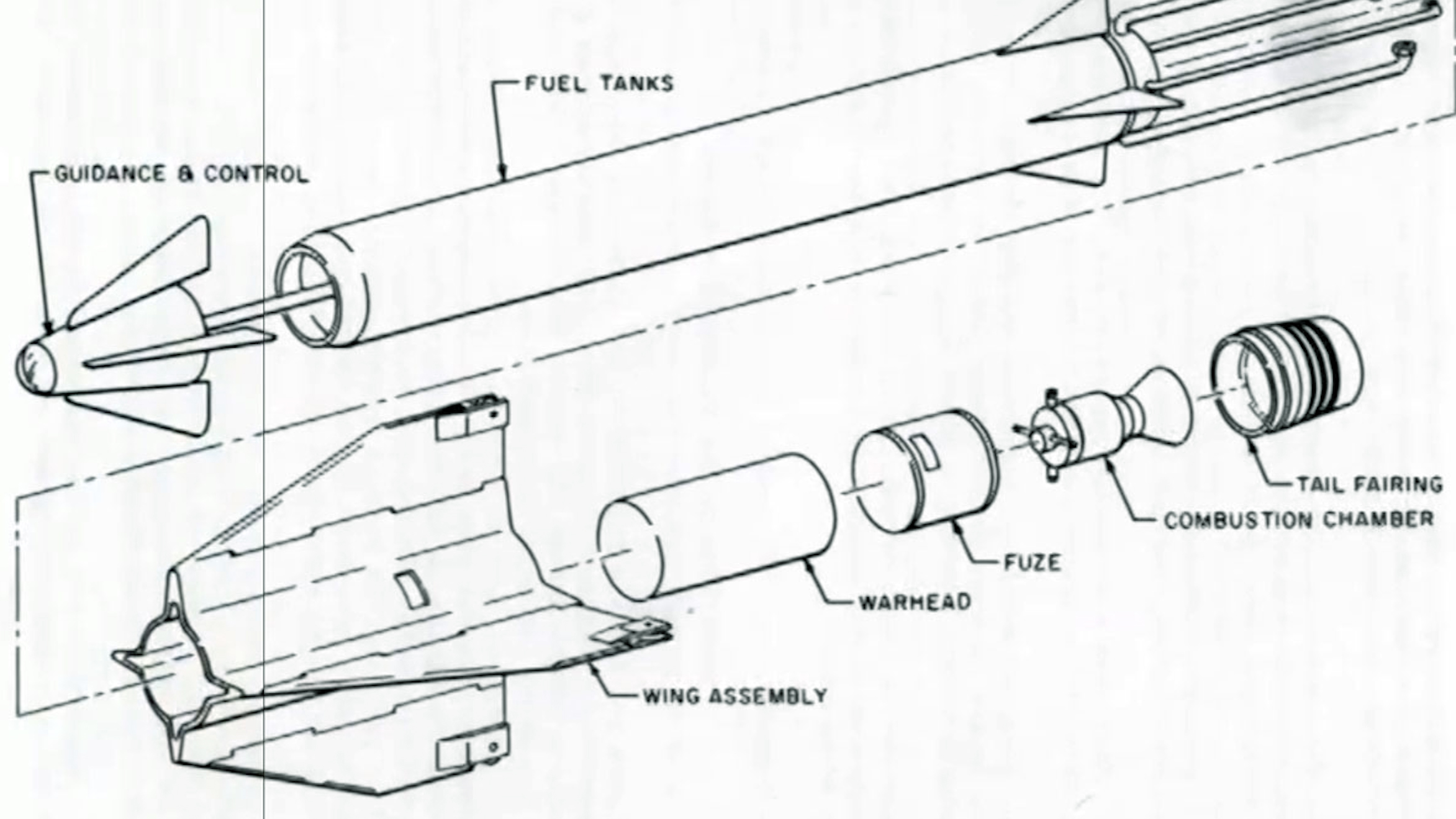

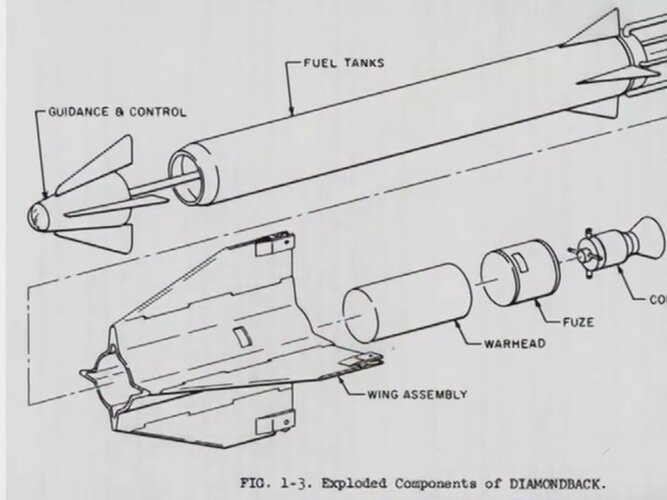

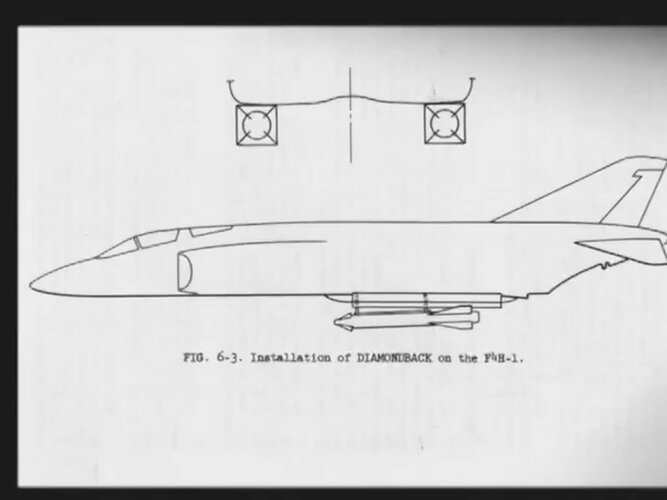

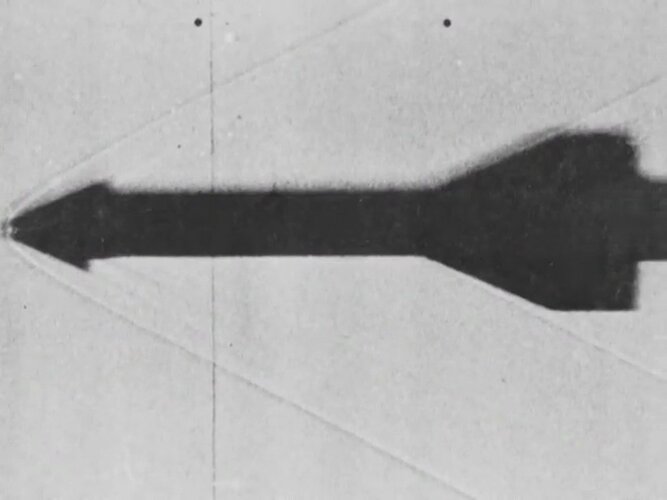

More screenshots of Diamondback. Note the high speed wind tunnel testing model.


Attachments

  • Diamondback15.jpg
    62.5 KB · Views: 53
  • Diamondback16.jpg
    106.4 KB · Views: 45
  • Diamondback17.jpg
    101.7 KB · Views: 39
  • Diamondback18.jpg
    86 KB · Views: 49
  • Diamondback19.jpg
    65 KB · Views: 57
  • Diamondback20.jpg
    104.8 KB · Views: 57
