Hi,

I have a small info about that DFS-528 which designed in Institute
for Aeronautics in Munich ,as high altitude powered glider intended
to climb in power to some 60.000 ft,and powered by P & W JT12A-6
turbojet engine.


Correct the title.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,286
Reaction score
1,218

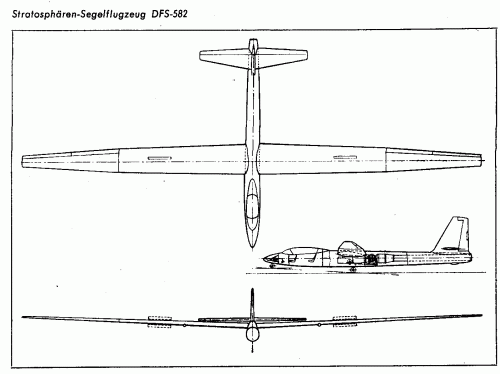

I have an article from Flugwelt 2/1960, were a DFS 582 is described, a high-
altitude research glider. But engine is given as a BS Viper ASV 11.
Dimensions would have been span 30m, length 13,60m, maximum altitude is
given as 17.000 m.


Attachments

  • DFS-582.gif
    16.1 KB · Views: 1,023

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,413
Reaction score
219
The Viper and the JT12A aren't that different in thrust. I suspect either could be used for this program.


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
74
Jemiba said:
I have an article from Flugwelt 2/1960, were a DFS 582 is described, a high-
altitude research glider. But engine is given as a BS Viper ASV 11.
Dimensions would have been span 30m, length 13,60m, maximum altitude is
given as 17.000 m.

Full details for this project appeared in Jane's All The World's Aircraft in 1965 or 1966?

In general appearance, it looks like a miniaturized U-2?

The really odd detail is the astoundingly long jet pipe. I'm sure the intension was to place the turbojet as close as possible to the center of gravity, but you really do wonder about the inefficiency of such a long exhaust?

Please correct me if I'm wrong?


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,413
Reaction score
219
Well, the long exhaust pipe is going to cause some possible problems (for example, the long exhaust pipes on the Merlin III/Merlin IV/Metro II TPE331 engines cause some definite starting problems - when the TPE331-10 was installed on these aircraft, the engine control computer went through several iterations to solve all the problems Fairchild-Sweringen encountered, many more problems than either Mitsubishi or Aero Commander did installing the same engine, but with short exhausts). On the other hand, if you added some scoops and mixing vanes to blend in cooler outside air with the hot exhaust, you could drastically reduce the IR signature. Personally, unless there was a drastic need for the long exhaust duct, I'd keep it short.


shedofdread

ACCESS: Secret
Joined
Nov 14, 2009
Messages
474
Reaction score
121

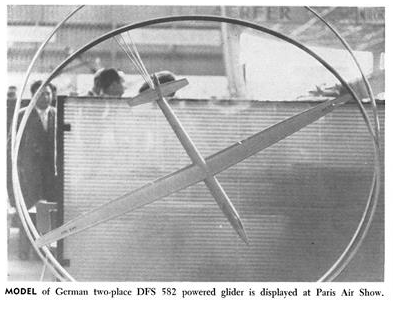

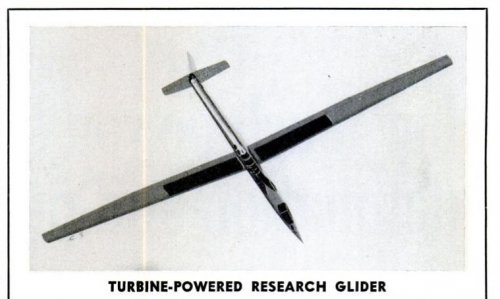

A little more on the DFS-582...


Attachments

  • new-1.jpg
    163.3 KB · Views: 530
  • new-2.jpg
    205.5 KB · Views: 500

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,675
Reaction score
4,661
Hi,

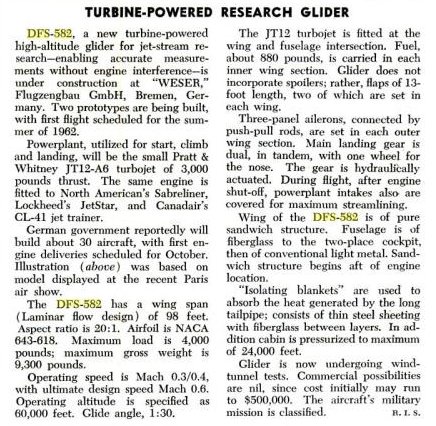

http://archive.aviationweek.com/image/spread/19610619/50/2


Attachments

  • 1.png
    119 KB · Views: 417

burunduk

I love the history of airplanes
Joined
Jan 2, 2007
Messages
78
Reaction score
35
It seems to me it was very long program (1960-1965) and the real aircraft was never built...


richard B

ACCESS: Secret
Joined
Aug 17, 2006
Messages
230
Reaction score
232

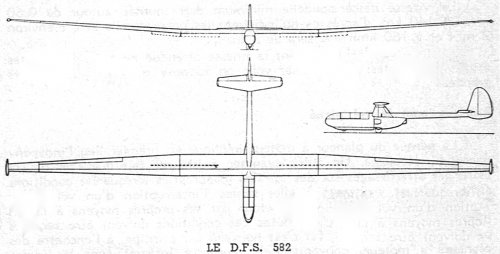

The project DFS 582 in 1959 and 1960/1961 :


Attachments

  • Numériser 4.jpeg
    Numériser 4.jpeg
    780.3 KB · Views: 39
  • Numériser 1.jpeg
    Numériser 1.jpeg
    227.7 KB · Views: 201

richard B

ACCESS: Secret
Joined
Aug 17, 2006
Messages
230
Reaction score
232

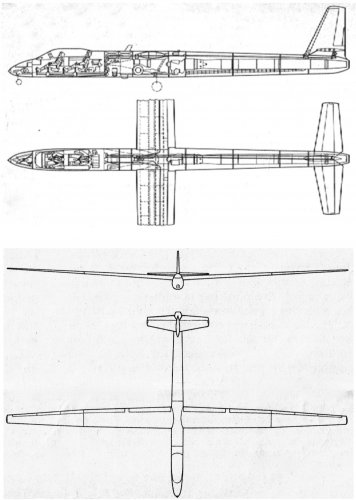

- In 1964 , it is much modified , and the designation is FFM 582 (FFM for Flugwissenschaftliche Forschunganstalt München)


Attachments

  • Sans titre 2.jpg
    Sans titre 2.jpg
    774 KB · Views: 64

richard B

ACCESS: Secret
Joined
Aug 17, 2006
Messages
230
Reaction score
232
burunduk said:
It seems to me it was very long program (1960-1965) and the real aircraft was never built...

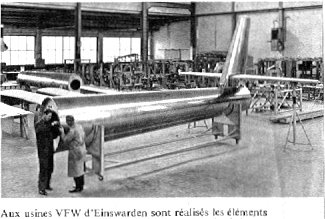

It was actually built at V.F.W. (VFW P.58) but never finished ...


Attachments

  • Numériser 5.jpeg
    Numériser 5.jpeg
    41 KB · Views: 29
  • Numériser 2 3.jpeg
    Numériser 2 3.jpeg
    49.1 KB · Views: 38

richard B

ACCESS: Secret
Joined
Aug 17, 2006
Messages
230
Reaction score
232

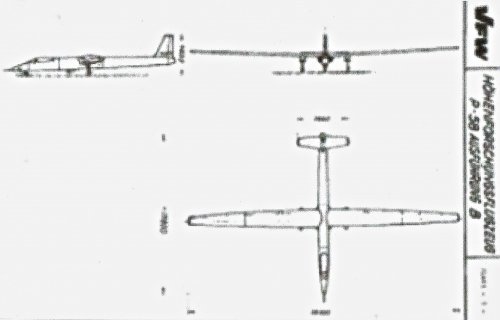

Here , the VFW P.58 Ausführung B (I don't know the year , but it seems longer ...)


Attachments

  • Numériser 2.jpeg
    Numériser 2.jpeg
    472.1 KB · Views: 50

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,675
Reaction score
4,661
Amazing amazing amazing my dear Richard,

you made my day,of course we know that; the Vereinigte Flugtechnische Werke GmbH was formed December 1963,by merged of Focke-Wulf and Weser, other shareholdersbeing United Aircraft, Friedrich Krupp.AG Weser and Hanseatische Beteiligungen.

And I know there was a series for Weser,began with P.1 and reach P.58,it's weird ?.
