Dassault Rafale small-satellite launcher

CammNut

ACCESS: Secret
Joined
Feb 1, 2007
Messages
296
Reaction score
5
Dassault is studying a concept to use the Rafale fighter as a small-satellite launcher. You can read Robert Wall's story from Aviation Week here:

http://www.aviationweek.com/aw/generic/story.jsp?id=news/RAFALE110108.xml&headline=Dassault%20Pitches%20Rafale%20As%20Small%20Sat%20Launcher&channel=defense

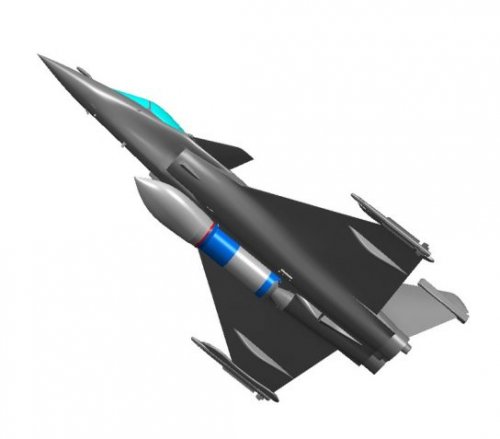

The unusual aspect of this concept is splitting the launcher into three connected parts: the main element under the fuselage and the two solid rocket boosters under the wing.


Attachments

  • Rafale launcher.jpg
    Rafale launcher.jpg
    122 KB · Views: 465

antigravite

ACCESS: Top Secret
Joined
Apr 25, 2008
Messages
725
Reaction score
69
Hi all. Even less is known about Mirage-IV satellite launcher concept studies on which the highly dual MLA is based.

To the very best of my knowledge, four "old" study code names surfaced some of them very, very temporarily:

ECLAT, MILAN, ELSA, STRIZH*

* = swift

In their recent press release :

http://www.dassault-aviation.com/fr/aviation/presse/in-the-air/in-the-air-2008/un-rafale-lanceur-de-satellites.html?cHash=7d5391cba9

Dassault Aviation PIO only discusses "ECLAT" and "MILAN".

BTW, in 1994 another Antonov-based air launched series of concepts was studied by Dassault Aviation together with the Yuzhnoye Design Bureau. Code named TALISMAN, it was much bigger and similar to today's Air-Launch concept (worked out in the US as part of DARPA/USAF FALCON program).


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
116
Website
www.hitechweb.genezis.eu

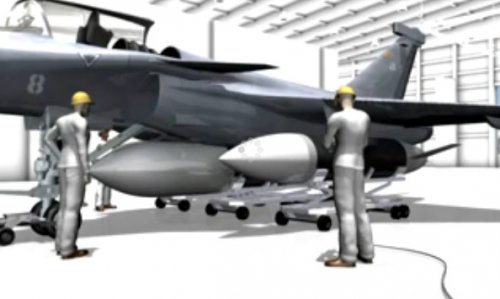

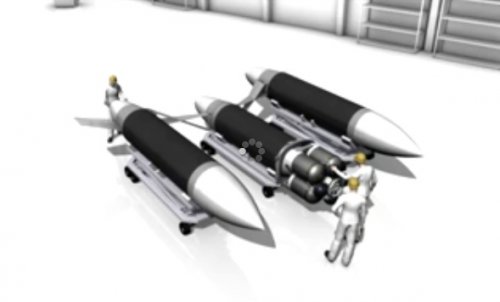

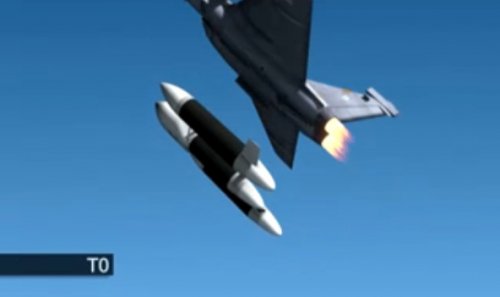

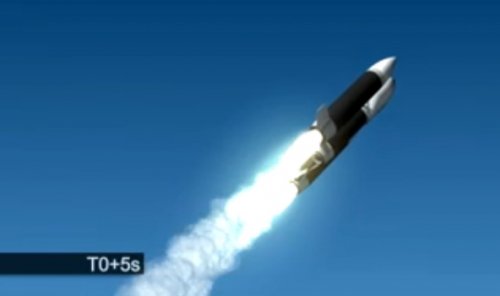

http://www.youtube.com/watch?v=HfmzVZOToBM


Attachments

  • r01.JPG
    28.9 KB · Views: 573
  • r02.JPG
    51.8 KB · Views: 418
  • r03.JPG
    31.5 KB · Views: 416
  • r04.JPG
    27.6 KB · Views: 401

XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,160
Reaction score
55
Presentation on Aldebaran:
http://www.responsivespace.com/Papers/RS7/SESSIONS/SESSION%20I/1005_TALBOT/1005C.pdf


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
116
Website
www.hitechweb.genezis.eu
Full version of the Aldebaran presentation, not only about Rafale launcher. Interesting things inside about proposed european launchers.

http://personal.ee.surrey.ac.uk/Personal/T.Vladimirova/LectureSeries/slides2007_2008/CNES_Guest_Lecture_Surrey_9thSeptember2008.pdf


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,784
Reaction score
1,916
Hmmm, so the plan is to have both the launch and tanker Rafales double as telemetry relay platforms.

What can be seen of the Aldebaran MLA (Trimaran configuration) stack in the video is also interesting.


antigravite

ACCESS: Top Secret
Joined
Apr 25, 2008
Messages
725
Reaction score
69
Hi;

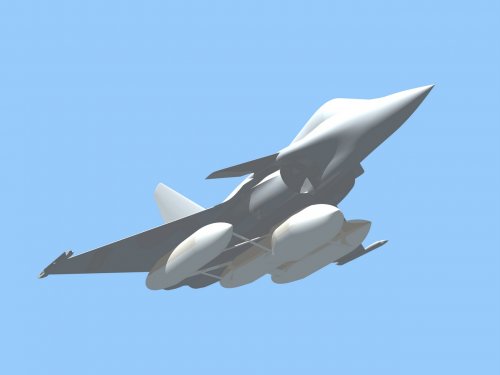

Just found this engineering CAD-rendered image on Dassault's website. This seems to be the latest publicized configuration but that might be old stuff.

source: https://www.dassault-aviation.com/en/space/our-space-activities/aerospace-vehicles/mla-airborne-micro-launcher/

A.


Attachments

  • 1201682927.jpg
    17.5 KB · Views: 40
