Curtiss P-517/518 Phantom - 1946 Light Bomber Projects

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,511
Reaction score
244

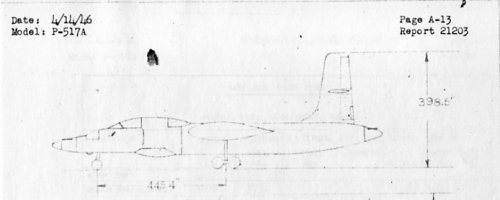

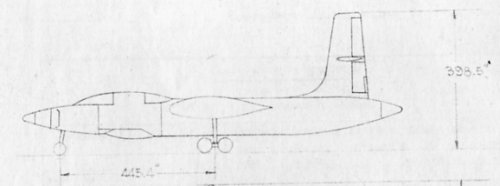

Curtiss Light Bomber Proposal P-517 & P-517A. Report No. 21203. March 30,1946


Attachments

  • P-517.jpg
    56.3 KB · Views: 1,074
  • P-517A.jpg
    89.1 KB · Views: 1,004

Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
590
Reaction score
59
Website
theavgeeks.com
pometablava said:
Curtiss Light Bomber Proposal P-517 & P-517A. Report No. 21203. March 30,1946
They seem to look a lot like scaled up Blackhawk designs. Any info on the engines and location of the engines?


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,648
Reaction score
578
Greetings All -

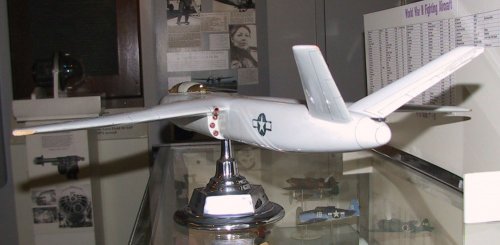

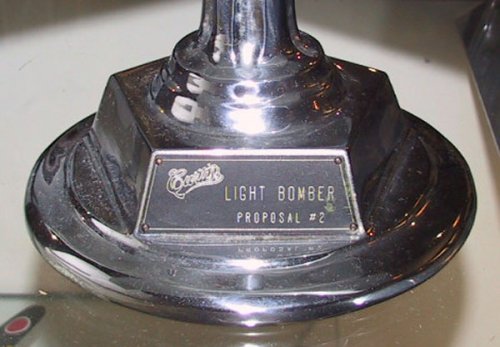

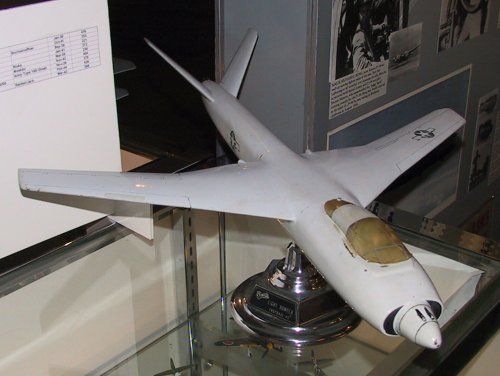

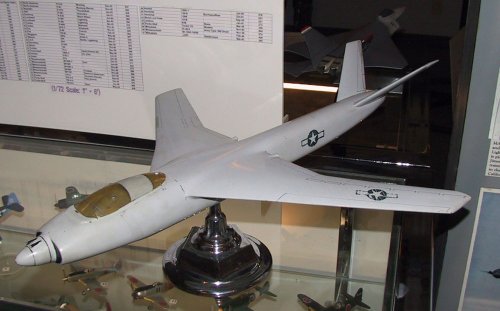

I took the attached photographs of a model which was located at the old Frontiers of Flight Museum in the Love Field main terminal in Dallas, Texas. They've since moved to a very fine new building on the north side of the field and I don't know if this is still on display - can't recall seeing it (though I wasn't really looking) when I visited there in May of 2005. Any ideas what competition this was meant for? B-47?

Enjoy the Day! Mark


Attachments

  • xCurtiss Light Bomber Proposal #2 - 04.jpg
    xCurtiss Light Bomber Proposal #2 - 04.jpg
    105.2 KB · Views: 248
  • xCurtiss Light Bomber Proposal #2 - 03.jpg
    xCurtiss Light Bomber Proposal #2 - 03.jpg
    126.4 KB · Views: 1,755
  • xCurtiss Light Bomber Proposal #2 - 02.jpg
    xCurtiss Light Bomber Proposal #2 - 02.jpg
    220.4 KB · Views: 773
  • xCurtiss Light Bomber Proposal #2 - 01.jpg
    xCurtiss Light Bomber Proposal #2 - 01.jpg
    83.8 KB · Views: 646

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,511
Reaction score
244
Wow, what a treasure!. Thanks a lot Mark, please take a look at this.

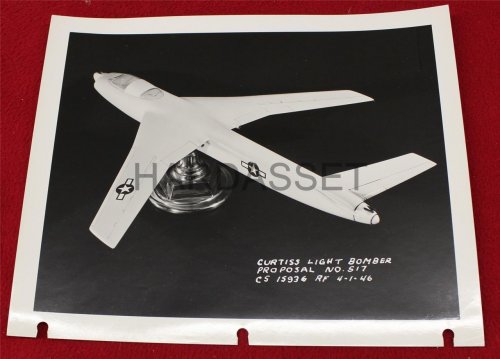

Curtiss Light Bomber Proposal P-517 & P-517A. Report No. 21203. March 30,1946

Your model looks like an evolved P-517


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,511
Reaction score
244
Any ideas what competition this was meant for?

While waiting for more opinions, I'm almost sure this design was submitted to this RFP:


In 1945, the US Army Air Forces issued a requirement for a light bomber aircraft. In February of 1946, a design competition was announced based on the USAAF requirements.

On April 1, 1946, the Glenn L. Martin Company of Baltimore, Maryland proposed a straight-winged, six-seat attack bomber powered by two TG-110 turboprops and two I-40 turbojets. The aircraft promised a maximum speed of 505 mph, a cruising speed of 325 mph, and a combat radius of 800 miles. The Martin design won the competition, and was assigned the designation XA-45 in the attack series.

In the spring of 1946, the USAAF revised its requirement, calling for an aircraft with better performance for all-weather, close-support bombing. The revised characteristics called for a redesignation of the Martin design as XB-51. A fixed-price letter contract issued on May 23, 1946 called for two XB-51s, to be accompanied by wind tunnel models and mockups.

The military characteristics specified in 1945 and 1946 were revised yet again in early 1947. The XB-51 was now pictured as a low-altitude attack aircraft and the combat radius requirement was reduced.

Surce: http://home.att.net/~jbaugher2/b51.html


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
77
The Curtiss Proposal no.2 is a great find Mark.Thanks.

Pomeabla could be very close with his hint for the competion.As far as I know
all the contenders for the B-26 replacement were multi engined and this Curtiss one
seems to be a single jet engined design with some auxiliary rocket? engines below
the trailing edge of the wing which should made it more a fighter rather than an attack bomber
if I'm correct of course...


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,511
Reaction score
244
Hi Lark

seems to be a single jet engined design with some auxiliary rocket?

The powerplant configuration is really extrange. I can't understand if that little pipes are rocket exhaust or the jet engine exhaust through a pipe cluster...

Antonio ;)


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,648
Reaction score
578
I took them to represent jet engine exhaust nozzles. Didn't one of the iterations for the B-47 have a similar engine arrangement?

Since Martin proposed the XB-51 (XF-120 if you're a movie buff!), how does fit in to that program? Were there possibly different design teams competing within Martin for the final configuration?

Enjoy the Day! Mark


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,511
Reaction score
244
Didn't one of the iterations for the B-47 have a similar engine arrangement?

Well, I there was one iteration with engines in the back, right after the cockpit but I have nothing similar to this Curtiss design in my B-47 archive.

Possibly Evan or Orionblamblam can give some ideas?


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,006
Reaction score
1,319
Website
www.aerospaceprojectsreview.com
pometablava said:
Well, I there was one iteration with engines in the back, right after the cockpit but I have nothing similar to this Curtiss design in my B-47 archive.

Possibly Evan or Orionblamblam can give some ideas?

What, this one?


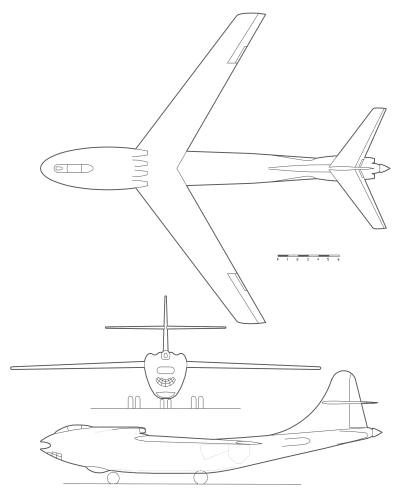

That's the Boeing Model 448. The earlier Model 432 also had engines on top of the fuselage behind the cockpit, but rather substantially further aft.

(Blatant Commercialism Mode ON) More on the 448 can be found in US Bomber Projects Preview, available here:
http://www.up-ship.com/Book/preview.htm


Attachments

  • model 448.gif
    model 448.gif
    17.9 KB · Views: 295

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,648
Reaction score
578
Thanks Scott - that's the one I was thinking of.

As for my last post, please ignore my reference to the XB-51 and different design teams within Martin. I mentally swapped Martin for Curtiss when thinking of the designs. Duh, this is a Curtiss proposal model...

Enjoy the Day! Mark


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,511
Reaction score
244
Thanks for the Model 448 drawing Scott, but the mistery is still unsolved. That Curtiss design has a unique engine layout that I can recall from any aircraft design from my archive ???.

As for my last post, please ignore my reference to the XB-51 and different design teams within Martin. I mentally swapped Martin for Curtiss when thinking of the designs. Duh, this is a Curtiss proposal model...

Don't worry Mark, I edited the tittle the subject from Martin to Curtiss.


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,613
Reaction score
131
Website
www.hitechweb.genezis.eu
Just a silly idea - what if its not the jet engine but turboprop and on the trailing edge are nozzles for rocket assisted take-off and/or in-flight accelerating?


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
77
Nose cone of the Curtiss designs seems to be a rotatable
gun turret , not a prop spinner I guess.
This should maybe made it a ground attacker...


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,006
Reaction score
1,319
Website
www.aerospaceprojectsreview.com
pometablava said:
Thanks for the Model 448 drawing Scott, but the mistery is still unsolved. That Curtiss design has a unique engine layout ...

A total of 8 engines is not *that* out of the question. These would apparently be some pretty small engines; whether this design was intended to use some off-the-shelf engiens that happened to be small, or specifically went after a large number of engines (for reliability reasons?), I can't say. This layoput would, though, fail for the same reason that the similar layout on the Boeing 448 failed: losses from "drag" of the jet exhaust on the fuselage, and unacceptable heating of the fuselage skin panels.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,511
Reaction score
244
Not a bad idea, Matej, but in my opinion this "Proposal No2" is not a turboprop because forward fuselage is the same as in Model 517

http://www.secretprojects.co.uk/forum/index.php/topic,243.15.html

Model 517 was a pure jet aircraft. The jets were placed in the wing roots. Anyway tonight I'm going to take a second look at my Model 517 and I'll post again.

Antonio


smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
34
8 engines not impossible, as the first ideas for the F9F Panther had four.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,559
Reaction score
3,836

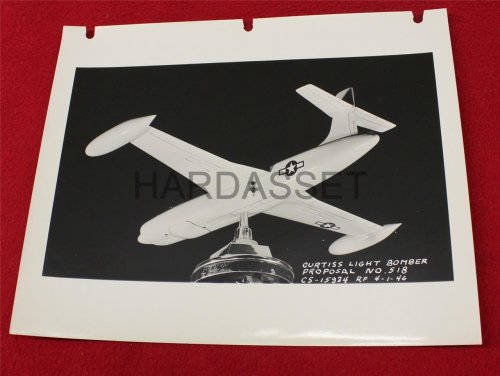

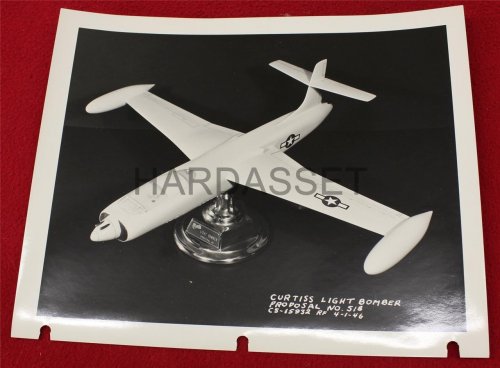

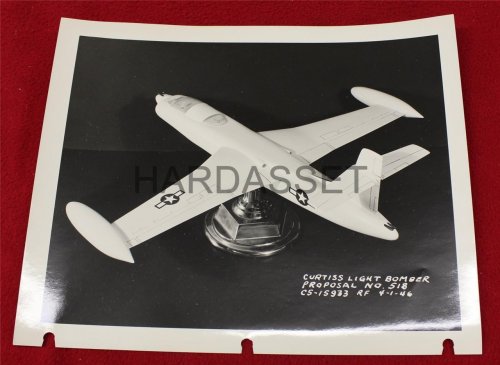

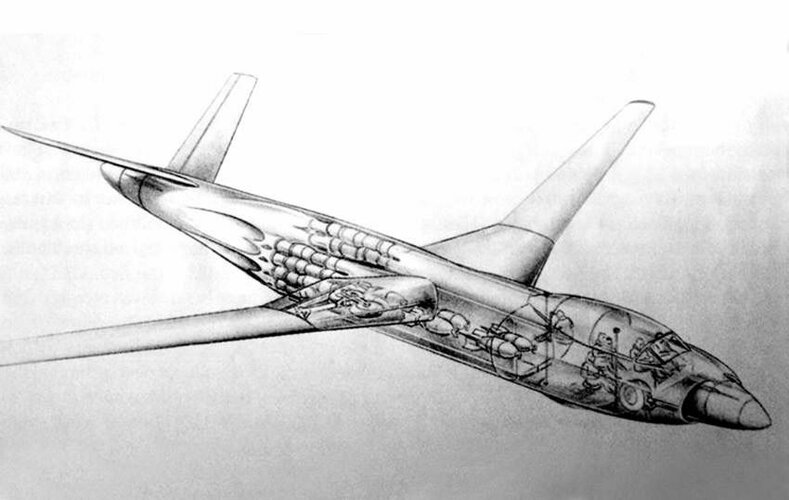

Pometablava was basically correct. As per Tony Buttler, this model is a variant of the P.518, the swept wing version of the P.517 Light Bomber. 3 view, cutaway and description can be found on Page 50, American Secret Projects: Bombers, Attack and Anti-submarine Aircraft. It was powered by 8 Westinghouse 24C (J34) engines.


taildragger

You can count on me - I won a contest
Joined
Nov 2, 2008
Messages
312
Reaction score
181
For a while in the late 40's there was enthusiasm, in the US industry anyway, for extremely small diameter jet engines that would be used in large numbers in aircraft. They would have given designers more freedom in installation (albeit with some added complexity) and overcome the low engine reliability of the day but, as I recall, the main motivation was a belief that microjets would be inherently more efficient for geometrical reasons. The reasoning seemed flawed to me but apparently elements of the industry bought into it - for a while.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
466
Can someone tell me where the monicker "Phantom" in the topic's title came from? I don't think it was there before? Do we have a source for this? Thanks in advance!


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,395
Reaction score
730
Wow, a topic I've never seen before. :eek:
Stargazer,
I presume, that Overscan is updating topics in this forum with facts and figures from the book "American Secret Projects: Bombers, Attack and Anti-submarine Aircraft", after he had thoroughly read it during the last few weeks. That is also why some old topics are "resurrected from the dead". ;)


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,887
Reaction score
2,034
taildragger said:
For a while in the late 40's there was enthusiasm, in the US industry anyway, for extremely small diameter jet engines that would be used in large numbers in aircraft. They would have given designers more freedom in installation (albeit with some added complexity) and overcome the low engine reliability of the day but, as I recall, the main motivation was a belief that microjets would be inherently more efficient for geometrical reasons. The reasoning seemed flawed to me but apparently elements of the industry bought into it - for a while.

On the other hand, the 1946 timeline might tend more towards the theory that those nozzles are RATO/JATO or something similar.


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,648
Reaction score
578
Very nice find Papy Honda - what is the source?

Enjoy the Day! Mark


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,648
Reaction score
578

Attachments

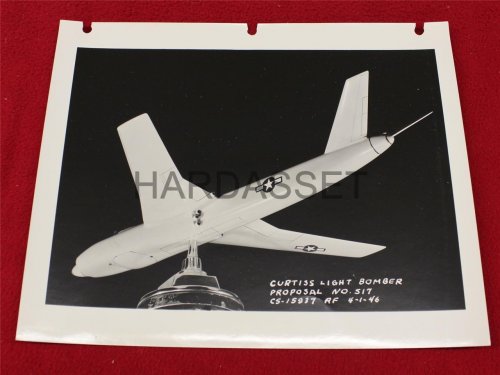

  • Curtiss Light Bomber Proposal No517 Apr-1-46.jpg
    Curtiss Light Bomber Proposal No517 Apr-1-46.jpg
    92.3 KB · Views: 83
  • $(KGrHqR,!qQFDtigWFuJBREvHZziww~~60_57.JPG
    92.2 KB · Views: 75

jmnjohn

This Forum is AWESOME !!!!
Joined
Dec 16, 2012
Messages
44
Reaction score
20

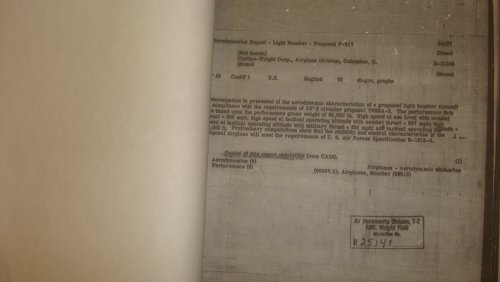

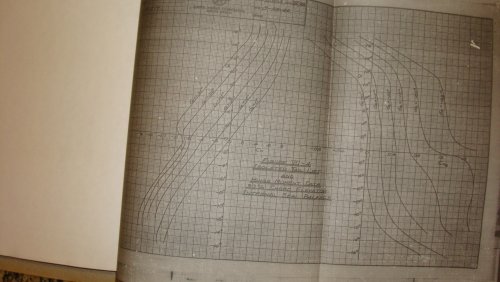

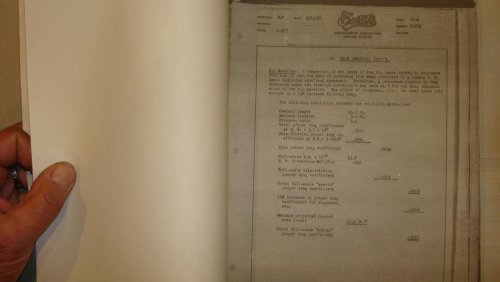

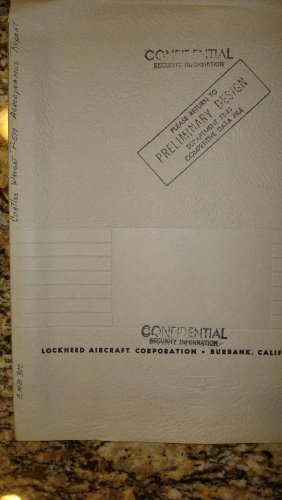

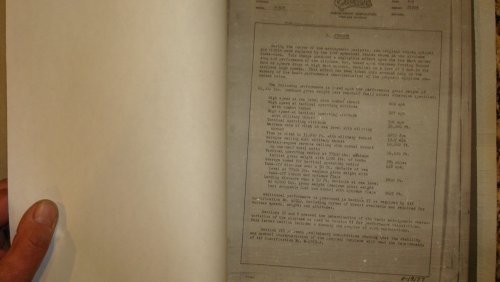

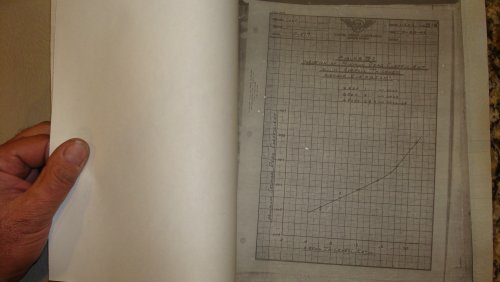

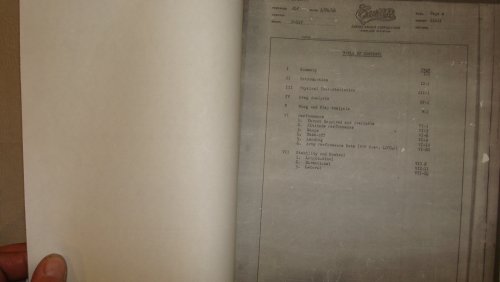

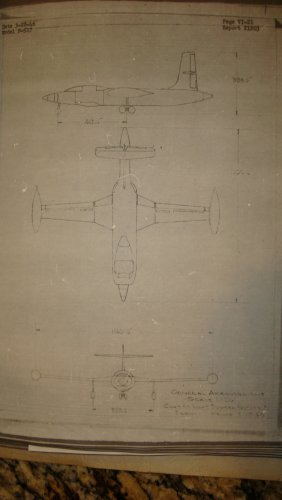

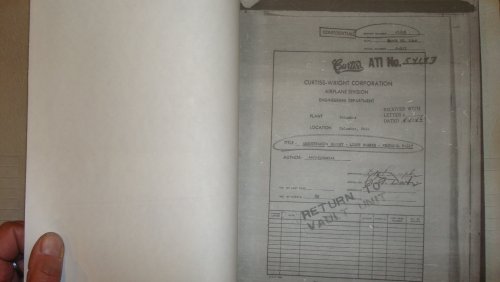

I HAVE THIS REPORT I AM ADDING TO EBAY TONIGHT .........


Attachments

  • ebay 020.JPG
    ebay 020.JPG
    719.6 KB · Views: 68
  • ebay 019.JPG
    ebay 019.JPG
    729.6 KB · Views: 26
  • ebay 018.JPG
    ebay 018.JPG
    723.2 KB · Views: 27
  • ebay 017.JPG
    ebay 017.JPG
    762.3 KB · Views: 32
  • ebay 016.JPG
    ebay 016.JPG
    624.2 KB · Views: 28
  • ebay 015.JPG
    ebay 015.JPG
    674.9 KB · Views: 31
  • ebay 014.JPG
    ebay 014.JPG
    704.4 KB · Views: 170
  • ebay 013.JPG
    ebay 013.JPG
    260.1 KB · Views: 186

jmnjohn

This Forum is AWESOME !!!!
Joined
Dec 16, 2012
Messages
44
Reaction score
20
SORRY LAST PIC


Attachments

  • ebay 022.JPG
    ebay 022.JPG
    787.2 KB · Views: 19
  • ebay 022.JPG
    ebay 022.JPG
    787.2 KB · Views: 24

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,039
Reaction score
3,732
Excellent John,


thank you for sharing us.
