Since we're dealing with the Boeing EX, does anyone know what this other joined wing project was? What company proposed it? Thanks to anyone who can help!


Attachments

  • joinedwing1.jpg
    11.1 KB · Views: 623

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,539
Reaction score
322
This weekend I'll post a couple of joined wing designs from "Future Flight" by Bill Siuru and John D. Busick. Both a bizjet and a recreational aircraft are concepts labeled as "Copyright 1984 ACA Industries from a painting by Paul Fjeld".

Your pic, Stargazer, looks "Paul Fjeld" too.


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,669
Reaction score
695
That's artwork related to Wolkovitch's study/development of the joined wing concept. The artwork shows up in this report:

http://aircraftdesign.nuaa.edu.cn/MDO/ref/Application/Jointed_wing/Unconventional%20high%20aspect%20ratio%20joined-wing%20aircraft%20with%20aft-%20and%20forward-swept%20wing-tips.pdf

HTH! Mark


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
Thanks for the link. However, the Wolkovitch joined-wing aircraft featured in the PDF (FIG. 3) looks like a Rutan/Ames AD-1 fuselage reconfigured with joined-wing... The picture we are talking about actually appears underneath (FIG. 4) among other industry projects described as "Several recent joined wing applications." So it's got to be something else.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,539
Reaction score
322
as promised, plus a third design from the same book


Attachments

  • File0108.jpg
    200.2 KB · Views: 194
  • File0109.jpg
    122.3 KB · Views: 189
  • File0110.jpg
    122 KB · Views: 162

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
Third picture represents the Advanced Technology Aircraft Co., Ltd. (ATAC) Predator, also known as the Rutan Model 58 project. And guess what? Wolkovitch was part of the program!



More on this project on my website: http://stargazer2006.online.fr/menu.htm
(check "Predator" under: "Other Prop Aircraft")


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
Stargazer2006 said:
Thanks for the link. However, the Wolkovitch joined-wing aircraft featured in the PDF (FIG. 3) looks like a Rutan/Ames AD-1 fuselage reconfigured with joined-wing... The picture we are talking about actually appears underneath (FIG. 4) among other industry projects described as "Several recent joined wing applications." So it's got to be something else.

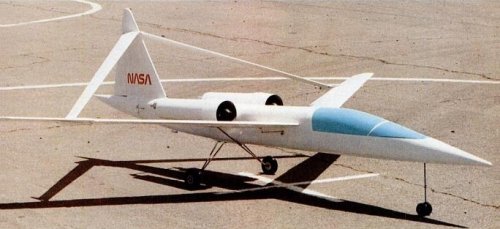

Sorry for quoting myself, but after investigating the subject some more, I found that the model with an AD-1 like fuselage was developed by ACA Industries (Julian Wolkovitch's company) in 1986 as a flying sub-scale demonstrator for their unbuilt JW-1. The model had a 10-foot fuselage, an 8-foot wingspan, and weighed 23 pounds. Full-scale model was planned to have a 24-foot wingspan.

After NASA cancelled the program when it proved inadequate, Wolkovitch contracted with Larry D. Wolfe to complete the project. The first requirement was to refurbish and restore a previously inadequate work/design to flyable state. Extensive rework was necessary including refinishing of paint work.

All the early test flights were unsuccessful due to problems with engines. Consequently, there was a need to rework the improperly adjusted engines. It is only after the program was taken over by Jet Hangar International that a successful test flight was made. However, in straight and level flight, the left wing member from the dorsal to the wing joint failed under compression loads, causing structural failure of the wing (source).

NASA did not give up on Wolkovitch and his design, and continued supporting programs entitled Joined-Wing, Tilt-Rotor Aircraft Study in 1988 and Very High Altitude Aircraft with Joined Wings in 1989.

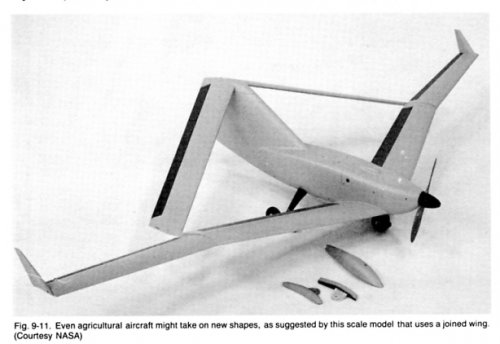

The Navy was also interested in Wolkovitch's designs, as shown in the tilt-engine V/STOL concept (second picture below), developed jointly by ACA and the Navy. The space between the wings allowed for the engines to be placed in the design's center of gravity.

Source: Popular Science, January 1986.


Attachments

  • tilt-engine.jpg
    26.6 KB · Views: 19
  • rc-model.jpg
    82.9 KB · Views: 104

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644

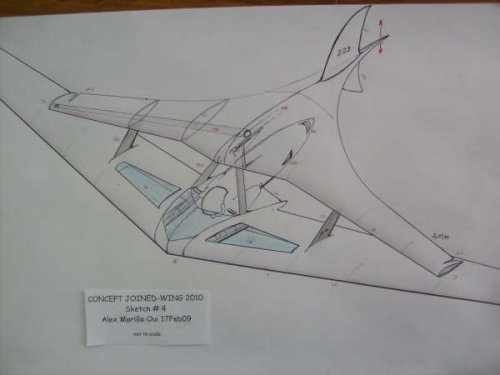

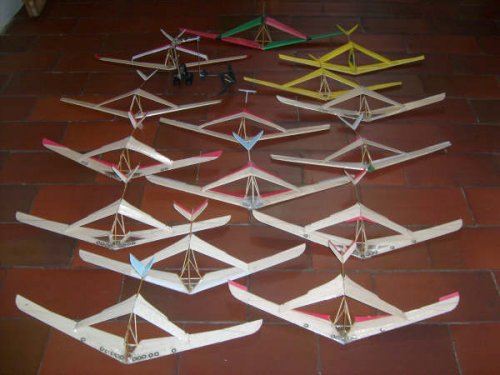

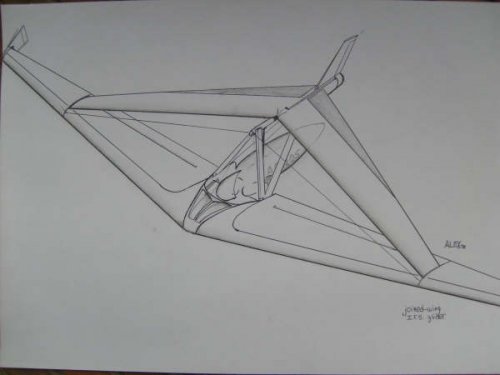

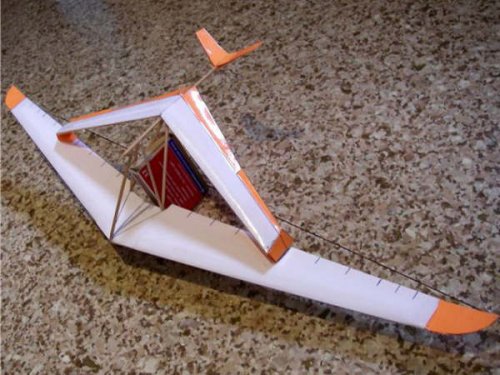

Another joined wing project originates, of all places, in Quito, Ecuador. It is Alex Morillo's Gypsy Joined-Wing Hang Gliding Project. After building many scale models (see photos), Alex is considering a full-size proof-of-concept glider, and even foresees an ultralight sailplane variation.

More on the Gypsy, and quite a bit on joined wing designs and patents too:
http://www.energykitesystems.net/Lift/2009/mar2009/index.html


Attachments

  • JWCONCEPT002.jpg
    20.8 KB · Views: 31
  • xxxAM004.jpg
    19.8 KB · Views: 31
  • AM18ENE09001.jpg
    39.1 KB · Views: 30
  • AMattachment.jpg
    50.3 KB · Views: 24

ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
553
Reaction score
114
Website
www.avicopress.ru
Myasishchev 'Romb"
http://www.secretprojects.co.uk/forum/index.php/topic,8908.msg40677/highlight,myasishchev+romb.html#msg40677


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644

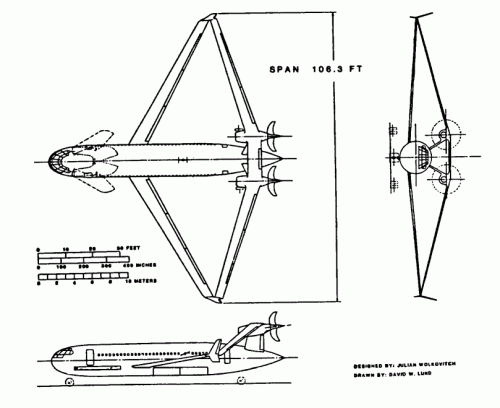

Wolkovitch joined wing transport:


Attachments

  • Wolkovitch joined wing transport.gif
    Wolkovitch joined wing transport.gif
    35.4 KB · Views: 39
