Does anybody know the width of this flying jeep proposal? The length of 5.38 m has been extensively published.
Also what type of Lycoming engine did it have and what was the anticipated maximum speed. When was the first untethered flight?


walter

ACCESS: Secret
Joined
Jan 31, 2008
Messages
376
Reaction score
100
Hi Jos,
Maybe this will help. It is info I "collected" over the years.
Single-seat experimental VTOL with one 360hp Lycoming GSO-480 piston engine.
Rotor diameter 8.53ft, length 21.5ft (?), width 10ft and height 4.494ft
sorry no (expected) performance figures
The VZ-6H was developed by the Chrysler Corporation's Defence Engineering Division to meet a TECOM (US Army Transport & Engineering Command) specification which also led to the Piasecki VZ-8 and Curtiss Wright VZ.7. The GSO-480 engine was centrally mounted in the fuselage and drove two large fans with shutters in the forward and rear fuselage. Two examples built and initial testing commenced early-1959. One VZ-6 lost during trials. Programme halted in 1960.
Regards, Walter van Tilborg


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
932
Some infos from vertiflite, spring issue 2005, I only mentiones data, which differ (slightly !)
from those posted by walter:
Height 5,2 ft and fan diameter 8,5 ft, gross weight approx. 2.400 lb. The fan diameter probably
quite closely matched the width of the whole machine. The question for the date of the "first
untethered flight" probably must be answered with "never", because onthe first attempt for
an untethered take-off, the first prototype rolled over before it leaved the ground and was
damaged beyond repair. Following this crash, which was said to be a result of a lack of horizontal
control, the program was terminated by the army. Seems, there were never flight tests with the
second prototype. Unfortunately, the date for the failed flight test isn't given ... :-\


Attachments

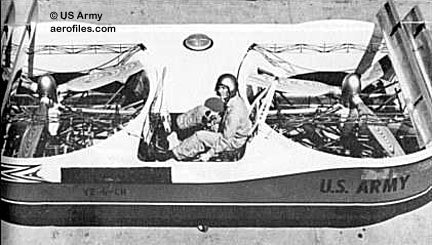

  • Chrysler_VZ-6.JPG
    41.1 KB · Views: 500

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454

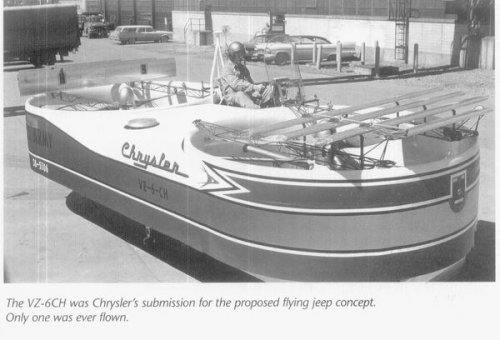

Pics of the VZ-6 are hard to find, but here is another one:


Attachments

  • chrysler-vz6.jpg
    34.8 KB · Views: 421

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
Jemiba said:
Unfortunately, the date for the failed flight test isn't given ... :-\

According to a 1962 item in the US Army Aviation Digest: "The project was terminated following a crash of the VZ-6 in 1959."

So at least we have the year...


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
932

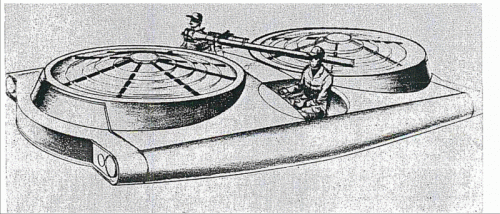

What the Chrysler flying Jeep could have look like, if it had ever
reached operational use:
(from Aviation Week August 1957)


Attachments

  • Chrysler_Flying_Jeep.gif
    183.4 KB · Views: 266

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
99

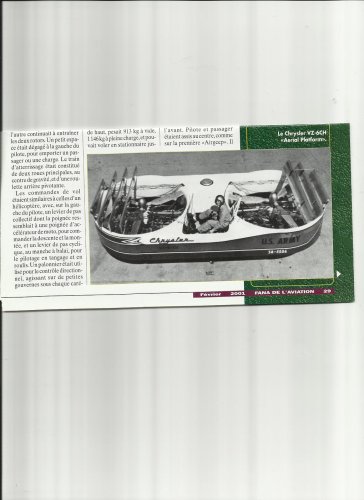

The same than Stephan...!!


Attachments

  • chri.jpg
    170.8 KB · Views: 232

Stingray

Resident retro rainbow rotorhead nerdy girl, uwu
Senior Member
Joined
Nov 30, 2007
Messages
415
Reaction score
90
Website
sites.google.com

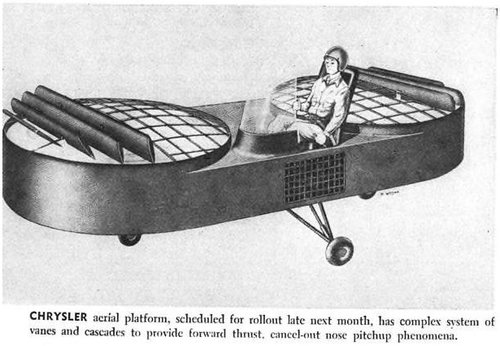

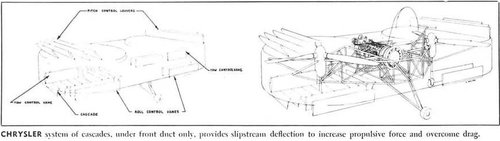

From Aviation Week, January 26, 1959:


Attachments

  • Chrysler.jpg
    113.1 KB · Views: 28
  • Chrysler2.jpg
    78.5 KB · Views: 27
