Hi,


the Centrair was a French company,designed and built many sailplanes,it created the
Sup'Air,it was a 5/6 seat low-mid-wing light business aircraft project,powered by one
240 hp Porsche PFM.3200 pusher engine.


http://www.flightglobal.com/pdfarchive/view/1986/1986%20-%200564.html?search=%22ARV%20Super2%22


Attachments

  • Centrair.JPG
    66 KB · Views: 386
  • Centrair data.JPG
    Centrair data.JPG
    73.8 KB · Views: 359

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,612
Reaction score
4,575

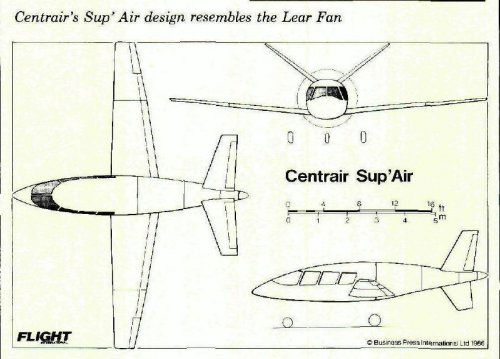

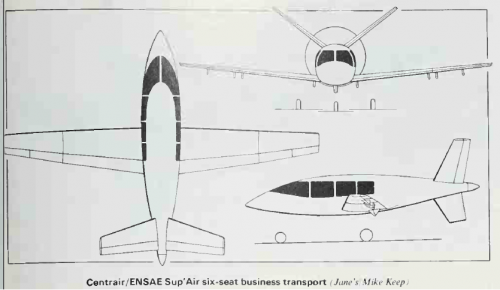

And a clearer 3-view.


Attachments

  • Centrair.png
    95.7 KB · Views: 220

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
42

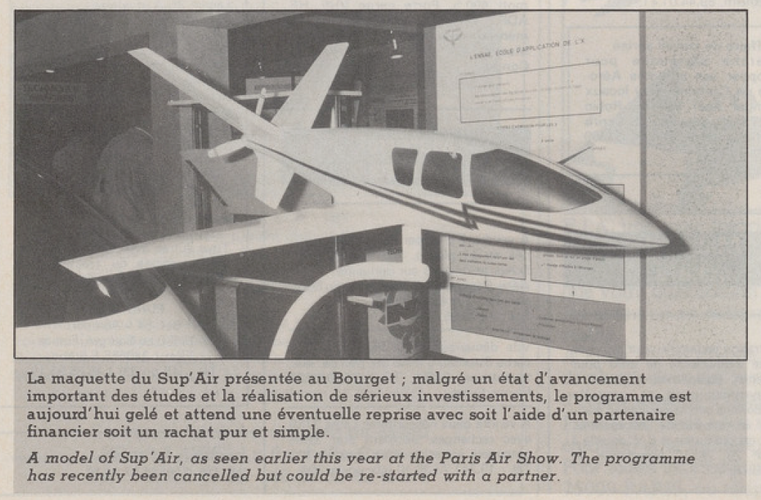

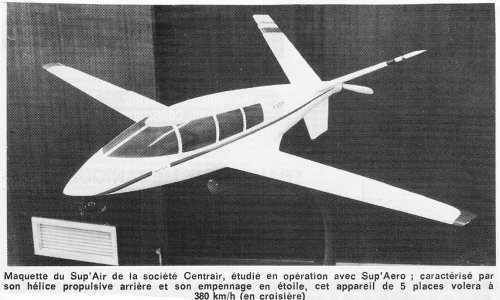

And (from Aviation Magazine) the mock-up :


Attachments

  • Numériser 1.jpeg
    Numériser 1.jpeg
    713.3 KB · Views: 199

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,612
Reaction score
4,575

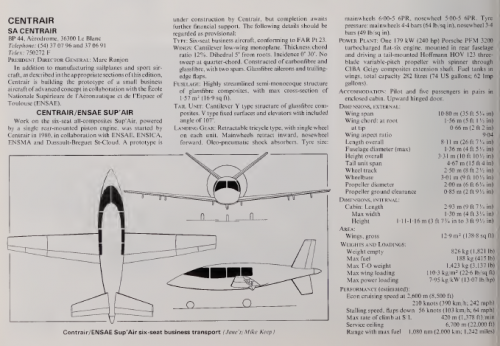

From JAWA 1988.


Attachments

  • 1.png
    255.8 KB · Views: 114
