Thought I'd better move this to a seperate thread as it's not really Fiat G.52 anymore.

In Thompson (Italian civil and military aircraft, 1930-1945) we are told that the F.7 project was based on the F.6, but with a slimmer fuselage and powered by an Alfa Romeo Monsonie engine (licence built DB601)

Anyone have any more details?

Thanks


Andrew


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
130
Er, no. The intended engine for the F-7 was the FIAT RA.1050 R.C.58, i.e. the license built DB-605. The wing was the same as the F-6M, but with a longer fuselage. It was intended as the Caproni-Vizzola "5" series fighter (sincerely, there were already too many...). The ones with the DB-601 and Tifone (licensed built 601 by Alfa Romeo), were the F-5bis (AKA F-4, wing made of wood, one prototype built) and the F-6M (an F-4 entirely in dural, M stands for Metallico). BTW, the I.F. Zeta was air cooled, like its parent Gamma. And yes, one version of the Z was equipped with a Wright two-speed turbocharger (I.F. Z R.C.25/60), mechanically driven (no exhaust gas, that is). Problem is that the engine became too hot.... it was always air-cooled.

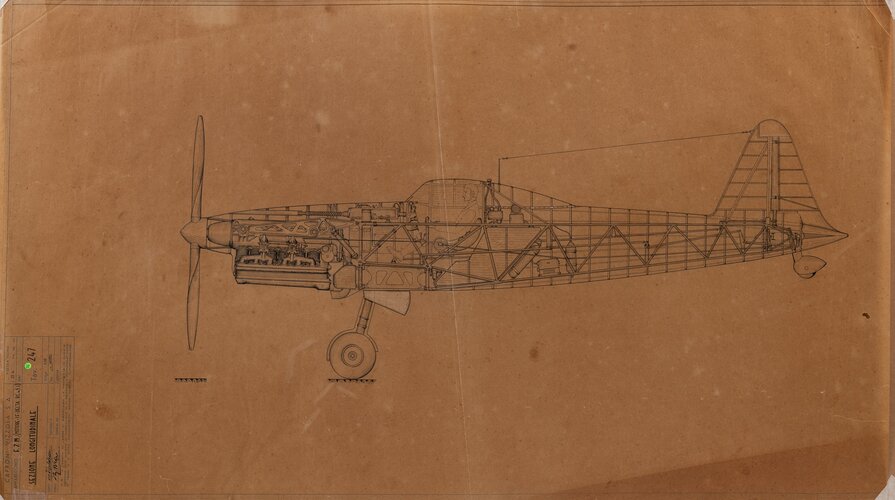

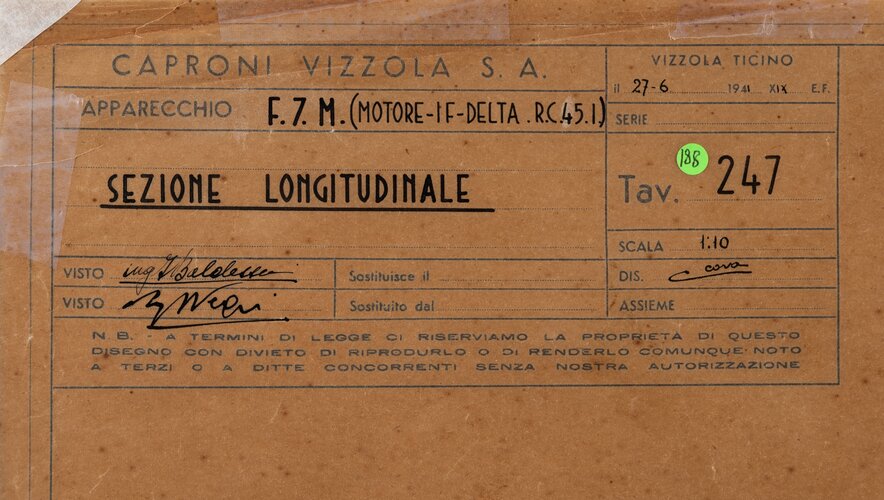

The late Fabrizi-designed fighter question is rather murky. For example, has been published a sectioned view of an alleged "F-7" with a Delta, an all-wood light fighter. It makes sense, since the Regia (part of it) had an affair with wooden light-fighters and there was a running order for hundreds of SAI-403s.
All these question I hope to resolve in a few week. I definitively know were to look... 8)


red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
627
Reaction score
77
BTW, the I.F. Zeta was air cooled, like its parent Delta. And yes, one version of the Z was equipped with a Wright two-speed turbocharger (I.F. Z R.C.25/60), mechanically driven (no exhaust gas, that is).

You mean a supercharger then? The RC.25 / 60 designation means that power is re-established at 2500m and 6000m doesn't it? That indicates a two-stage supercharger not two-speed. A two-speed gearbox will just smooth out the power-altitude graph.

I'd like very much to ask you whether you have any pictures of the Piaggio P.XI RC.100 used in a few high-altitude aircraft. Sometimes this engine has the RC.100/2v suffix used. What does this mean?

Sorry for all the questions.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
130
Probably I HAVE, where? ???

2v = 2 velocità (two speed)


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
130
Ummm, source I used for the Zeta second version states "due velocità".... But I'll cross check.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
130
Confirmed: it was a centrifugal compressor with two speed of operation. The source is official, a late 1942 Regia document describing experimental engines.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,481
Reaction score
2,761

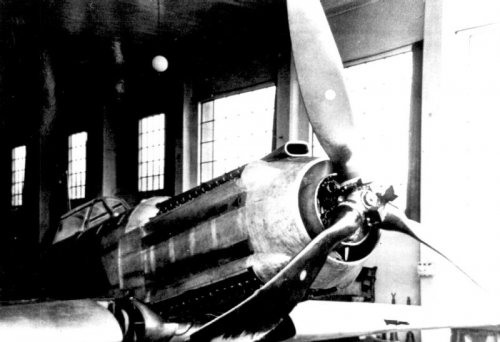

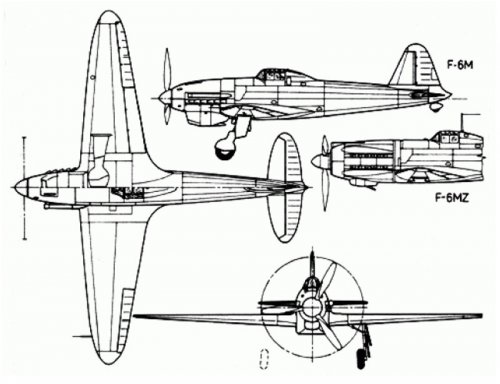

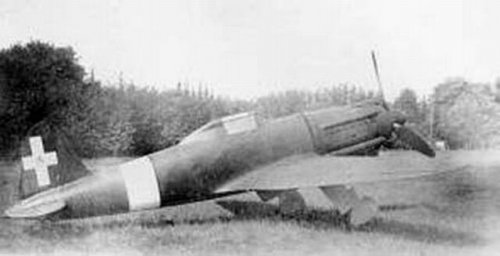

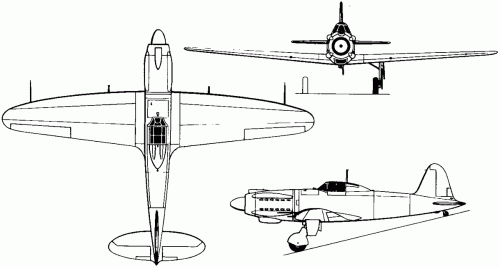

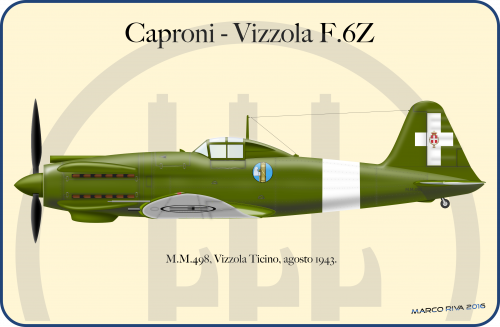

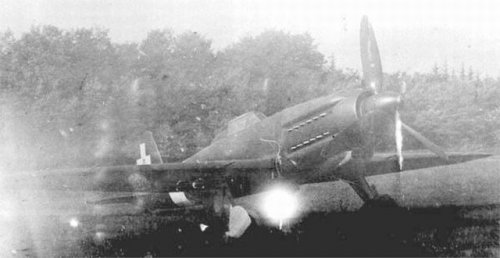

Hi! Caproni-Vizzola F.6Z.
Engine was Isotta Fraschini Zeta.
The Isotta Fraschini Zeta was a 24-cylinder aircraft engine X 90°, air cooled, manufactured by the Italian company Isotta-Fraschini in the first half of the forties of the twentieth century.
http://alternathistory.livejournal.com/860342.html
http://forum.tantopergioco.it/discussion/5071/caproni-vizzola-f-5-alphaflight-1-72-w-i-p
Auto translation
The plane received the new designation f. 6MZ. Construction commenced on two instances of aircraft, but only the first (MM. 498) was completed. First flight f. 6MZ was held in August 1943 onwards. Tests revealed the shortcomings of the new powerplant became the main aircraft engine overheating in flight. All of these shortcomings could be eliminated completely, but lapping the engine existed until the capitulation of Italy.

Specification
F. 4      F. 5      F. 6     F.6Z
Wingspan, m       11.35   11.30    11.30     11.82
Length, m         9.15     7.90     9.15      9.25
Height, m         3.02     3.00     3.01      3.02
Wing area m2       18.81    17.60    18.81     18.50
Mass, kg
an empty plane      2462     1818    2265     3355
normal takeoff       3000     2238    2885     4100
Engine type       DB 601A   Fiat A 74 r. c. 3   Fiat RA. 58.1050 Tifone  Isotta-Fraschini RC. 25/60 Zeta
                                   (Daimler Benz DB605A)
Power, HP         1175   870    1475    1250
Maximum speed, km/h  551   496   568   640
Cruising speed, km/h   446    414   477   544
Range, km           950    1000   950   1370
Service ceiling, m    10300   9500   10500   8000
Crew, pers           1    1     1    1
Armament
F. 4 : 2 × 12.7 mm Breda-SAFAT MACHINE GUNS
F. 5 : 2 × 12.7 mm Breda-SAFAT MACHINE GUNS
F. 6 : 4 × 12.7 mm Breda-SAFAT MACHINE GUNS
F.6Z : 2 × 12.7 mm Breda-SAFAT MACHINE GUNS, 2 × 7.7 mm Breda-SAFAT MACHINE GUN


Attachments

  • f6mz2_113.jpg
    56.1 KB · Views: 588
  • F.6M.jpg
    75.9 KB · Views: 97

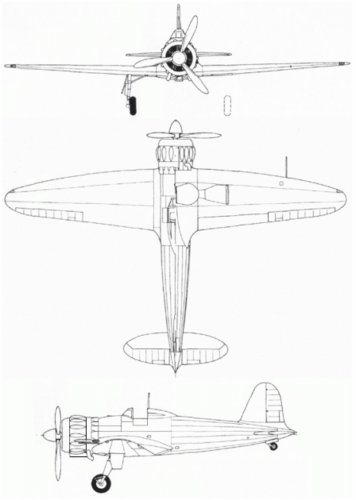

  • F.5.jpg
    84 KB · Views: 108
  • F.4.jpg
    68.9 KB · Views: 109
  • jo.png
    55.4 KB · Views: 628
  • Isotta_Fraschini_Zeta.png
    158.9 KB · Views: 155
  • AS-04_zps049ad32c.jpg
    74.7 KB · Views: 580
  • f6-1.gif
    45.3 KB · Views: 573
  • f6mz_119.jpg
    33.9 KB · Views: 570
  • f6mz1_836.jpg
    40.2 KB · Views: 581

Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
974
Reaction score
111

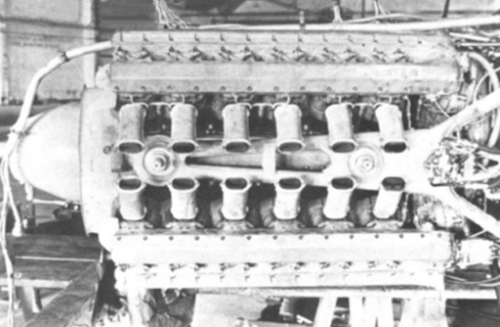

Blackkite-san, I wonder what a FKFS X-16 (intended for the He S-50z) is doing among italian stuff... Mind your seventh image. It`s plain german technology!


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,481
Reaction score
2,761
Oh thanks a lot. Sorry for big mistake.
What is this engine?


Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
974
Reaction score
111
the photo depicts a two-stroke petrol engine developed by professor Wunibald Kamm from the FKFS in Stuttgart, intended to power a ducted fan powerplant, the Heinkel HeS 50z, dating from 1941/42.


zeroc

ACCESS: Confidential
Joined
Apr 20, 2010
Messages
89
Reaction score
19
Hi, this is my vision of Fabrizi F.6Z, hope you enjoy it.


Attachments

  • FABRIZI A4.PNG
    FABRIZI A4.PNG
    976.1 KB · Views: 87

airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,229
Reaction score
86
Website
zeef.com
http://www.aereimilitari.org/forum/topic/16351-caproni-vizzola-f7/ -

(My approximate image of what if caproni vizzola f.7 was realized also like project )

Caproni Vizzola F.7 was a projected development of Caproni Vizzola F.6 with Db 603 engine .


Attachments

  • f7.jpg
    61 KB · Views: 79

redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
518
Reaction score
51
airman said:
(My approximate image of what if caproni vizzola f.7 was realized also like project )

Caproni Vizzola F.7 was a projected development of Caproni Vizzola F.6 with Db 603 engine .

Looks disproportional, with too heavy nose. Is the engine part really to scale? If so, it's necessary to make the tail longer.


airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,229
Reaction score
86
Website
zeef.com
redstar72 said:
airman said:
(My approximate image of what if caproni vizzola f.7 was realized also like project )

Caproni Vizzola F.7 was a projected development of Caproni Vizzola F.6 with Db 603 engine .

Looks disproportional, with too heavy nose. Is the engine part really to scale? If so, it's necessary to make the tail longer.

I know , it's was only an approximate example :)
