Hi,


the Bristol Type 147 was a day and night turret fighter project,powered by
one Pegasus engine,intended for F9/35 Specification.


The Bristol Type 148 was a two seat army co-operation low-wing monoplane,
actually built,and had two anther variants; Type 148A and Type 148B.


http://alternathistory.org.ua/semeistvo-opytnykh-istrebitelei-i-udarnykh-samoletov-bristol-146-147-i-148-velikobritaniya


Attachments

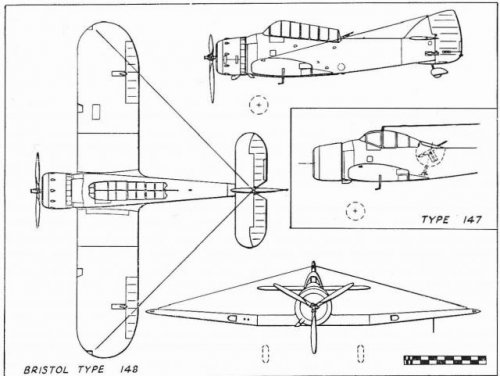

  • Bristol-147-148.JPG
    41.3 KB · Views: 557

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,349
Reaction score
1,545
The type 147 was intended to carry, what seems to me a very advanced turret :
From C.H.Barnes "Bristol Aircraft since 1910 " : "..., but the gunner had a rotating
seat with remote controls for operating a flush-fitting four-gun dorsal turret. The
movement of the guns through 90 degrees in elevation and 180 degrees in azimuth
was copied mechanically from movement of the gunner's reflector sight which he
controlled by two handwheels."
Was this turret actually fully developed ? Cannor remember seeing it on another type.


Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,596
Reaction score
915
Supermarine planned a similar turret system on the Type 305, also to spec F.9/35


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,349
Reaction score
1,545
Indeed, in Tony Buttlers BSP 1935 - 1950, there's a drawing showing the field of fire. It seems, the guns couldn't
be depressed to fire directly abreast (level with the wings) , as can be assumed by the drawing of the type 147, too.
That could be regarded as a tactical disadvantage, I think !


Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,596
Reaction score
915
Hi

Leslie Frise and Bristol took out 10 or more patents relating to gun turret designs between 1935 and 1939 It was certainly something they spent a lot of time and effort designing although I don't know how many types were actaully built and tested


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,469
Reaction score
6,128

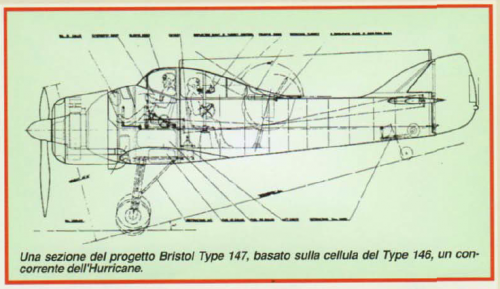

From Aerei Nella Storia 10-11/2010.


Attachments

  • 1.png
    389.7 KB · Views: 214
