Boeing Sonic Cruiser aka 'Project 20XX' aka 'Project Glacier'

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871
I'm interested in Sonic Cruiser iterations 3-views, if any were published (AFAIK, design was very touchy security question for a long). I have all images from Cruiser-related 3 or so Boeing's patents, but want something more accurate. Thanks.


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
116
Website
www.hitechweb.genezis.eu

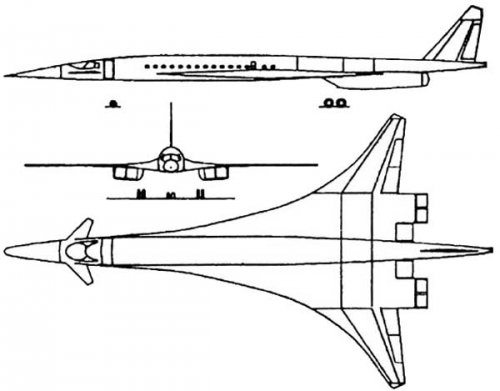

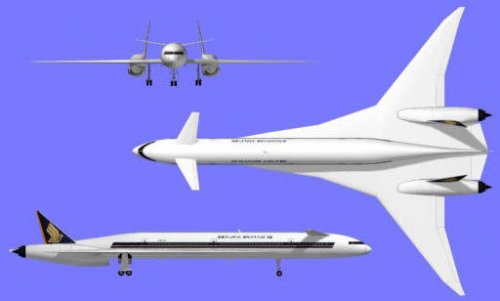

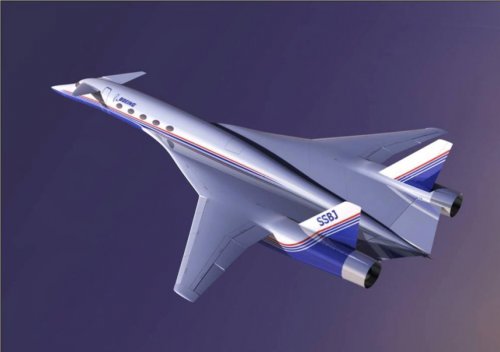

A little bit out of topic but interesting. First is supersonic business jet derived from sonic cruiser (Boeing´s propagation material) and second is what-if USAF tanker (internet).


Attachments

  • Boeing_SSBJ.jpg
    57.9 KB · Views: 1,091
  • SonicCruiserKC.jpg
    24.6 KB · Views: 1,246

Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
590
Reaction score
58
Website
theavgeeks.com

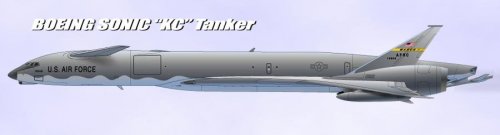

The sonic cruiser tanker is purely fictional. That illustration was done by a friend of mine as a sort of tongue in cheek joke on an aviation model collectors' forum.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871

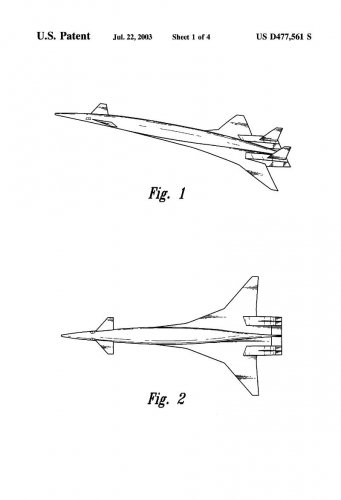

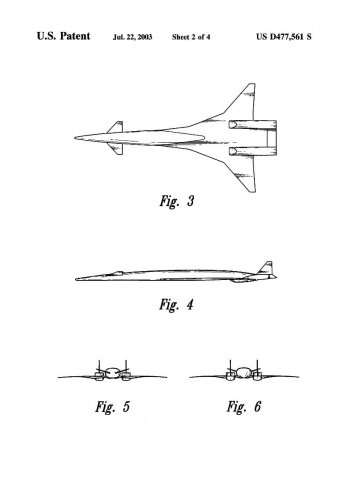

Some Boeing Sonic Cruiser-related patents in chronological order
http://www.google.com/patents?id=HBMPAAAAEBAJ&dq=d477,561


Attachments

  • us0d0477561-003.jpg
    36.4 KB · Views: 507
  • us0d0477561-004.jpg
    32.9 KB · Views: 486

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871

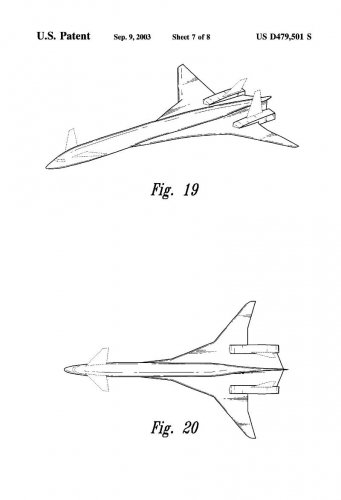

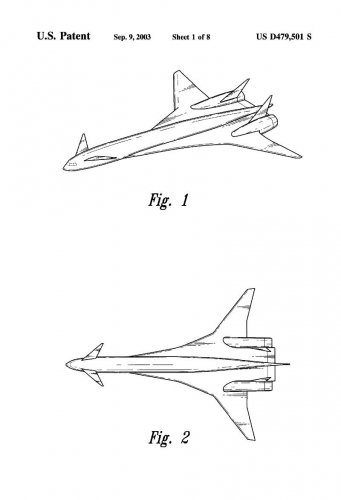

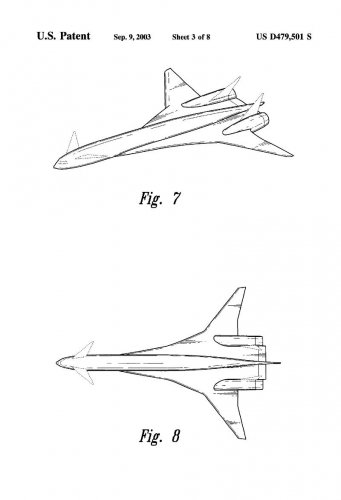

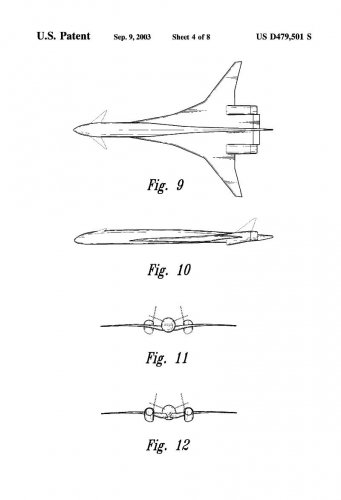

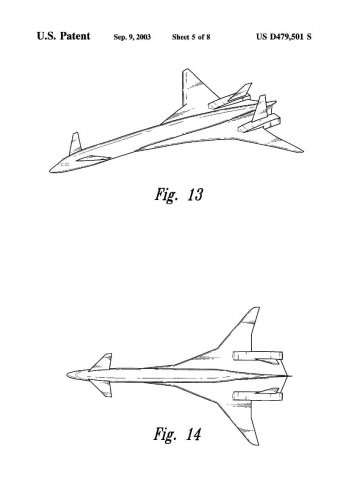

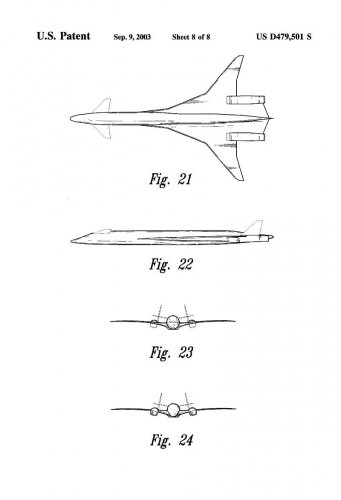

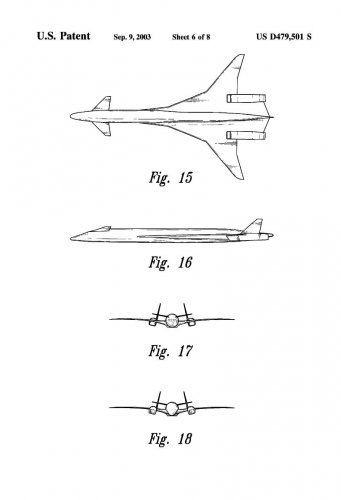

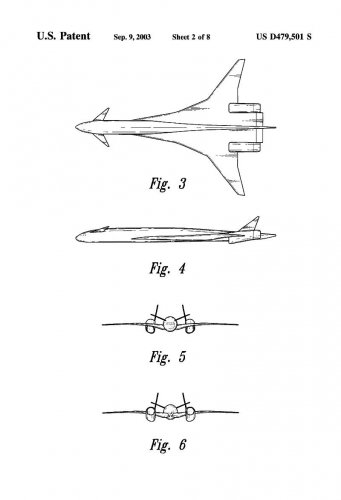

Note variety of almost-identical iterations with just slight differences.
http://www.google.com/patents?id=2ycPAAAAEBAJ&dq=d479,501


Attachments

  • us0d0479501-010.jpg
    38 KB · Views: 77
  • us0d0479501-009.jpg
    41.2 KB · Views: 66
  • us0d0479501-008.jpg
    37.4 KB · Views: 65
  • us0d0479501-007.jpg
    42.3 KB · Views: 65
  • us0d0479501-006.jpg
    38.4 KB · Views: 73
  • us0d0479501-005.jpg
    42.7 KB · Views: 69
  • us0d0479501-004.jpg
    39.1 KB · Views: 93
  • us0d0479501-003.jpg
    44.2 KB · Views: 446

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871

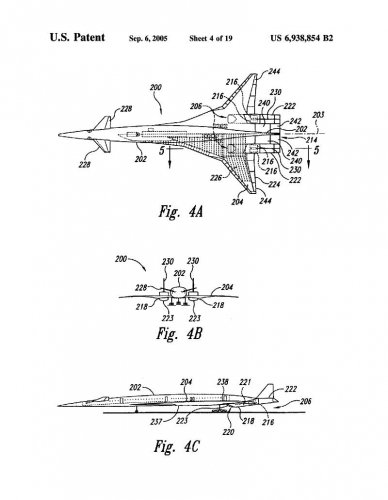

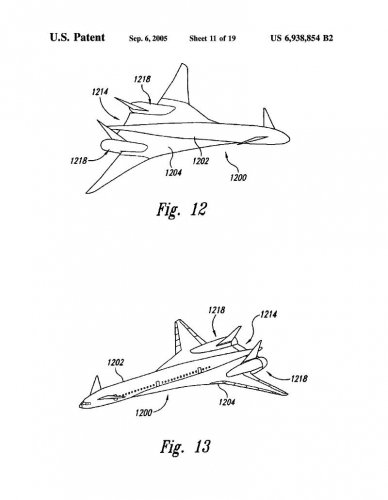

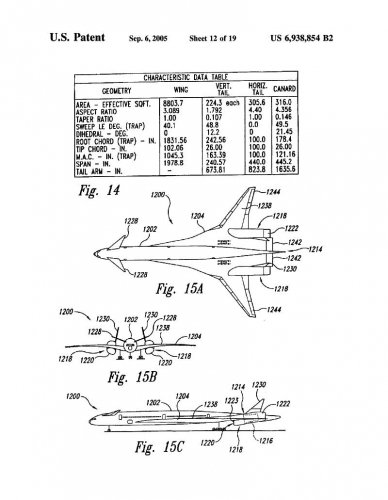

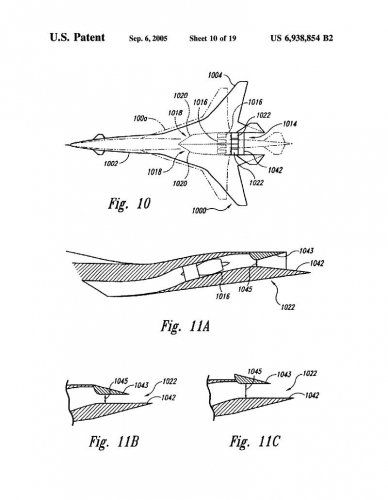

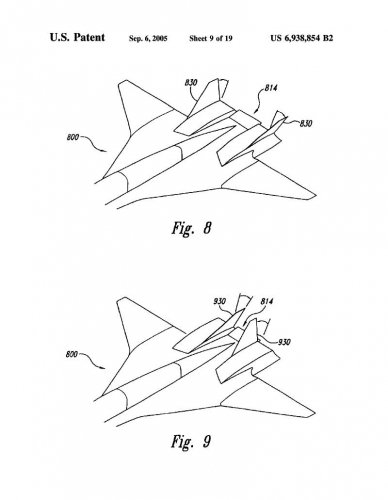

more and more...

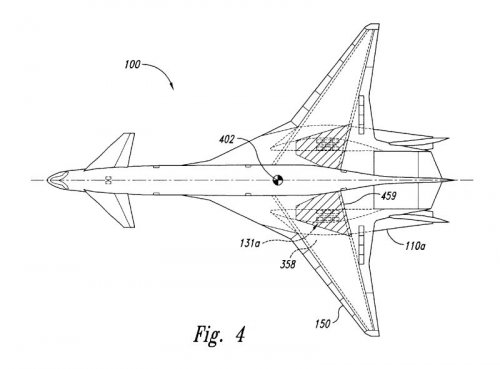

http://www.google.com/patents?id=N3kUAAAAEBAJ&dq=6,938,854


Attachments

  • us006938854-013.jpg
    41.3 KB · Views: 66
  • us006938854-012.jpg
    60 KB · Views: 78
  • us006938854-011.jpg
    45.4 KB · Views: 74
  • us006938854-006.jpg
    57.9 KB · Views: 93
  • us006938854-005.jpg
    37.8 KB · Views: 85

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871

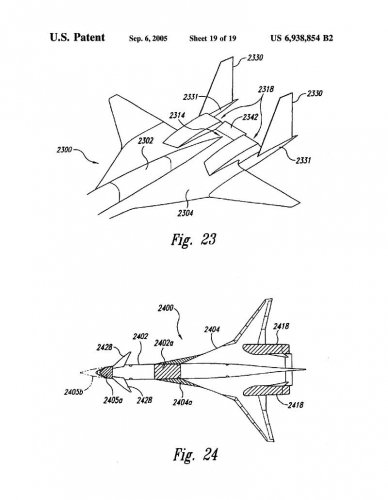

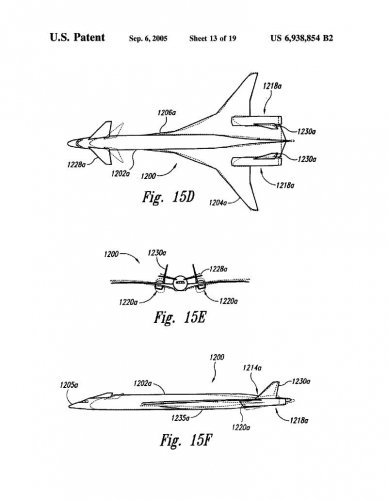

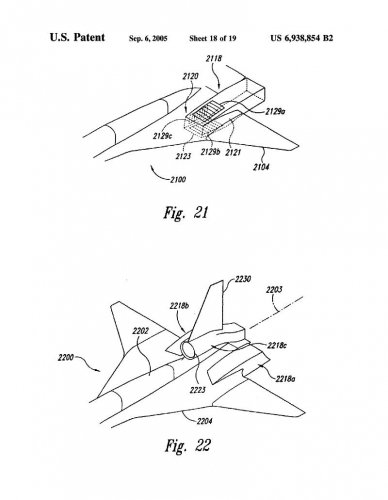

'Haven't we forget patent something?' was a Boeing motto in the case. Final touch.


Attachments

  • us006938854-014.jpg
    80.1 KB · Views: 86
  • us006938854-015.jpg
    47.1 KB · Views: 68
  • us006938854-017.jpg
    45.8 KB · Views: 72
  • us006938854-020.jpg
    48 KB · Views: 71
  • us006938854-021.jpg
    53.4 KB · Views: 75

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871

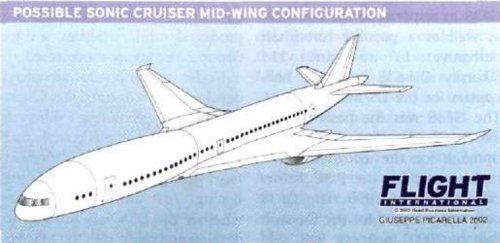

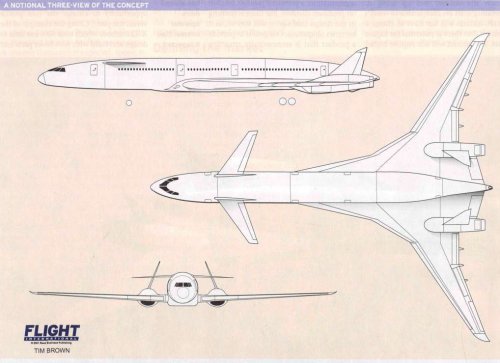

From Flight International on-line archives goes this notional Sonic Cruiser drawings based on first Boeing's pictures released in 2001


Attachments

  • scfi-s.jpg
    106.3 KB · Views: 498

LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,202
Reaction score
130
Back when Boeing was getting all excited about this piece of c**p magnificent design, this image turned up, in a NASA paper from 2000 - that is, almost a year before SC was announced.

SC was in my view derived from a supersonic design. Moreover, a Sukhoi-based supersonic design, since Boeing's BBJ team in 2004 admitted that the company had been working with Sukhoi for years.

However, even LO's legendary pentothol martinis were not enough to get anyone at Boeing to admit it.


Attachments

  • cruiser.jpg
    48.9 KB · Views: 369

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871

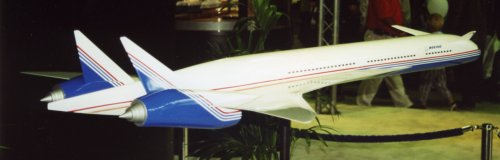

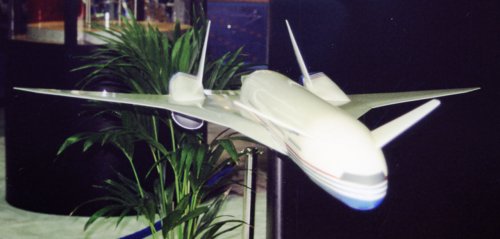

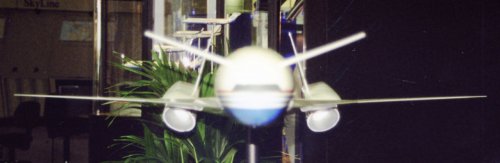

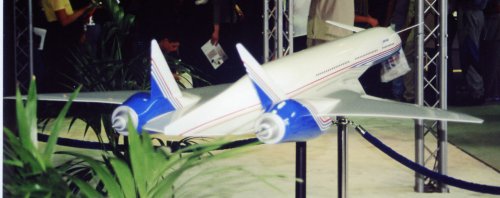

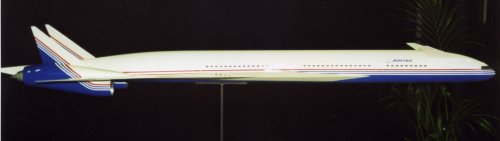

Have found my old Sonic Cruiser model pics from MAKS 2001.


Attachments

  • SC2003MAKS-1s.jpg
    129.6 KB · Views: 188
  • SC2003MAKS-2s.jpg
    125.2 KB · Views: 184
  • SC2003MAKS-3.jpg
    112.3 KB · Views: 174
  • SC2003MAKS-4.jpg
    105.2 KB · Views: 168
  • SC2003MAKS-5.jpg
    80.4 KB · Views: 132

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871
Matej said:
Will this help?

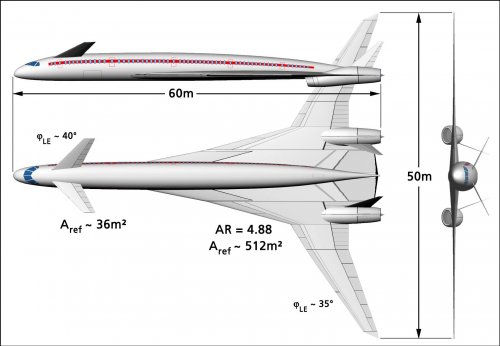

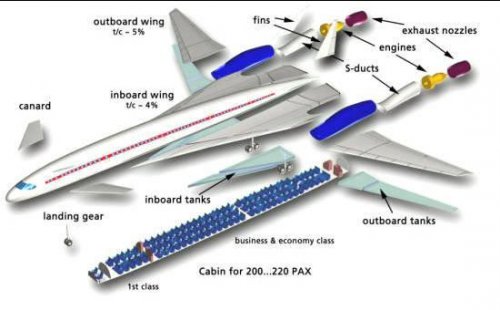

These are from interesting critical DLR paper entitled

The Sonic Cruiser – A Concept Analysis
Dr. Martin Hepperle
DLR Institute of Aerodynamics and Flow Technologies, DLR Braunschweig, Germany

Authors used published artist's renderings and a fistful of data that Boeing gave on Cruiser to analyze

"Abstract
Early in 2001 the Boeing company announced a new aircraft, the “Sonic Cruiser”. The most
impressive features of this new project were a range of up to 10’000 nautical miles, a cruise
Mach number above M = 0.95 and the claim of a large reduction in flight time.
A concept level study was undertaken to design and analyze a possible aircraft configuration.
One result of the study is the fact, that the reduction of flight time by increasing the cruise
Mach number to M = 0.98 is relatively small. A larger reduction of travel time seems to be
possible only by using direct point to point services instead of hub and spoke connections.
Another result is, that the claimed range would be very hard to reach."

http://www.dlr.de/as/Portaldata/5/Resources/dokumente/abteilungen/abt_ke/vorentwurf/hepperle-sonic-cruiser-paper.pdf


Attachments

  • DLR-SonicCruiseranalysys.jpg
    127.2 KB · Views: 350

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871
Which thing exactly?


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871
Sonic Cruiser tail with Honeywell's APU


Attachments

  • SCHoneywellAPU.jpg
    113.5 KB · Views: 127

red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
616
Reaction score
74

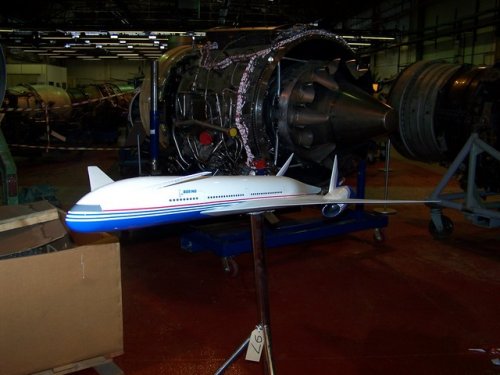

A model currently resides at the Rolls-Royce History Centre in Derby. I always wondered what it was, so thanks for telling me.


Attachments

  • Boeing.jpg
    77.1 KB · Views: 303

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871
Wow! Are you somewhere nearby?


zhuravlik

ACCESS: Restricted
Joined
May 14, 2007
Messages
43
Reaction score
0
Speaking of models.. :D
http://www.rcgroups.com/forums/showthread.php?t=172554

Zhuravlik


red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
616
Reaction score
74
flateric said:
Wow! Are you somewhere nearby?

I live about an hour from Derby and had a nice guided tour around the history centre site in July. It was good to talk with the old engineers (mostly guys from 1950-60s now). Theres loads of stuff there that I didn't take pictures of, lots of rocket stuff that doesn't really interest me.

Other pictures, mainly engines can be found here;
http://s25.photobucket.com/albums/c84/AviationImages/Rolls-Royce%20Vist/


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,202
Reaction score
130
Nice pics...
You do wonder whose idea it was to ship a V-3420 to the UK.. or what brilliant person decided that the first flight for the Clyde should be in the nose of a Wyvern...
Speaking of engines in odd places, anyone got the ghost of a scintilla of a clue how come a Napier Nomad ended up in the US National Air & Space Museum?


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871
LowObservable said:
SC was in my view derived from a supersonic design. Moreover, a Sukhoi-based supersonic design, since Boeing's BBJ team in 2004 admitted that the company had been working with Sukhoi for years.
However, even LO's legendary pentothol martinis were not enough to get anyone at Boeing to admit it.

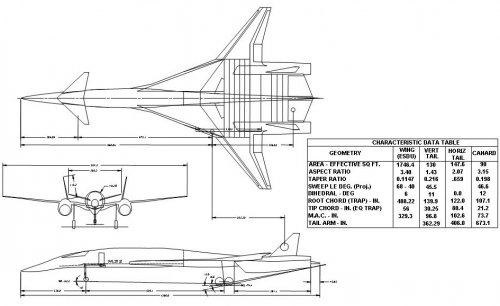

This is taken from not-so-fresh Sukhoi presentation, slide entitled 'Boeing's view'. No chemistry needed=)
Courtesy www.mati-fatal.ru


Attachments

  • Boeing_QSP_SSBJ.jpg
    171.7 KB · Views: 362

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871

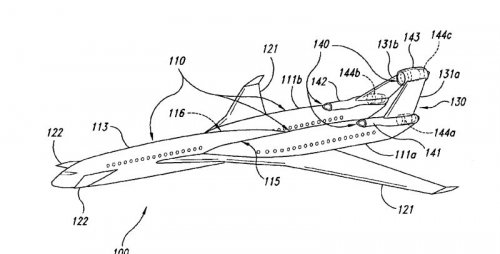

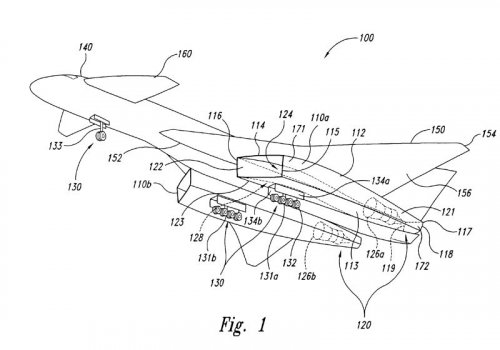

Chernobyl's Sonic Cruiser...Boeing 2002 patent
http://www.google.com/patents/pdf/Tri_body_aircraft_and_methods_for_their_.pdf?id=eEMUAAAAEBAJ&output=pdf&sig=ACfU3U2p3QL0PYzcLHvDS529cZNC6GulFA


Attachments

  • tribody_03.jpg
    49 KB · Views: 176
  • tribody_02.jpg
    38.6 KB · Views: 163

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871

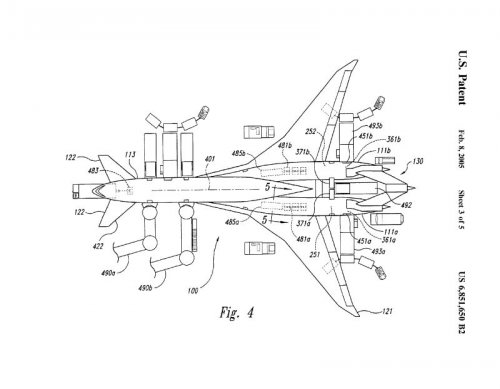

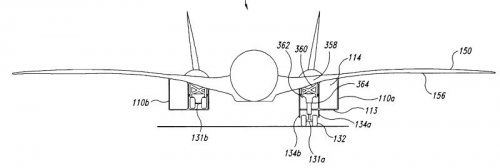

Well, was always wondering where Boeing was going to put MLG on the beast...voila...but to put it somewhere, some tricks with engine nacelles were made...and probably this is further stage of SC evolution that it have made before going to dustbin...


Attachments

  • sc_chasis_04.jpg
    19.7 KB · Views: 80
  • sc_chasis_03.jpg
    48.1 KB · Views: 80
  • sc_chasis_02.jpg
    43.2 KB · Views: 84
  • sc_chasis_01.jpg
    51.1 KB · Views: 162

LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,202
Reaction score
130
Good grief...

Someone's been spending way too much time here: http://zigzagseattle.com/

A few of Murray's specials will do that too you.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871
Well, the three-body SC was found by Hesham almost a year ago http://www.secretprojects.co.uk/forum/index.php/topic,2420.msg24148.html#msg24148


CFE

ACCESS: Secret
Joined
Sep 1, 2007
Messages
259
Reaction score
3
I noticed that in the final Sonic Cruiser renderings (circa Summer 2002, in time for Farnborough,) the Sonic Cruiser had lost the cant on the vertical stabilizers and lost the dihedral on the canards. Has any rationale for these design changes been given>

I must admit that when BSC was unveiled in early 2001, I was very excited. That was before I started taking aero engineering classes and didn't know how bad transonic drag really was. In hindsight, I think Boeing was wise to kill the design off so early into the design cycle. A true SST may be in the cards someday, but there's little to be gained from cruising in the transonic regime.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871

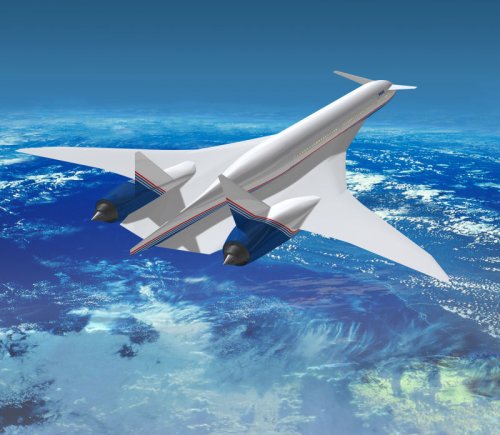

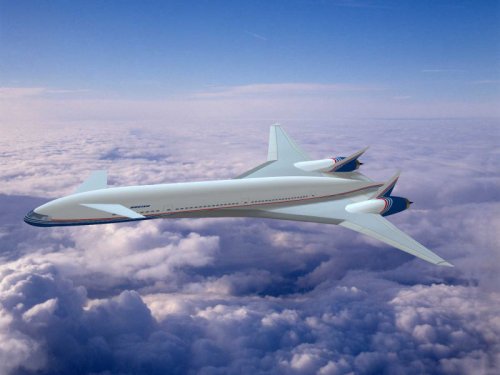

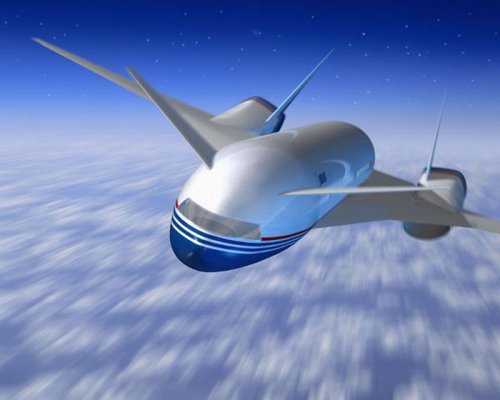

I've tried to collect [some] of renderings, showing Sonic Cruiser evolution. File names show year and a month of BCA image release date.


Attachments

  • SC_2001_07e.jpg
    81.4 KB · Views: 122
  • SC_2001_07d.jpg
    36 KB · Views: 123
  • SC_2001_07c.jpg
    51.8 KB · Views: 107
  • SC_2001_07b.jpg
    51.7 KB · Views: 119
  • SC_2001_07a.jpg
    50.9 KB · Views: 97
  • SC_2001_04.jpg
    94.4 KB · Views: 116
  • SC_2001_03.jpg
    59.4 KB · Views: 124

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871
...more


Attachments

  • SC_2002_05.jpg
    56.9 KB · Views: 92
  • SC_2002_03.jpg
    63.5 KB · Views: 96
  • SC_2001_11b.jpg
    63.3 KB · Views: 102
  • SC_2001_11a.jpg
    117.4 KB · Views: 107

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871

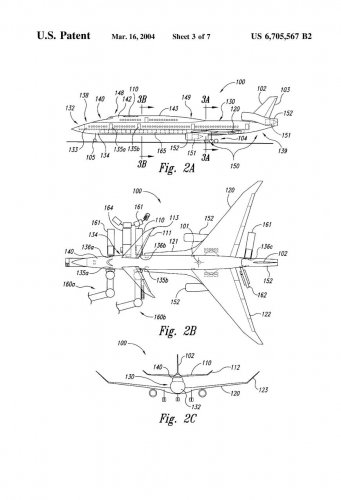

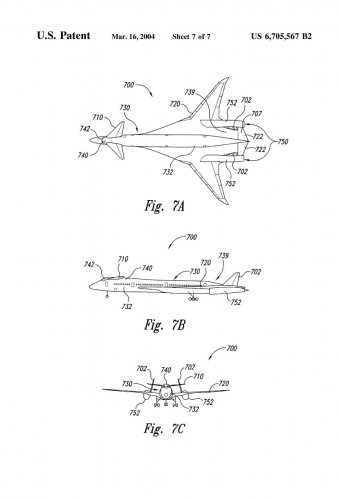

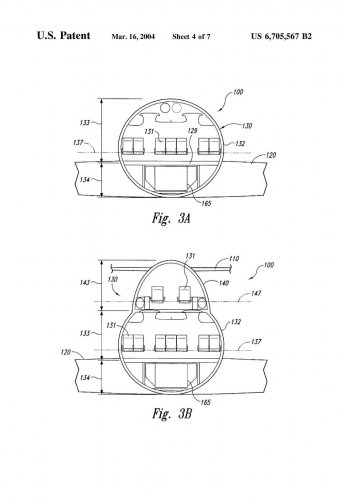

More severe SC mutations from Everett guys...

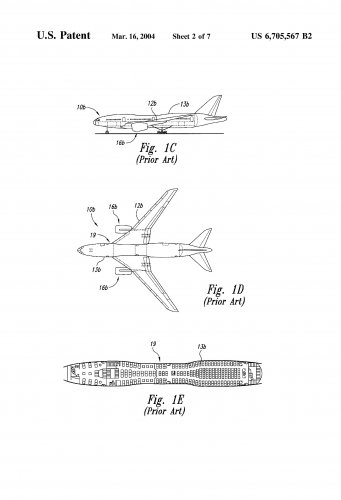

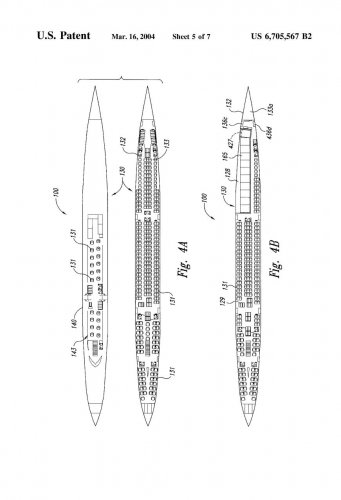

Boeing's 2004 US patent #6705567
http://www.google.com/patents?id=QdcPAAAAEBAJ&dq

First one would perfectly fit in Casino Royale...and the second is looking like highly surprised dolphin.


Attachments

  • SC_Mutato_potato_01s.jpg
    98.6 KB · Views: 123
  • SC_Mutato_potato_02s.jpg
    79.5 KB · Views: 67
  • SC_Mutato_potato_03s.jpg
    93.9 KB · Views: 68
  • SC_Mutato_potato_04s.jpg
    69.1 KB · Views: 113

LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,202
Reaction score
130
The "deck and a half" was also seen on the 767 stretch designs that preceded the 777. The problem was that if you put in a full upper deck you ran out of space for the bags.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871
LO, just in case - don't you know what was this high-subsonic 'coke bottle'? Actually, it's from the same patent.


Attachments

  • Tandem_wing_aircraft_and_method_for_manu.jpg
    256 KB · Views: 278

gral_rj

ACCESS: Confidential
Joined
Sep 6, 2006
Messages
88
Reaction score
24
What little I know(remembered from a Flight International article) is that Boeing presented a SC configuration with a conventional mid-fuselage mounted wing in answer to some of the prospective clients, who disliked the wing and engine arrangement of the Sonic Cruiser. That was shortly(1, 2 months) before canceling the SC entirely, IIRC. The conventional wing arrangement dictated a coke-bottle fuselage, which was just what Boeing didn't want - the placement of wings and canards was chosen because, among other things, Boeing wanted to have a constant diameter fuselage(easier and cheaper to build), while still using area rule.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871
http://www.flightglobal.com/pdfarchive/view/2002/2002%20-%202818.html?search=sonic%20cruiser


Attachments

  • SC_midwing.jpg
    36.4 KB · Views: 228

LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,202
Reaction score
130
Yes, I suspect the "coke bottle" - which looks like some early-1970s supercritical wing "7X7" studies - was there to underline what was seen as a key feature of the Chronic Snoozer, which was the parallel-sided body.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871
Holy Banana! John Ostrower have found stadium seating mutation!
! http://www.flightglobal.com/blogs/flightblogger/2008/11/boeings-sonic-cruiser-revived.html


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com
News conference with Alan Mulally, President & CEO of Boeing Commercial Airplanes, unveiling the Sonic Cruiser design to the press on March 29, 2001. Service entry was expected in late 2007 or early 2008.

http://www.youtube.com/watch?v=_W_lRl1uVrg

Photographs of Alan Mulally and the Sonic Cruiser model from the March 29, 2001 press conference.


Attachments

  • sonic_cruiser_05.jpg
    26.4 KB · Views: 134
  • sonic_cruiser_06.jpg
    29.5 KB · Views: 132
  • sonic_cruiser_07.jpg
    30.1 KB · Views: 124
  • sonic_cruiser_08.jpg
    23.9 KB · Views: 67

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com
Photograph of the inlets of the Boeing Sonic Cruiser, according to Boeing 787 Dreamliner by Mark Wagner and Guy Norris, Zenith Press, 2009:

An innovative design feature of the Sonic Cruiser was its low drag inlets beneath the wings. Similar in cross section to the ovoid F-16 inlet but skewed outward, they stood proud from the airfame and clear of the boundary layer, ensuring a flow of "clean," undisturbed air into the shallow S-ducts feeding the buried engines. The configuration, revealed for the first time at the 2001 Paris Air Show, also posed some challenges, particularly with foreign-object ingestion.


Attachments

  • SonicCruiserInlet.JPG
    28 KB · Views: 75

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com
According to Boeing 787 Dreamliner by Mark Wagner and Guy Norris, Zenith Press, 2009:

To get around airline infrastructure concerns, Boeing presented airlines with alternative configurations. One was a "midwing" design that combined fairly conventional wings and tail surfaces with a "wasp-waisted" or area-ruled fuselage. The concept was configured with two main cabin cross sections, a wide cabin in the fore body and aft body, and a slimmer midbody section. The design resurrected a far reaching 1972 Boeing-NASA study that evaluated area-ruling in several concepts optimized for cruise speeds in the Mach 0.9 to .98 range.

I presume that this is an artist's impression based on Figure 1C, Figure 1D, and Figure 1E attached by flateric above from US Patent 6705567.


Attachments

  • WaspWaistSonicCruiser.JPG
    19.4 KB · Views: 76

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
Has anyone got an article (or a link) that would explain exactly why and how the Sonic Cruiser was canceled? This was the first transport program that I was really thrilled about and I never quite understood what killed it. All I know is that whenever "Sonic Cruiser" is pronounced, there always seem to be snide or derogatory remarks, if not outright laughs...

Top
